Description
| Max.drilling capacity | 35mm |
| Max. Tapping diameter | M24 |
| Spindle taper | MT3 or MT4 |
| Spindle stroke | 130mm |
| Spindle center to column surface | 310mm |
| Spindle nose to worktable | 85-685mm |
| Spindle nose to base | 1140mm |
| Spindle speeds range (12steps) | 75~3200rpm |
| Speed power feed range | 0.1/0.18/0.26mm/r |
| Diameter of column | 125mm |
| Worktable size | 580x380mm |
| Base size | 670x470mm |
| Width of T-slot | 2-14mm |
| Main motor（2 speed motor） | 1.1/1.5kw |

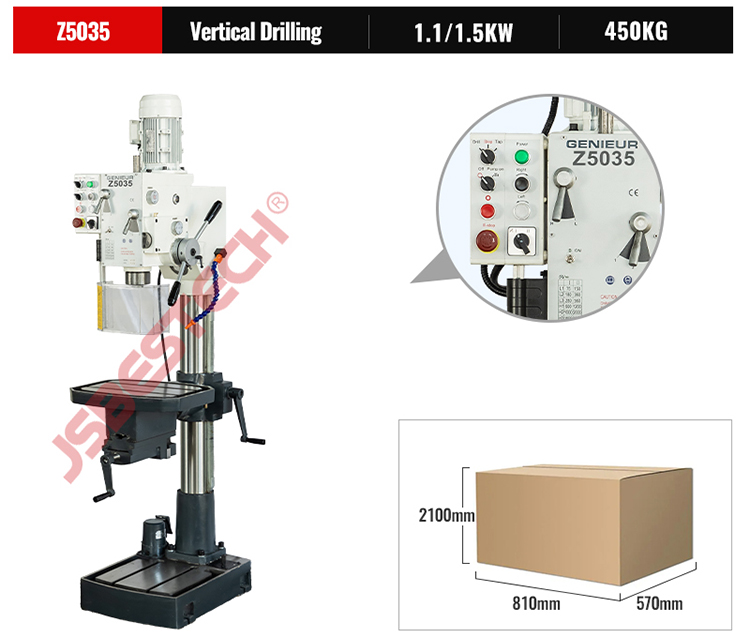

| Packing size | 810x570x2100mm |
| N.W/G.W | 450/490kg |
