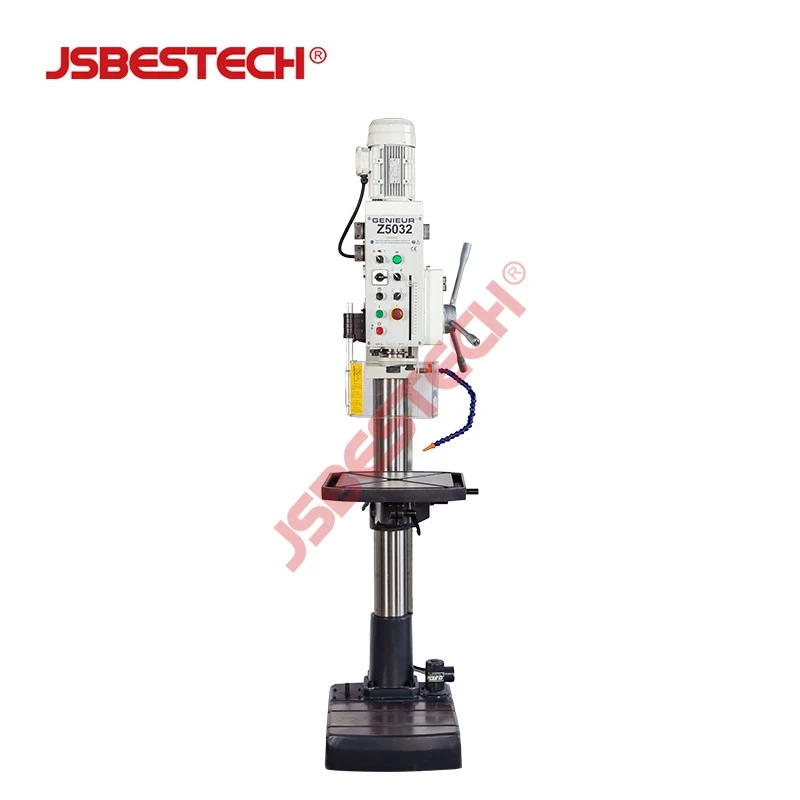

Z5032 Big Bench Drilling Machine
Jiangsu Bestech Industrial Co., Ltd. presents the Z5032, a heavy-duty bench drilling machine engineered for large-scale metalworking. With a generous worktable and robust construction, it delivers stable performance for demanding drilling operations.

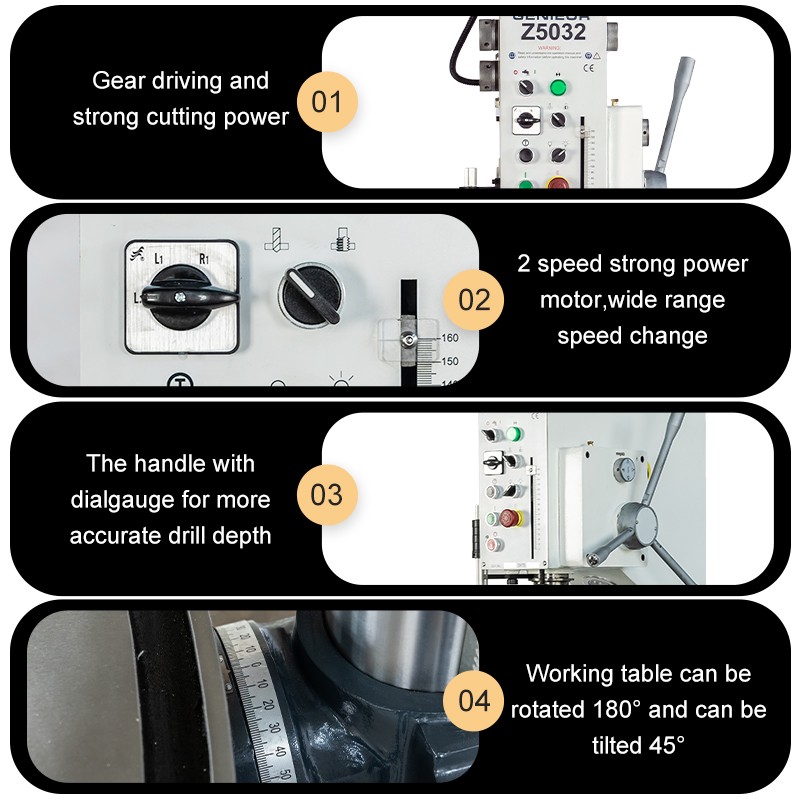

Key Features
- Max. drilling capacity of 32mm for versatile metal drilling
- 12 spindle speeds ranging from 75 to 3200rpm for optimal cutting
- Spindle stroke of 160mm and MT4 spindle taper
- Large worktable (460x460mm) and base (620x450mm) for workpiece stability
- Power feed with three speed options: 0.06/0.12/0.18mm/r
- Durable 125mm diameter column for rigidity
- Two-speed main motor (1.5/1.1kW) for efficient power delivery

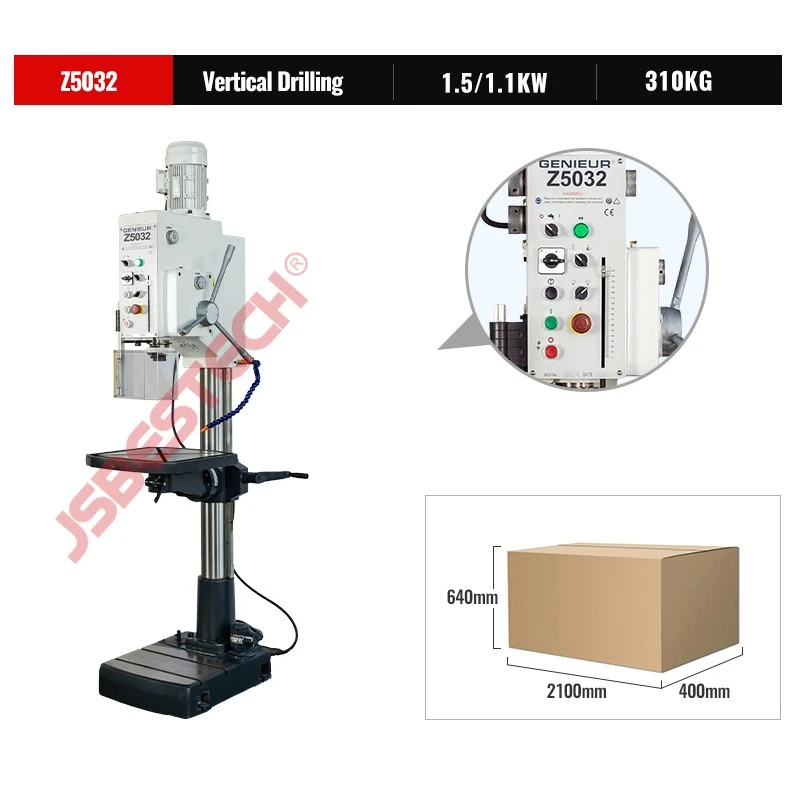

Specifications
| Parameter | Value |
|---|---|
| Max. drilling capacity | 32mm |
| Spindle taper | MT4 |
| Spindle stroke | 160mm |
| Spindle center to column surface | 300mm |
| Spindle nose to worktable | Max. 720mm |
| Spindle nose to base | 1200mm |
| Spindle speeds range (12 steps) | 75~3200rpm |
| Speed power feed range | 0.06/0.12/0.18mm/r |
| Diameter of column | 125mm |
| Worktable size | 460x460mm |
| Base size | 620x450mm |
| Width of T-slot | 14mm |
| Main motor (2 speed motor) | 1.5/1.1kW |
| Packing size | 2100x400x640mm |
| N.W/G.W | 310/350kg |
For more information about the Z5032 bench drilling machine, please contact Jiangsu Bestech Industrial Co., Ltd.
What is For metal Z5032 bench size big drilling machine?
The Z5032 is a bench-size drilling machine designed for metalworking applications. It offers a maximum drilling capacity of 32mm and a spindle stroke of 160mm. The spindle speeds range from 75 to 3200 rpm in 12 steps, providing versatility for various drilling tasks. With a worktable size of 460x460mm and a T-slot width of 14mm, it accommodates a range of workpieces.
Applications
- Drilling holes up to 32mm in diameter in metal workpieces
- Tapping and reaming operations in metalworking
- Suitable for maintenance shops, small-scale production, and fabrication
- Ideal for drilling in cast iron, steel, and non-ferrous metals
- Can be used for countersinking and spot facing
FAQ
What is the maximum drilling capacity of the Z5032?
The maximum drilling capacity is 32mm.
What is the spindle speed range of this machine?
The spindle speeds range from 75 to 3200 rpm in 12 steps.
What is the size of the worktable?
The worktable size is 460x460mm.
What is the spindle taper?
The spindle taper is MT4.
What is the width of the T-slot?
The width of the T-slot is 14mm.
