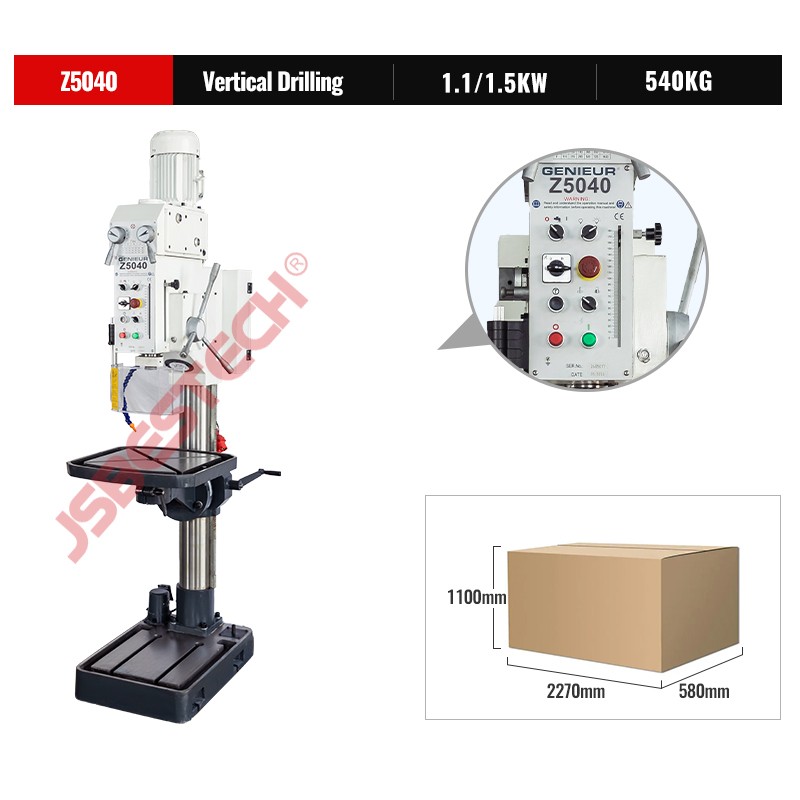

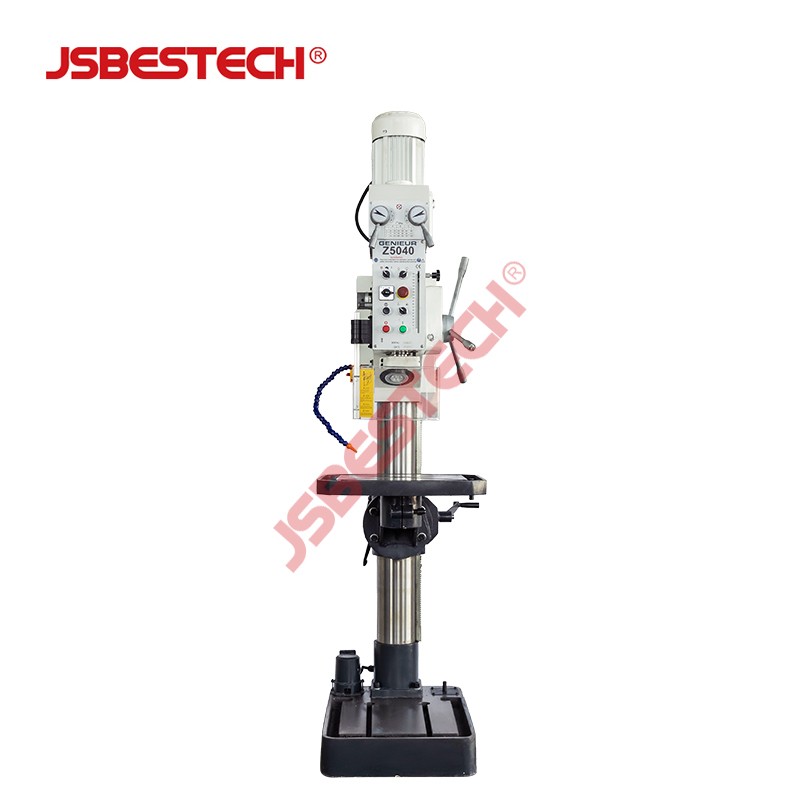

Z5040 Vertical Drilling and Tapping Machine
The Z5040 is a robust vertical drilling and tapping machine designed for demanding industrial applications. With a powerful 2.8 kW motor and a maximum drilling capacity of 40 mm, it delivers reliable performance for medium to large-scale production. Its vertical configuration and bench drill press stand ensure stability and precision during operation.

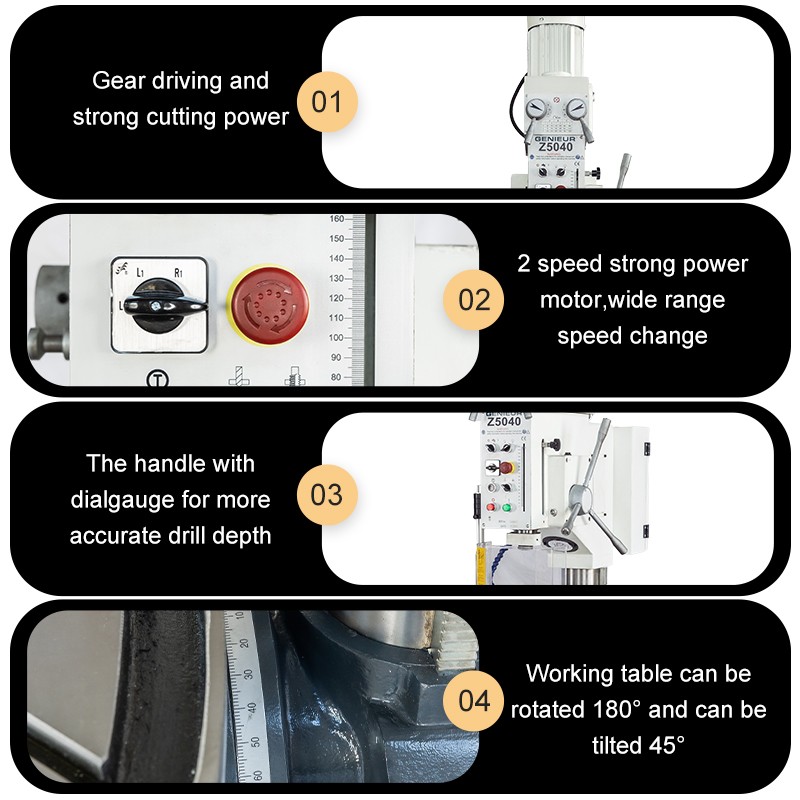

Key Features
- Maximum drilling capacity: 40 mm
- Maximum tapping diameter: M24
- Spindle stroke: 180 mm
- Spindle taper: MT4
- 12 spindle speeds ranging from 50 to 1450 rpm
- Power feed range: 0.1/0.2 mm/r
- Heavy-duty column diameter: 150 mm
- Spindle center to column surface: 350 mm
- Spindle nose to worktable: 770 mm
- Spindle nose to base: 1215 mm
- Net weight: 540 kg; Gross weight: 600 kg
Specifications
| Parameter | Value |
|---|---|
| Max. drilling capacity | 40 mm |
| Max. tapping diameter | M24 |
| Spindle taper | MT4 |
| Spindle stroke | 180 mm |
| Spindle center to column surface | 350 mm |
| Spindle nose to worktable | 770 mm |
| Spindle nose to base | 1215 mm |
| Spindle speeds range (12 steps) | 50~1450 rpm |
| Speed power feed range | 0.1/0.2 mm/r |
| Diameter of column | 150 mm |
| Net weight / Gross weight | 540 kg / 600 kg |
Applications
The Z5040 is suitable for drilling, tapping, reaming, and boring in various materials including steel, cast iron, and non-ferrous metals. Its robust construction and wide speed range make it ideal for maintenance shops, tool rooms, and production lines.
Why Choose the Z5040?
Built by Jiangsu Bestech Industrial Co., Ltd., this machine combines durability with precision. The vertical design saves floor space while providing ample working area. The 2.8 kW motor ensures efficient operation even under heavy loads. With a net weight of 540 kg, it offers excellent stability without compromising on mobility.
For more information or to discuss your specific requirements, please contact us.
What is Vertical machine Z5040 2.8KW bench drill press stand?
The Vertical Machine Z5040 is a 2.8KW bench drill press stand designed for heavy-duty drilling and tapping operations. It offers a maximum drilling capacity of 40mm and a maximum tapping diameter of M24, making it suitable for a wide range of industrial applications. With a spindle stroke of 180mm and a robust construction, this machine ensures precise and efficient performance. Manufactured by Jiangsu Bestech Industrial Co., Ltd., it is a reliable choice for workshops and manufacturing environments.
Applications
- Metalworking and fabrication shops for drilling and tapping operations
- Automotive repair and maintenance for drilling holes in metal components
- Construction sites for on-site drilling tasks
- Educational institutions for training in machining and metalworking
- Home workshops for DIY projects requiring precise drilling
FAQ
What is the maximum drilling capacity of the Z5040?
The maximum drilling capacity is 40mm.
What is the maximum tapping diameter?
The maximum tapping diameter is M24.
What is the spindle stroke of this machine?
The spindle stroke is 180mm.
What is the power rating of the Z5040?
The machine is powered by a 2.8KW motor.
What is the net weight of the machine?
The net weight is 540kg, and the gross weight is 600kg.
