Description
| Max.drilling capacity | 32mm |
| Spindle taper | MT4 |
| Spindle stroke | 160mm |
| Spindle center to column surface | 300mm |
| Spindle nose to worktable | Max. 720mm |
| Spindle nose to base | 1200mm |
| Spindle speeds range (12steps) | 75~3200rpm |
| Speed power feed range | 0.06/0.12/0.18mm/r |
| Diameter of column | 125mm |
| Worktable size | 460x460mm |
| Base size | 620x450mm |
| Width of T-slot | 14mm |
| Main motor（2 speed motor） | 1.5/1.1kw |

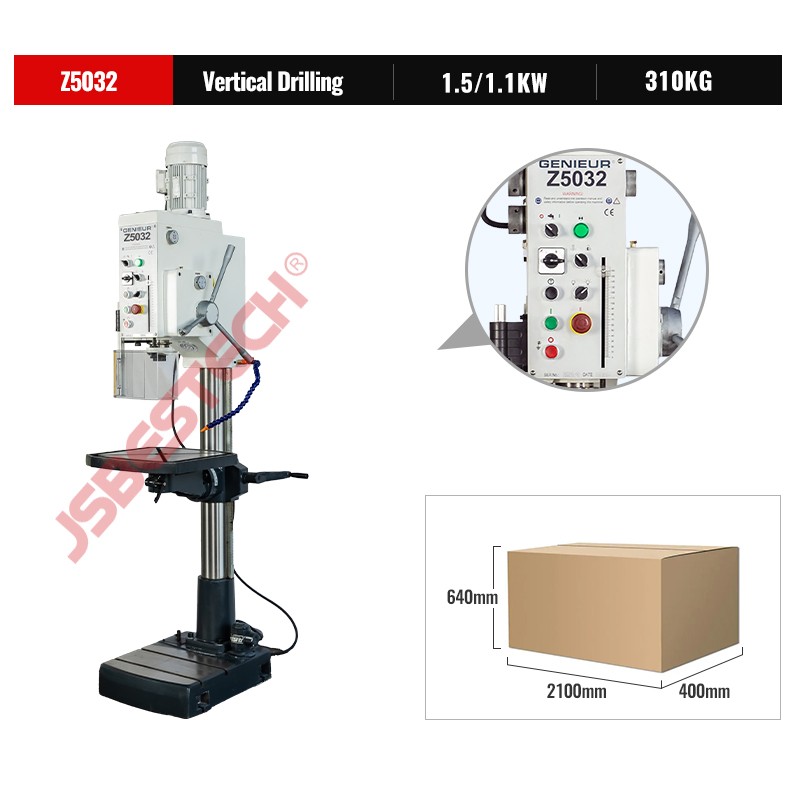

| Packing size | 2100x400x640mm |
| N.W/G.W | 310/350kg |
