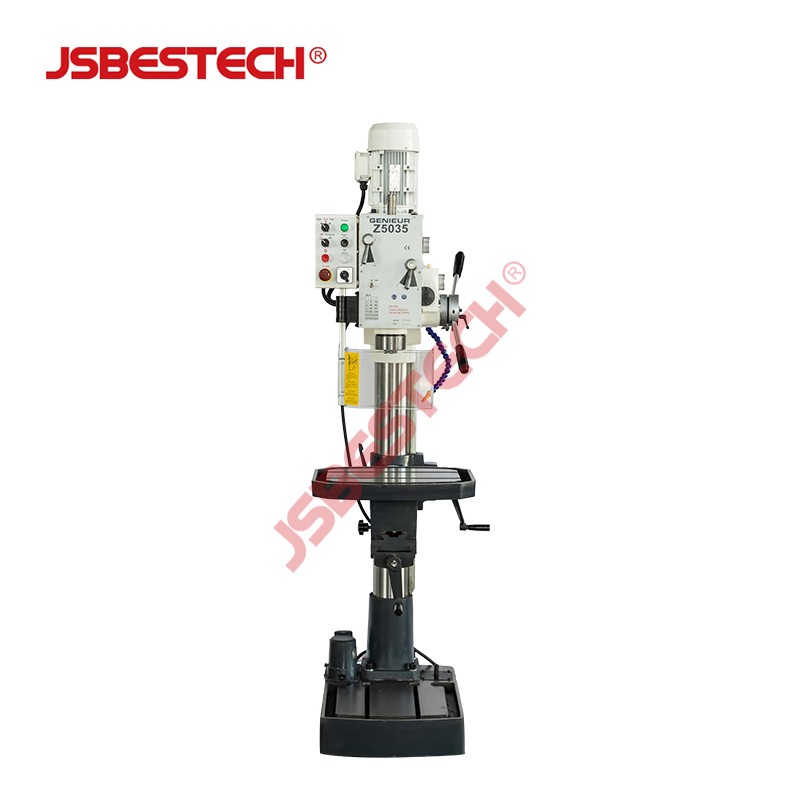

Z5035 Vertical Drilling Machine
Jiangsu Bestech Industrial Co., Ltd. presents the Z5035 vertical drilling machine, a robust and versatile solution for precision drilling and tapping operations. Engineered for industrial workshops, this machine combines a powerful two-speed motor with a wide spindle speed range to handle diverse materials and applications.
Key Features
- Max. drilling capacity of 35mm for efficient holemaking
- Max. tapping diameter of M24 for threading operations
- Spindle taper MT3 or MT4 for tooling flexibility
- Spindle stroke of 130mm for deep drilling
- 12 spindle speeds ranging from 75 to 3200rpm
- Power feed with three speed options: 0.1/0.18/0.26mm/r

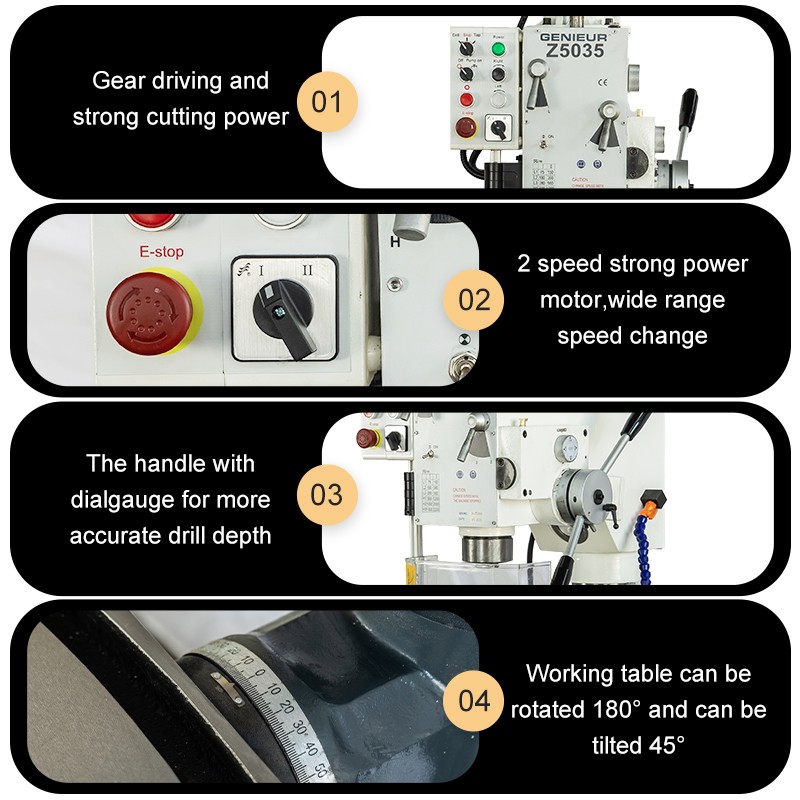

- Main motor (2-speed) rated at 1.1/1.5kW
- Large worktable (580x380mm) and base (670x470mm) for stability
Technical Specifications
| Parameter | Value |
|---|---|
| Max. drilling capacity | 35mm |
| Max. tapping diameter | M24 |
| Spindle taper | MT3 or MT4 |
| Spindle stroke | 130mm |
| Spindle center to column surface | 310mm |
| Spindle nose to worktable | 85-685mm |
| Spindle nose to base | 1140mm |
| Spindle speeds range (12 steps) | 75~3200rpm |
| Speed power feed range | 0.1/0.18/0.26mm/r |
| Diameter of column | 125mm |
| Worktable size | 580x380mm |
| Base size | 670x470mm |
| Width of T-slot | 2-14mm |
| Main motor (2-speed motor) | 1.1/1.5kW |

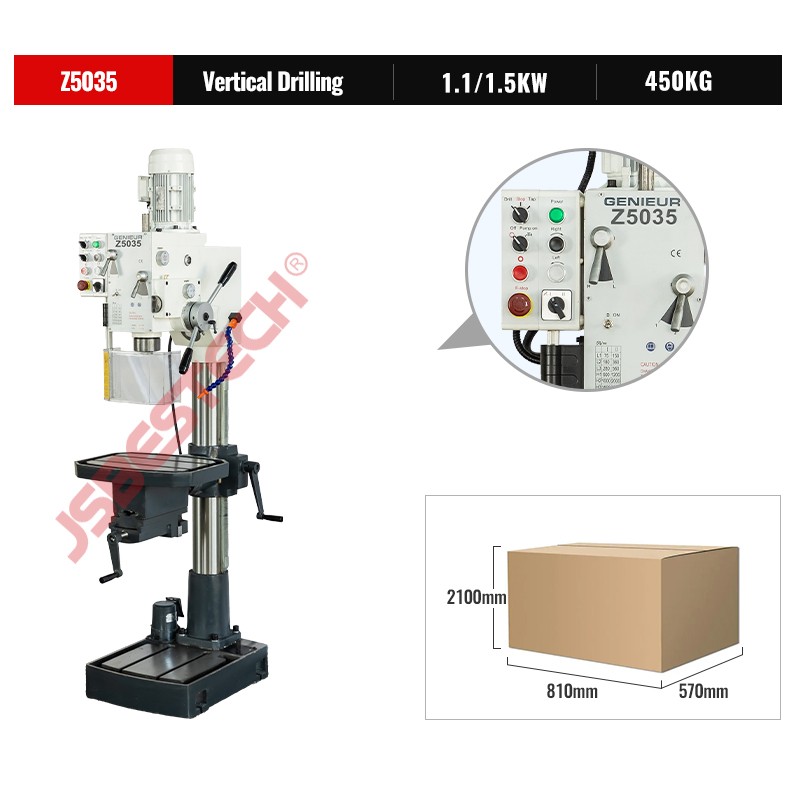

| Packing size | 810x570x2100mm |
Applications
The Z5035 is suitable for drilling, tapping, reaming, and boring in various materials. Its 12-step speed range and power feed make it ideal for both small-batch and production environments. The vertical design allows for precise control and easy workpiece positioning.
Why Choose the Z5035?
With a solid column diameter of 125mm and a large worktable, this machine offers stability and accuracy. The two-speed motor provides torque for demanding tasks, while the wide speed range accommodates different tooling and materials. Jiangsu Bestech Industrial Co., Ltd. ensures reliable performance and durable construction.
For more information or to discuss your specific requirements, please contact us.
What is Z5035 Vertical Drilling Machine?
The Z5035 is a vertical drilling machine designed for drilling, tapping, and related machining operations. It offers a maximum drilling capacity of 35 mm and a maximum tapping diameter of M24. The machine features a spindle stroke of 130 mm and a 12-step spindle speed range from 75 to 3200 rpm. It is powered by a 1.1/1.5 kW two-speed main motor.
Applications
- Drilling holes up to 35 mm in diameter in metal workpieces.
- Tapping threads up to M24.
- Suitable for use in machine shops, maintenance workshops, and manufacturing facilities.
- Can be used for single-piece or batch production.
- Ideal for general machining tasks on cast iron, steel, and other materials.
FAQ
What is the maximum drilling capacity of the Z5035 vertical drilling machine?
The maximum drilling capacity is 35 mm.
What is the maximum tapping diameter?
The maximum tapping diameter is M24.
What is the spindle speed range?
The spindle speed range is 75 to 3200 rpm with 12 steps.
What is the power of the main motor?
The main motor is a two-speed motor with 1.1/1.5 kW power.
What is the spindle stroke?
The spindle stroke is 130 mm.
