HomeProductsDrilling MachineVertical Drill MachineZ5025 Drilling Milling machine
  • Z5025 Drilling Milling machine
  • Z5025 Drilling Milling machine
  • Z5025 Drilling Milling machine
  • Z5025 Drilling Milling machine
Z5025 Drilling Milling machine Z5025 Drilling Milling machine Z5025 Drilling Milling machine Z5025 Drilling Milling machine

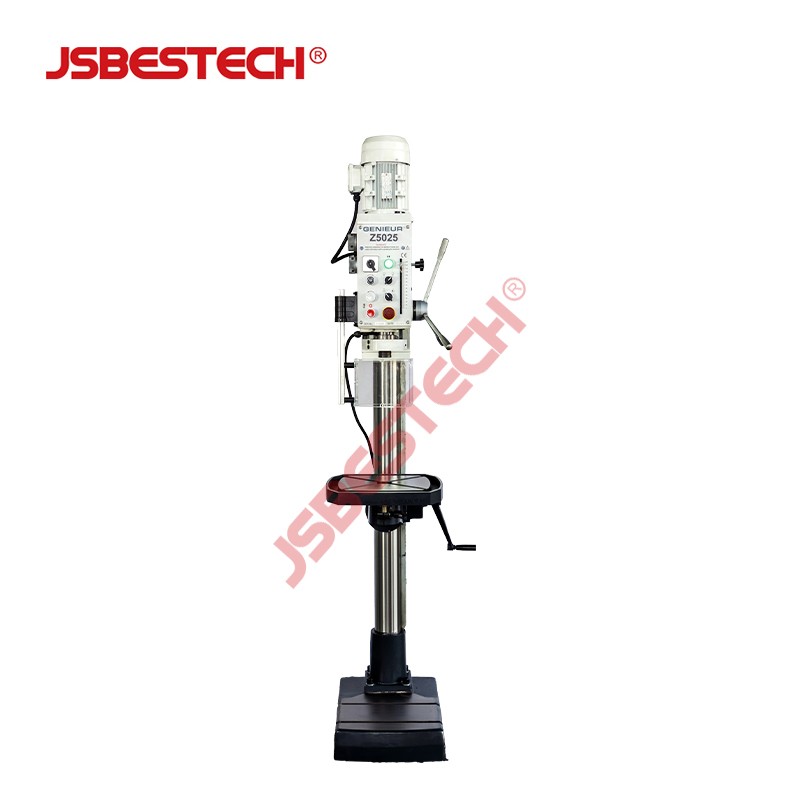

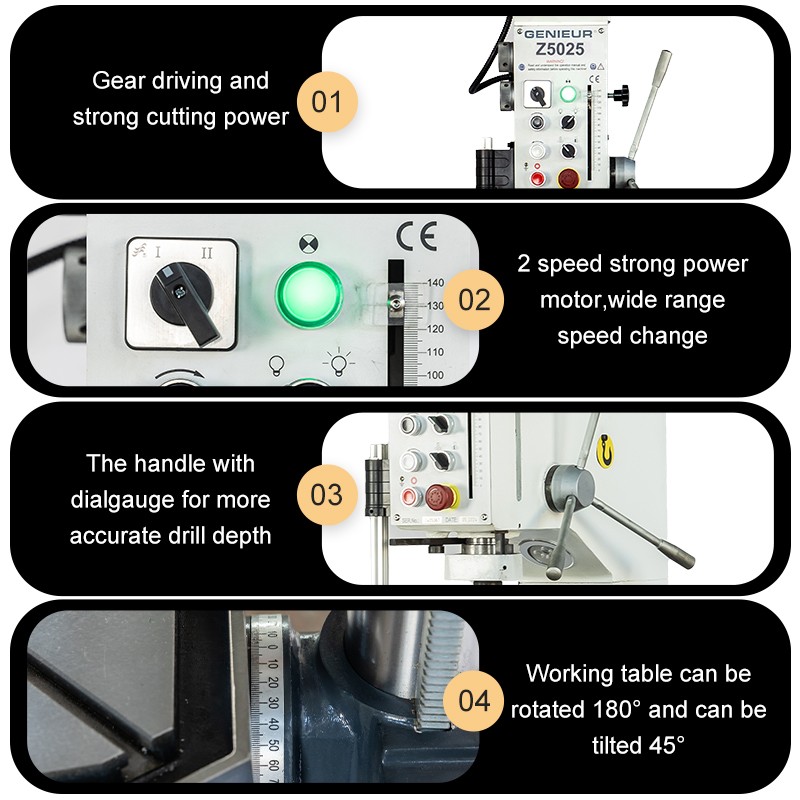

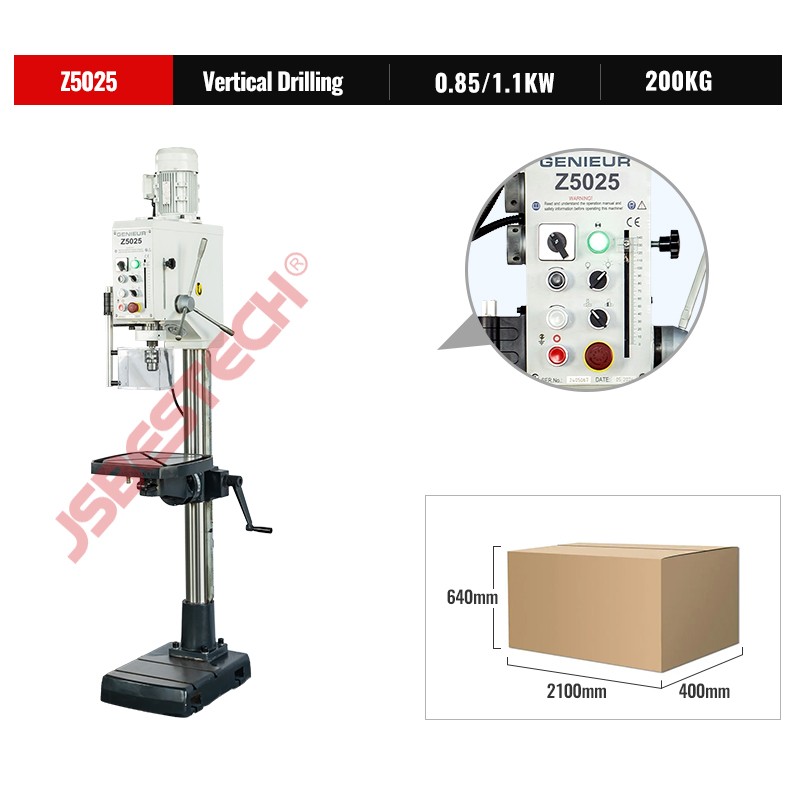

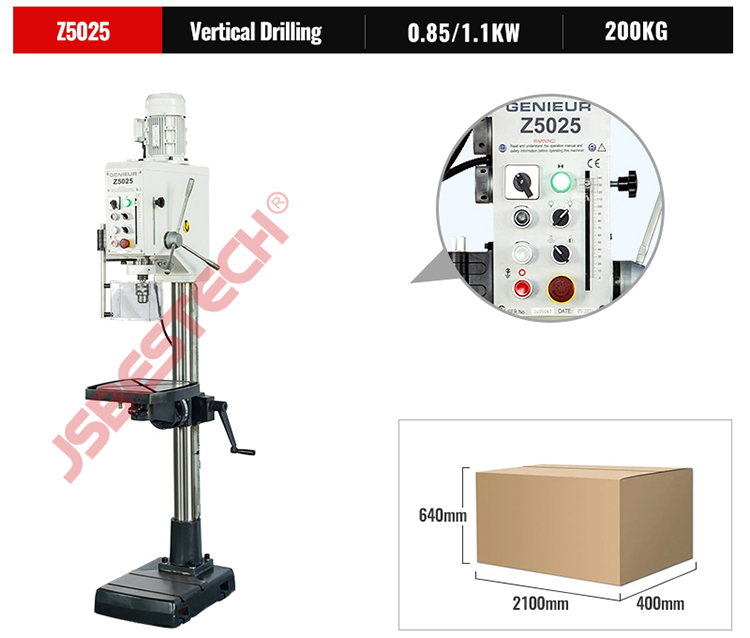

Z5025 Drilling Milling machine

  • Max.drilling capacity 28mm
  • Max.tapping capacity M22
  • Distance from spindle center to column surface 250mm
  • Distance from spindle nose to worktable 125-825mm
  • Inquiry Send Email

    Description

    Model
    Z5025
    Distance from spindle nose to base
    1220mm
    Vertical travel of worktable
    750mm
    Spindle taper
    MT3
    Spindle stroke
    130mm
    Spindle speeds range
    75-3200rpm
    Number of speeds
    12 steps
    Speed power feed range
    No
    Diameter of column
    Ø100
    Worktable size
    380×380mm
    Dimensions of base
    360×535mm
    Width of T-slot
    14mm
    Main motor(2 speed motor)
    0.85/1.1kw
    Cooling pump
    40w (Optional)
    Packing size(L×W×H)
    2100×400×640mm
    N.W/G.W
    200/230kg

    Inquiry Us





    Related Products

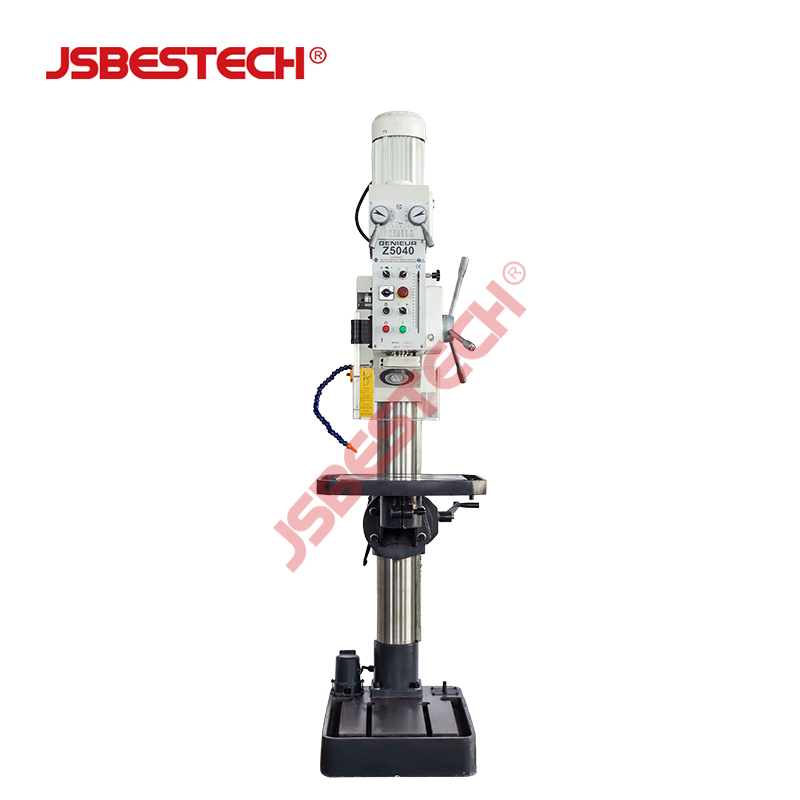

    Vertical machine Z5040A 2.8KW bench drill press stand

    Vertical machine Z5040A 2.8KW bench drill press stand

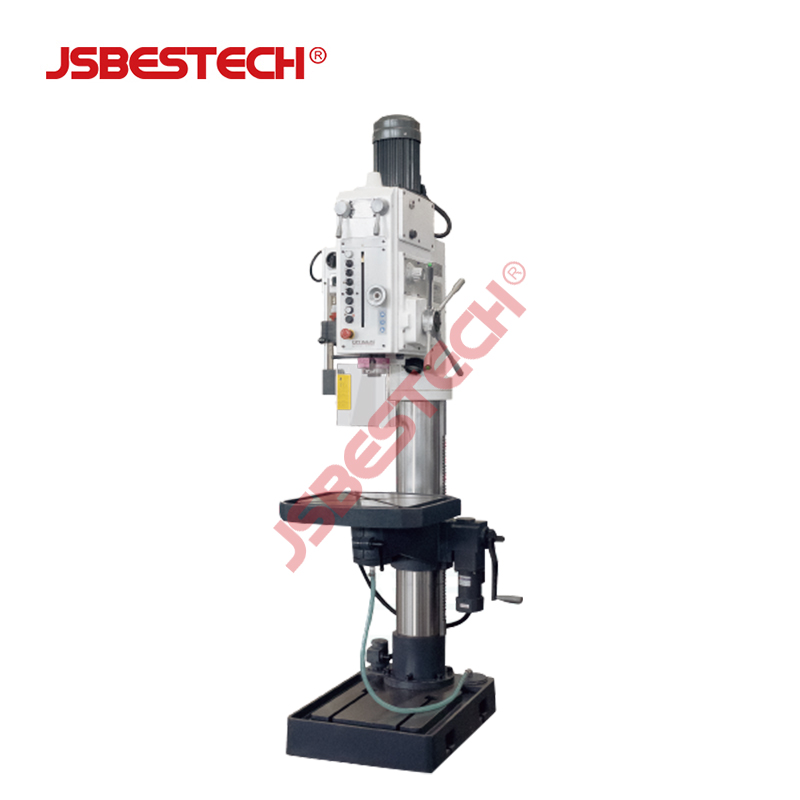

    Z5050 Heavy Duty Pillar Drilling Machine
