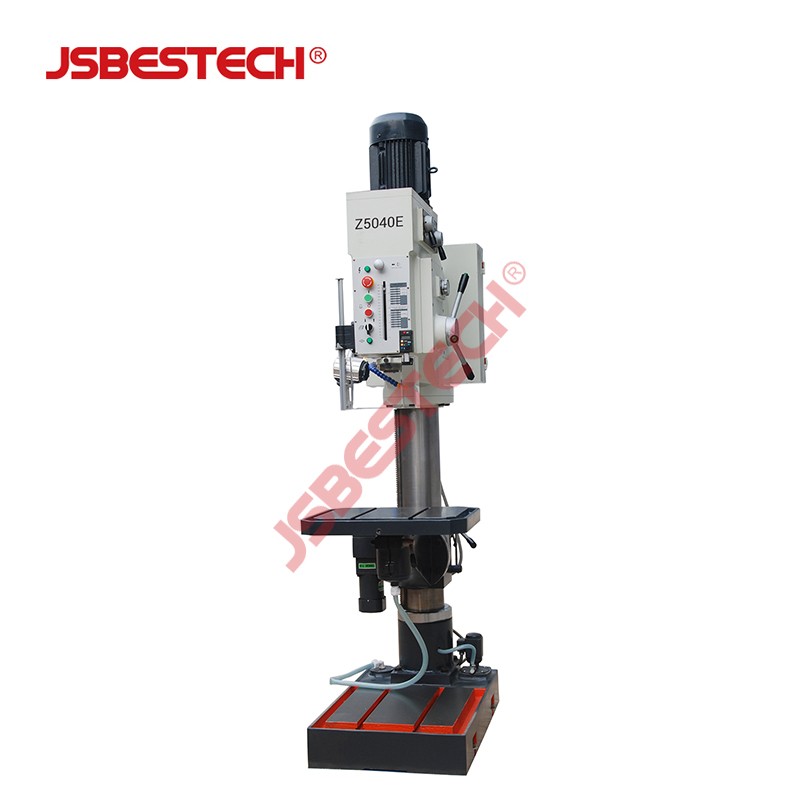

Z5040E Vertical Drilling and Tapping Machine
Jiangsu Bestech Industrial Co., Ltd. presents the Z5040E, a robust vertical machine designed for precision drilling and tapping operations. Built for demanding industrial environments, this model combines power, accuracy, and durability to enhance your production efficiency.
Key Specifications
| Parameter | Value |
|---|---|
| Max. drilling capacity | 40mm |
| Max. tapping diameter | M28 |
| Spindle taper | MT4 |
| Spindle stroke | 180mm |
| Spindle center to column surface | 360mm |
| Spindle nose to worktable | 600mm |
| Spindle nose to base | 1215mm |
| Spindle speeds range (12 steps) | 42~2050rpm |
| Speed power feed range (4 steps) | 0.07/0.15/0.26/0.4mm/r |
| Diameter of column | 160mm |

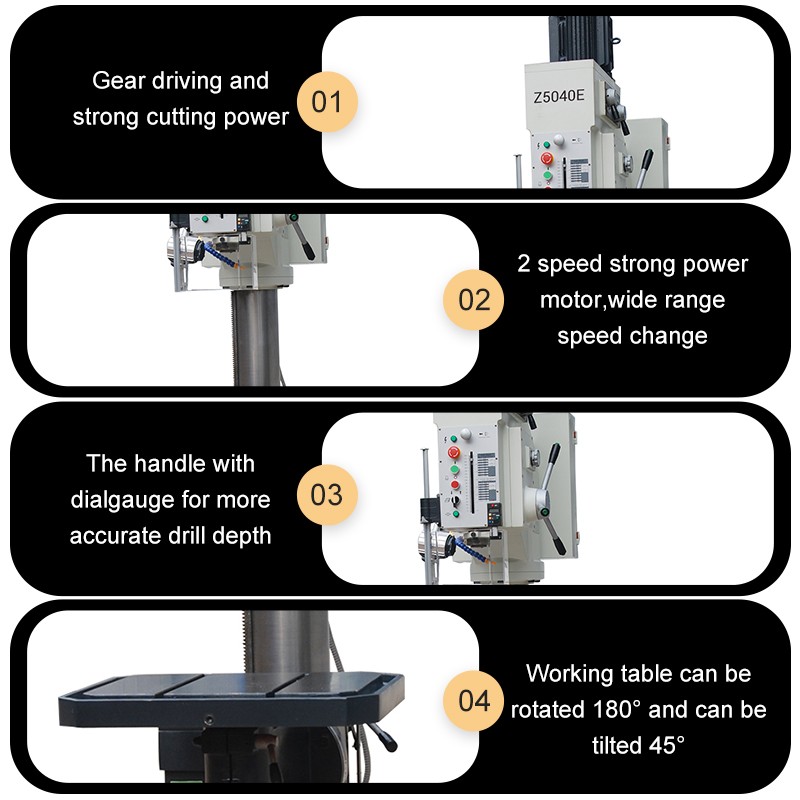

Features
- Powerful drilling capacity up to 40mm for versatile applications.
- Tapping capability up to M28 for efficient threading.
- MT4 spindle taper ensures compatibility with standard tooling.
- 12 spindle speeds ranging from 42 to 2050 rpm for optimal cutting conditions.
- 4-step power feed range for controlled and consistent feed rates.
- Rigid 160mm diameter column for stability and minimal vibration.
- Generous spindle stroke of 180mm for deep drilling tasks.
- Spindle nose to worktable distance of 600mm accommodates various workpiece sizes.
Applications
The Z5040E is ideal for metalworking, maintenance shops, and manufacturing facilities requiring reliable drilling and tapping operations. Its robust construction and precise controls make it suitable for both small-scale and large-scale production.
Why Choose Jiangsu Bestech Industrial Co., Ltd.?
With years of experience in the industry, Jiangsu Bestech Industrial Co., Ltd. is committed to delivering high-quality machinery and exceptional service. The Z5040E vertical machine reflects our dedication to innovation and customer satisfaction.
For more information or to discuss your specific requirements, please contact us.
What is Z5040E Vertical machine?

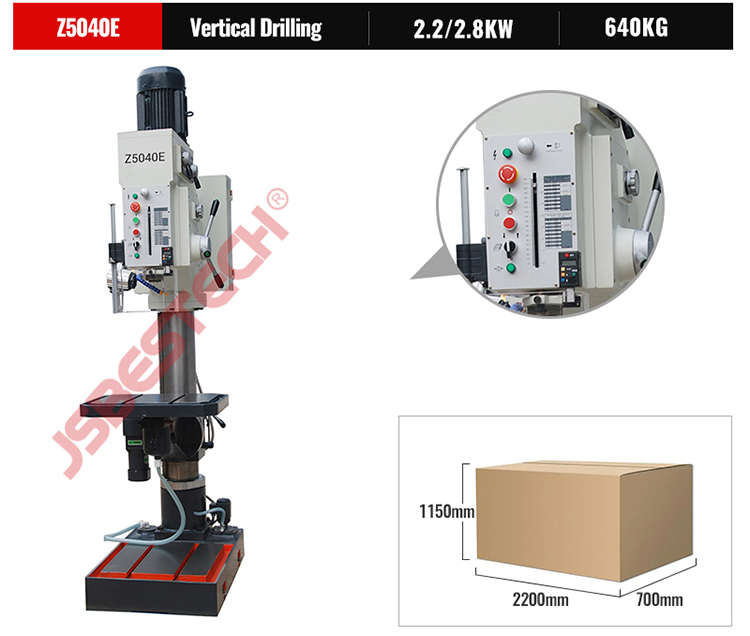

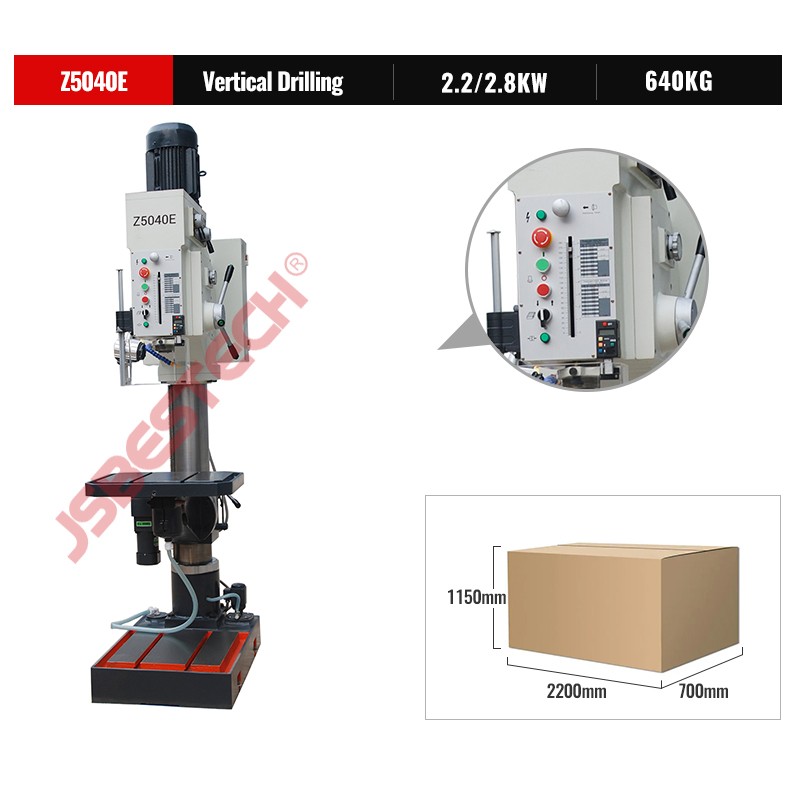

The Z5040E Vertical Machine is a vertical drilling and tapping machine manufactured by Jiangsu Bestech Industrial Co., Ltd. It features a maximum drilling capacity of 40mm and a maximum tapping diameter of M28, making it suitable for a range of metalworking tasks. The machine offers a spindle stroke of 180mm and a spindle taper of MT4, providing flexibility for various tooling setups. With a weight of 640/750kg (N.W/G.W), it is a robust and stable piece of equipment for industrial use.
Applications
- Drilling holes up to 40mm in diameter in metal workpieces.
- Tapping threads up to M28 in size.
- Suitable for use in general machining, maintenance, and fabrication workshops.
- Can be used for reaming, countersinking, and boring operations with appropriate tooling.
- Ideal for single-piece and batch production in manufacturing environments.
FAQ
What is the maximum drilling capacity of the Z5040E Vertical Machine?
The maximum drilling capacity is 40mm.
What is the maximum tapping diameter of this machine?
The maximum tapping diameter is M28.
What is the spindle stroke of the Z5040E?
The spindle stroke is 180mm.
What is the weight of the Z5040E Vertical Machine?
The net weight is 640kg and the gross weight is 750kg.
What is the spindle taper of the Z5040E?
The spindle taper is MT4.
