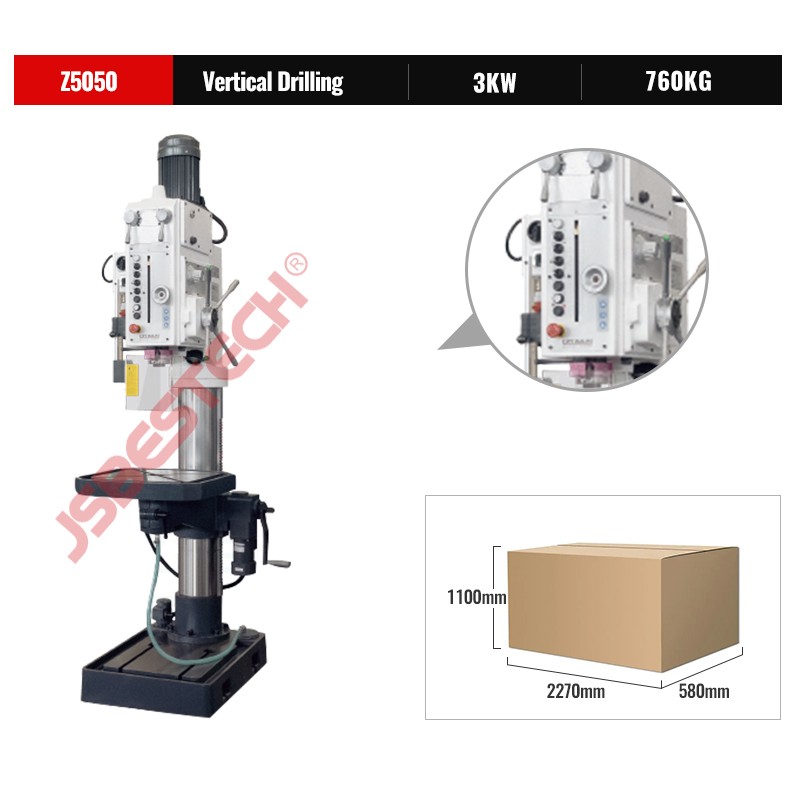

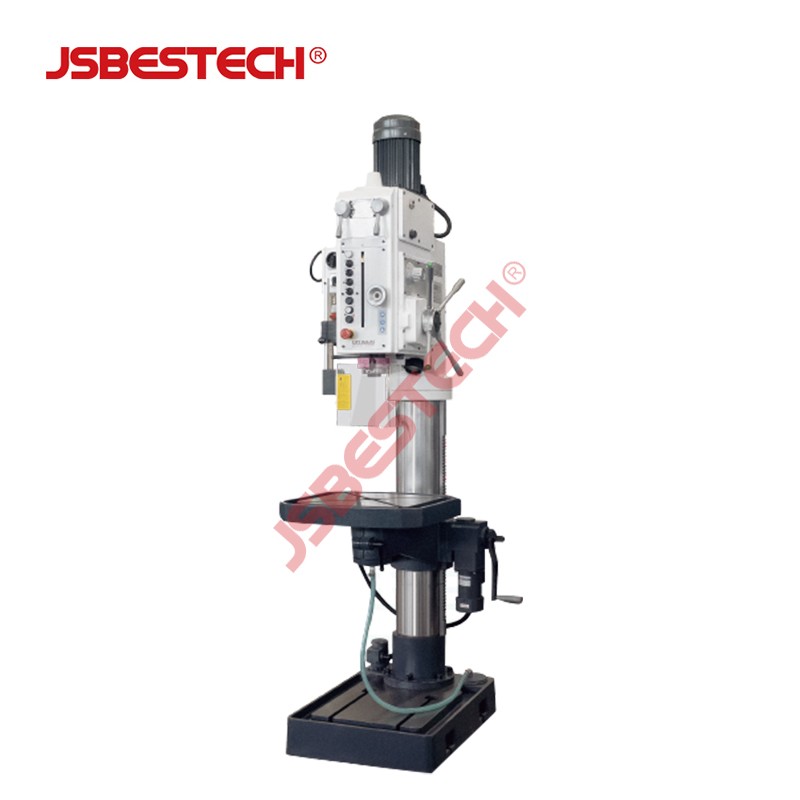

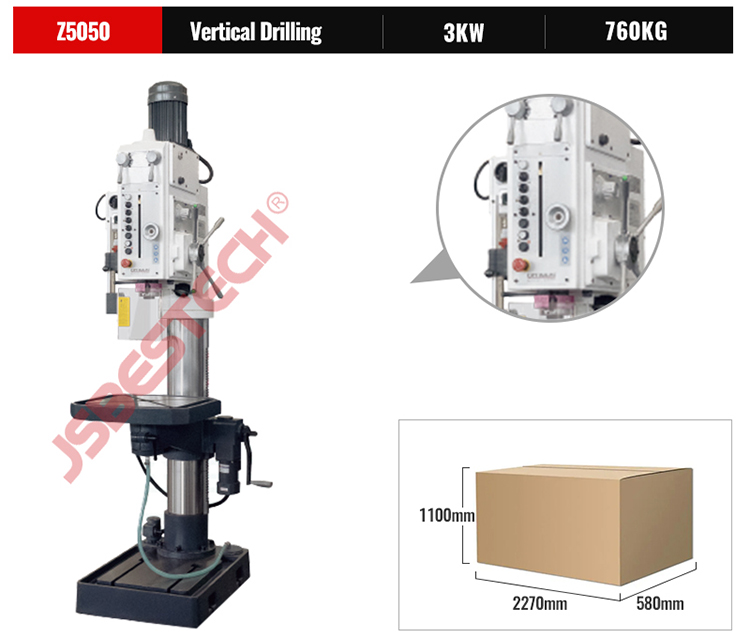

Z5050 Vertical Metal Hole Drilling Machine
Jiangsu Bestech Industrial Co., Ltd. offers the Z5050 vertical drilling machine, designed for precision metal hole drilling and tapping operations. With a robust construction and user-friendly controls, this machine is suitable for various industrial applications.
Key Features
- Max. drilling capacity: 50mm
- Max. tapping diameter: M33
- Spindle taper: MT4
- Spindle stroke: 210mm
- Spindle center to column surface: 375mm
- Spindle nose to worktable: 80-800mm
- Spindle nose to base: 1325mm
- Spindle speeds range (12 steps): 55~1450rpm
- Speed power feed range (4 steps): 0.1/0.2/0.3/0.4mm/r
- Diameter of column: 180mm
- N.W/G.W: 760/860kg
Specifications
| Specification | Value |
|---|---|
| Max. drilling capacity | 50mm |
| Max. tapping diameter | M33 |
| Spindle taper | MT4 |
| Spindle stroke | 210mm |
| Spindle center to column surface | 375mm |
| Spindle nose to worktable | 80-800mm |
| Spindle nose to base | 1325mm |
| Spindle speeds range (12 steps) | 55~1450rpm |
| Speed power feed range (4 steps) | 0.1/0.2/0.3/0.4mm/r |
| Diameter of column | 180mm |
| N.W/G.W | 760/860kg |
Applications
The Z5050 is ideal for drilling, tapping, and reaming in metalworking, mold making, and general machining. Its vertical design allows for easy positioning of large workpieces.

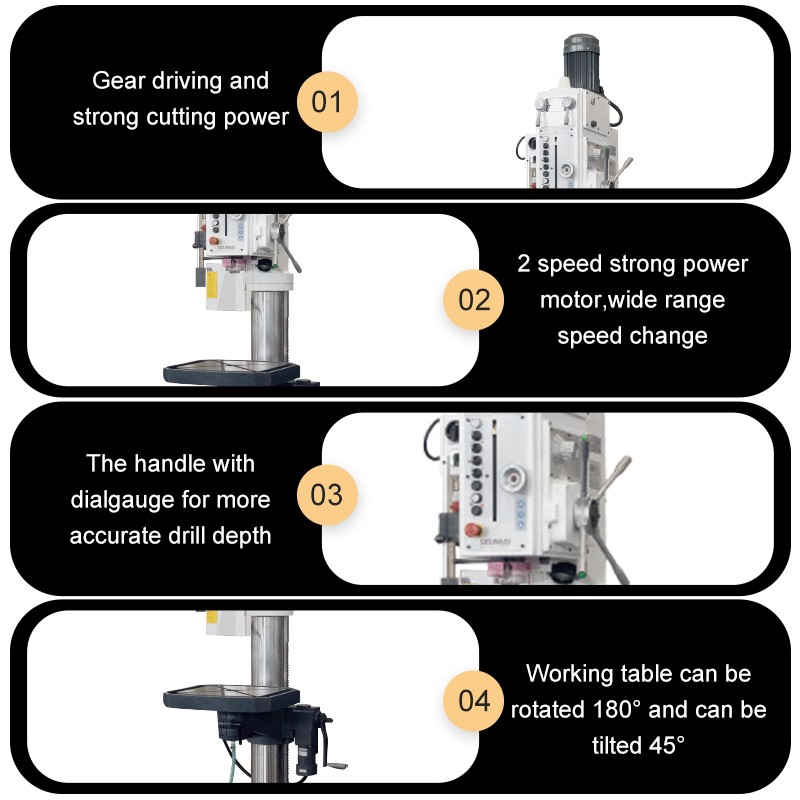

Why Choose This Machine?
With a powerful spindle and multiple speed settings, the Z5050 delivers consistent performance. The sturdy column and base ensure stability during heavy-duty operations. Jiangsu Bestech Industrial Co., Ltd. provides reliable export services and technical support.
For more information or to request a quote, please contact us.
What is Z5050 Vertical metal hole drilling machine for sale?
The Z5050 is a vertical metal hole drilling machine designed for industrial metalworking. It offers a maximum drilling capacity of 50mm and a maximum tapping diameter of M33, with an MT4 spindle taper. The machine features a 210mm spindle stroke and 12 spindle speed steps, providing flexibility for various drilling and tapping operations. With a net weight of 760kg and gross weight of 860kg, it is a robust and stable machine suitable for heavy-duty applications.
Applications
- Drilling holes up to 50mm diameter in steel, cast iron, and other metals.
- Tapping threads up to M33 in metal workpieces.
- Suitable for maintenance workshops, fabrication shops, and manufacturing plants.
- Ideal for single-piece and batch production of metal components.
- Used in general machining, tool rooms, and repair facilities.
FAQ
What is the maximum drilling capacity of the Z5050?
The Z5050 has a maximum drilling capacity of 50mm in diameter.
What is the maximum tapping diameter?
The maximum tapping diameter is M33.
What is the spindle taper of this machine?
The spindle taper is MT4.
What is the weight of the Z5050?
The net weight is 760kg and the gross weight is 860kg.
How many spindle speeds does the Z5050 have?
The Z5050 has 12 spindle speed steps.
