Description

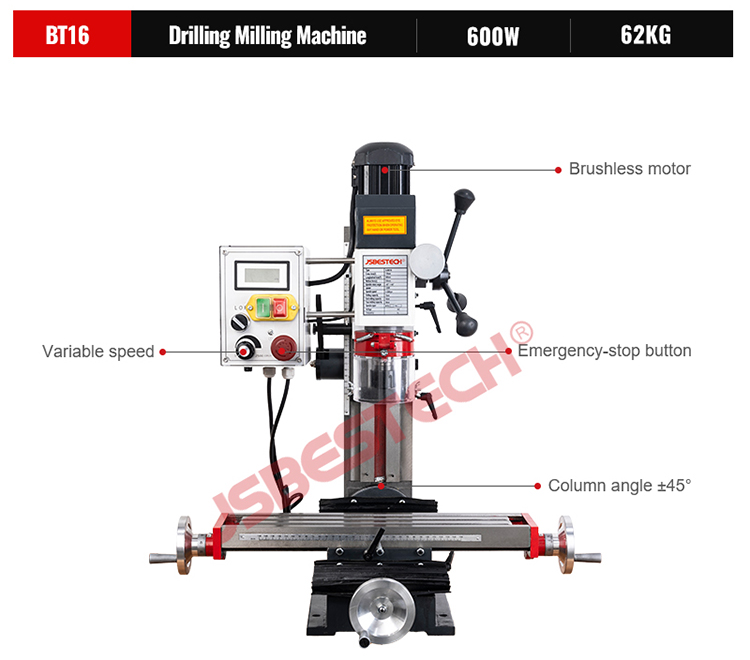

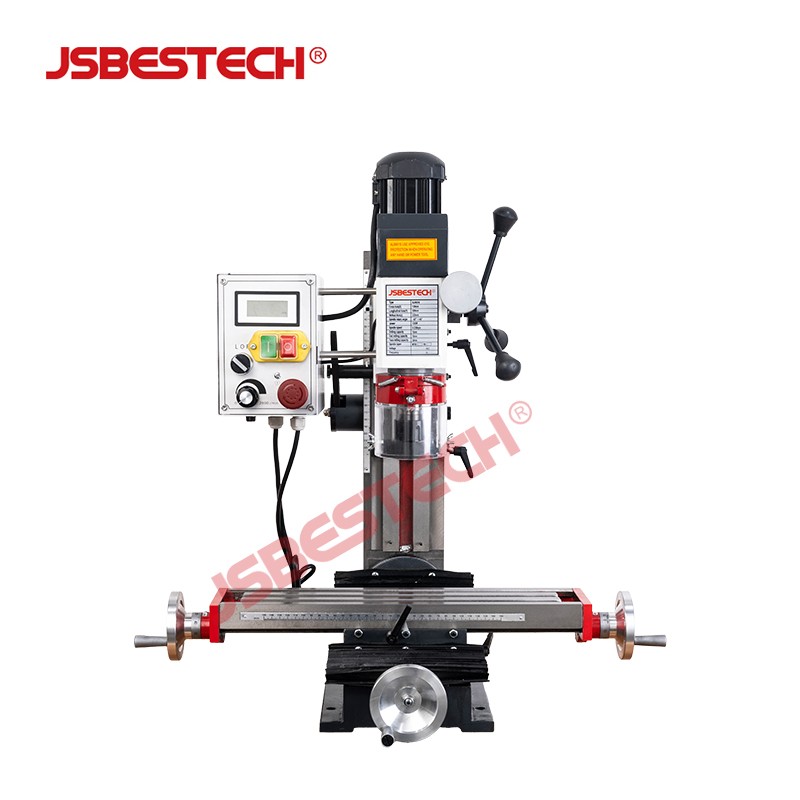

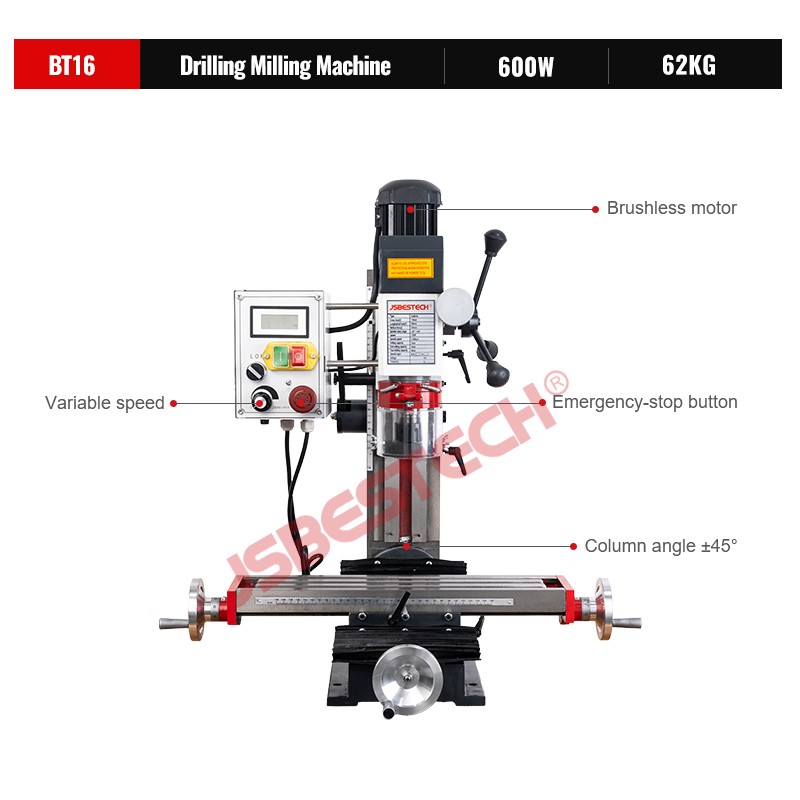

Mill & Drill | |
Max. drilling capacity | Ø16mm |
End milling capacity | Ø13mm |
Face milling capacity | Ø30mm |
Taper of spindle bore | MT3 |
Spindle travel | 50mm |
Spindle speed | 50~2250rpm |

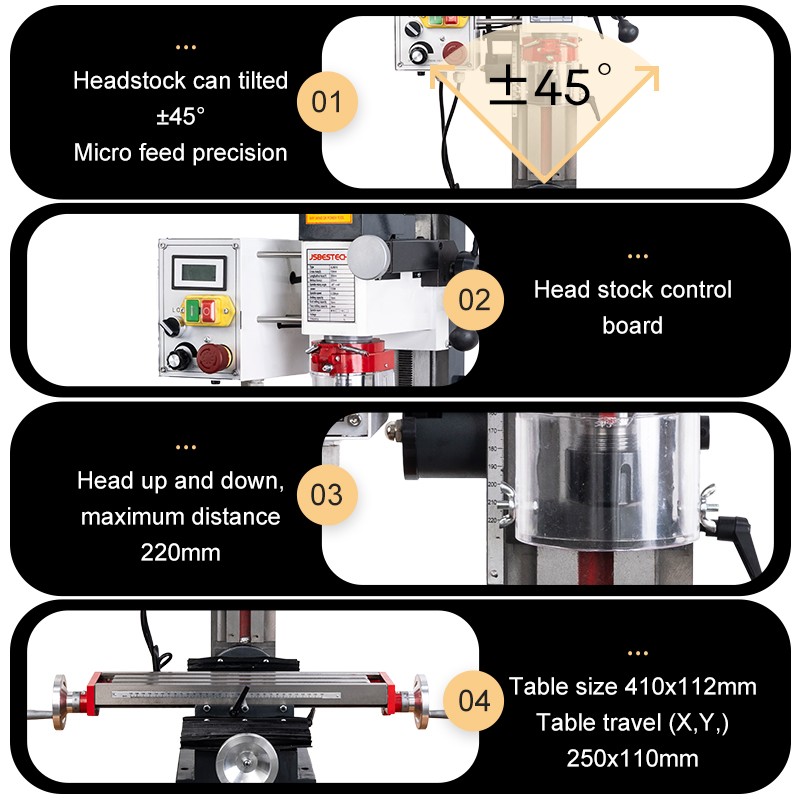

Head tilt left and right | ±45° |
Worktable | |
Working table size | 410x112mm/460x112mm (Optional) |
X-axis travel | 250/300mm (Optional) |
Y-axis travel | 100/130mm (Optional) |
Z-axis travel | 220mm |
T slot | 10mm |
Distance between spindle and column | 165mm |
Brushless motor | 600w |
Packing size | 570/640x560x740mm |
N.W/G.W | 62/80kg |
