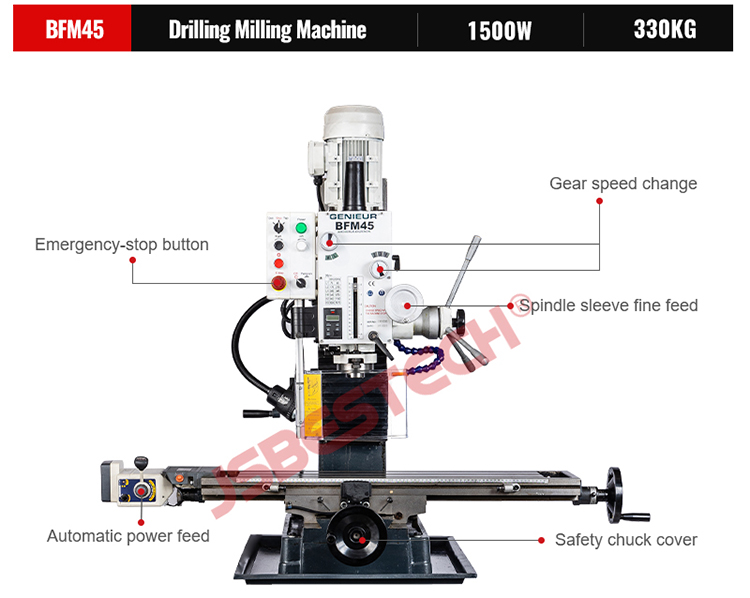

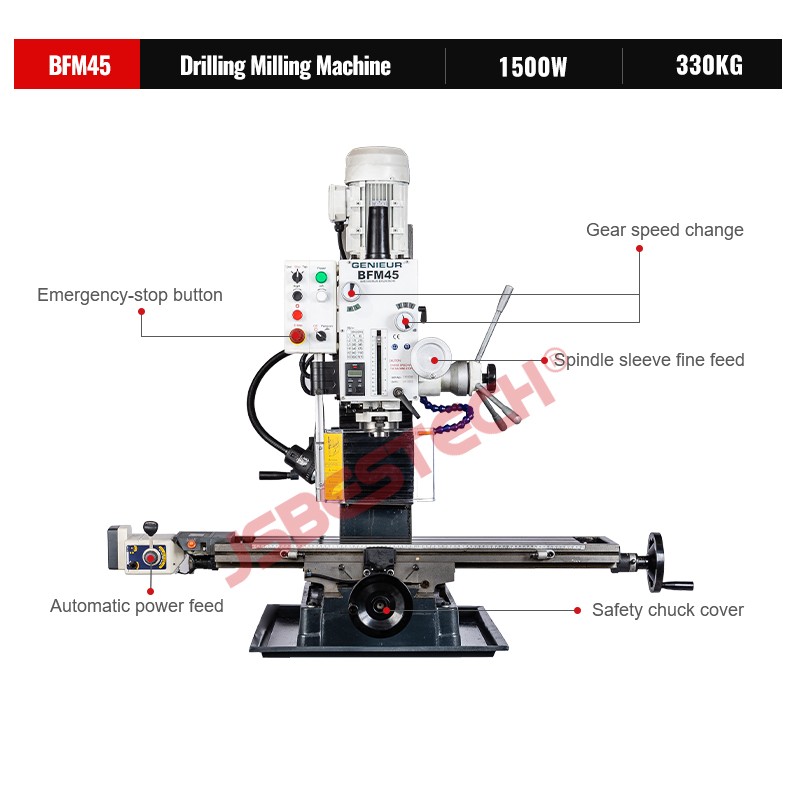

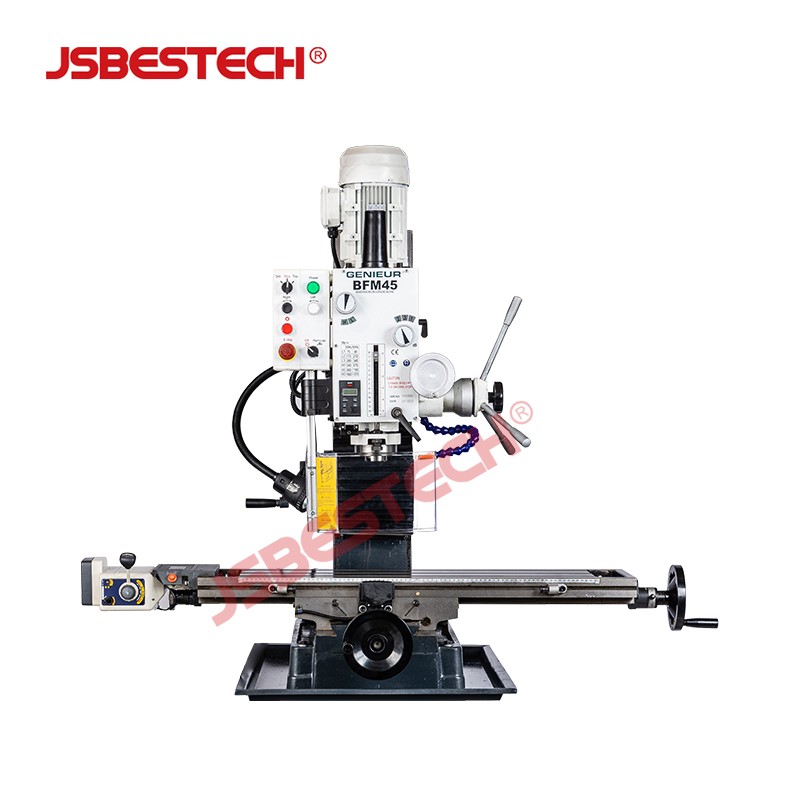

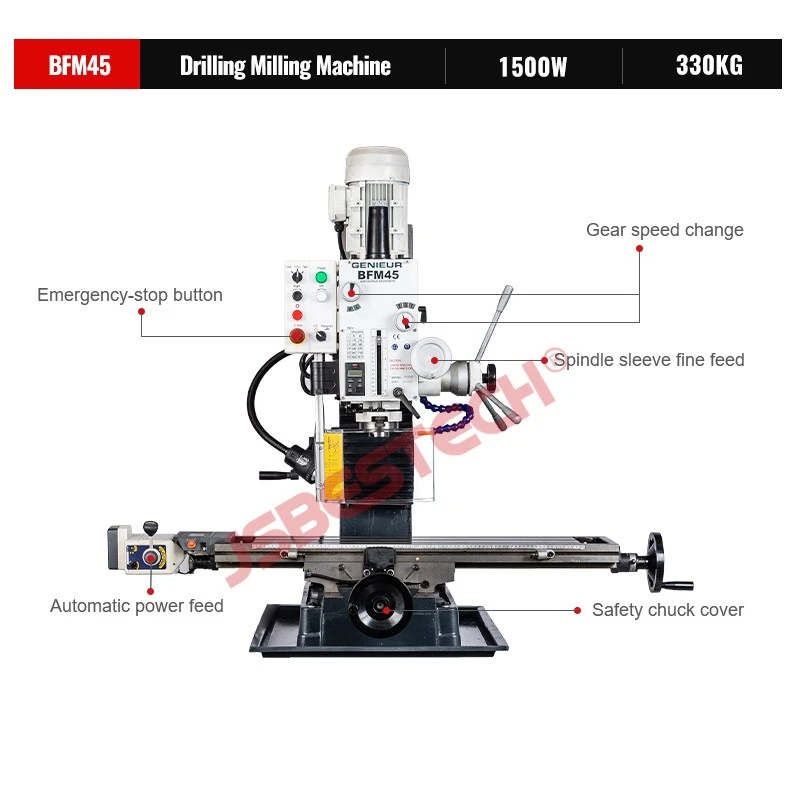

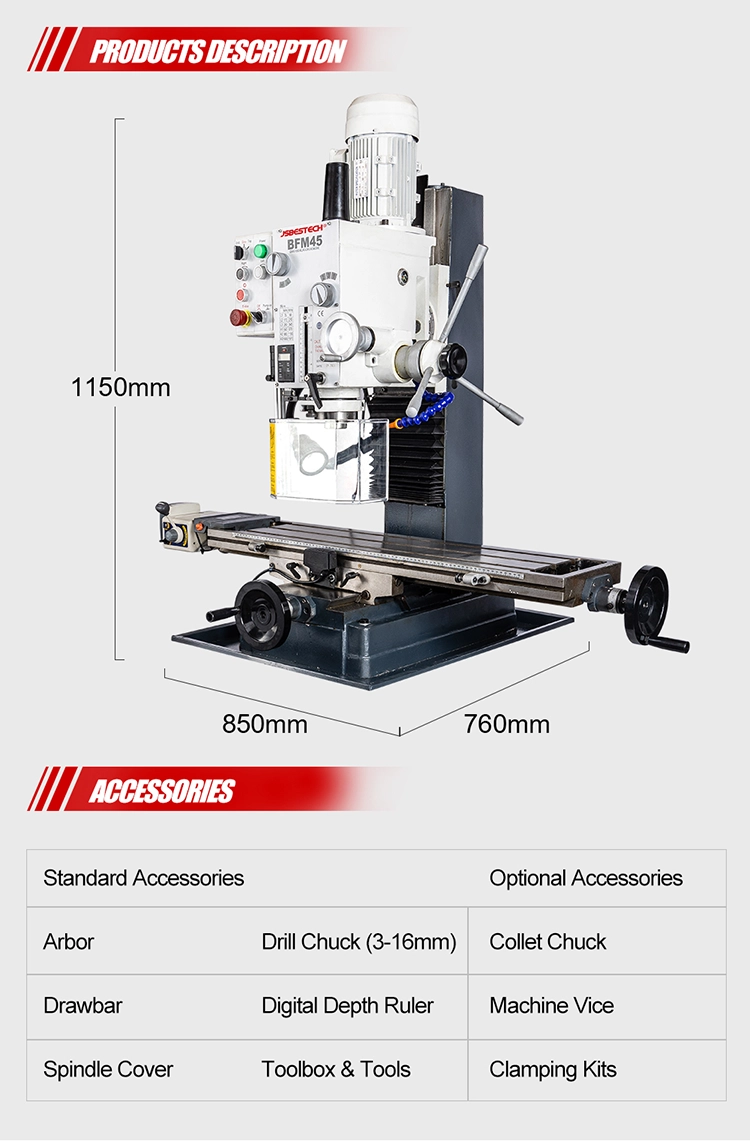

BFM45 Drilling Milling Machine
The BFM45 is a versatile drilling and milling machine designed for precision metalworking. It combines drilling, end milling, and face milling capabilities in one robust unit, making it suitable for workshops, maintenance facilities, and small-scale production.
Key Features
- Max. drilling capacity: Iron Ø45mm / Steel Ø32mm
- End milling capacity: Ø32mm
- Face milling capacity: Ø80mm
- Spindle travel: 120mm

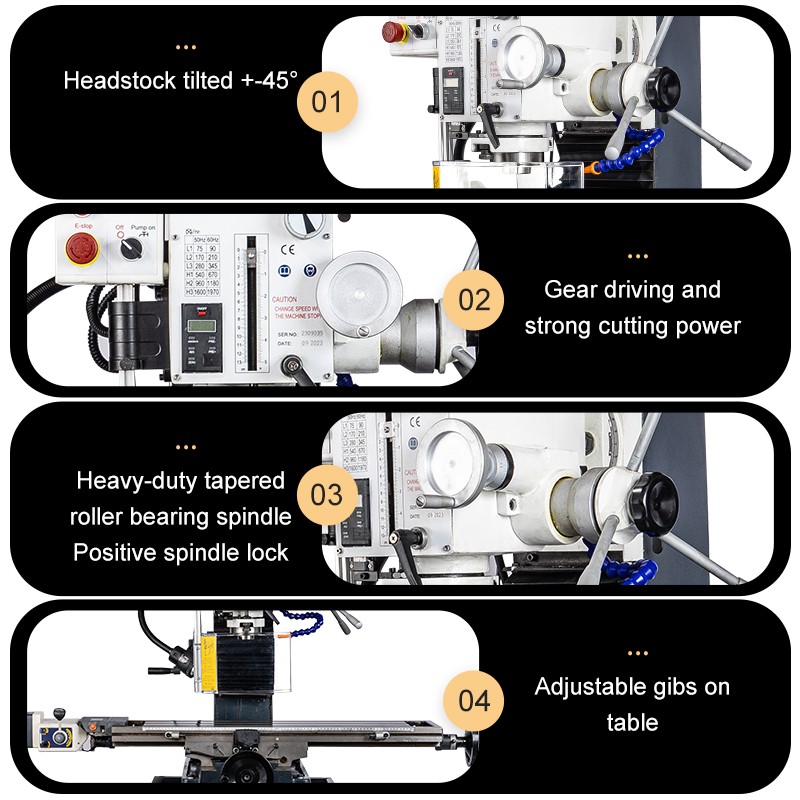

- Head tilt left and right: ±90°
- Automatic spindle feeds: 0.1/0.18/0.26mm/r
- Spindle taper: MT4/R8
- Motor power: 1500W
Specifications
| Parameter | Value |
|---|---|
| Max. drilling capacity | Iron Ø45mm/Steel Ø32mm |
| End milling capacity | Ø32mm |
| Face milling capacity | Ø80mm |
| Spindle taper | MT4/R8 |
| Spindle travel | 120mm |
| Range of spindle speed | 75~1600rpm/75~3200rpm (Optional) |
| Head tilt left and right | ±90° |
| Step of spindle speeds | 6 /12 (Optional) |
| Automatic spindle feeds | 0.1/0.18/0.26mm/r |
| Working table size | 800x240mm/ 1000x240mm |
| Worktable X/Y-Axis travel | 560×190mm |
| T-slot | 14mm |
| Distance between spindle and column | 260mm |
| Max distance spindle to table | 460mm |
| Motor power | 1500W |
| Cooling motor | 40W (Optional) |
| Packing size | Contact us for details |
For more information or to discuss your specific requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BFM45 Drilling Milling Machine?
The BFM45 Drilling Milling Machine is a versatile machine tool designed for combined drilling and milling operations. It offers a maximum drilling capacity of Ø45mm in iron and Ø32mm in steel, end milling capacity of Ø32mm, and face milling capacity of Ø80mm. The machine features a spindle travel of 120mm, a head tilt of ±90°, and a range of spindle speeds from 75 to 1600 rpm (or 75 to 3200 rpm optional). Manufactured by Jiangsu Bestech Industrial Co., Ltd., it is suitable for various machining tasks in workshops and industrial settings.
Applications
- Drilling holes up to Ø45mm in iron and Ø32mm in steel
- End milling operations with a capacity of Ø32mm
- Face milling operations with a capacity of Ø80mm
- General machining and fabrication in metalworking shops
- Maintenance and repair tasks in industrial environments
FAQ
What is the maximum drilling capacity of the BFM45?
The BFM45 has a maximum drilling capacity of Ø45mm in iron and Ø32mm in steel.
What is the spindle speed range of this machine?
The standard spindle speed range is 75 to 1600 rpm, with an optional range of 75 to 3200 rpm.
Can the head tilt?
Yes, the head can tilt left and right up to ±90°.
What is the spindle travel?
The spindle travel is 120mm.
What is the working table size?
The working table size is available in 800x240mm or 1000x240mm.
