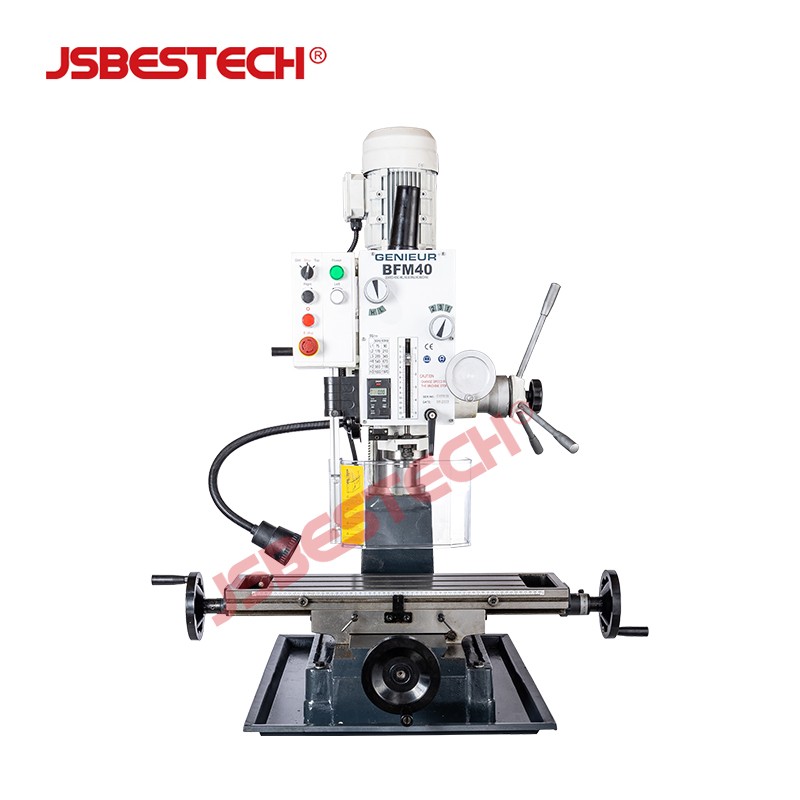

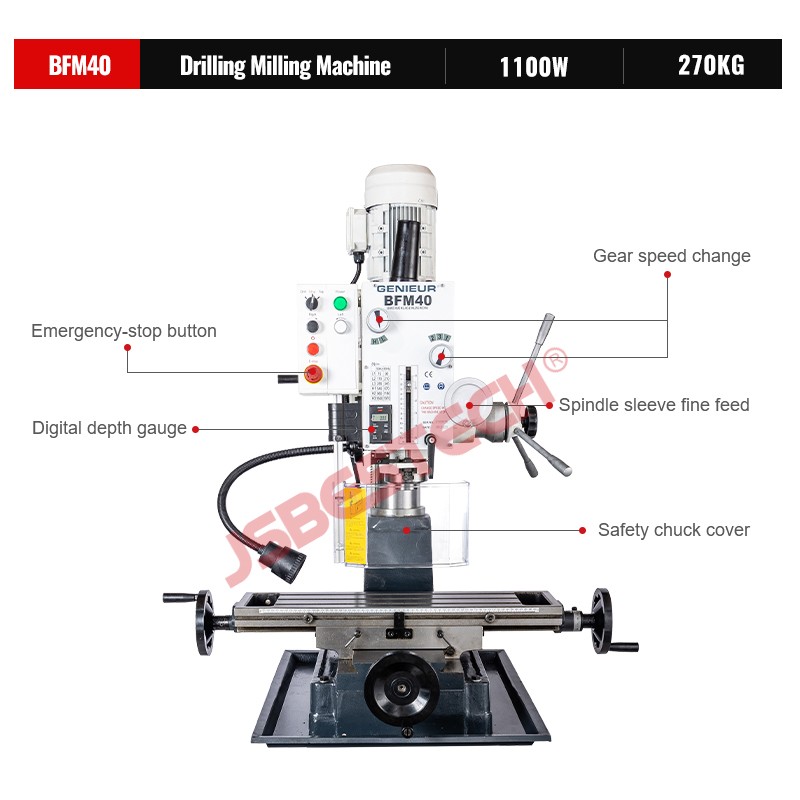

BFM40 Drilling Milling Machine
Jiangsu Bestech Industrial Co., Ltd. presents the BFM40, a versatile drilling and milling machine designed for precision metalworking. Combining robust construction with flexible operation, it handles drilling, end milling, and face milling tasks efficiently.
Key Features
- Drilling capacity: Iron Ø40mm / Steel Ø32mm
- End milling capacity: Ø32mm
- Face milling capacity: Ø80mm
- Spindle travel: 120mm
- Spindle taper: MT3 / MT4 / R8
- Spindle speed range: 75–1600 rpm (standard) or 75–3200 rpm (optional)

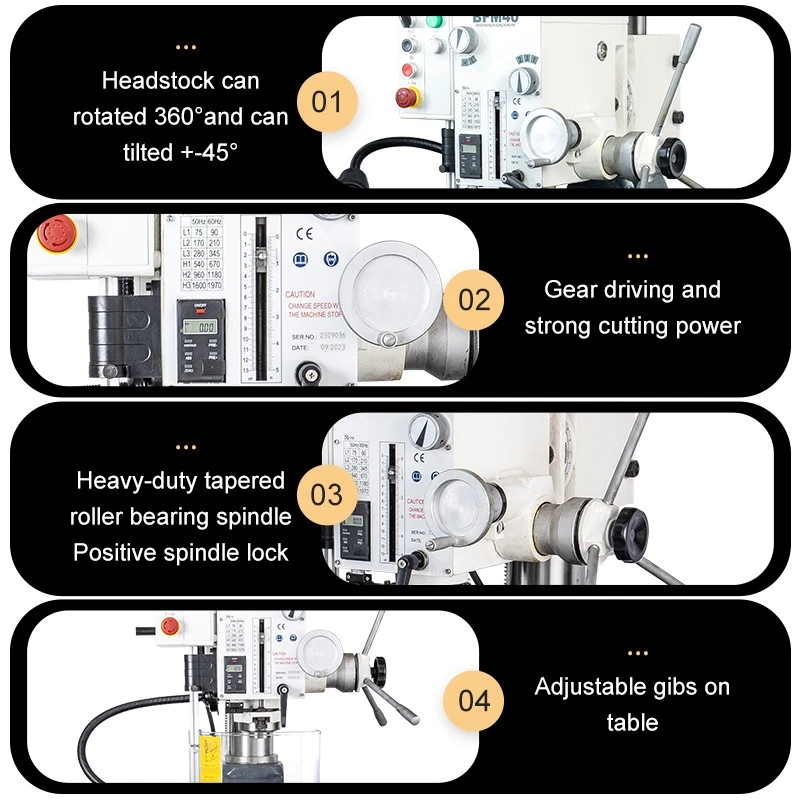

- Head tilt: ±90° left and right
- Automatic spindle feeds: 0.1 / 0.18 / 0.26 mm/rev
- Worktable size: 730 × 210 mm
- Worktable X/Y-axis travel: 500 × 230 mm
- Motor power: 1100 W
Technical Specifications
| Parameter | Value |
|---|---|
| Max. drilling capacity | Iron Ø40mm / Steel Ø32mm |
| End milling capacity | Ø32mm |
| Face milling capacity | Ø80mm |
| Spindle taper | MT3 / MT4 / R8 |
| Spindle travel | 120mm |
| Range of spindle speed | 75–1600 rpm / 75–3200 rpm (Optional) |
| Head tilt left and right | ±90° |
| Step of spindle speeds | 6 / 12 (Optional) |
| Automatic spindle feeds | 0.1 / 0.18 / 0.26 mm/r |
| Working table size | 730 × 210 mm |
| Worktable X/Y-axis travel | 500 × 230 mm |
| T-slot | 12mm |
| Distance between spindle and column | 260mm |
| Max distance spindle to table | 430mm |
| Motor power | 1100 W |
| Cooling motor | 40 W (Optional) |
Applications
The BFM40 is suitable for maintenance shops, tool rooms, and small-scale production. Its geared head and automatic feeds enable efficient drilling and milling of iron, steel, and other materials. The tilting head allows angled operations, while the large worktable provides ample space for fixtures and workpieces.
Options
Optional configurations include higher spindle speed range (up to 3200 rpm), 12-step spindle speeds, and a cooling motor. These options allow customization to specific machining requirements.
For more information about the BFM40 Drilling Milling Machine, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BFM40 Drilling Milling Machine?
The BFM40 Drilling Milling Machine is a versatile machine tool designed for combined drilling and milling operations. It offers a maximum drilling capacity of Ø40mm in iron and Ø32mm in steel, an end milling capacity of Ø32mm, and a face milling capacity of Ø80mm. The machine features a spindle travel of 120mm, a worktable size of 730×210mm, and a head that tilts ±90° for angled work. It is suitable for use in metalworking workshops, maintenance facilities, and small-scale production environments.
Applications
- Drilling holes in iron and steel workpieces
- End milling slots and edges
- Face milling flat surfaces
- Angled drilling and milling with tilting head
- Light-duty machining in maintenance and repair shops
FAQ
What is the maximum drilling capacity of the BFM40?
The BFM40 can drill up to Ø40mm in iron and Ø32mm in steel.
What is the spindle travel of this machine?
The spindle travel is 120mm.
Can the head be tilted for angled operations?
Yes, the head can tilt left and right up to ±90°.
What is the worktable size?
The worktable size is 730×210mm.
What is the range of spindle speeds?
The standard range is 75~1600rpm, with an optional range of 75~3200rpm.
