Description

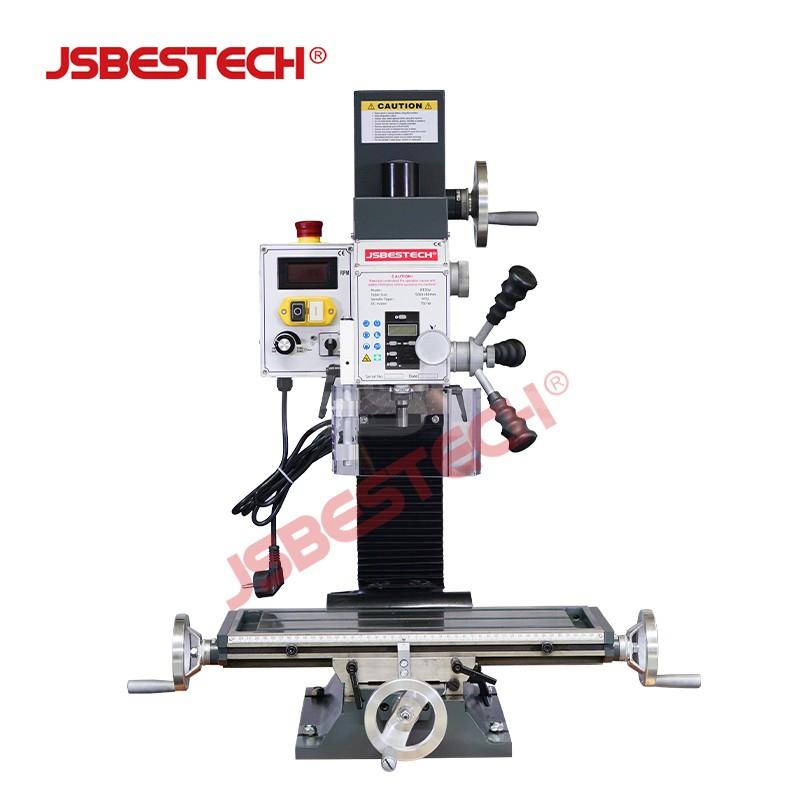

Automatic Desktop MIlling Machine with 20mm Drilling Capacity

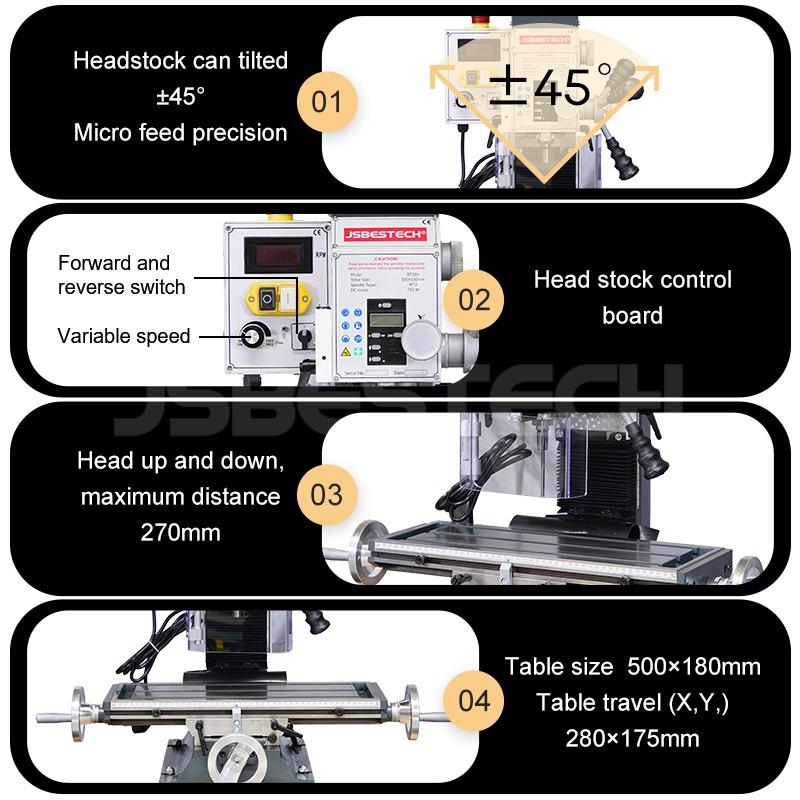

1.Widely range of applications
2.Fine crossfeed of spindle sleeve when milling
3.Stable and precise dovetail control adjustable with V-ledges
4.Electronic infinitely variable drive
5.Easy and clear operation due to adjustable control panel
6.All travels are readable from scales

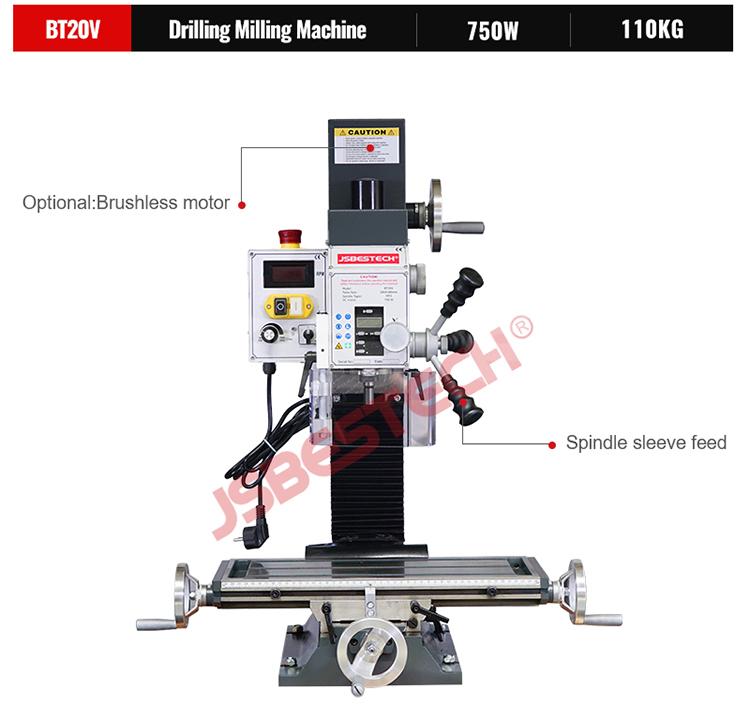

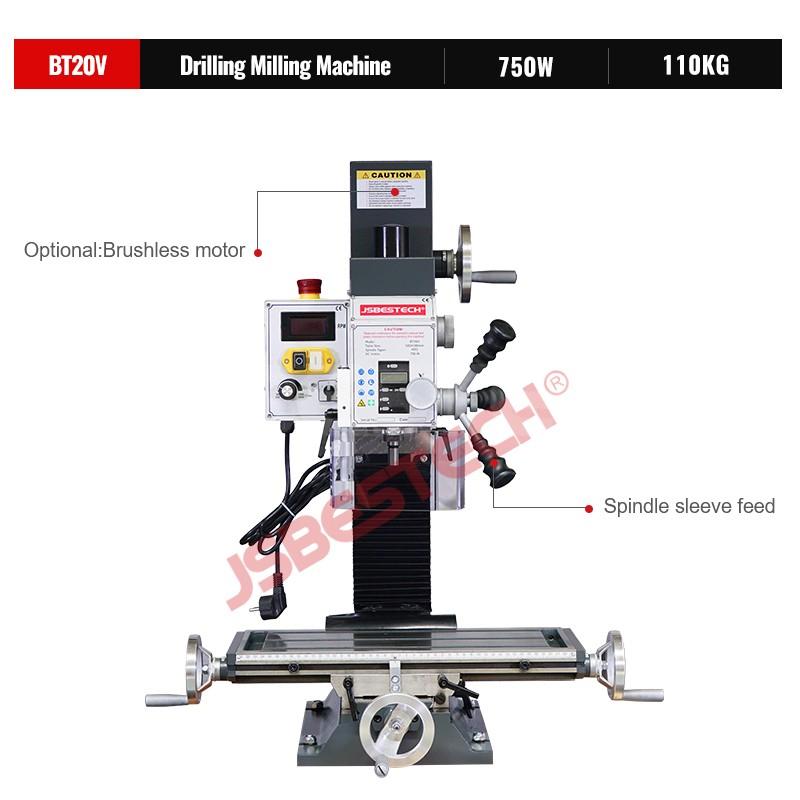

Model:BT20V
Max. Drilling Capacity:20mm
Max. End Milling Capacity:16mm
Max. Face Milling Capacity:63mm
Table Size:500/700×180mm
Cross Travel:175mm
Longitudinal Travel:275/475 mm
Vertical Travel Z:280mm
T Slot Size:10mm
Spindle Taper:MT2
Spindle Stroke:50mm
Number of Spindle Speeds:Variable
Spindle Speed:50-2250rpm
Head stock Tilt Left and Right:90°
Motor:600w
N.W/G.W:115kg/130kg
1.Widely range of applications
2.Fine crossfeed of spindle sleeve when milling
3.Stable and precise dovetail control adjustable with V-ledges
4.Electronic infinitely variable drive
5.Easy and clear operation due to adjustable control panel
6.All travels are readable from scales
Model:BT20V
Max. Drilling Capacity:20mm
Max. End Milling Capacity:16mm
Max. Face Milling Capacity:63mm
Table Size:500/700×180mm
Cross Travel:175mm
Longitudinal Travel:275/475 mm
Vertical Travel Z:280mm
T Slot Size:10mm
Spindle Taper:MT2
Spindle Stroke:50mm
Number of Spindle Speeds:Variable
Spindle Speed:50-2250rpm
Head stock Tilt Left and Right:90°
Motor:600w
N.W/G.W:115kg/130kg
Packing Size:870x550x860mm
|
Standard Accessories |
Optional Accessories |
|
1.Drill chuck 3-16mm 2.Draw bar 3.Arbor 4.Digital depth ruler 5.Toolbox & tools 6.Speed display |
1.Key less drill chuck 3-16mm 2.ER25 6pcs collect chucks 4-16mm 3.Vice 4.Stand Chip tray 5.58pcs clamping kits M10 6.End mill 7pcs 4-16mm 7.X-axis power feed 8.Digital readout |
