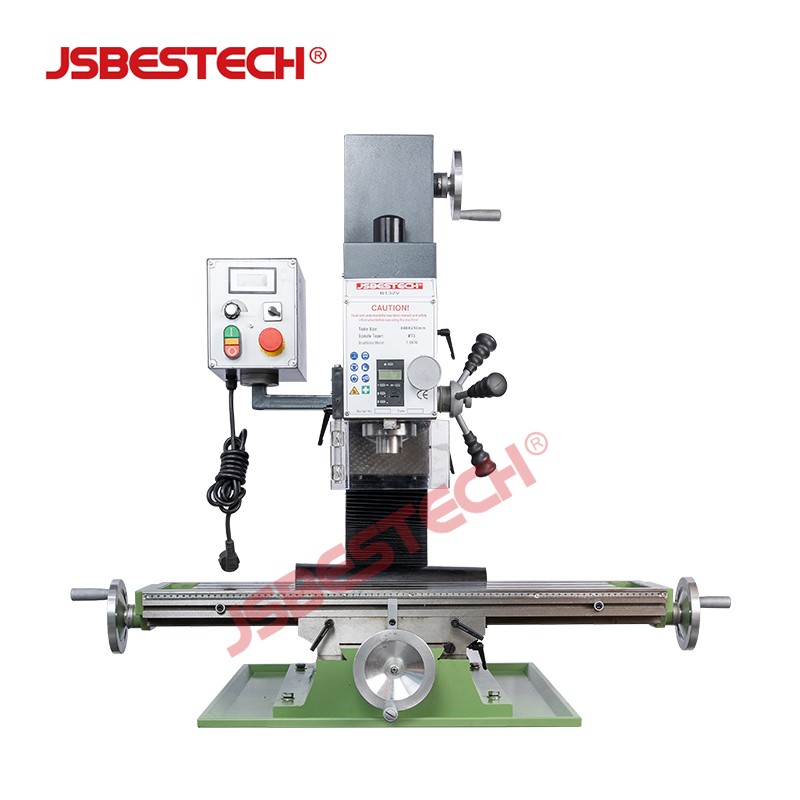

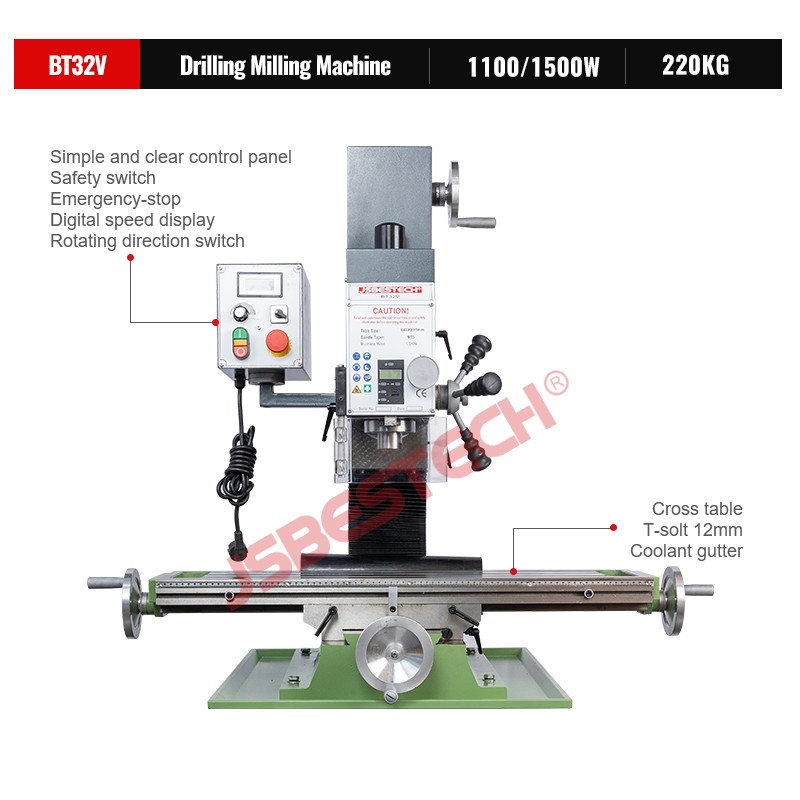

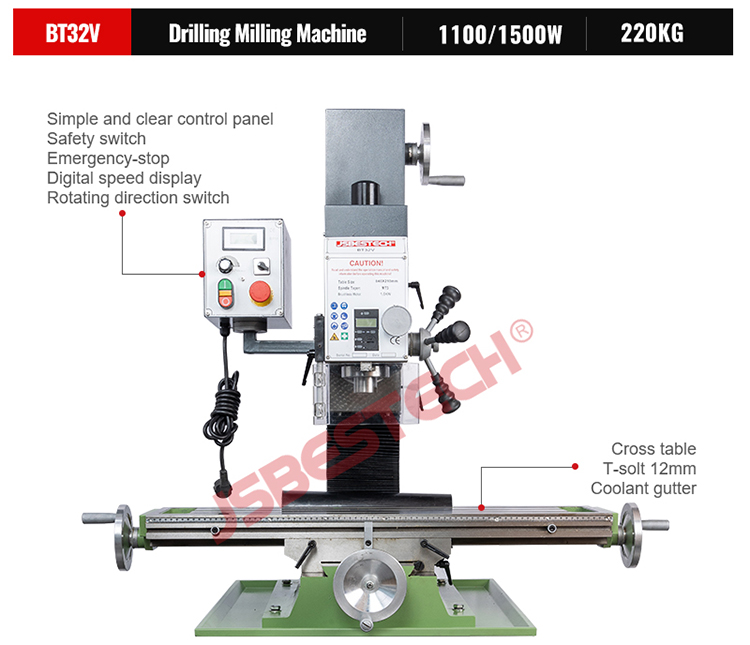

Auto Vertical Drilling MIlling Machine taladro fresador
1.Very easy to operate
2.Wide and big table
3.Micro feed precision
4.Strong iron casting column
5.Positive spindle lock
6.Belt drive,low noise
Model:BT32V
Max. drilling Capacity:32mm
Max. Face Milling Capacity:80mm
Max. End Milling Capacity:25mm
Table Size:700/840×210mm
Spindle Taper:MT3/R8
Longitudinal Travel X:440/580mm
Cross Travel Y:205 mm
Vertical Travel Z:360 mm
Spindle Stroke:70mm
T Slot Size:3X12mm
Spindle Speed:50-2250rpm

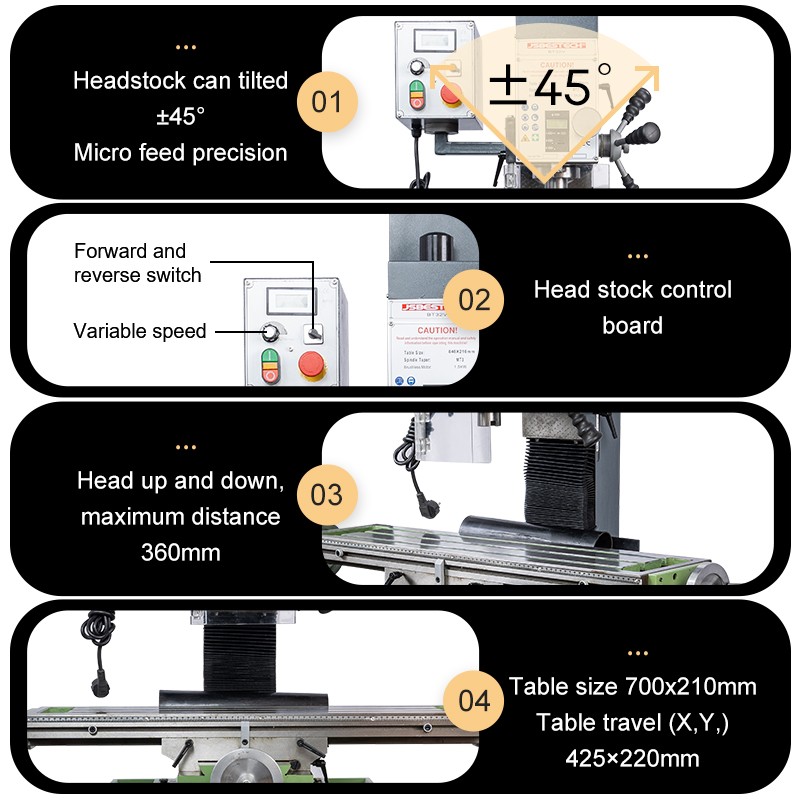

Head stock Tilt Left and Right:±45°
Motor:1100w
Distance From Spindle to Column:180mm
Max. Distance From Spindle to Table:470mm
N.W/G.W:220/250kg~245/275kg
Packing size:710 x 860/1000 x 1020 mm
1.Very easy to operate
2.Wide and big table
3.Micro feed precision
4.Strong iron casting column
5.Positive spindle lock
6.Belt drive,low noise
Model:BT32V
Max. drilling Capacity:32mm
Max. Face Milling Capacity:80mm
Max. End Milling Capacity:25mm
Table Size:700/840×210mm
Spindle Taper:MT3/R8
Longitudinal Travel X:440/580mm
Cross Travel Y:205 mm
Vertical Travel Z:360 mm
Spindle Stroke:70mm
T Slot Size:3X12mm
Spindle Speed:50-2250rpm
Head stock Tilt Left and Right:±45°
Motor:1100w
Distance From Spindle to Column:180mm
Max. Distance From Spindle to Table:470mm
N.W/G.W:220/250kg~245/275kg
Packing size:710 x 860/1000 x 1020 mm
|
Standard Accessories |
Optional Accessories |
|
1.Drill chuck 2.Draw bar 3.Arbor 4.Digital depth ruler 5.Toolbox & tools |
1.Key less drill chuck 2.ER25 collect chucks 3.Vice 4.Stand Chip tray 5.58pcs clamping kits 6.End mill 7.Power feed 8.Digital readout |
