Description

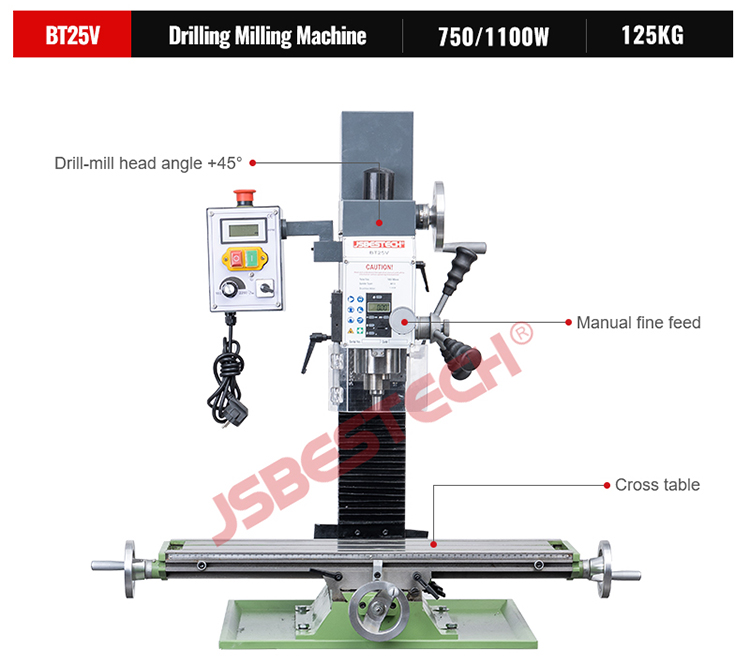

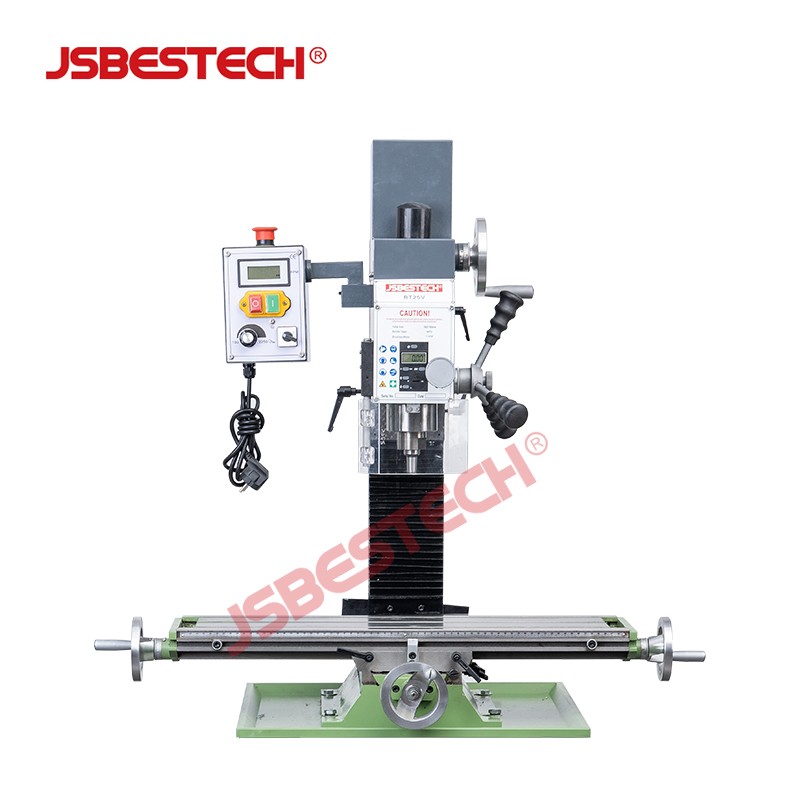

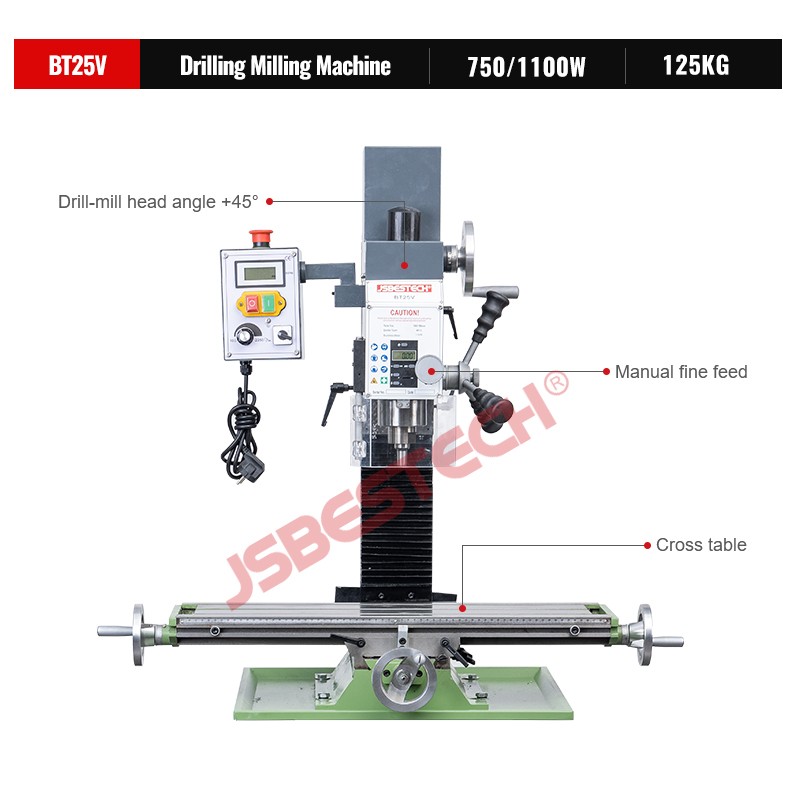

Mini Manual Drilling and MIlling Machine

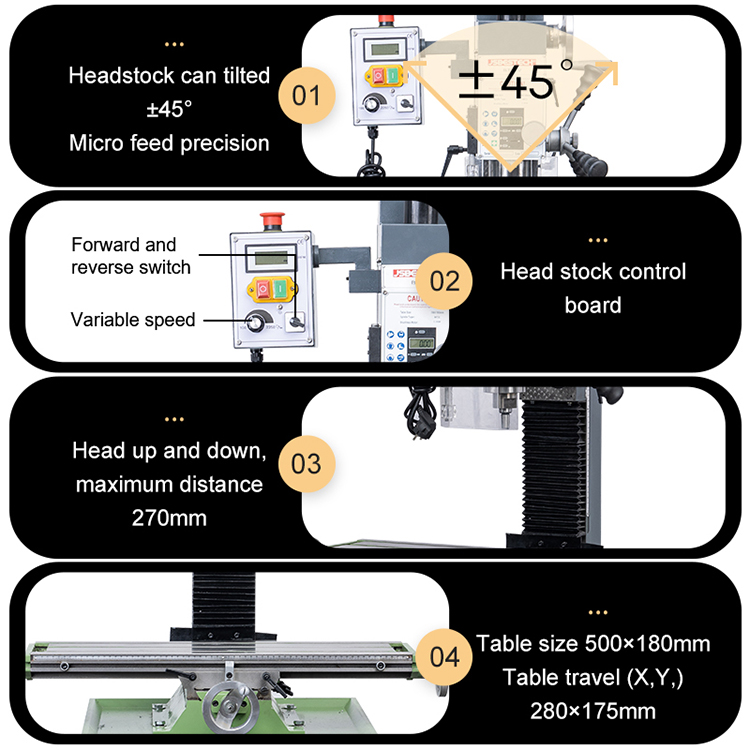

1.Very easy to operate2.Wide and big table
3.Micro feed precision
4.Strong iron casting column
5.Positive spindle lock
6.Belt drive,low noise
| Model | BT25V |
|
Max. drilling capacity |
φ 25mm |
|
Max. end milling capacity |
φ 20mm |
|
Max. face milling capacity |
φ 63mm |
|
Table size |
500×180mm / 700×180mm (Optional) |
|
X-axis travel |
280mm / 480 mm (Optional) |
|
Y-axis travel |
175mm |
|
Z-axis travel |
270mm |
|
T- slot size |
12mm |
|
Spindle taper |
MT3/R8 |
|
Spindle stroke |
50mm |
|
Number of spindle speeds |
Variable |
|
Spindle speed |
50-2250rpm |
|
Head stock tilt left and right |
±45° |
|
Distance from spindle to column |
170mm |
|
Motor |
750w |
|
Net weight |
120/125kg 113/138kg,125/150kg |
| Packing size |
870×550×860mm / 670x550x860mm |
