Description
| Turning diameter (Max.) | Ø210mm |
| Swing over cross slide | Ø140mm |
| Distance between centers | 400mm |
| Width of bed | 100mm |
| Spindle bore | Ø21mm |
| Spindle taper | MT3 |
| Variable speed | 50~2500rpm |
| Top slide travel | 55mm |
| Cross slide travel | 75mm |
| Max. section of tools | 10x10mm |
| Range of metric threads | 0.5~3mm |
| Range of inch threads | 10~44T.P.l |
| Tailstock quill diameter | Ø22mm |
| Tailstock quill travel | 60mm |
| Taper of tailstock quill | MT2 |
| Brushless motor | 550w |
| Voltage | 110V~240V(1PH) |

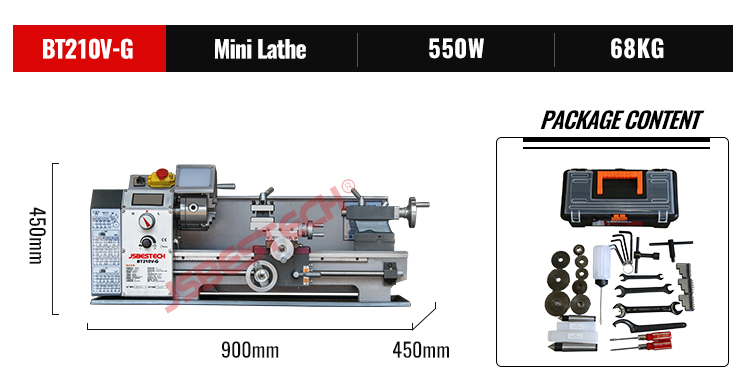

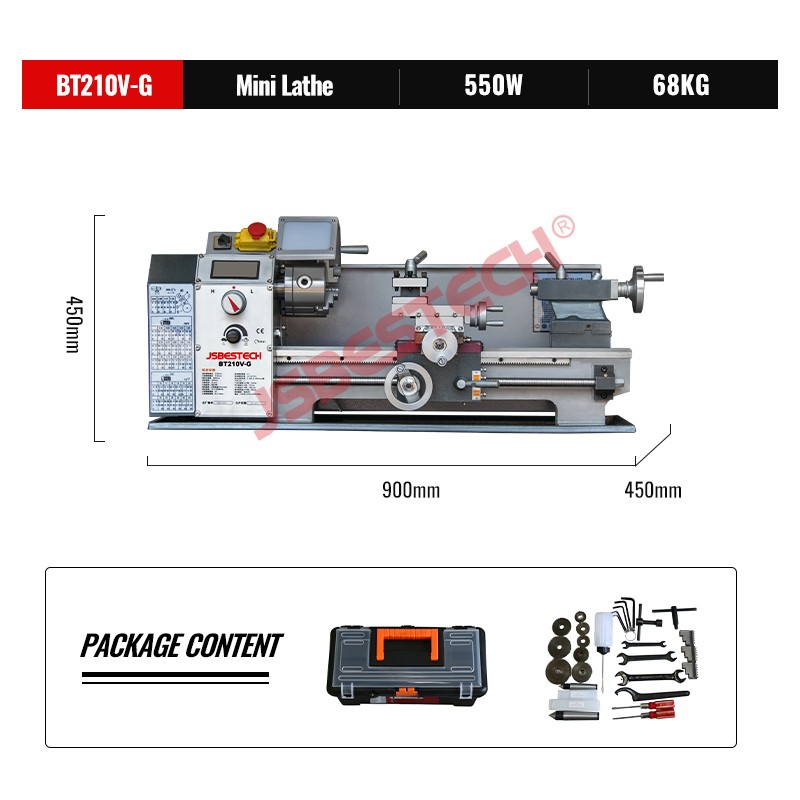

| Packing size | 900x450x450mm |
