Description
Products Description
BT200 Bench Lathe Machine Technical Date | ||
Machine Dates | Electrical Connection | 110V--230V / 50--60Hz |
Motor Power | 550W | |
Working Areas | Centre Height | 100mm |
Turning Diameter (Max.) | 200mm | |
Bed Width | 125mm | |
Distance Between Centers | 350mm/520mm(Optional) | |
Speeds | 6 Step Gear Speed | 140--1710 r.p.m |
Headstock | Spindle Taper | MT 3 |
Spindle Drilling | φ20mm | |
Slide | Travel Top Slide | 35mm |
Travel Cross Slide | 78mm | |
Range Of Metric Threads | 0.4-3mm | |
Range Of Inch Threads | 8-32T.P.l | |
Tool Holder Seat Height | MAX.12mmX12mm | |
Tailstock | Tailstock Taper | MT 2 |
Tailstock Sleeve Travel | 60mm |
Standard Accessories | Optional Accessories |
1. 3- jaw chuck(100mm) | 1. 4-jaw chuck(100mm) |
2. V-belt | 2. Follow rest |
3. Dead centers | 3. Steady rest |
4. Wrench | 4. Face plate |
5. Spanner | 5. Rolling center |
6. Change Gears | 6. Stand |
7. Chip tray | 7. Splash guard |
8. Wrench for tool post | 8. Chip tray |

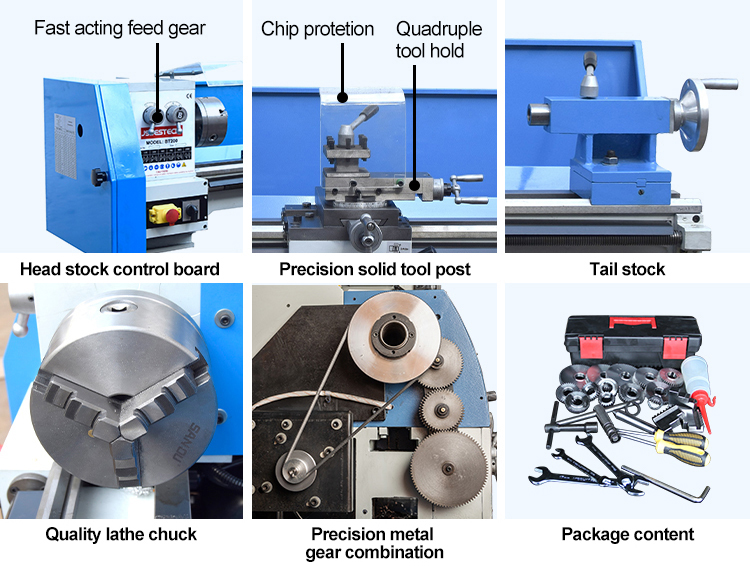

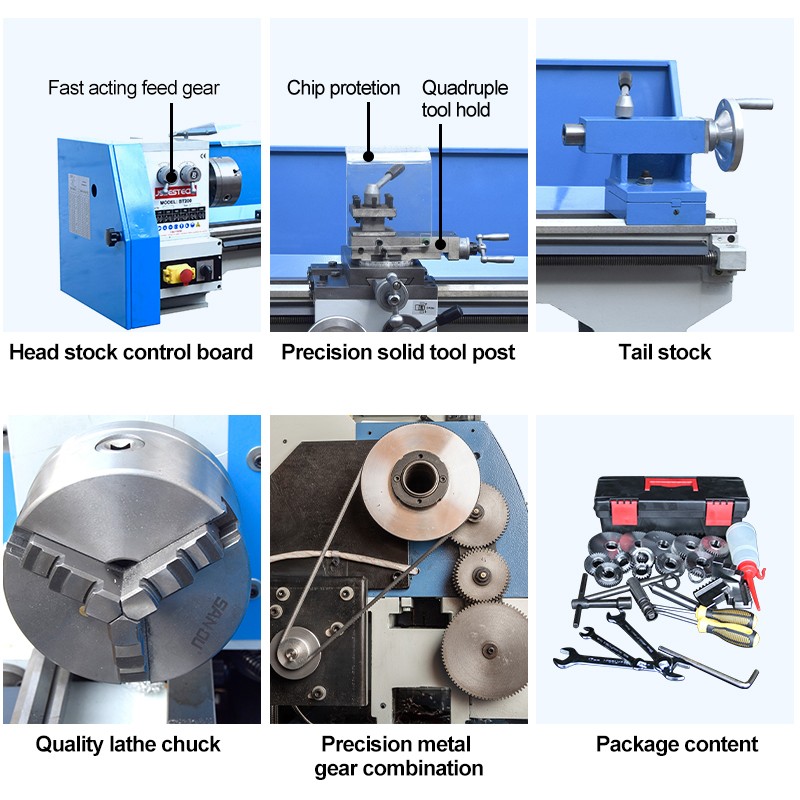

Details Images
Recommend Products
Jiangsu Bestech Industrial Co, Ltd. is a professional machine tool supplier with 15 years experience.We are concentrated in
machine tools for industrial and homework use. Currently our major products include Bench Lathes (manual and CNC), Drilling
Machine, MIlling Machine, Grinding Machine, Saw Machine, Bench Grinder and related accessories and tools, etc.
