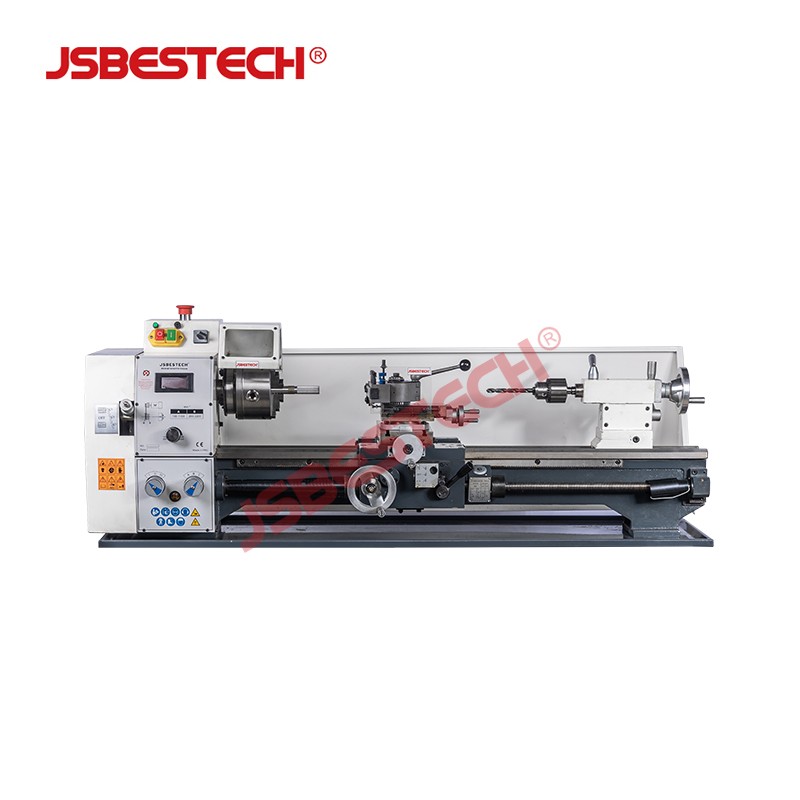

BT250VF All-Metal Gear Variable Speed Manual Lathe
The BT250VF is a compact, all-metal gear manual lathe designed for home workshops, DIY enthusiasts, and light production. With a variable speed range of 100–2200 rpm and a 750W motor, it delivers reliable performance for turning, facing, and threading tasks on a variety of materials.
Key Features

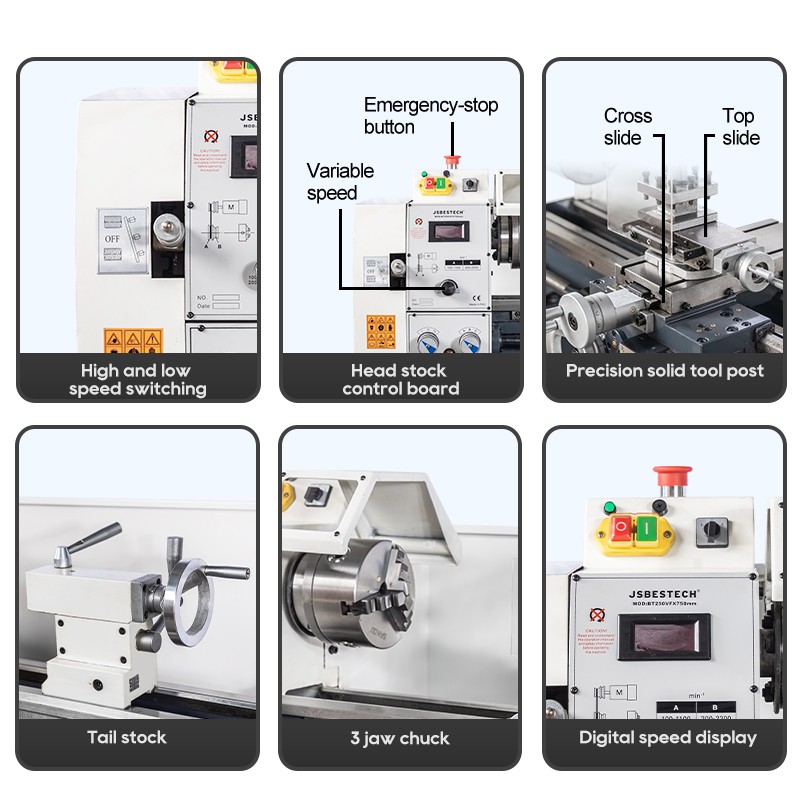

- All-metal gear construction for durability and smooth operation
- Variable speed control from 100 to 2200 rpm
- Max. turning diameter: Ø250mm
- Spindle bore: Ø21mm with MT3 taper
- Cross slide travel: 120mm; top slide travel: 70mm
- Tailstock quill travel: 65mm with MT2 taper
- Metric thread range: 0.125–2.5mm; inch thread range: 8–56 T.P.I.
- Compact size, ideal for home use and DIY projects
Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø250mm |
| Swing over cross slide | Ø140mm |
| Distance between centers | 550/750mm (Optional) |
| Width of bed | 135mm |
| Spindle bore | Ø21mm |
| Spindle taper | MT3 |
| Variable speed | 100~2200rpm |
| Top slide travel | 70mm |
| Cross slide travel | 120mm |
| Max. section of tools | 12x12mm |
| Range of metric threads | 0.125~2.5mm |
| Range of inch threads | 8~56T.P.I |
| Tailstock quill diameter | Ø30mm |
| Tailstock quill travel | 65mm |
| Taper of tailstock quill | MT2 |
| Motor power | 750W |
| Voltage | 110V~240V (1PH) |

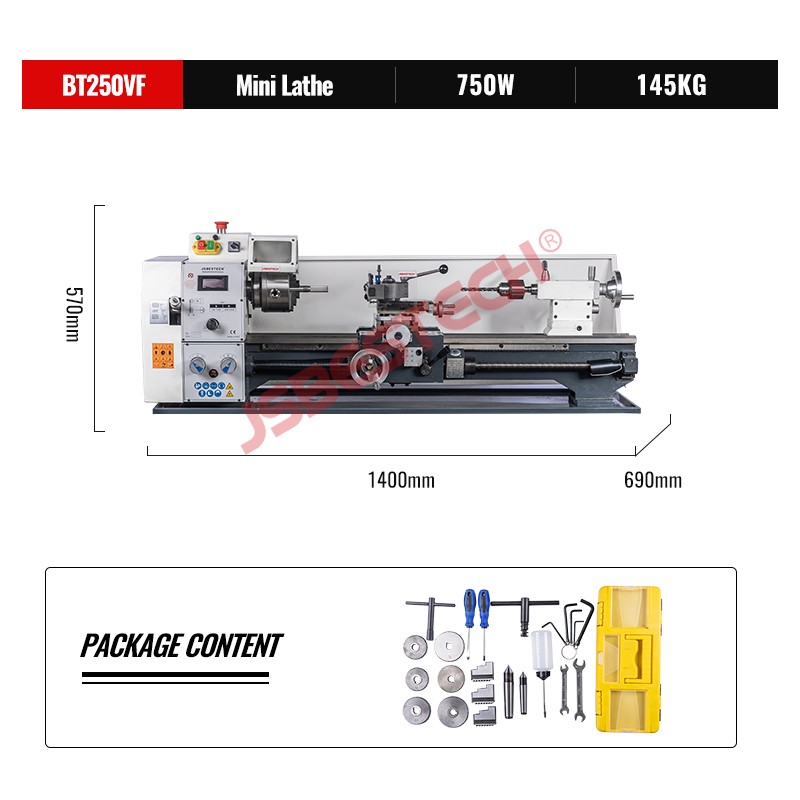

| Packing size | 1400x690x570mm |
Applications
This lathe is suitable for turning small metal parts, threading, and general machining in home workshops, garages, and educational settings. Its compact footprint and variable speed make it a versatile choice for hobbyists and small-scale production.
Why Choose the BT250VF?
Combining all-metal gear reliability with the convenience of variable speed, the BT250VF offers a practical solution for users who need a capable lathe without the bulk of industrial machines. The optional distance between centers (550mm or 750mm) allows you to choose the model that best fits your workspace.
For more information or to discuss your requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BT250VF all metal gear small size home use diy variable speed manual lathe machine?
The BT250VF is a small-size manual lathe with all-metal gears and variable speed control, designed for home use and DIY workshop applications. It offers a maximum turning diameter of Ø250mm, a spindle bore of Ø21mm, and a variable speed range of 100–2200rpm. The machine features a 750W motor and supports both metric and inch thread cutting. Its compact design and manual operation make it suitable for hobbyists and light-duty machining tasks.
Applications
- Home workshops and DIY projects
- Small part turning and facing
- Thread cutting (metric and inch)
- Prototype development and model making
- Light metalworking and repair tasks
FAQ
What is the maximum turning diameter of the BT250VF lathe?
The maximum turning diameter is Ø250mm.
What is the spindle bore size?
The spindle bore is Ø21mm.
What is the variable speed range of this lathe?
The variable speed range is 100–2200rpm.
What is the motor power of the BT250VF?
The motor power is 750W.
What is the voltage requirement for this lathe?
The lathe operates on 110V–240V single-phase power.
