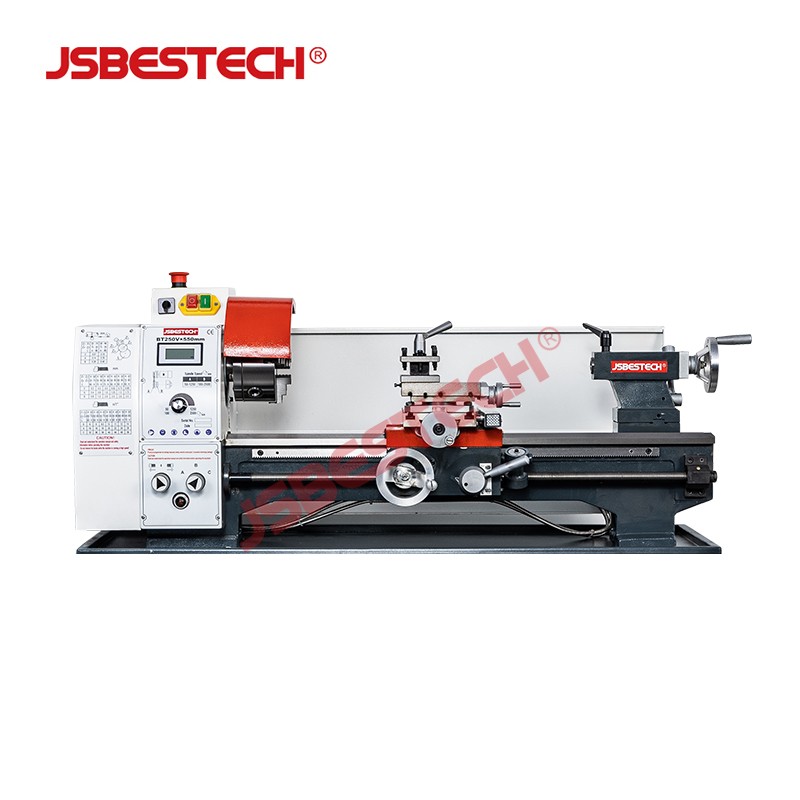

BT250V 26mm Spindle Bore Small Lathe Machine for Metal
Jiangsu Bestech Industrial Co., Ltd. presents the BT250V, a compact metal lathe engineered for precision turning in workshops, maintenance facilities, and small-scale production. With a 26mm spindle bore and a 250mm swing over bed, this machine balances capacity with a space-saving footprint.
Key Features
- 26mm spindle bore – accepts larger stock for versatile turning operations.
- 250mm swing over bed – handles a wide range of workpiece diameters.
- Variable speed 125–2000rpm – six-step adjustment for different materials and finishes.
- 0.75kW motor – reliable power for general metalworking tasks.
- Metric and inch threading – covers 0.2–3.5mm metric and 8–56 T.P.I. inch threads.
- Compact design – ideal for limited workshop space.
Technical Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø250mm |
| Swing over cross slide | Ø150mm |
| Distance between centers | 550/750mm (Optional) |
| Width of bed | 135mm |
| Spindle bore | Ø26mm |
| Spindle taper | MT4 |
| Variable speed | 125~2000rpm |
| Top slide travel | 70mm |
| Cross slide travel | 120mm |
| Max. section of tools | 12x12mm |
| Range of metric threads | 0.2~3.5mm |
| Range of inch threads | 8~56T.P.I. |
| Tailstock quill diameter | Ø30mm |
| Tailstock quill travel | 60mm |
| Taper of tailstock quill | MT2 |
| Motor power | 750W |
| Voltage | 110V~240V (1PH) |

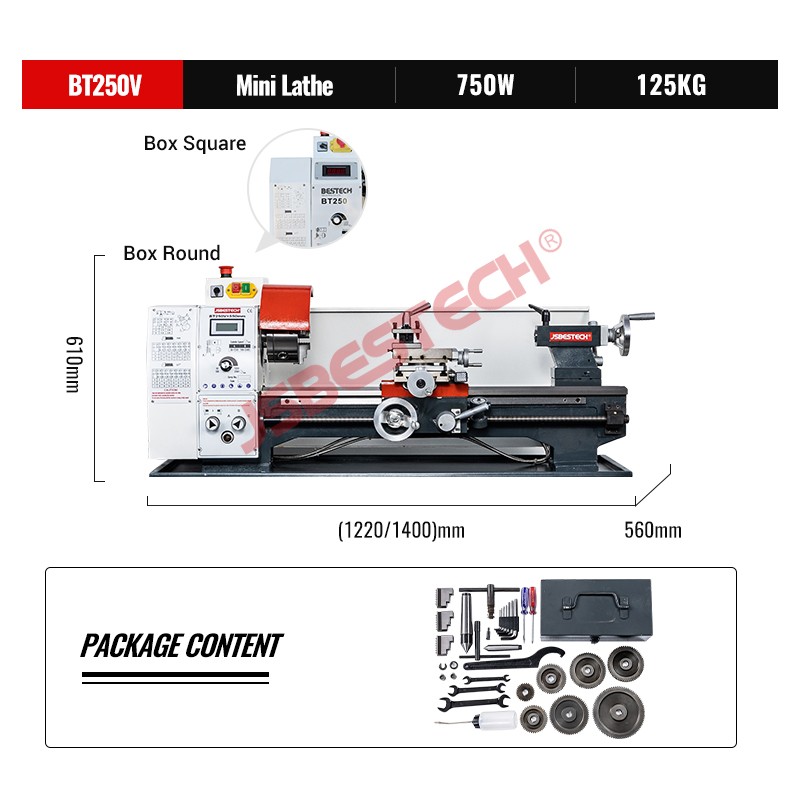

| Packing size | (1220/1400)x560x610mm |
Applications
The BT250V is suitable for turning, facing, threading, and drilling operations on metals such as steel, aluminum, and brass. Its compact size and variable speed range make it a practical choice for job shops, educational settings, and repair workshops.
Why Choose the BT250V?
With a 26mm spindle bore, this lathe offers greater capacity than many models in its class. The 0.75kW motor and six-step speed control provide consistent performance across a variety of tasks. Jiangsu Bestech Industrial Co., Ltd. manufactures this machine with attention to durability and ease of use.
For more information about the BT250V or to discuss your specific requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BT250V 26mm spindle bore small lathe machine for metal?
The BT250V is a small metal lathe with a 250 mm swing over bed and a 26 mm spindle bore, designed for turning, facing, and thread cutting on small to medium workpieces. It is powered by a 0.75 kW motor and offers a 6-step spindle speed range of 125–2000 rpm. The machine supports metric threads from 0.2 to 3.5 mm and inch threads from 8 to 56 T.P.I. It is suitable for workshop, maintenance, and light production use.
Applications
- Turning and facing small metal parts
- Cutting metric and inch threads
- Drilling and reaming with the tailstock
- Repair and maintenance work in workshops
- Prototype and model making
- Light production of metal components
FAQ
What is the spindle bore of the BT250V lathe?
The BT250V has a spindle bore of 26 mm.
What is the spindle speed range of this lathe?
The spindle speed range is 125 to 2000 rpm with 6 steps.
What is the maximum turning diameter?
The maximum turning diameter is 250 mm.
What is the motor power of the BT250V?
The motor power is 0.75 kW.
What thread cutting ranges does this lathe support?
It supports metric threads from 0.2 to 3.5 mm and inch threads from 8 to 56 T.P.I.
