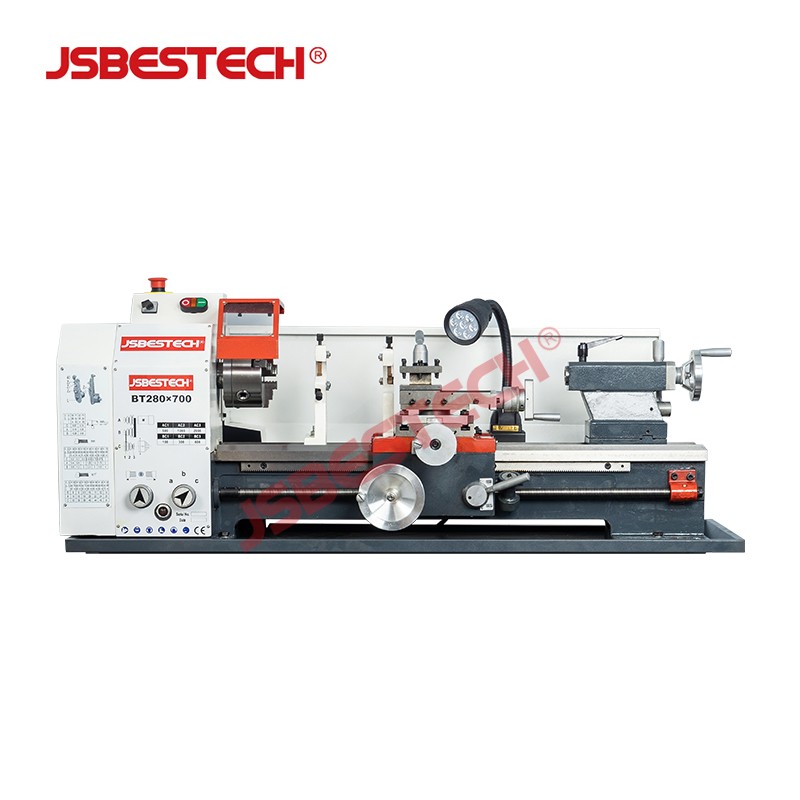

BT280 Precision Mini Table Lathe — 280 mm Swing Diameter
The BT280 is a compact precision table lathe designed for small-part turning, threading, and general workshop use. With a 280 mm maximum turning diameter and 700 mm distance between centers, it balances capacity with a small footprint for benchtop or light industrial environments.

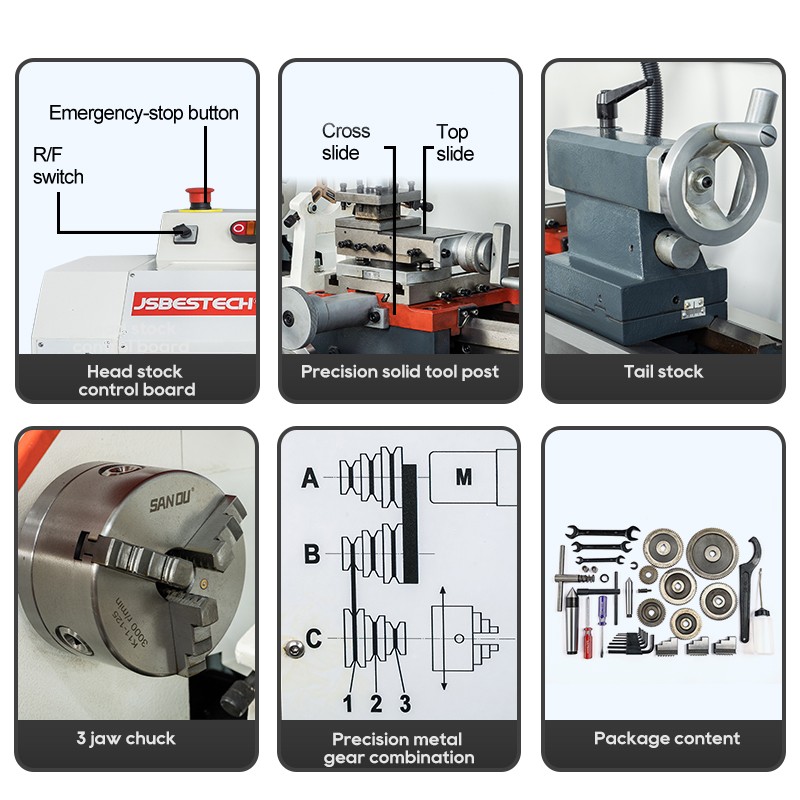

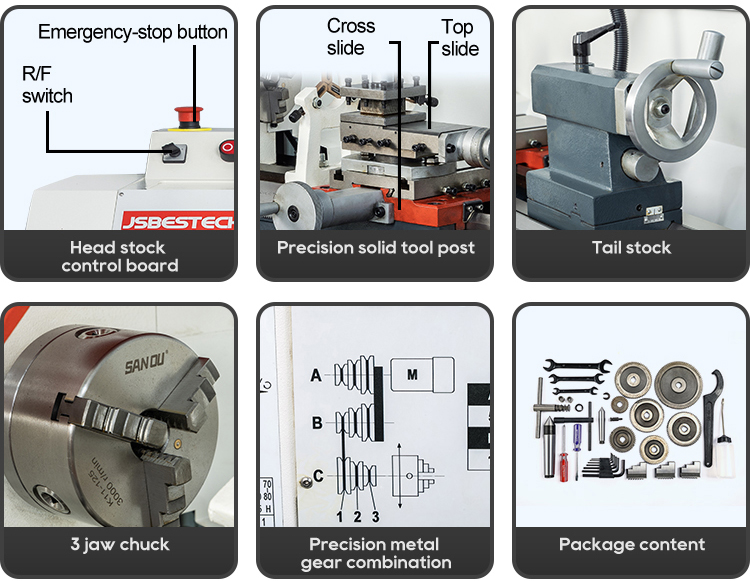

Key Features
- 280 mm maximum turning diameter and 700 mm distance between centers
- 182 mm bed width for stability during turning operations
- Ø26 mm spindle bore with MT4 spindle taper
- 6-step spindle speed range from 50 to 2500 rpm
- Metric thread range 0.2–4 mm and inch thread range 8–56 T.P.I.
- Tailstock quill travel of 70 mm with MT3 taper
- 850 W motor, 110 V–240 V single-phase input
Specifications
| Turning diameter (Max.) | Ø280 mm |
|---|---|
| Swing over cross slide | Ø175 mm |
| Distance between centers | 700 mm |
| Width of bed | 182 mm |
| Spindle bore | Ø26 mm |
| Spindle taper | MT4 |
| Spindle speed (6 steps) | 50–2500 rpm |
| Top slide travel | 65 mm |
| Cross slide travel | 130 mm |
| Max. section of tools | 12 x 12 mm |
| Range of metric threads | 0.2–4 mm |
| Range of inch threads | 8–56 T.P.I. |
| Tailstock quill diameter | Ø38 mm |
| Tailstock quill travel | 70 mm |
| Taper of tailstock quill | MT3 |
| Motor power | 850 W |
| Voltage | 110 V–240 V (1PH) |

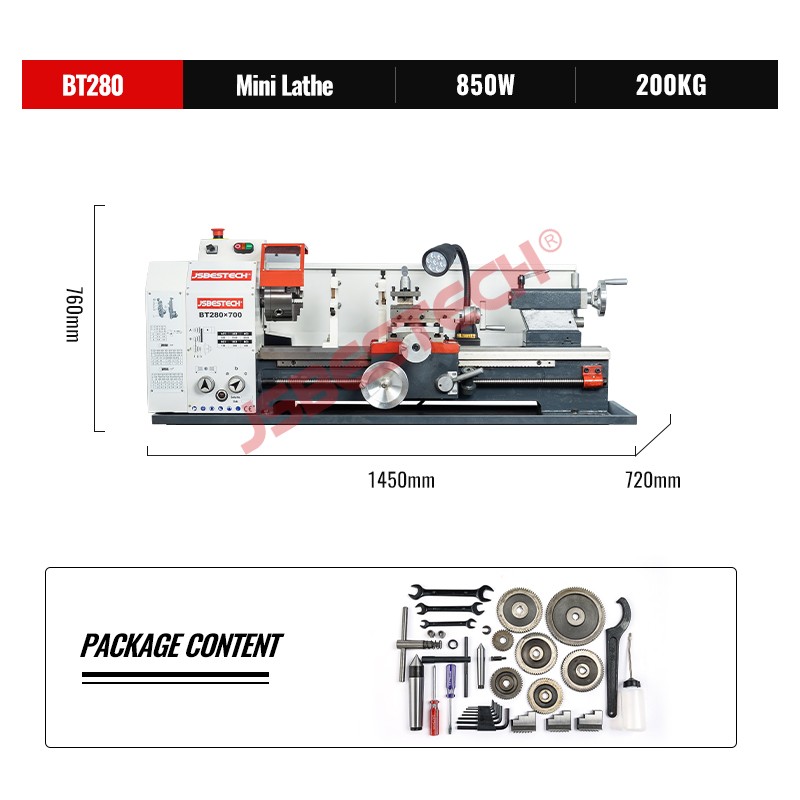

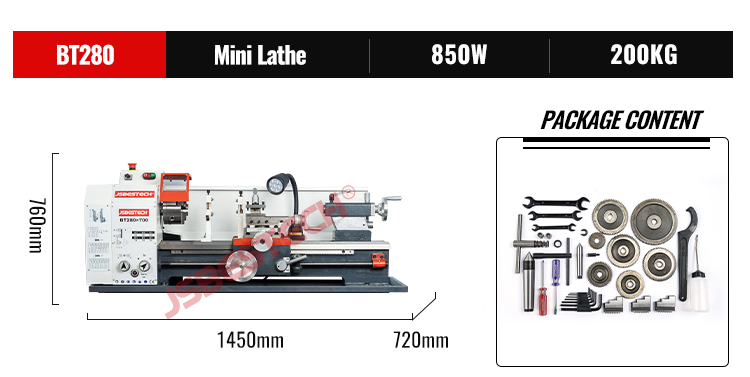

| Packing size | 1450 x 720 x 760 mm |
Applications
The BT280 is suitable for turning small metal and plastic parts, facing, drilling, and thread cutting. Its 6-step speed range and compact bed width make it a practical choice for model making, repair shops, and light production where space is limited.
Why Choose the BT280
This mini table lathe combines a 280 mm swing diameter with a 700 mm center distance in a benchtop format. The MT4 spindle and MT3 tailstock accept common tooling, while the 850 W motor supports consistent performance across the 50–2500 rpm range.
For more information about the BT280 or to discuss your requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BT280 280mm swing diameter precision mini table lathe machine?
The BT280 is a precision mini table lathe with a maximum turning diameter of Ø280mm and a distance between centers of 700mm. It features a spindle bore of Ø26mm, a tailstock quill travel of 70mm, and a 850W motor with variable speed from 50 to 2500rpm. Designed for small-scale turning, threading, and machining operations, it is suitable for workshops, prototyping, and educational use.
Applications
- Precision turning of small metal and plastic parts
- Thread cutting with metric (0.2–4mm) and inch (8–56 T.P.I) capabilities
- Prototyping and model making in workshops
- Educational training in machining and lathe operations
- Repair and maintenance of small mechanical components
FAQ
What is the maximum turning diameter of the BT280 mini lathe?
The maximum turning diameter (swing over bed) is Ø280mm.
What is the distance between centers on this lathe?
The distance between centers is 700mm.
What is the spindle speed range of the BT280?
The spindle speed range is 50 to 2500 rpm, with 6 steps.
What is the motor power and voltage requirement?
The motor power is 850W, and it operates on 110V to 240V single-phase power.
What is the tailstock quill travel?
The tailstock quill travel is 70mm.
