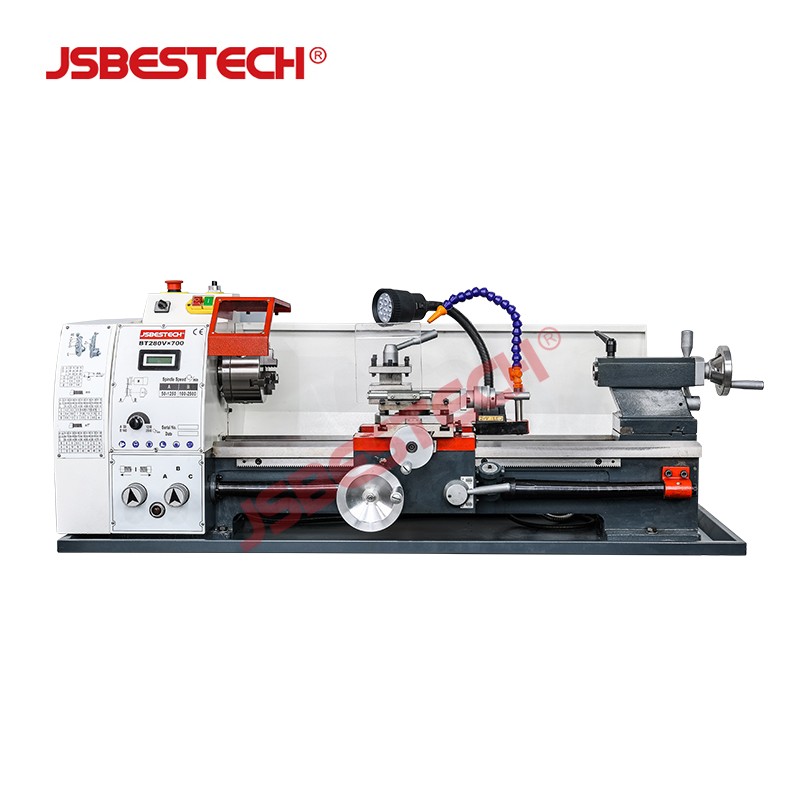

BT280V Mini Lathe with Threading Dial
The BT280V is a compact, variable-speed lathe designed for precision turning, threading, and general machining in small workshops, maintenance shops, and educational settings. With a 700 mm distance between centers and a 26 mm spindle bore, it balances capacity with a small footprint.

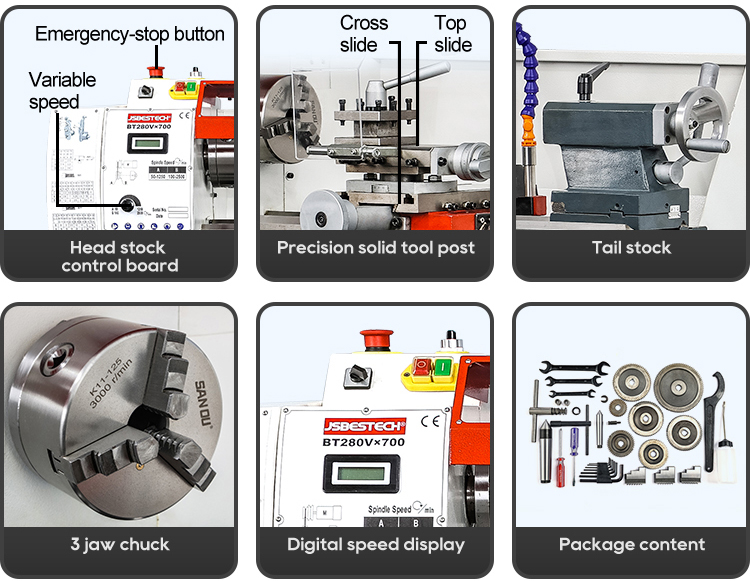

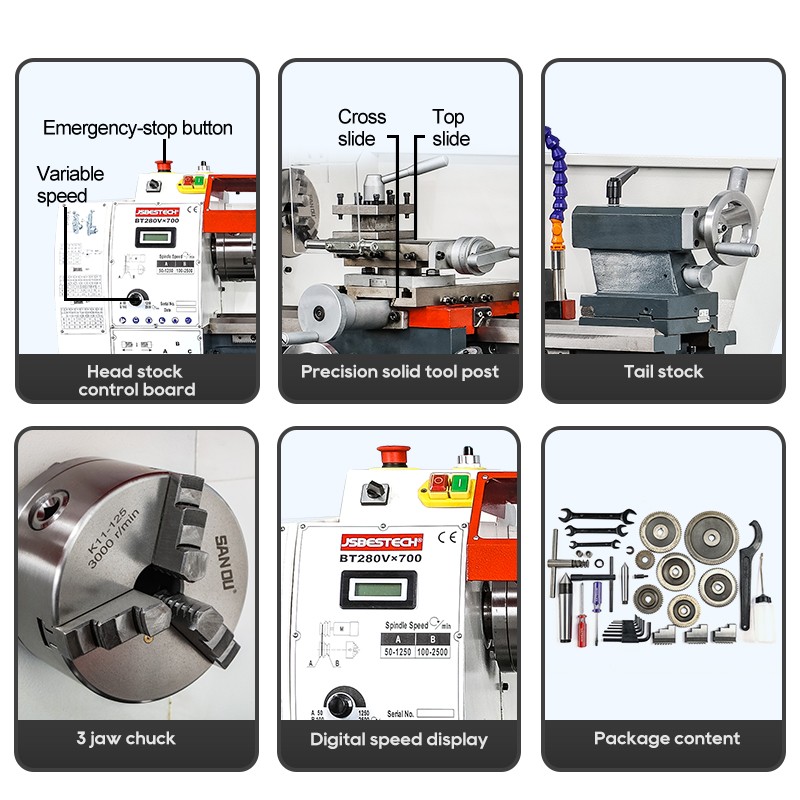

Key Features
- Variable speed: 50–2500 rpm for flexible cutting across materials.
- Threading dial: Simplifies metric and inch thread cutting.
- Spindle bore: Ø26 mm with MT4 taper.
- Tailstock: MT2 taper, 70 mm quill travel.
- Motor: 850 W, 110–240 V single-phase.

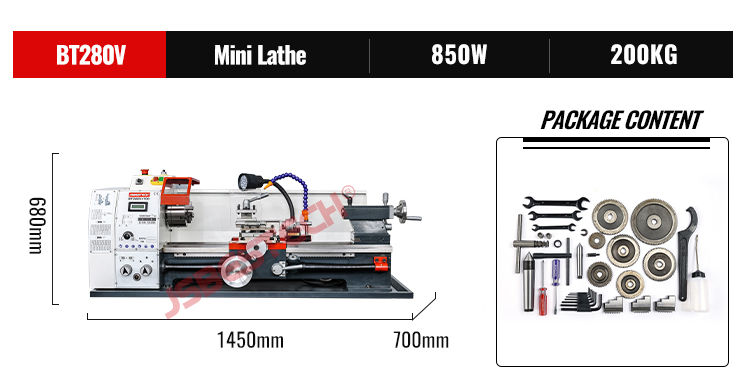

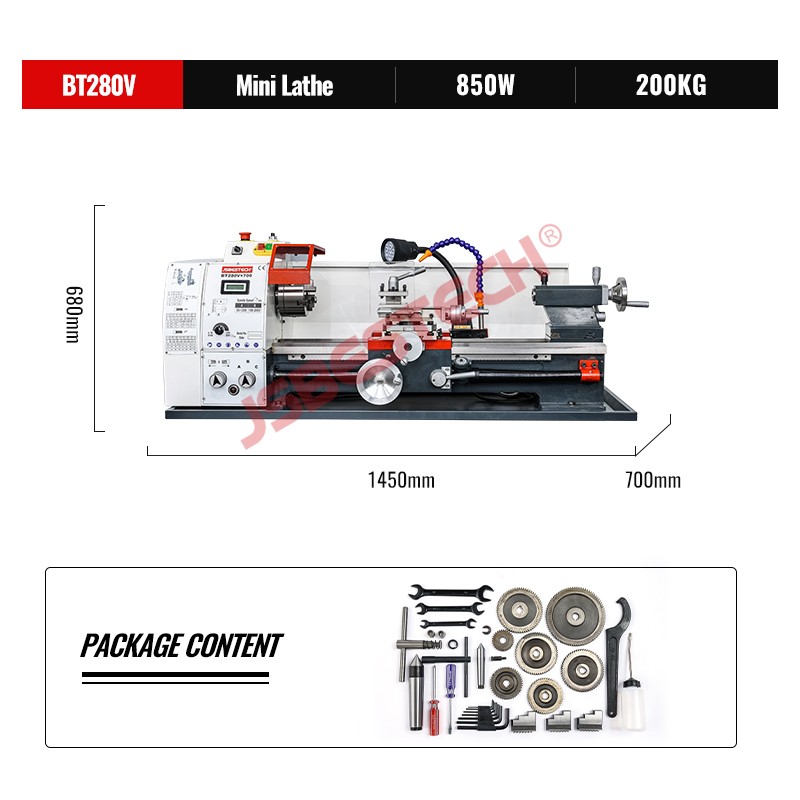

- Compact packaging: 1450 × 700 × 680 mm.
Specifications
| Turning diameter (Max.) | Ø280 mm |
| Swing over cross slide | Ø175 mm |
| Distance between centers | 700 mm |
| Width of bed | 182 mm |
| Spindle bore | Ø26 mm |
| Spindle taper | MT4 |
| Variable speed | 50–2500 rpm |
| Top slide travel | 65 mm |
| Cross slide travel | 130 mm |
| Max. section of tools | 12 × 12 mm |
| Range of metric threads | 0.2–4 mm |
| Range of inch threads | 8–56 T.P.I. |
| Tailstock quill diameter | Ø38 mm |
| Tailstock quill travel | 70 mm |
| Taper of tailstock quill | MT3 |
| Motor power | 850 W |
| Voltage | 110–240 V (1PH) |
| Packing size | 1450 × 700 × 680 mm |
Applications
Ideal for turning small metal and plastic parts, facing, drilling, and thread cutting. The threading dial allows quick and accurate engagement of the lead screw for both metric and inch threads.
Why Choose the BT280V?
This lathe offers a practical combination of capacity, speed range, and portability. Its variable-speed drive and threading dial make it suitable for both hobbyists and professionals who need a reliable benchtop machine.
For more information or to discuss your requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BT280V Competitive price mini torno lathe machine with threading dial?
The BT280V is a compact metalworking lathe with a 280 mm maximum turning diameter and 700 mm distance between centers. It features a Ø26 mm spindle bore, variable speed from 50 to 2500 rpm, and an 850 W motor. A threading dial supports both metric (0.2–4 mm) and inch (8–56 TPI) thread cutting. It is designed for small to medium-sized turning operations.
Applications
- Turning and facing small metal parts
- Thread cutting with metric and inch threads
- Drilling and reaming using the tailstock
- Suitable for workshop, maintenance, and educational use
FAQ
What is the maximum turning diameter of the BT280V lathe?
The maximum turning diameter is Ø280 mm.
What is the spindle speed range of this lathe?
The variable speed range is 50 to 2500 rpm.
Does the BT280V include a threading dial?
Yes, it is equipped with a threading dial for cutting metric and inch threads.
What is the motor power of the BT280V?
The motor power is 850 W.
What is the distance between centers?
The distance between centers is 700 mm.
