Description
Products Description
Engine Lathe Metal Mini Lathe
Features:
1.Widely useful,operation very easy,precessing scope widespread.
2.Easy operating gear box has various speeds and thread cutting function.
3.Induction-hardened and ground prismatic bed made from cast iron.
4.High precision and hardened spindle.
5.Safety magnetic and lock key European-standard switch.
6.Cost-efficient,precise and of stable value.
BT180V Bench Lathe Machine Technical Date
Machine Dates
Electrical Connection
110V--230V / 50--60Hz
Motor Power
600W
Working Areas
Centre Height
90mm
Turning Diameter (Max.)
180mm
Bed Width
100mm
Distance Between Centers
400mm/500mm(Optional)
Speeds
Electronically adjustable speed
50--2500 r.p.m
Headstock
Spindle Taper
MT 3
Spindle Drilling
φ21mm
Slide
Travel Top Slide
55mm
Travel Cross Slide
140mm
Range Of Metric Threads
0.3-3mm
Range Of Inch Threads
10-44T.P.l
Tool Holder Seat Height
Max.12mmX12mm
Tailstock
Tailstock Taper
MT 2
Tailstock Sleeve Travel
60mm
Standard Accessories
Optional Accessories
1. 3-jaw chuck
2. MT2 Dead center
3. Change gear set
4. Wrench set
5. Oil can
6. Splash guard
7. Chip tray
8. Toolbox &tools
1. 4-jaw chuck
2. Follow rest
3. Steady rest
4. Face plate
5. Steady rest
6. Quick change tool post
7. Rolling center
8. Lead screw cover
9. Stand

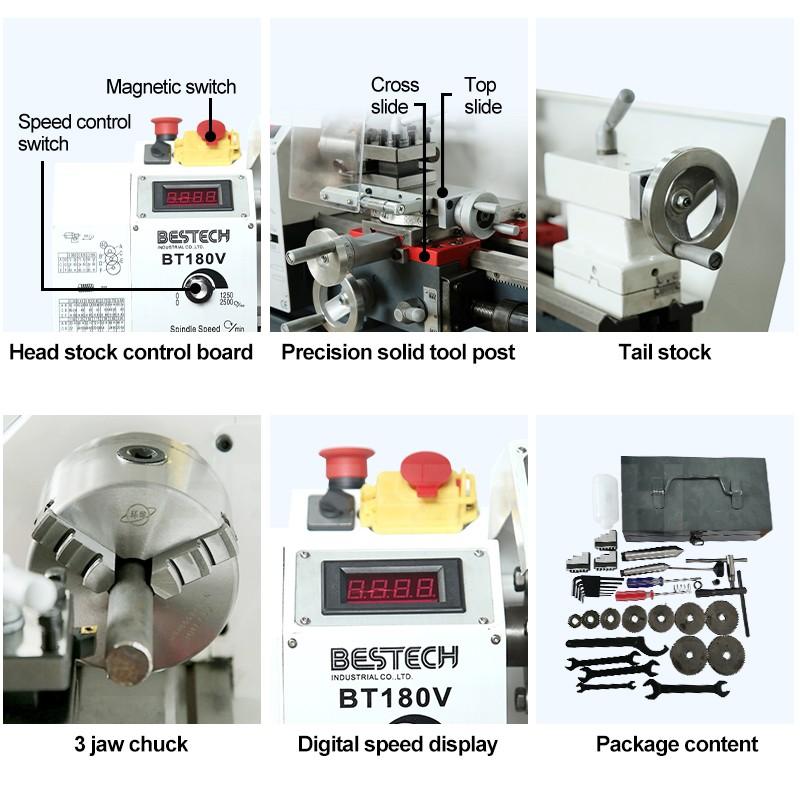

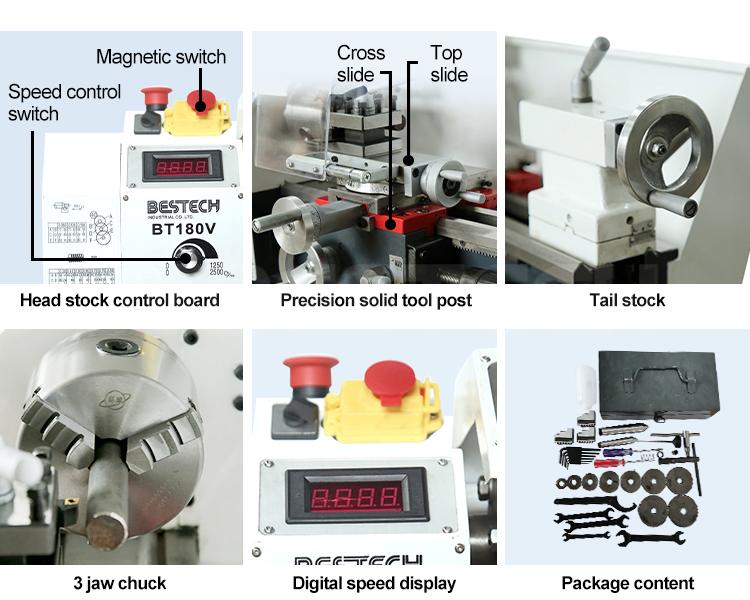

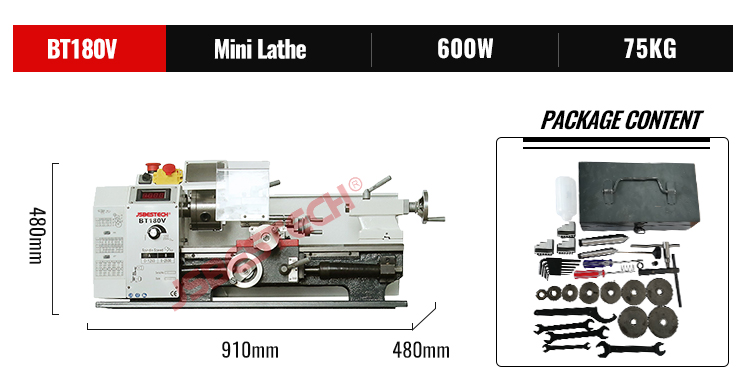

Details Images
