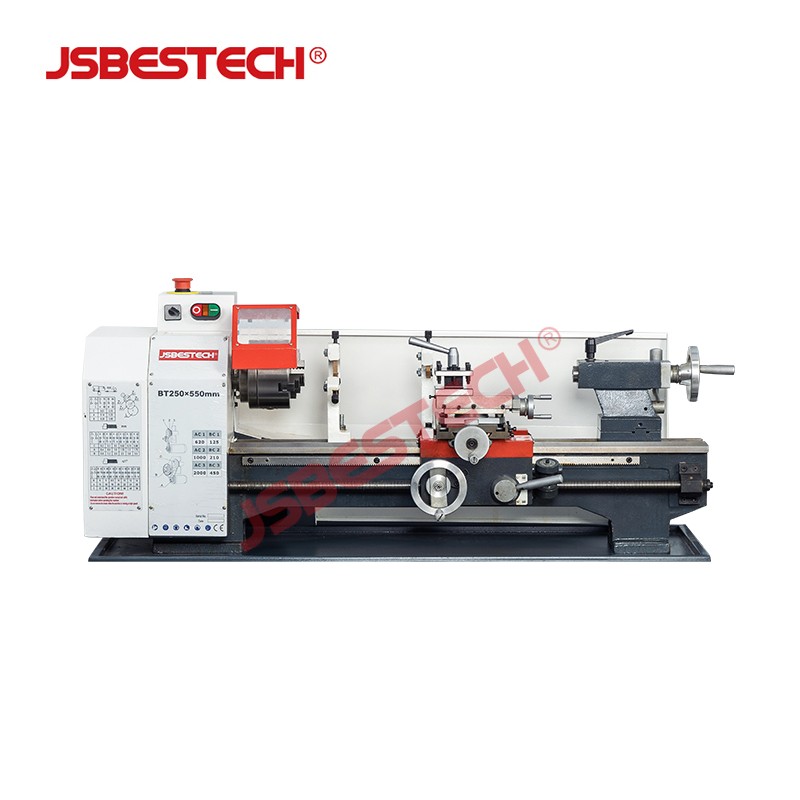

BT250 Lightweight Mini Bench Metal Lathe Machine
Jiangsu Bestech Industrial Co., Ltd. presents the BT250, a compact bench lathe designed for precision metal turning in workshops, maintenance shops, and light production environments. With a 125mm chuck diameter and a lightweight build, it offers a practical balance of capacity and portability.
Key Features
- 125mm chuck diameter for versatile workholding
- Distance between centers: 550mm or 750mm (optional)
- Six spindle speeds from 125 to 2000 rpm
- Metric thread range: 0.2–3.5mm; inch thread range: 8–56 T.P.I.
- Top slide travel: 70mm; cross slide travel: 120mm
- 750W motor; voltage 110V–240V (1PH)
Specifications
| Turning diameter (Max.) | Ø250mm |
|---|---|
| Swing over cross slide | Ø150mm |
| Distance between centers | 550/750mm (Optional) |
| Width of bed | 135mm |
| Spindle bore | Ø26mm |
| Spindle taper | MT4 |
| Spindle speed (6 steps) | 125~2000rpm |
| Top slide travel | 70mm |
| Cross slide travel | 120mm |
| Max. section of tools | 12x12mm |
| Range of metric threads | 0.2~3.5mm |
| Range of inch threads | 8~56T.P.I |
| Tailstock quill diameter | Ø30mm |
| Tailstock quill travel | 60mm |
| Taper of tailstock quill | MT2 |
| Motor power | 750W |
| Voltage | 110V~240V(1PH) |

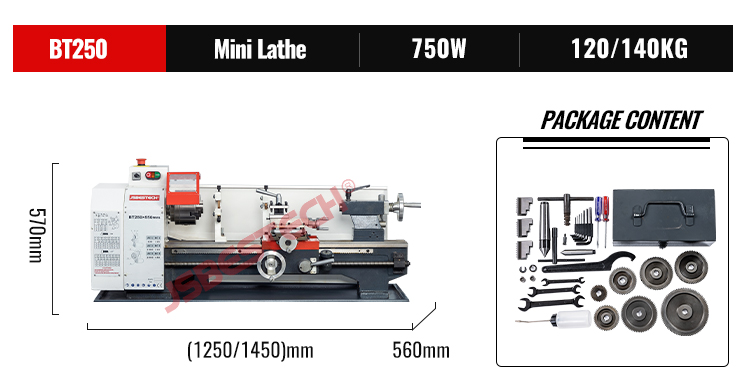

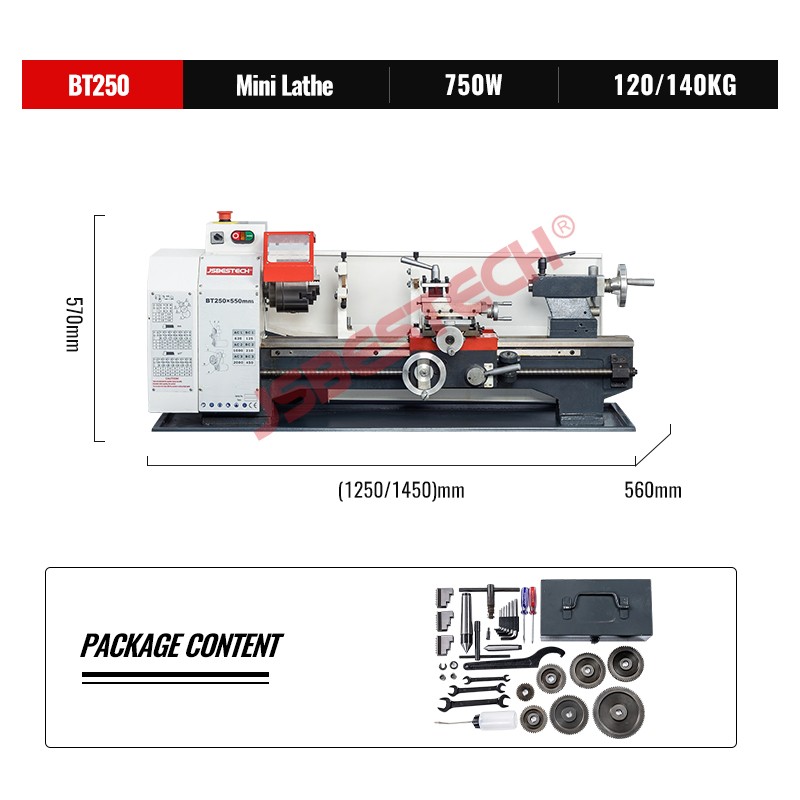

| Packing size | (1250/1450)x560x570mm |
Applications
The BT250 is suitable for turning, facing, threading, and drilling operations on small to medium metal workpieces. Its compact footprint makes it a good fit for bench-top use where space is limited.
Why Choose the BT250?

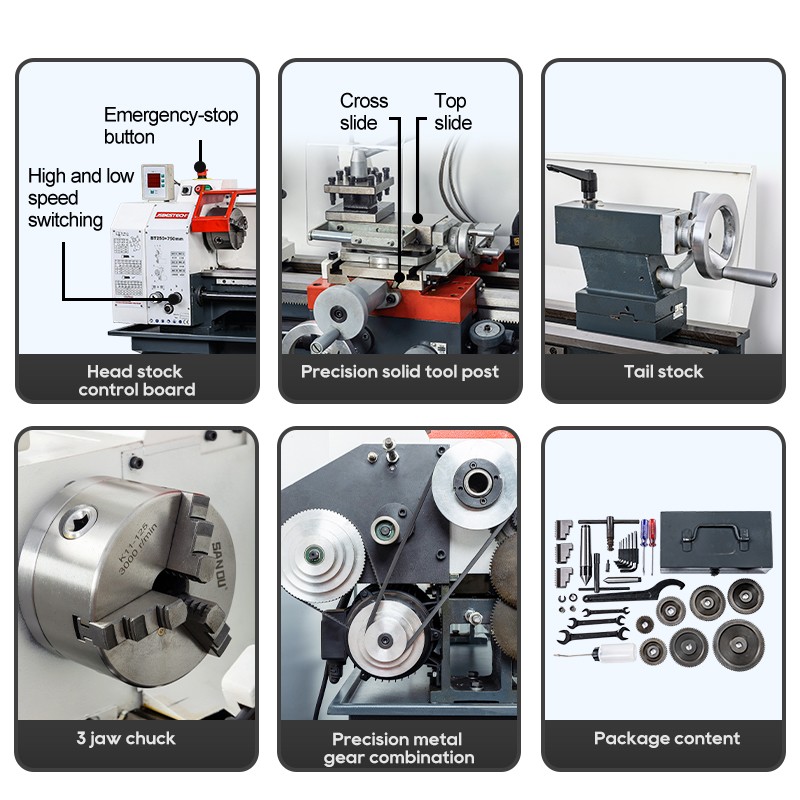

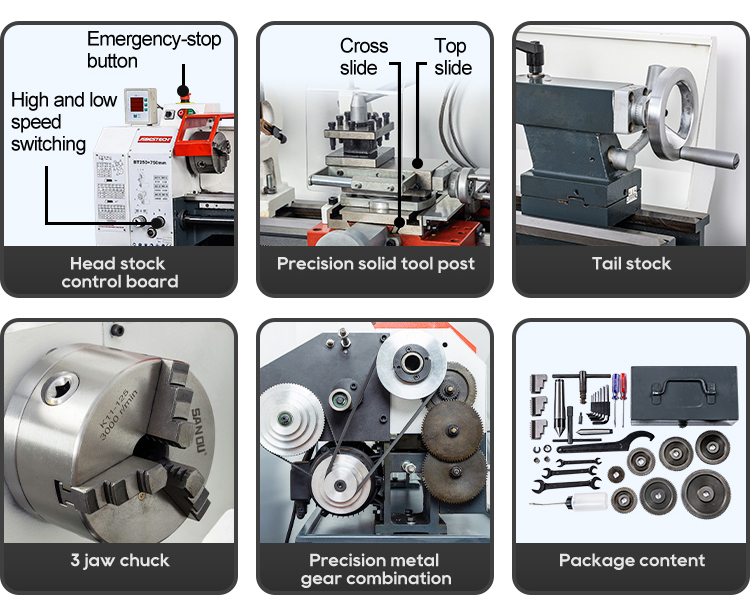

This mini lathe combines a rigid bed, adjustable speed range, and user-friendly controls. The optional center distance allows you to match the machine to your specific workpiece length requirements. Backed by Jiangsu Bestech Industrial Co., Ltd., it is a reliable choice for workshops seeking a lightweight yet capable lathe.
What is With 125mm chuck diameter BT250 light weight mini bench metal lathe machine?
The BT250 is a light-weight mini bench metal lathe with a 125mm chuck diameter, designed for small-scale turning operations. It offers a maximum turning diameter of Ø250mm and a distance between centers of 550mm or 750mm (optional). The machine features a 750W motor, six spindle speeds from 125 to 2000 rpm, and a spindle bore of Ø26mm with MT4 taper. It is suitable for machining a variety of materials and cutting both metric and inch threads.
Applications
- Turning small metal parts and components in workshops
- Thread cutting for metric (0.2–3.5mm) and inch (8–56 T.P.I.) threads
- Facing, drilling, and boring operations on metal workpieces
- Hobbyist and light industrial machining tasks
- Educational use in technical training and schools
FAQ
What is the maximum turning diameter of the BT250 mini lathe?
The maximum turning diameter is Ø250mm.
What is the distance between centers for this lathe?
The distance between centers is 550mm or 750mm (optional).
What is the spindle speed range of the BT250?
The spindle speed range is 125 to 2000 rpm, with 6 steps.
What is the motor power of this lathe?
The motor power is 750W.
What is the voltage requirement for the BT250?
The voltage requirement is 110V to 240V, single phase.
