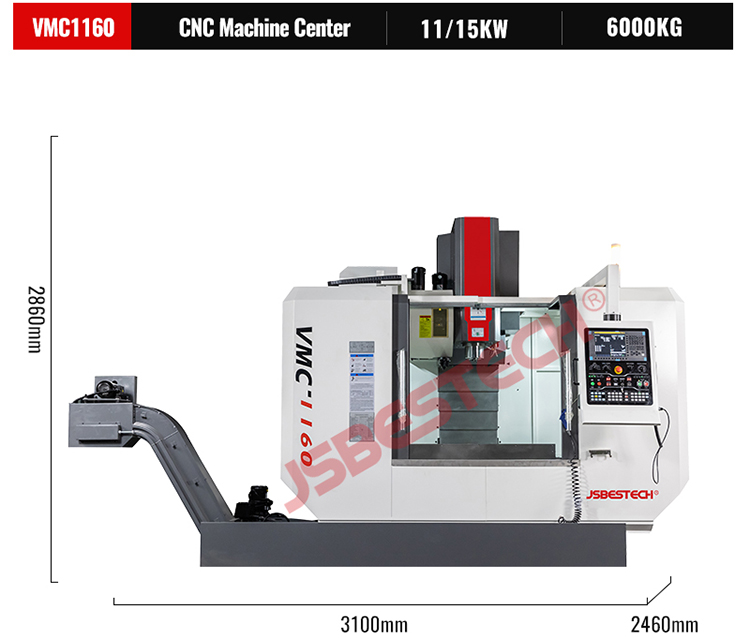

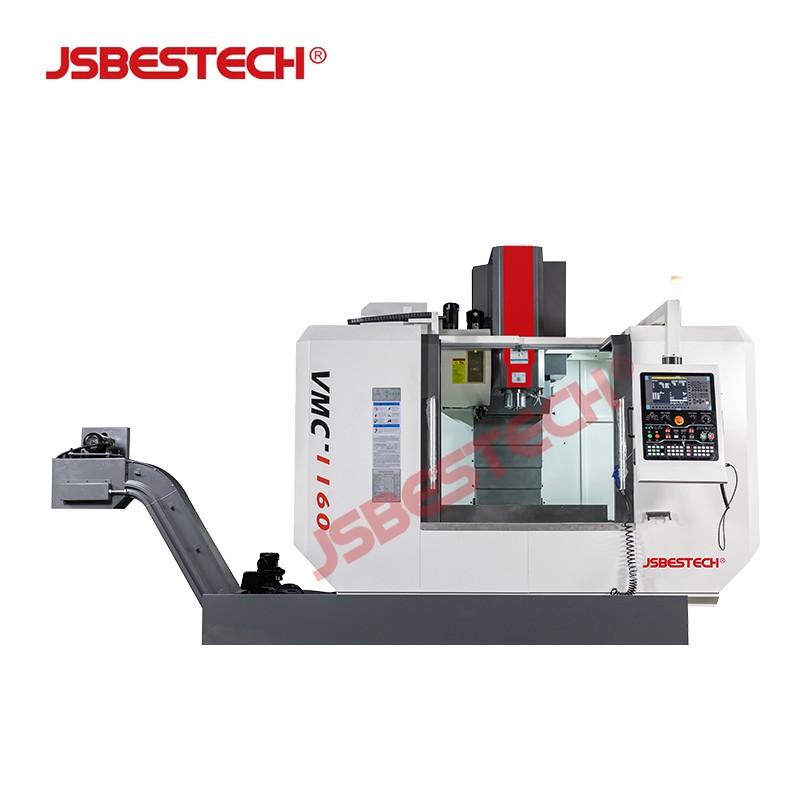

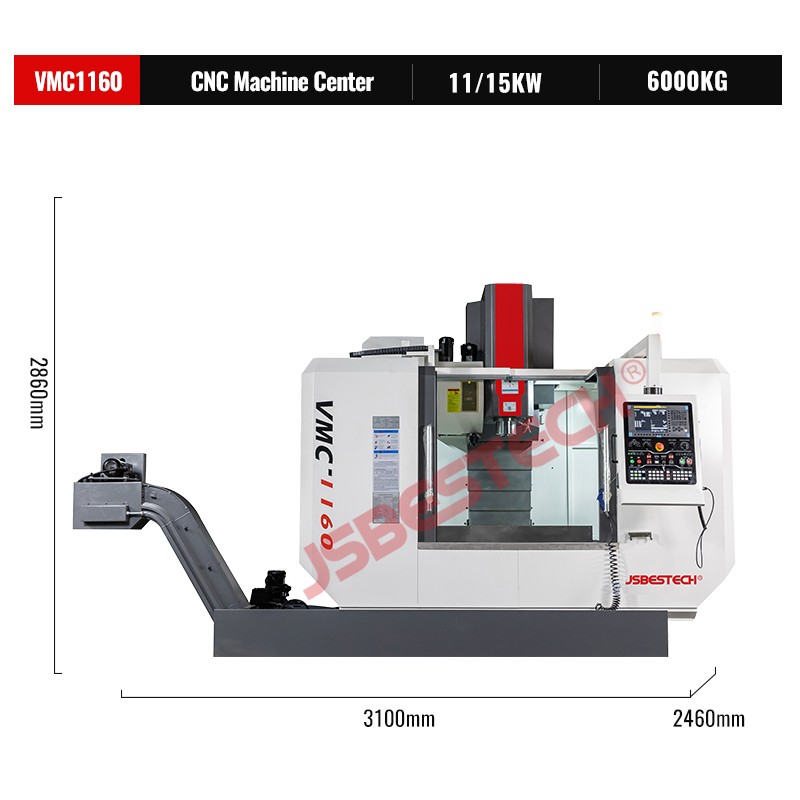

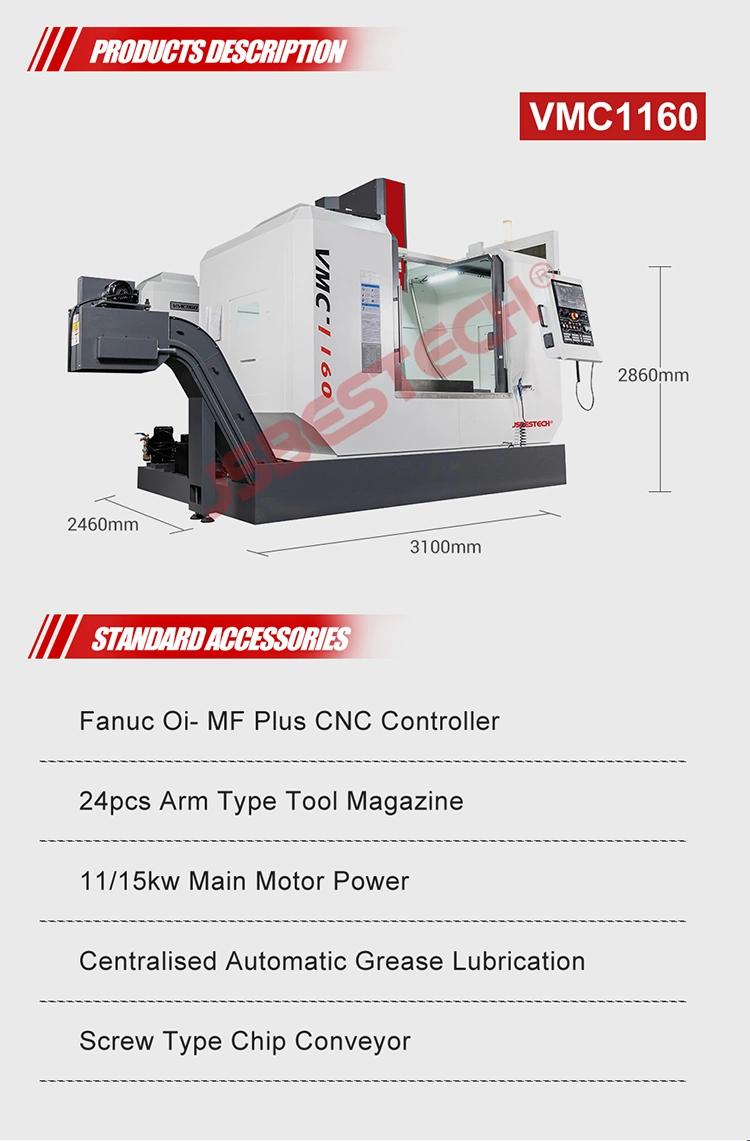

VMC1160 CNC Center Machine
Jiangsu Bestech Industrial Co., Ltd. presents the VMC1160 CNC Center Machine, a robust and precise vertical machining center designed for a wide range of industrial applications. With its large working table and high-speed capabilities, this machine delivers reliable performance for demanding manufacturing tasks.
Key Features
- Generous working table size of 1200x600mm to accommodate large workpieces.
- T-slot design (width/qty/distance: 18/5/100mm) for secure and flexible fixture mounting.
- Powerful spindle motor (11/15kw) for efficient cutting and high material removal rates.
- High rapid feed speeds (X/Y/Z: 30000/30000/24000mm/min) to reduce non-cutting time.

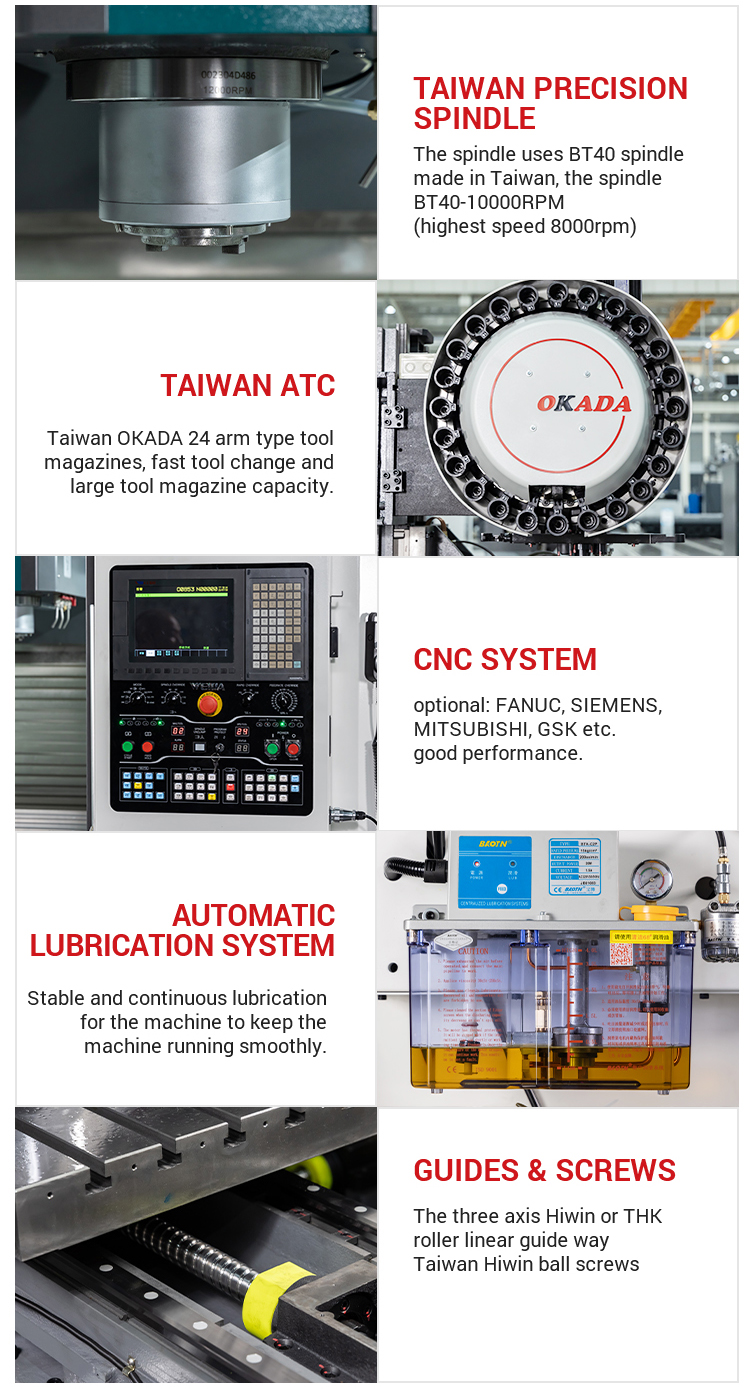

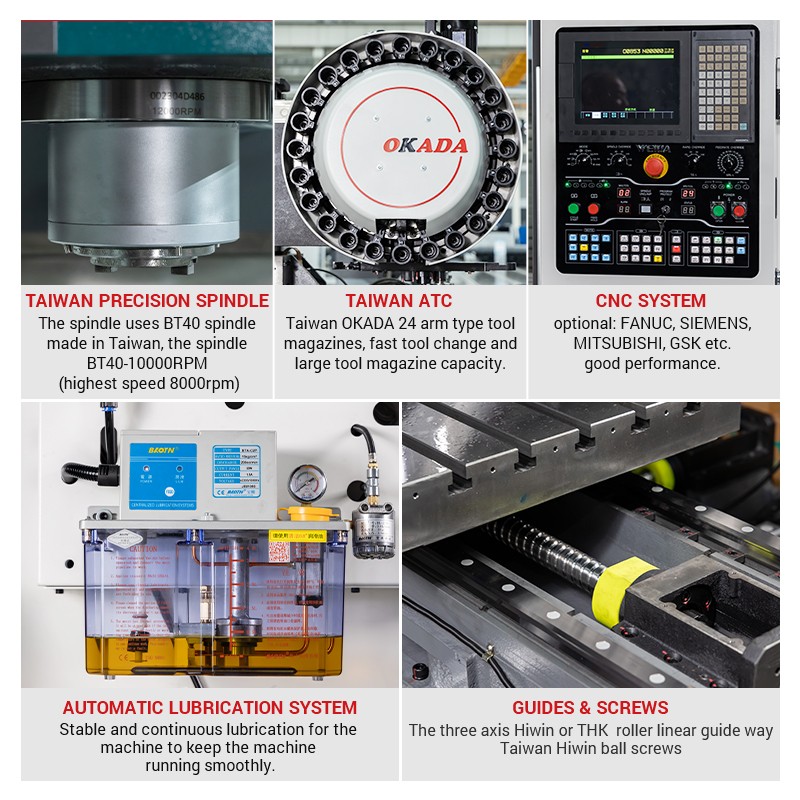

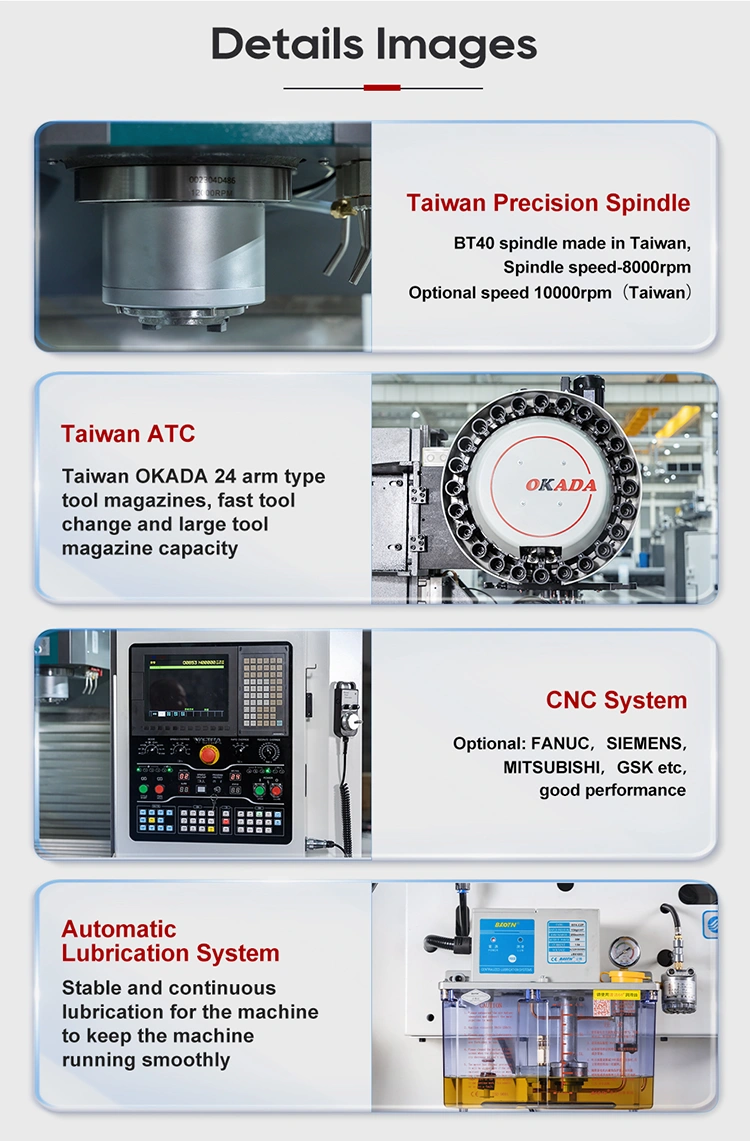

- BT40 spindle taper for compatibility with a wide range of tooling.
- Substantial max. load of worktable (600kg) to handle heavy workpieces.
Specifications
| Model | VMC1160 |
|---|---|
| Working table size | 1200X600mm |
| Worktable X/Y/Z-Axis travel | 1100x600x600mm |
| T-slot (width/qty/distance) | 18/5/100mm |
| Max. load of worktable | 600kg |
| Distance from spindle nose to table | 120~720mm |
| Distance from spindle center to column | 670mm |
| Rapid feed speed(X/Y/Z) | 30000/30000/24000mm/min |
| Cutting feed speed(X/Y/Z) | 1~10000mm/min |
| Spindle taper | BT40 |
| Max. tool weight | 8kg |
| Spindle motor power | 11/15kw |
For more information about the VMC1160 CNC Center Machine, including size, color, weight, and brand options, please contact Jiangsu Bestech Industrial Co., Ltd. directly.
What is VMC1160 CNC Center Machine?
The VMC1160 CNC Center Machine is a vertical machining center designed for precision milling, drilling, and tapping operations. It features a working table size of 1200x600mm with T-slots of 18mm width, 5 slots, and 100mm distance, and a maximum load capacity of 600kg. The machine offers X/Y/Z-axis travels of 1100x600x600mm and rapid feed speeds of 30000/30000/24000mm/min. It is equipped with an 11/15kw spindle motor and accommodates tools up to 8kg.
Applications
- Precision milling of metal parts
- Drilling and tapping operations
- Batch production of components
- Machining of molds and dies
- General CNC machining tasks
FAQ
What is the working table size of the VMC1160?
The working table size is 1200x600mm.
What are the X/Y/Z-axis travels?
The X/Y/Z-axis travels are 1100x600x600mm.
What is the spindle motor power?
The spindle motor power is 11/15kw.
What is the maximum load capacity of the worktable?
The maximum load of the worktable is 600kg.
What is the rapid feed speed?
The rapid feed speed for X/Y/Z axes is 30000/30000/24000mm/min.
