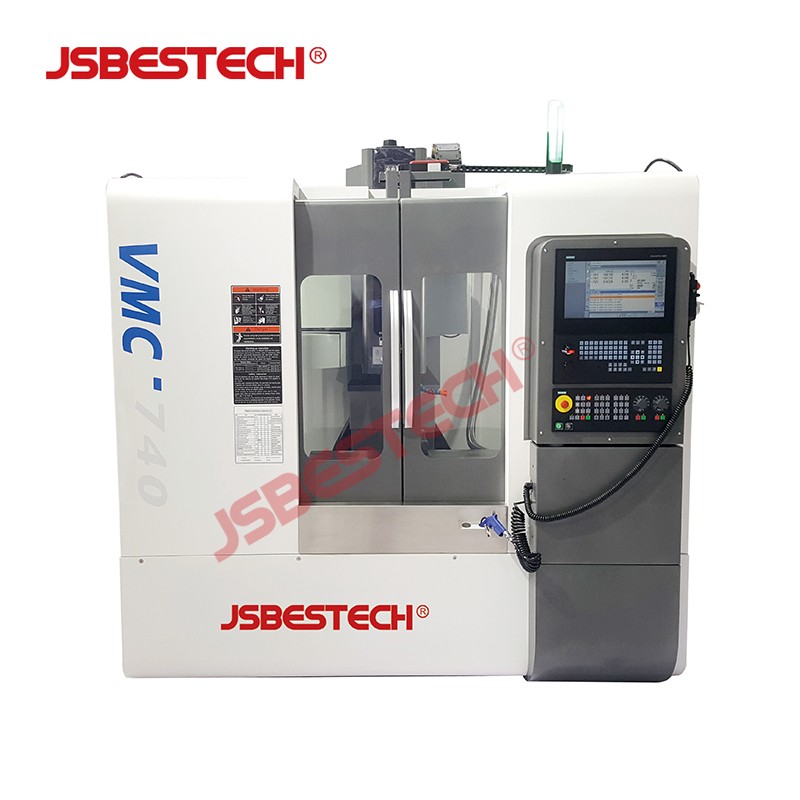

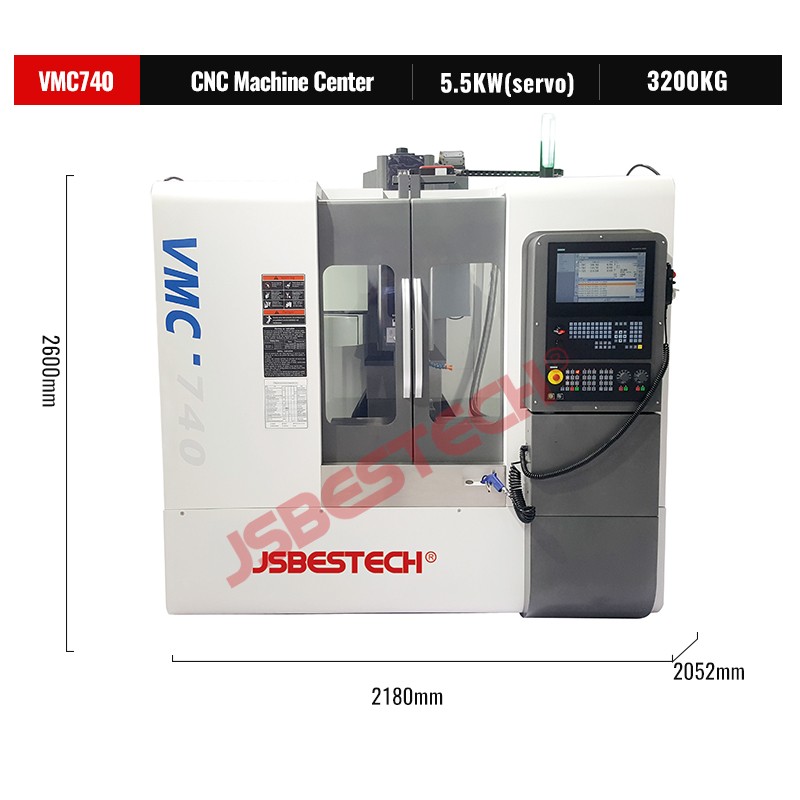

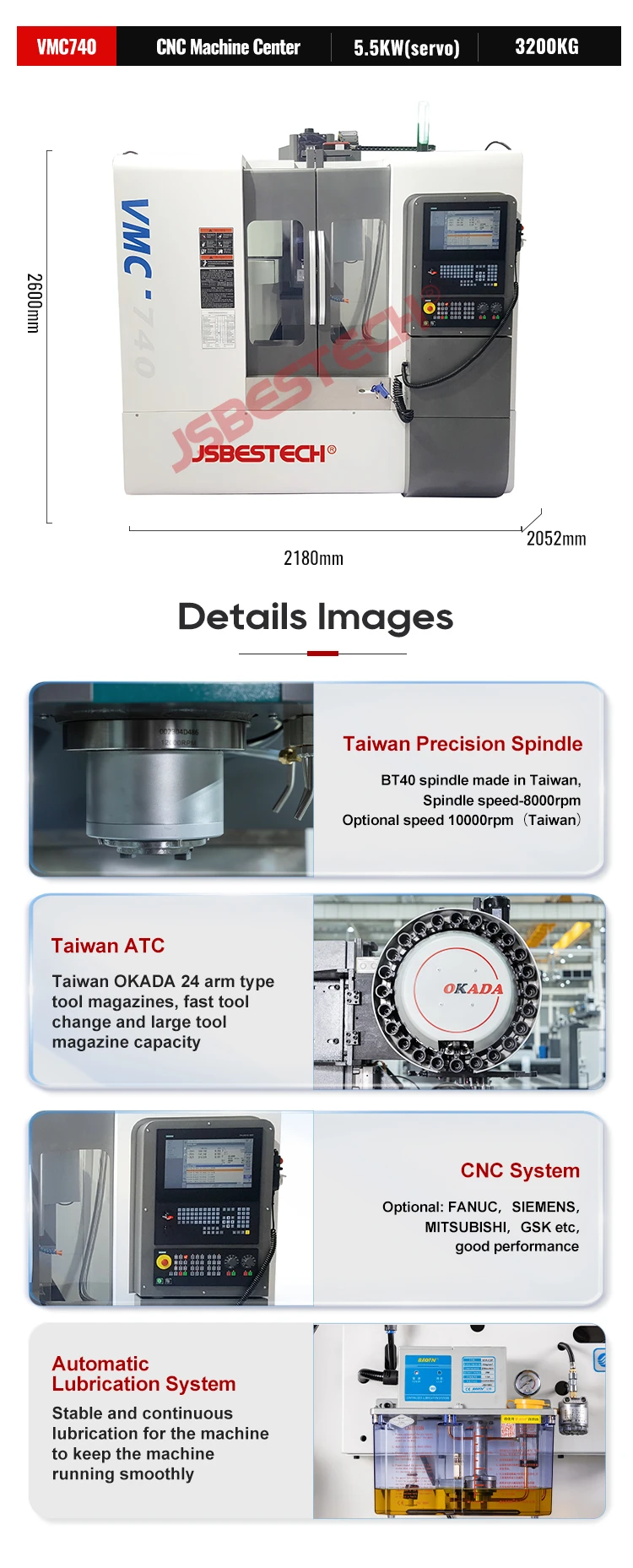

VMC740 CNC Center Machine
The VMC740 CNC Center Machine from Jiangsu Bestech Industrial Co., Ltd. is a vertical machining center designed for precision milling, drilling, and tapping operations. It combines a rigid structure with a large worktable to handle a variety of industrial parts.
Key Features
- Worktable size of 920 x 400 mm with three T-slots
- T-slot width of 14 mm and centre distance of 120 mm
- Maximum worktable load of 300 kg
- Longitudinal travel of 700 mm, cross travel of 400 mm, and vertical travel of 500 mm
- Spindle nose to table surface distance of 100–600 mm
- Spindle axis to column surface distance of 425 mm

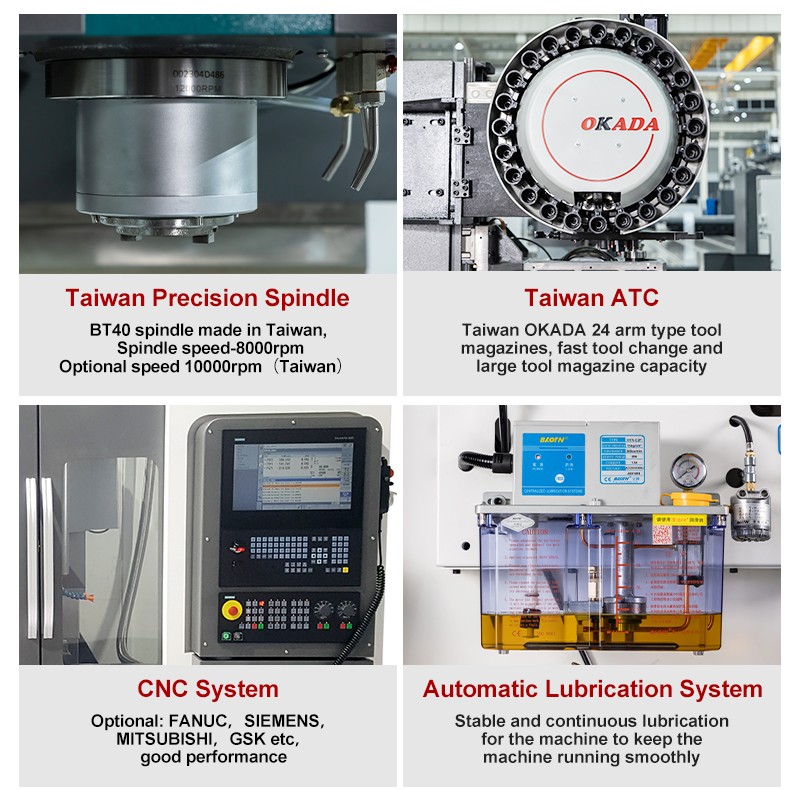

- BT40 spindle taper
- Speed range from 40 rpm (further specifications available on request)
Technical Specifications
| Parameter | Value |
|---|---|
| Table size | 920 x 400 mm |
| T slot | 3 no |
| Centre distance | 120 mm |
| T-Width | 14 mm |
| Max. load of worktable | 300 kg |
| Longitudinal travel | 700 mm |
| Cross travel | 400 mm |
| Vertical travel | 500 mm |
| Spindle nose to table surface | 100–600 mm |
| Spindle axis to column surface | 425 mm |
| Spindle taper | BT40 |
| Speed range | 40– (please inquire for full range) |
For additional specifications such as size, color, weight, and brand, please contact our sales team. Jiangsu Bestech Industrial Co., Ltd. is committed to providing reliable machining solutions for export markets.
What is VMC740 CNC Center Machine?
The VMC740 CNC Center Machine is a vertical machining center with a 920x400mm worktable and three T-slots (14mm width, 120mm centre distance). It offers longitudinal, cross, and vertical travels of 700mm, 400mm, and 500mm respectively, with a maximum worktable load of 300kg. The spindle nose to table surface distance ranges from 100mm to 600mm. Manufactured by Jiangsu Bestech Industrial Co., Ltd., it is designed for precision milling, drilling, and tapping operations.
Applications
- Precision milling of metal and plastic parts
- Drilling and tapping operations in batch production
- Machining of molds and dies
- Manufacturing of automotive and aerospace components
- General CNC machining for industrial parts
FAQ
What is the table size of the VMC740 CNC Center Machine?
The table size is 920x400mm.
How many T-slots does the worktable have?
The worktable has 3 T-slots with a width of 14mm and centre distance of 120mm.
What are the travel dimensions of the VMC740?
Longitudinal travel is 700mm, cross travel is 400mm, and vertical travel is 500mm.
What is the maximum load capacity of the worktable?
The maximum load of the worktable is 300kg.
What is the spindle nose to table surface distance range?
The spindle nose to table surface distance ranges from 100mm to 600mm.
