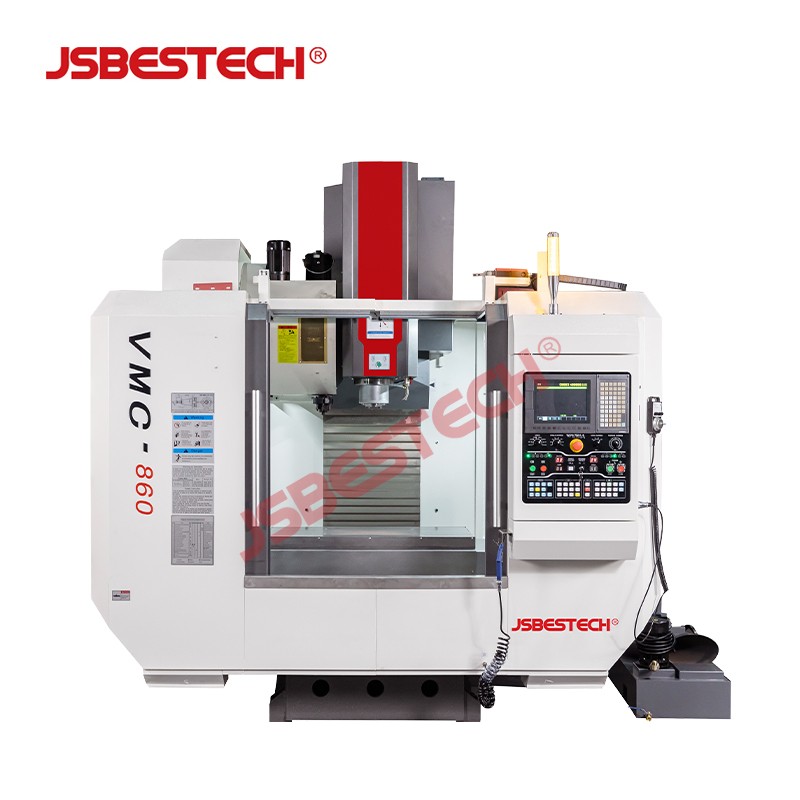

VMC860 CNC Center Machine
Jiangsu Bestech Industrial Co., Ltd. presents the VMC860, a robust vertical machining center engineered for precision and productivity. With a generous working table and high-speed movements, it handles a wide range of milling, drilling, and tapping tasks with ease.

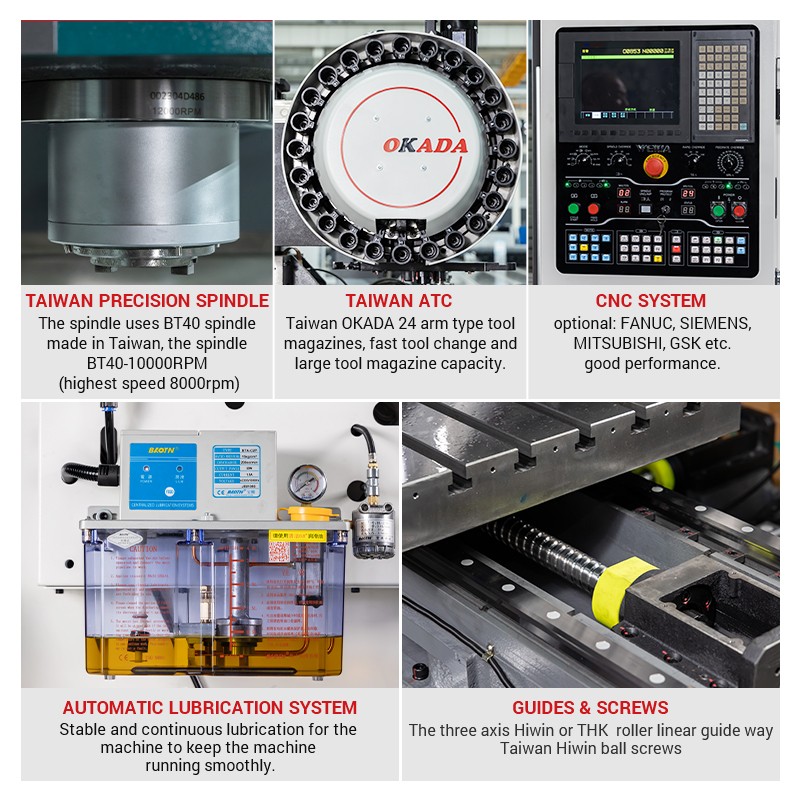

Key Features
- Large working table: 1000x550mm with T-slots (18/5/90mm) for secure fixturing.
- Powerful spindle motor: 11/18.5 kW, delivering high torque up to 52.5/118 N.m.
- High-speed rapids: 48,000 mm/min on X and Y axes, 36,000 mm/min on Z.
- 24-tool magazine for automatic tool changes, reducing downtime.
- BT40 spindle taper with speeds up to 10,000 rpm.
Specifications
| Parameter | Value |
|---|---|
| Working table size | 1000x550mm |
| Worktable X/Y/Z-Axis travel | 850x600x600mm |
| T-slot (width/qty/distance) | 18/5/90mm |
| Max. load of worktable | 600kg |
| Distance from spindle nose to table | 100~700mm |
| Distance from spindle center to column | 642mm |
| Rapid feed speed (X/Y/Z) | 48000/48000/36000mm/min |
| Cutting feed speed (X/Y/Z) | 1~10000mm/min |
| Spindle taper | BT40 |
| Spindle speed | 10000rpm |
| Spindle motor power | 11/18.5kw |
| Spindle output torque (Max.) | 52.5/118N.m |
| Tool magazine capacity | 24pcs |
| Max. tool weight | 8kg |
| Max. diameter of tool (Full/Empty) | Ø80/150mm |
For more information or to discuss your requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is VMC860 CNC Center Machine?

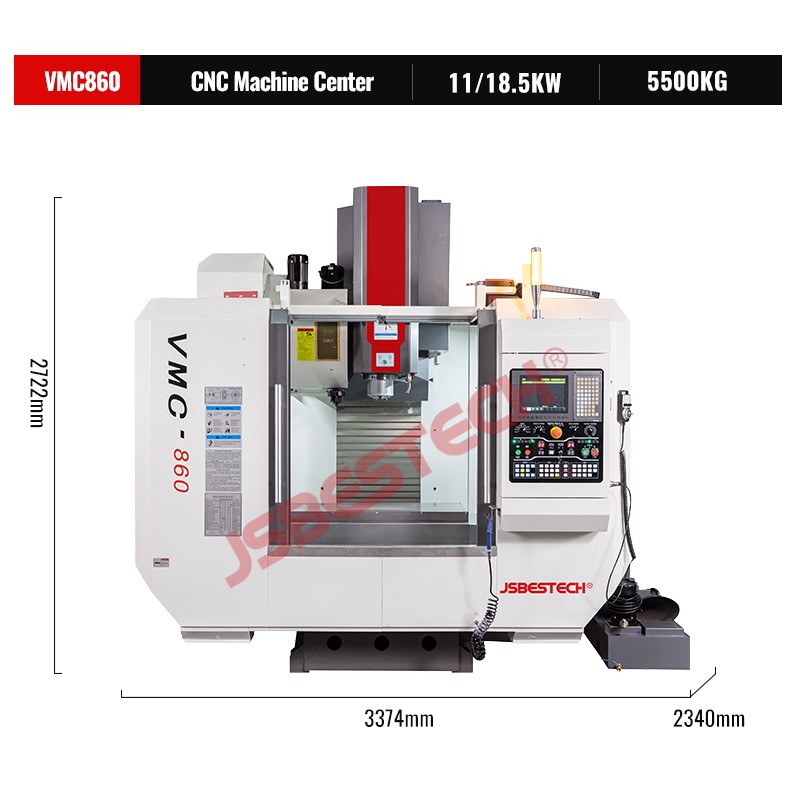

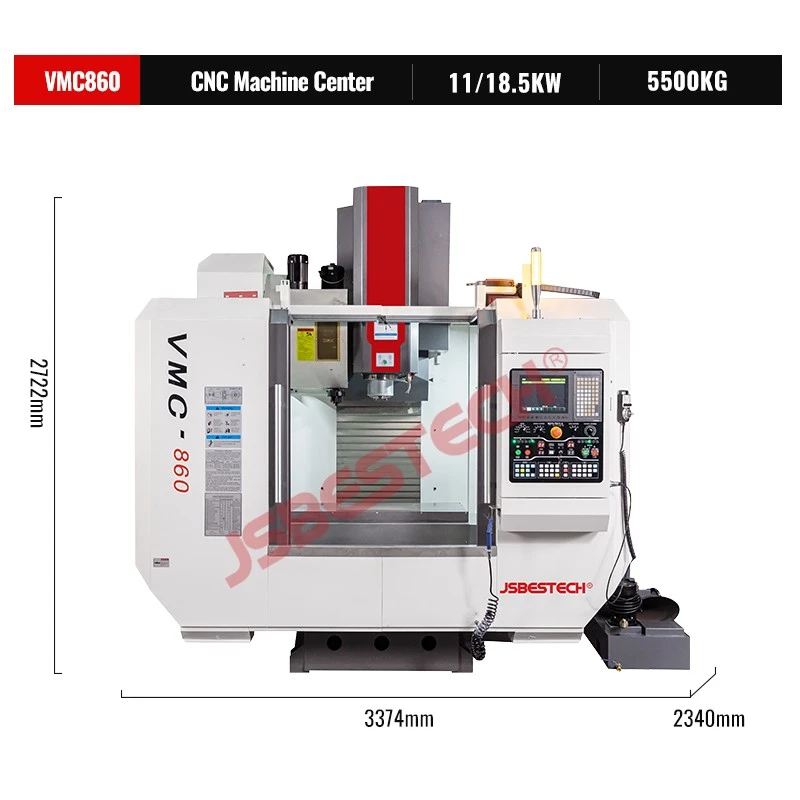

The VMC860 CNC Center Machine is a vertical machining center designed for precision milling, drilling, and tapping operations. It features a working table size of 1000x550mm and X/Y/Z-axis travels of 850x600x600mm, accommodating workpieces up to 600kg. The machine is equipped with a BT40 spindle taper, a spindle speed of 10000rpm, and a spindle motor power of 11/18.5kw. Manufactured by Jiangsu Bestech Industrial Co., Ltd., it is suitable for a wide range of industrial machining applications.
Applications
- Precision milling of metal parts
- Drilling and tapping operations
- Batch production of components
- Mold and die machining
- General CNC machining tasks
FAQ
What is the working table size of the VMC860 CNC Center Machine?
The working table size is 1000x550mm.
What are the X/Y/Z-axis travels of this machine?
The X/Y/Z-axis travels are 850x600x600mm.
What is the spindle speed and taper of the VMC860?
The spindle speed is 10000rpm and the spindle taper is BT40.
What is the maximum load capacity of the worktable?
The maximum load of the worktable is 600kg.
What is the spindle motor power of this CNC center machine?
The spindle motor power is 11/18.5kw.
