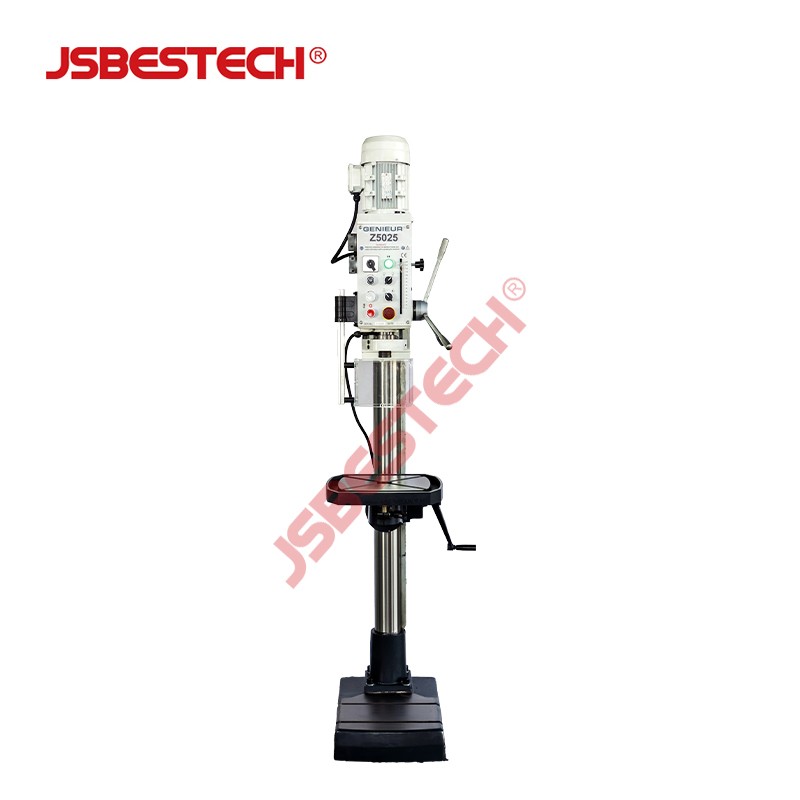

Z5025 Drilling Milling Machine
Jiangsu Bestech Industrial Co., Ltd. presents the Z5025, a robust drilling and milling machine engineered for precision metalworking. Combining drilling and tapping capabilities in one compact unit, it delivers reliable performance for workshops, maintenance facilities, and small-scale production.

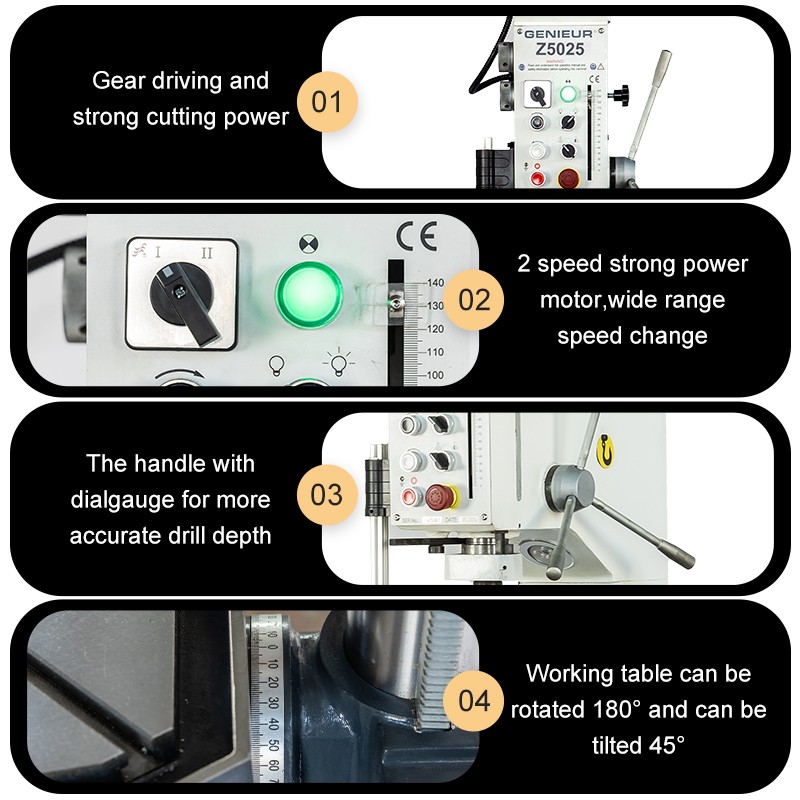

Key Features
- Max. drilling capacity: 28 mm
- Max. tapping capacity: M22
- Spindle taper: MT3
- Spindle stroke: 130 mm
- Spindle speeds: 75–3200 rpm (12 steps)
- Worktable size: 380 x 380 mm
- Main motor: 0.85/1.1 kW (2-speed motor)
Technical Specifications
| Parameter | Value |
|---|---|
| Max. drilling capacity | 28 mm |
| Max. tapping capacity | M22 |
| Spindle taper | MT3 |
| Spindle stroke | 130 mm |
| Spindle center to column surface | 250 mm |
| Spindle nose to worktable | 125–825 mm |
| Spindle nose to base | 1220 mm |
| Spindle speeds range (12 steps) | 75–3200 rpm |
| Diameter of column | 98 mm |
| Worktable size | 380 x 380 mm |
| Base size | 360 x 535 mm |
| Width of T-slot | 14 mm |
| Main motor (2-speed motor) | 0.85/1.1 kW |

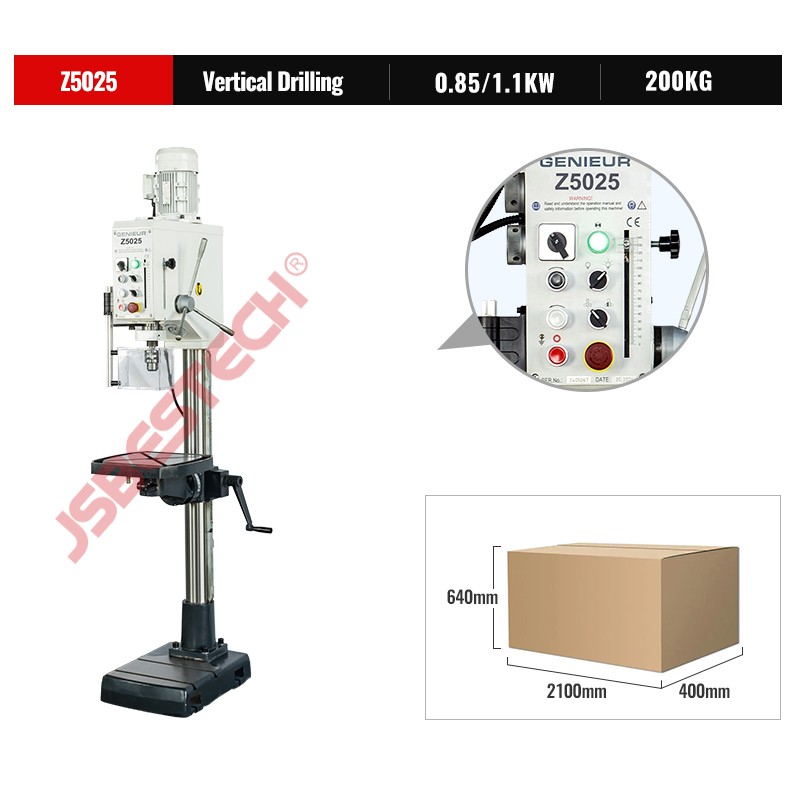

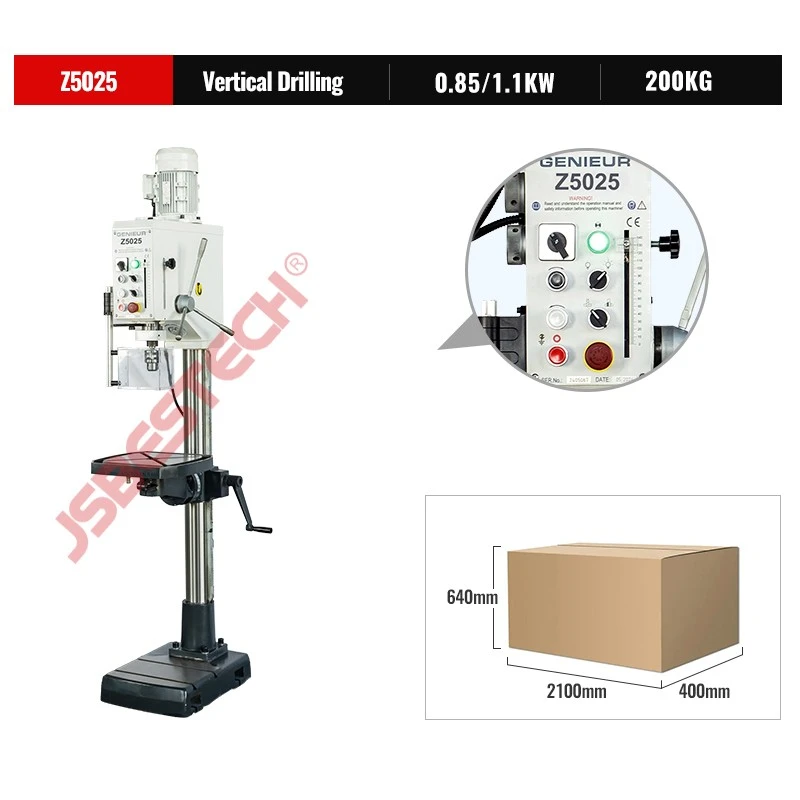

| Packing size | 2100 x 400 x 640 mm |
| N.W/G.W | 200/230 kg |
Applications
The Z5025 is suitable for drilling, tapping, and light milling operations on cast iron, steel, and non-ferrous metals. Its variable speed range and sturdy column design make it a versatile choice for job shops and educational settings.
For more information about the Z5025 or other industrial machinery, please contact Jiangsu Bestech Industrial Co., Ltd.
What is Z5025 Drilling Milling machine?
The Z5025 is a vertical drilling and milling machine designed for metalworking applications. It offers a maximum drilling capacity of 28mm and a maximum tapping capacity of M22. The machine features a spindle taper of MT3, a spindle stroke of 130mm, and 12 spindle speed steps ranging from 75 to 3200 rpm. With a worktable size of 380x380mm and a spindle center to column surface distance of 250mm, it provides flexibility for various machining tasks.
Applications
- Drilling holes up to 28mm in diameter in metal workpieces
- Tapping threads up to M22
- Milling operations on small to medium-sized parts
- General maintenance and repair work in workshops
- Production of components in job shops and manufacturing facilities
FAQ
What is the maximum drilling capacity of the Z5025?
The Z5025 has a maximum drilling capacity of 28mm.
What is the spindle speed range of the Z5025?
The spindle speed range is 75 to 3200 rpm, with 12 steps.
What is the worktable size of the Z5025?
The worktable size is 380x380mm.
What is the spindle taper of the Z5025?
The spindle taper is MT3.
What is the maximum tapping capacity of the Z5025?
The maximum tapping capacity is M22.
