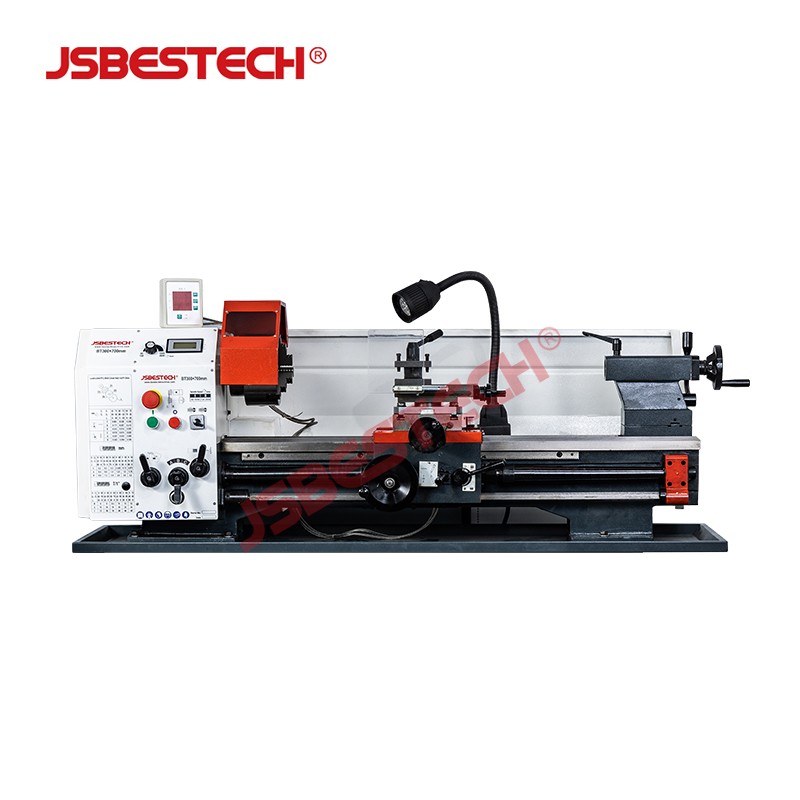

BT300V Normal Gap Bed Bench Lathe
The BT300V is a versatile normal gap bed bench lathe designed for precision turning in workshops, maintenance facilities, and small-scale production. With a 38mm spindle bore and a swing over bed of Ø300mm, it handles a wide range of metalworking tasks with ease.

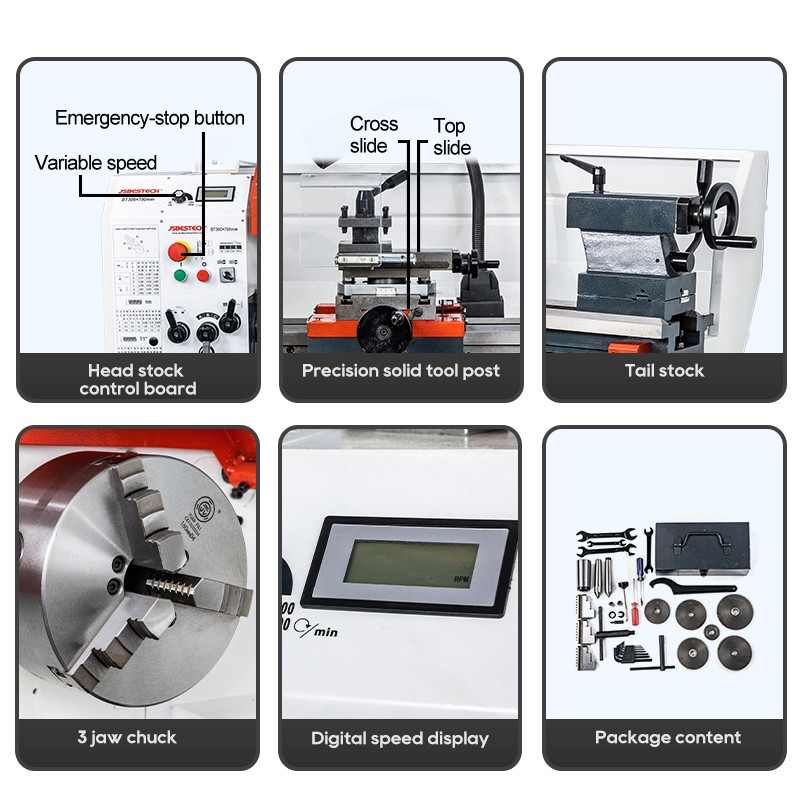

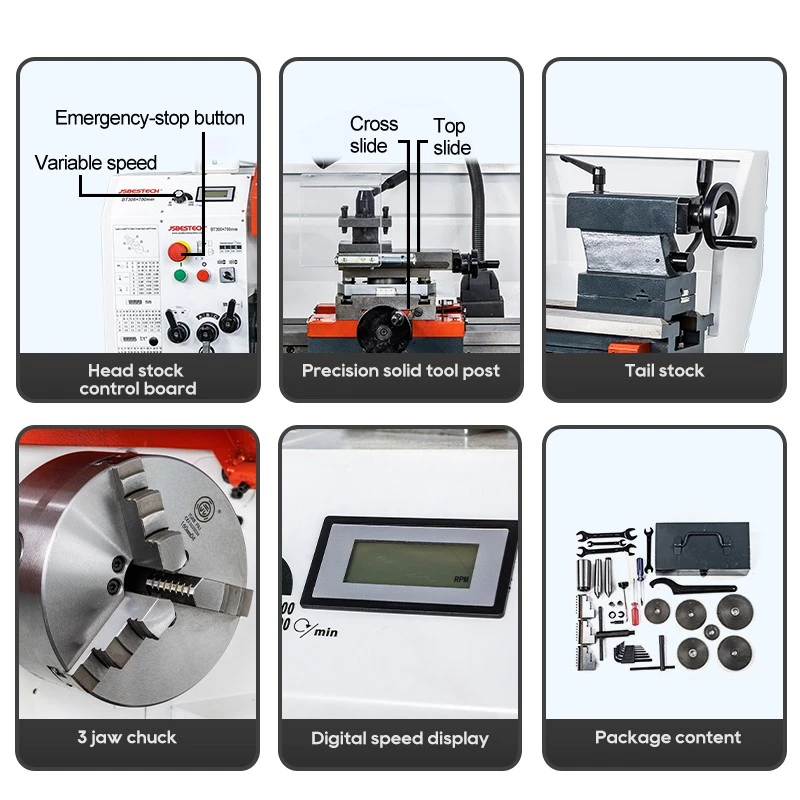

Key Features
- Spindle Bore: Ø38mm, allowing passage of larger stock
- Distance Between Centers: 700mm or 900mm (optional) for flexible workpiece lengths
- Variable Speed: 80–2000 rpm for optimal cutting conditions
- Gap Bed Design: Removable gap section for turning larger diameter workpieces
- Robust Construction: 182mm bed width ensures stability during heavy cuts
- Threading Capability: Metric (0.2–3.5mm) and inch (8–48 T.P.I.) threads
- Tailstock: Ø38mm quill with 70mm travel and MT3 taper
Specifications
| Turning diameter (Max.) | Ø300mm |
|---|---|
| Swing over cross slide | Ø178mm |
| Distance between centers | 700mm/900mm (Optional) |
| Width of bed | 182mm |
| Spindle bore | Ø38mm |
| Spindle taper | MT5 |
| Variable speed | 80~2000rpm |
| Top slide travel | 70mm |
| Cross slide travel | 180mm |
| Max. section of tools | 16x16mm |
| Range of metric threads | 0.2~3.5mm |
| Range of inch threads | 8~48T.P.I |
| Tailstock quill diameter | Ø38mm |
| Tailstock quill travel | 70mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1500W |
| Voltage | 110V~240V (1PH) |

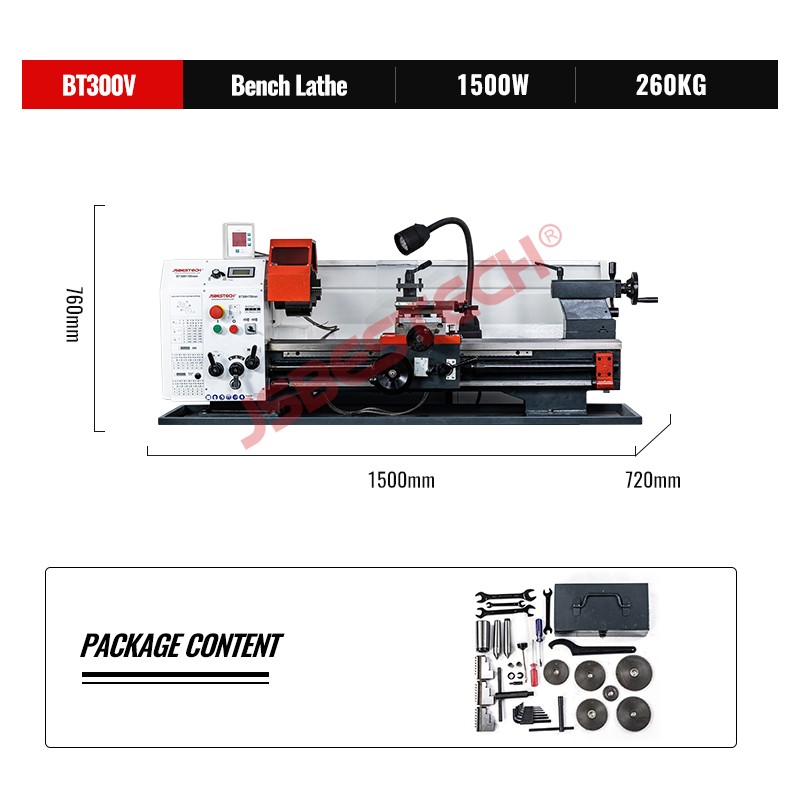

| Packing size | 1500x720x760mm |
Applications
Ideal for turning, facing, threading, and drilling operations on metals and other materials. The gap bed allows for machining larger diameter flanges or discs. Suitable for job shops, vocational training, and repair workshops.
Why Choose the BT300V?
Jiangsu Bestech Industrial Co., Ltd. delivers reliable machine tools with a focus on precision and durability. The BT300V combines a compact footprint with professional-grade features, making it a smart investment for your workshop.
What is 38mm spindle bore BT300V normal gap bed bench lathe machin?
The BT300V is a normal gap bed bench lathe with a 38mm spindle bore, designed for machining small to medium-sized metal workpieces. It offers a maximum turning diameter of 300mm and a distance between centers of 700mm or 900mm (optional). The lathe features a variable speed range of 80–2000 rpm and a 1500W motor, suitable for a variety of turning operations. Manufactured by Jiangsu Bestech Industrial Co., Ltd., it is a compact and versatile machine for workshop use.
Applications
- Turning, facing, and threading of metal parts in small workshops
- Production of custom shafts, bushings, and pins
- Repair and maintenance of machinery components
- Educational and training purposes in technical schools
- Hobbyist and model engineering projects
FAQ
What is the maximum turning diameter of the BT300V lathe?
The maximum turning diameter is Ø300mm.
What is the spindle bore size of this lathe?
The spindle bore is Ø38mm.
What is the distance between centers available for this model?
The distance between centers is 700mm or 900mm (optional).
What is the speed range of the BT300V lathe?
The variable speed range is 80–2000 rpm.
What is the motor power of this lathe?
The motor power is 1500W.
