Description
| Turning diameter (Max.) | Ø360mm |
| Swing over cross slide | Ø230mm |
| Distance between centers | 750mm |
| Center heigh | 180mm |
| Width of bed | 210 |
| Spindle bore | MT5 |
| Taper of spindle bore | Ø38mm |
| Spindle speed (12 steps) | 60~1600rpm/variable (Optional) |
| Top slide travel | 100mm |
| Cross slide travel | 160mm |
| Max. section of tools | 16x16mm |
| Range of metric threads (22 kinds) | 0.20~7mm |
| Range of inch threads (45 kinds) | 4~48T.P.I |
| Pitches of feed lead screws | Ø24mm |
| Tailstock quill diameter | Ø35mm |
| Tailstock quill travel | 90mm |
| Taper of tailstock quill | MT3 |
| Motor power (double motor) | 1.5kw |
| Voltage | 380V~440V(3PH) |

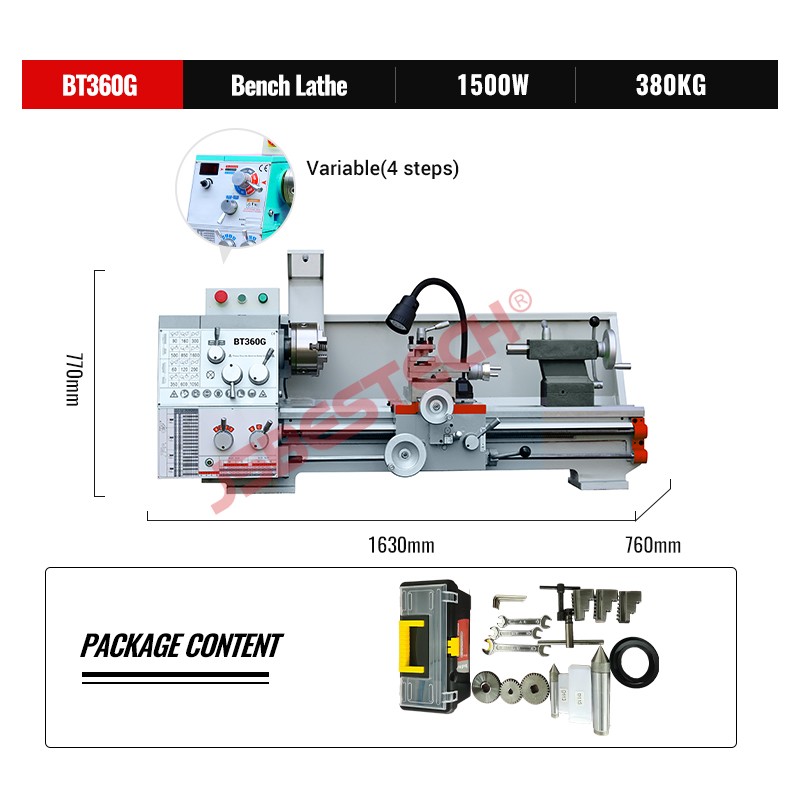

| Packing size | 1630x760x770mm |
