Description

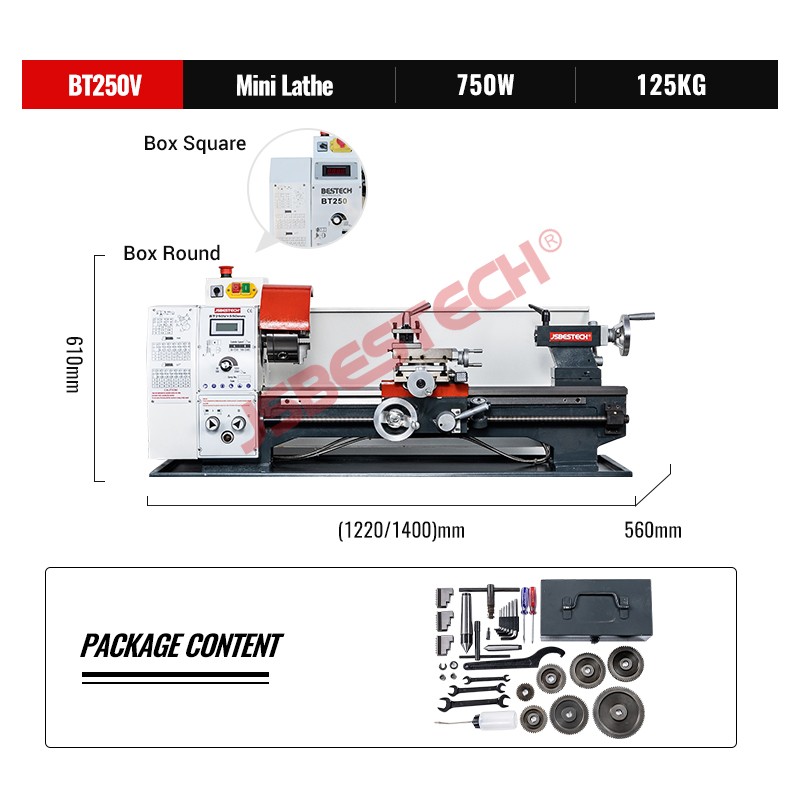

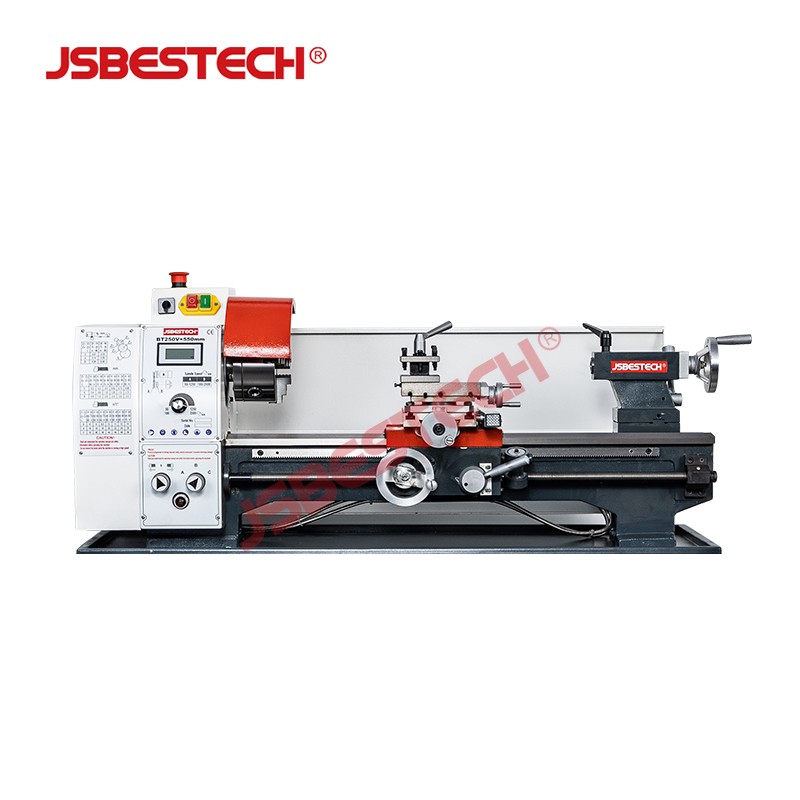

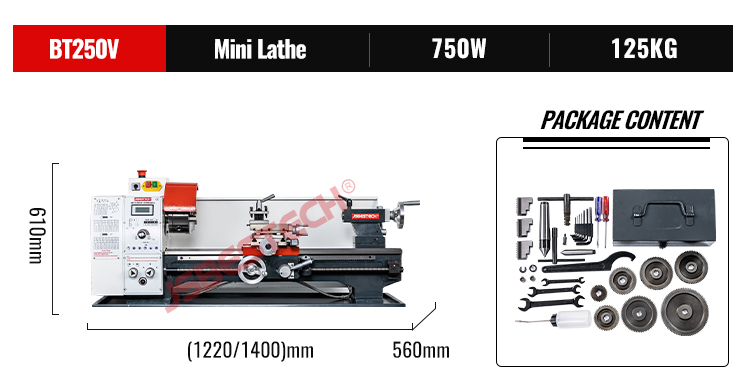

Mini Lathe Machine BT250V:
●Induction harden bedway
● Enough strong power motor
● Euro-safety magnetic switch or lock key switch
● Set of interchangeable gears in standard scope of delivery for thread tapping
● Ribbed grey cast steel prism bed with strong ribbing,induction tempered and precisionground
BT250V Bench Lathe Machine Technical Date | ||
Machine Dates | Electrical Connection | 110V--230V / 50--60Hz |
Motor Power | 750W | |
Working Areas | Centre Height | 125mm |
Turning Diameter (Max.) | 250mm | |
Bed Width | 135mm | |
Distance Between Centers | 550mm/750mm(Optional) | |
Speeds | Electronically adjustable speed | 50--2500 r.p.m |
Headstock | Spindle Taper | MT 3 |
Spindle Drilling | φ26mm | |
Slide | Travel Top Slide | 65mm |
Travel Cross Slide | 115mm | |
Range Of Metric Threads | 0.2-3.5mm | |
Range Of Inch Threads | 8-56T.P.l | |
Tool Holder Seat Height | MAX.12mmX12mm | |
Tailstock | Tailstock Taper | MT 2 |
Tailstock Sleeve Travel | 60mm |

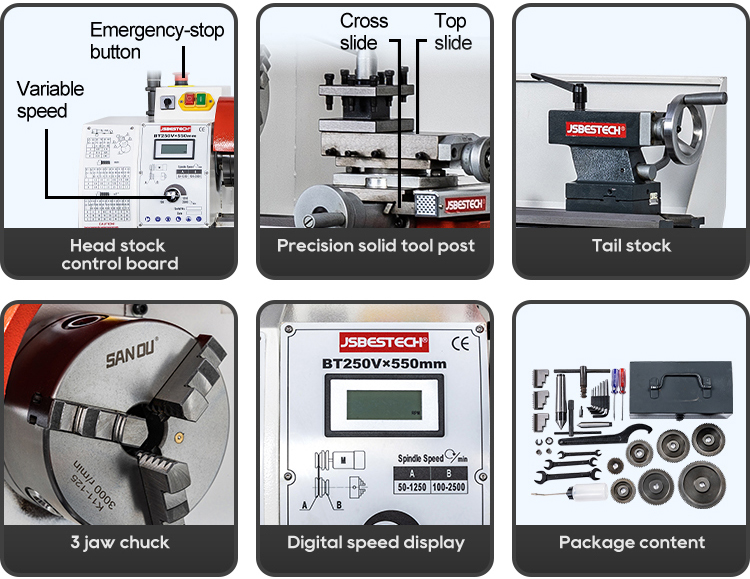

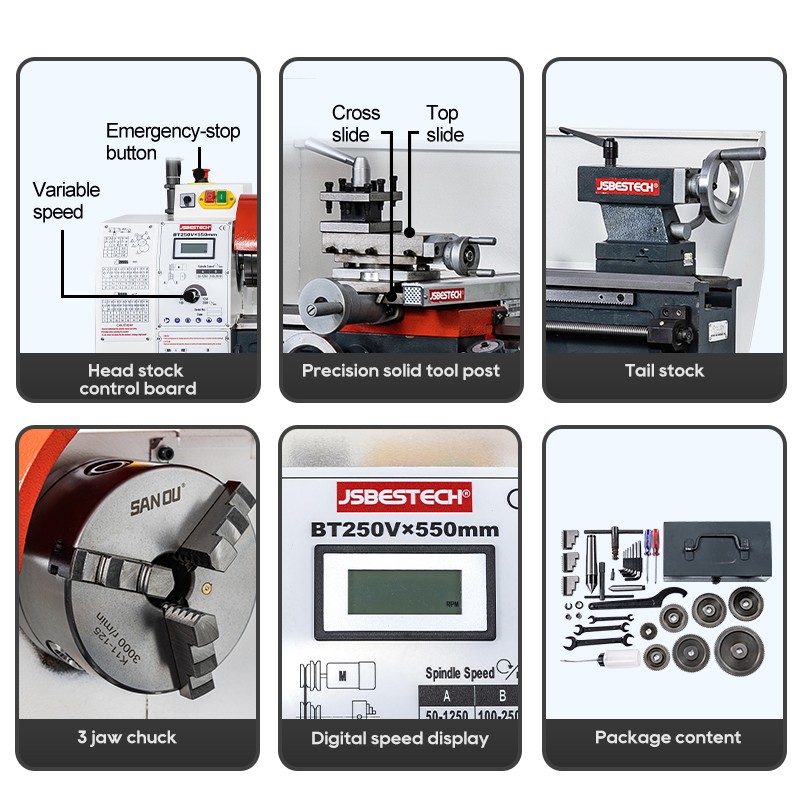

Standard Accessories | Optional Accessories |
3-jaw chuck 125mm | 4-jaw chuck(125mm) |
MT2 Dead center | Follow rest |
Change gear set | Steady rest |
Wrench set | Face plate |
Oil can | Lead screw cover |
Splash guard | Quick change tool post |
Chip tray | Rolling center |
Toolbox &tools |
