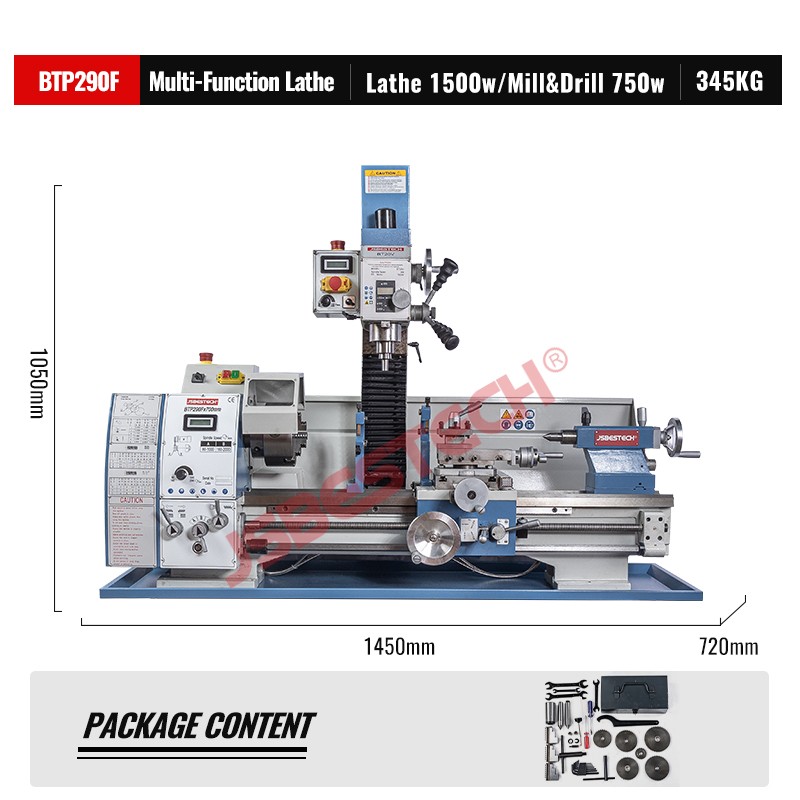

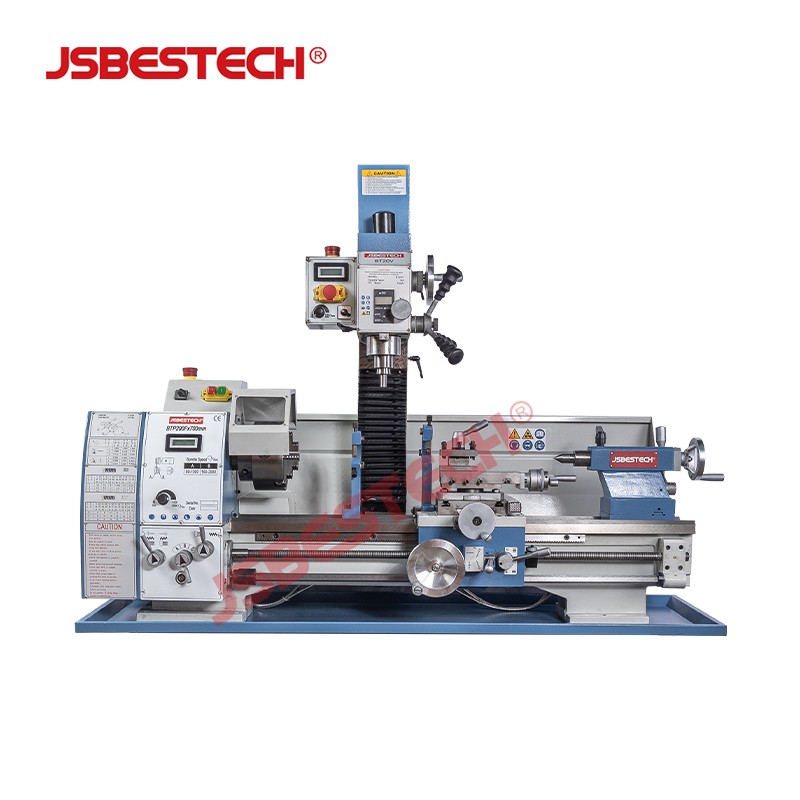

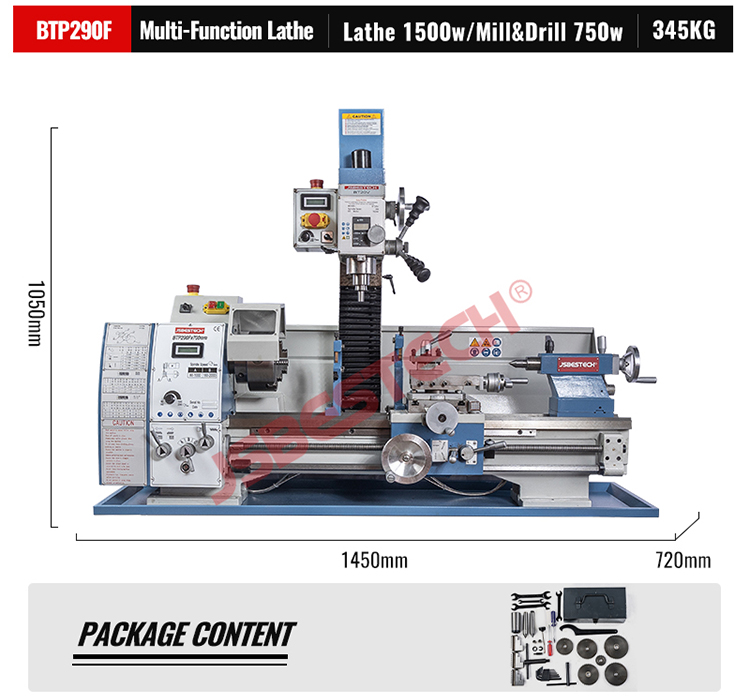

BTP290F Gear Head Lathe
The BTP290F is a compact, gear-head lathe designed for precision metalworking in small workshops, maintenance shops, and educational settings. Built by Jiangsu Bestech Industrial Co., Ltd., this manual lathe combines robust construction with user-friendly operation, making it an ideal choice for turning, facing, and threading tasks on a variety of metals.

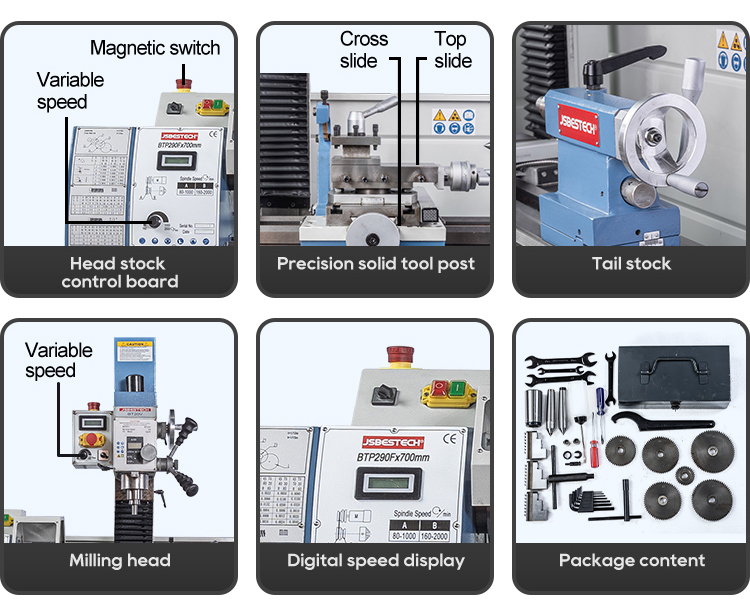

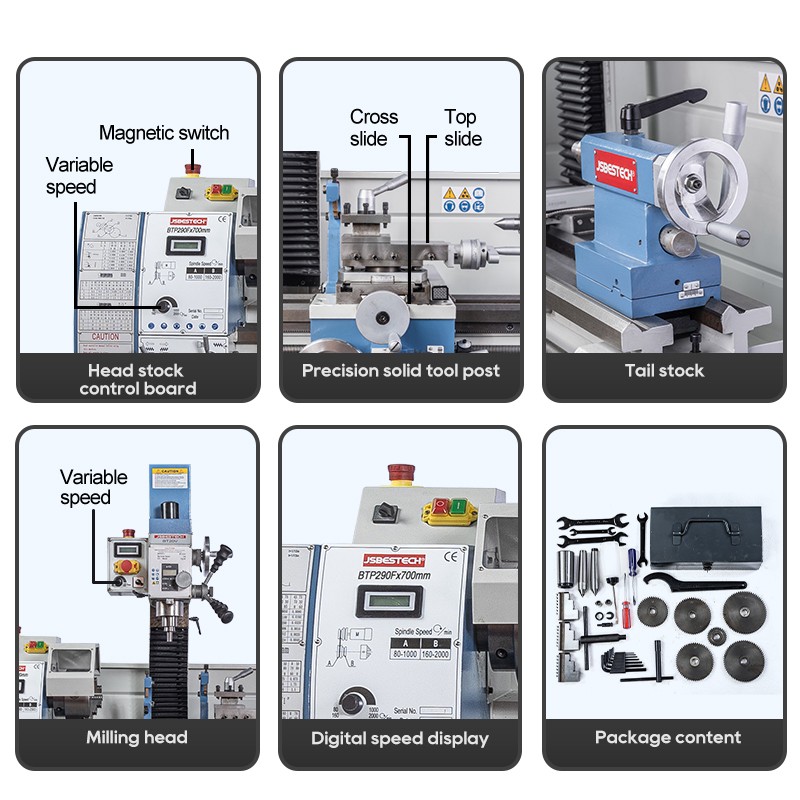

Key Features
- Gear Head Drive: Provides smooth power transmission and consistent torque across the speed range.
- Variable Speed: Spindle speeds from 50 to 2000 rpm allow optimal cutting for different materials and operations.
- Threading Capability: Cuts both metric (0.2–3.5 mm) and inch (8–56 T.P.I.) threads without additional attachments.
- Compact Footprint: Fits easily into small workshops where space is limited.
- Manual Control: Direct handwheel operation for precise feed and positioning.
Specifications
| Item | Value |
|---|---|
| Model | BTP290F |
| Turning diameter (Max.) | Ø290 mm |
| Swing over cross slide | Ø178 mm |
| Distance between centers | 700 mm (550 mm optional) |
| Spindle bore | Ø38 mm |
| Taper of spindle bore | MT5 |
| Variable speed | 50–2000 rpm |
| Top slide travel | 70 mm |
| Cross slide travel | 180 mm |
| Range of metric threads | 0.2–3.5 mm |
| Range of inch threads | 8–56 T.P.I. |
| Tailstock quill travel | 70 mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1500 W |
| Voltage/AC | 110 V–380 V / 50–60 Hz |
Applications
The BTP290F is suitable for turning, facing, drilling, and threading operations on materials such as steel, aluminum, brass, and plastics. Its gear-head design ensures reliable performance for both hobbyists and professional machinists.
Why Choose the BTP290F?
With its combination of power, precision, and compact size, the BTP290F offers excellent value for small-scale metalworking. The gear-head mechanism reduces vibration and improves surface finish, while the variable speed control allows you to match cutting conditions to the job at hand.
For more information or to discuss your requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BTP290F Gear head lathe small manual metal working lathe machine?
The BTP290F is a gear head lathe designed for small manual metalworking tasks. It features a maximum turning diameter of Ø250mm and a spindle bore of Ø26mm. The distance between centers is available in 550mm or 750mm options. This lathe is suitable for precision turning, facing, and threading operations in workshops and small-scale production.
Applications
- Turning and facing small metal workpieces
- Thread cutting (metric and inch threads)
- Drilling and boring with tailstock
- Milling with optional face milling capacity
- Repair and maintenance workshops
- Educational and training purposes
FAQ
What is the maximum turning diameter of the BTP290F lathe?
The maximum turning diameter is Ø250mm.
What is the spindle bore size?
The spindle bore is Ø26mm.
What distance between centers options are available?
The lathe offers distance between centers of 550mm or 750mm (optional).
Does this lathe have face milling capability?
Yes, it has a face milling capacity of Ø50mm.
