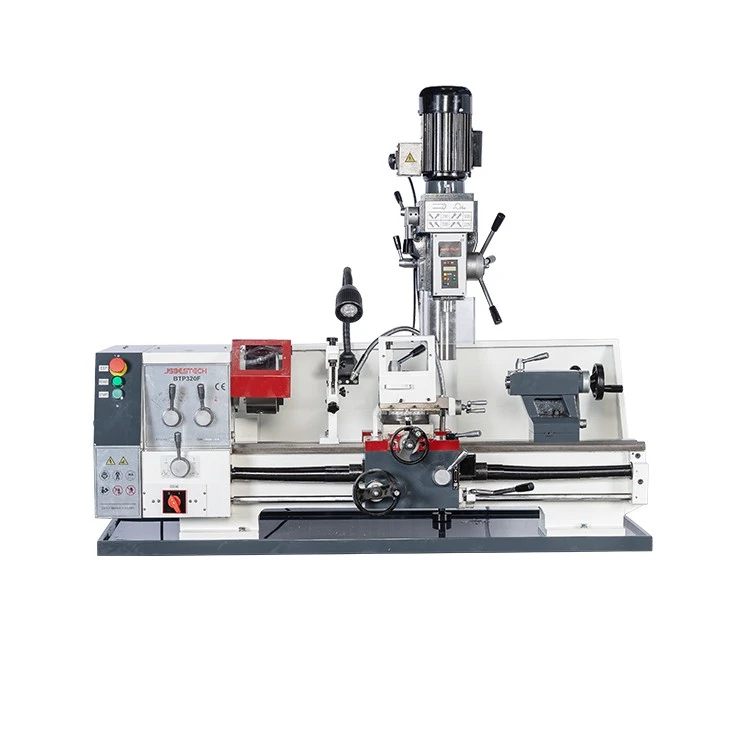

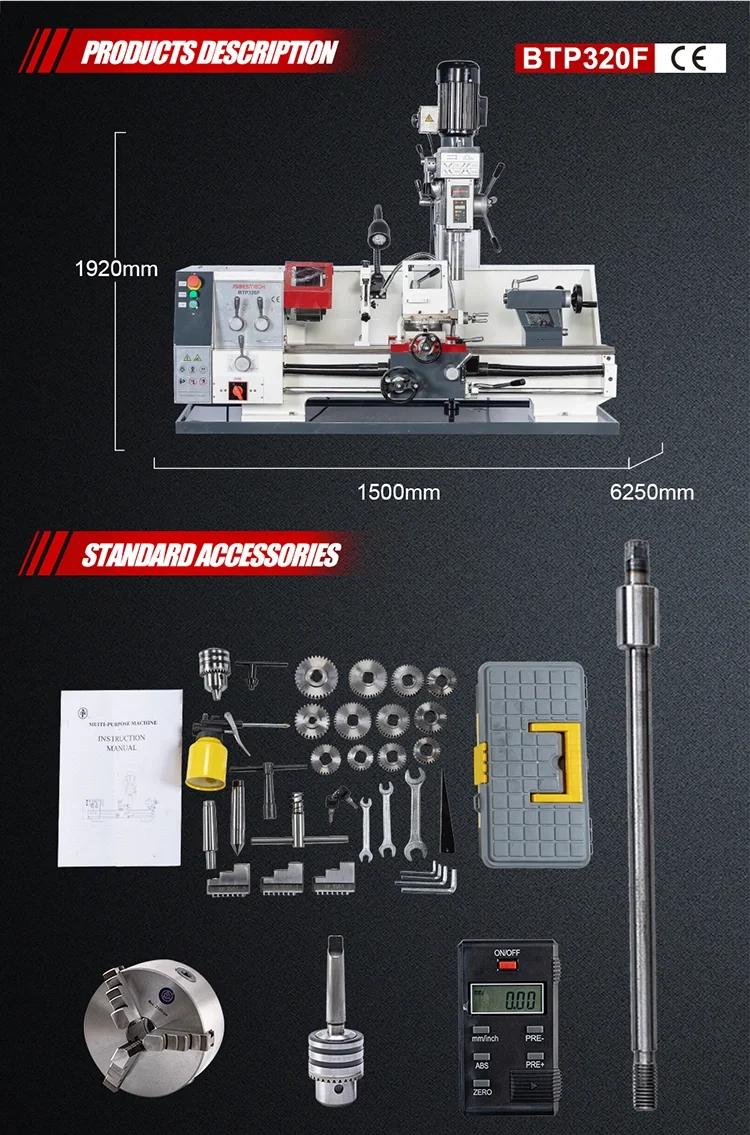

Multifunctional BTP320F Lathe Mill Combo Machine
Jiangsu Bestech Industrial Co., Ltd. presents the BTP320F, a versatile lathe mill combo designed for mechanical parts processing. This machine integrates turning and milling capabilities in one compact unit, making it ideal for workshops with limited space.
Key Specifications
- Max. swing diameter over bed: 320 mm
- Max. length of work piece: 750 mm
- Max. swing diameter over gap: 210 mm
- Spindle bore: 38 mm
| Model | BTP320F |
| Lathe | |
| Turning Diameter (Max.) | Ø320mm |
| Swing Over Cross Slide | |
| Distance Between Centers |
750mm |
| Spindle Bore | Ø38mm |
| Taper Of Spindle Bore | MT5 |
| Spindle Speed (6 Steps) | 75~1900rpm |
| Top Slide Travel |
100mm |
| Cross Slide Travel |
160mm |
| Range Of Metric Threads |
0.5~4mm |
| Range Of Inch Threads |
9~40T.P.1 |
| Tailstock Quill Travel |
70mm |
| Taper Of Tailstock Quill |
MT3 |
| Motor Power |
1100w |
|
Voltage/AC |
110~380V/50~60Hz |
| Mill & Drill |
|
| Face Milling Capacity |
|
|
Taper Of Spindle Bore |
R8 |
| Spindle Travel |
|
| Max. Drilling Capacity |
Ø16mm |
| Spindle Speed (4 steps) |
240~2700rpm |
| Motor Power | 370w |
| Head Tilt Left And Right |
±360° |
| Packing Size |
1500x6250x1920mm |
Features and Benefits
The BTP320F offers a practical solution for machining a variety of mechanical parts. Its multifunctional design allows for both turning and milling operations without the need for separate machines.
- Space-saving: Combines lathe and mill functions in one unit.
- Capacity: Handles workpieces up to 750 mm in length and 320 mm in diameter over the bed.
- Versatility: Suitable for small to medium-sized production runs and maintenance tasks.
- Precision: Designed for accurate machining of mechanical components.
Applications
This combo machine is well-suited for processing mechanical parts in various industries, including automotive, aerospace, and general engineering. It is an excellent choice for job shops, tool rooms, and educational institutions.
Why Choose the BTP320F?
With its robust construction and user-friendly design, the BTP320F delivers reliable performance. The integrated milling head and lathe bed provide flexibility for diverse machining tasks. Whether you are turning, facing, or milling, this machine helps improve productivity and reduce setup time.
For more information about the BTP320F or other products from Jiangsu Bestech Industrial Co., Ltd., please contact us.
What is Multifunctional BTP320F 750mm Max. Length of Work Piece Lathe Mill Combo Machine for Mechanical Parts Processing?
The Multifunctional BTP320F is a combination lathe and milling machine designed for machining mechanical parts. It offers a maximum swing diameter over bed of 320 mm and a maximum workpiece length of 750 mm. The machine features a spindle bore of 38 mm and a maximum swing diameter over gap of 210 mm. This lathe mill combo is suitable for combined turning and milling operations in a single setup.
Applications
- Machining mechanical parts requiring both turning and milling operations
- Production of small to medium-sized cylindrical and prismatic components
- Fabrication of custom parts in job shops and maintenance workshops
- Manufacturing of prototypes and one-off parts
- Processing of metal workpieces up to 750 mm in length
FAQ
What is the maximum length of workpiece that can be machined on the BTP320F?
The maximum length of workpiece is 750 mm.
What is the maximum swing diameter over bed of this lathe mill combo?
The maximum swing diameter over bed is 320 mm.
What is the spindle bore size of the BTP320F?
The spindle bore is 38 mm.
What is the maximum swing diameter over gap?
The maximum swing diameter over gap is 210 mm.
What types of operations can this machine perform?
It is a multifunctional lathe mill combo machine capable of both turning and milling operations for mechanical parts processing.
