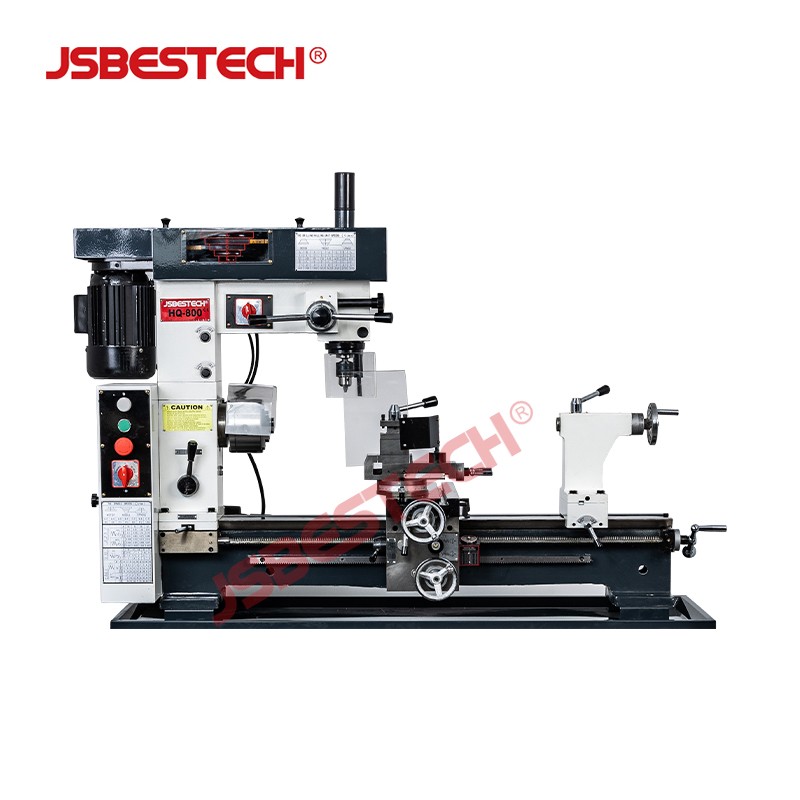

Multifunction Lathe HQ800: Lathe & Mill Combo
The HQ800 is a versatile multi-purpose machine that combines lathe and milling/drilling functions in one compact unit. Designed for workshops, maintenance shops, and small-scale production, it offers flexibility and efficiency for a wide range of machining tasks.
Key Features
- Combined lathe and mill/drill operations
- 360° swivel headstock for versatile positioning
- 7-step lathe spindle speed: 160–1360 rpm
- 16-step mill spindle speed: 120–3000 rpm
- Metric and inch threading capabilities
- Compact design with 800mm distance between centers
Lathe Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø420mm |
| Distance between centers | 800mm |
| Width of bed | 138mm |
| Spindle bore | Ø28mm |
| Taper of spindle bore | MT4 |
| Spindle speed (7 steps) | 160~1360rpm |
| Travel cross slide | 195mm |
| Range of metric threads | 0.2~6mm |
| Range of inch threads | 4~120 T.P.I |
| Tailstock quill diameter | 32mm |
| Tailstock quill travel | 70mm |
| Taper of tailstock quill | MT3 |
| Motor power | 750W |
Mill & Drill Specifications
| Parameter | Value |
|---|---|
| Taper of spindle bore | MT3 |
| Spindle travel | 110mm |
| Max. drilling capacity | Ø22mm |
| Face milling capacity | Ø80mm |
| Spindle speed (16 steps) | 120~3000rpm |
| Swivel degree of headstock | 360° |
| Worktable size (LxW) | 475x160mm |
| Motor power | 750W |
Additional Information

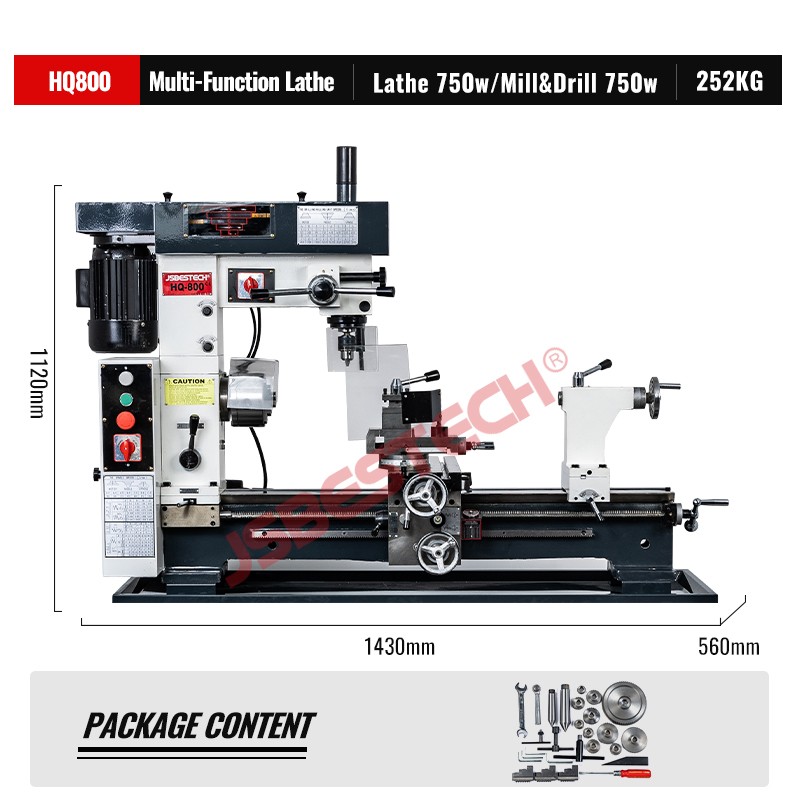

Packing size: 1430x560x1120mm
Images:
What is Multifunction lathe Multi-purpose Machine HQ800 for lathe mill combo?
The HQ800 is a multifunction lathe and mill/drill combo machine designed for combined turning, milling, and drilling operations in one unit. It offers a maximum turning diameter of Ø420 mm and a distance between centers of 800 mm, with a spindle bore taper of MT4 and a 360° swiveling headstock. The lathe spindle provides 7 speed steps from 160 to 1360 rpm, while the independent mill/drill spindle offers 16 speed steps from 120 to 3000 rpm. Both the lathe and mill/drill functions are powered by 750 W motors.
Applications
- Small workshop turning, milling, and drilling tasks
- Prototype and model making requiring combined machining operations
- Repair and maintenance work on metal parts
- Educational and training workshops for machining practice
- Light production of custom metal components
FAQ
What is the maximum turning diameter of the HQ800?
The maximum turning diameter is Ø420 mm.
What is the distance between centers?
The distance between centers is 800 mm.
What are the spindle speed ranges for lathe and milling?
The lathe spindle has 7 steps from 160 to 1360 rpm. The mill/drill spindle has 16 steps from 120 to 3000 rpm.
What is the motor power of the HQ800?
Both the lathe and mill/drill functions are driven by 750 W motors.
What is the taper of the spindle bore and tailstock quill?
The lathe spindle bore taper is MT4. The tailstock quill taper is MT3. The mill/drill spindle taper is MT3.
