Description
| Working table size | 1000x550mm |
| Worktable X/Y/Z-Axis travel | 850x600x600mm |
| T-slot (width/qty/distance) | 18/5/90mm |
| Max. load of worktable | 600kg |
| Distance from spindle nose to table | 100~700mm |
| Distance from spindle center to column | 642mm |
| Rapid feed speed(X/Y/Z) | 48000/48000/36000mm/min |
| Cutting feed speed(X/Y/Z) | 1~10000mm/min |

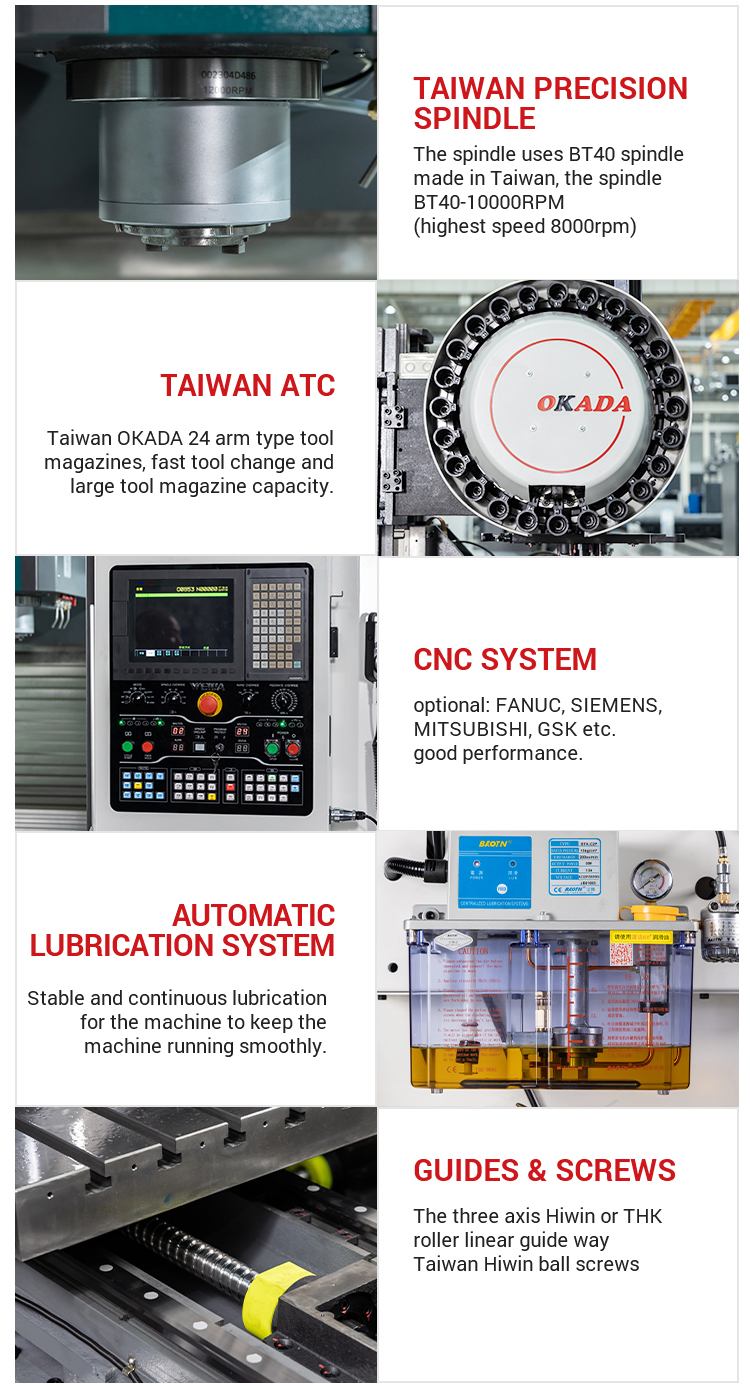

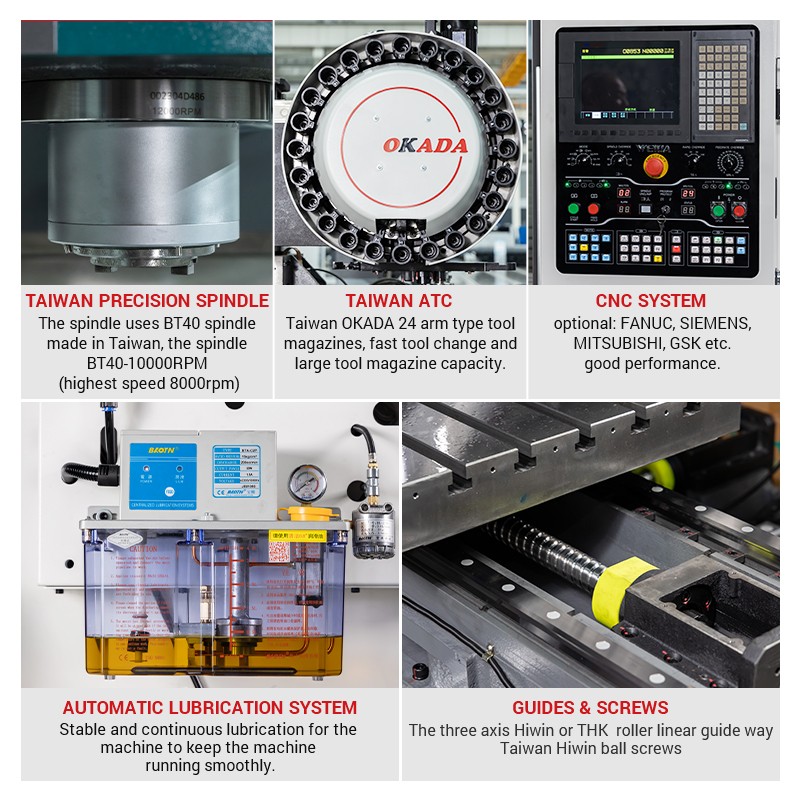

| Spindle taper | BT40 |
| Spindle speed | 10000rpm |
| Spindle motor power | 11/18.5kw |
| Spindle output torque (Max.) | 52.5/118N.m |
| Tool magazine capacity | 24pcs |
| Max. tool weight | 8kg |
| Max. diameter of tool (Full/Empty) | Ø80/150mm |
| Positioning accuracy (X/Y/Z) | 0.025/0.025/0.025mm |
| Repeat positioning accuracy (X/Y/Z) | 0.015/0.015/0.015mm |
| Tool change time (tool to tool/cut to cut) | 1.55s |

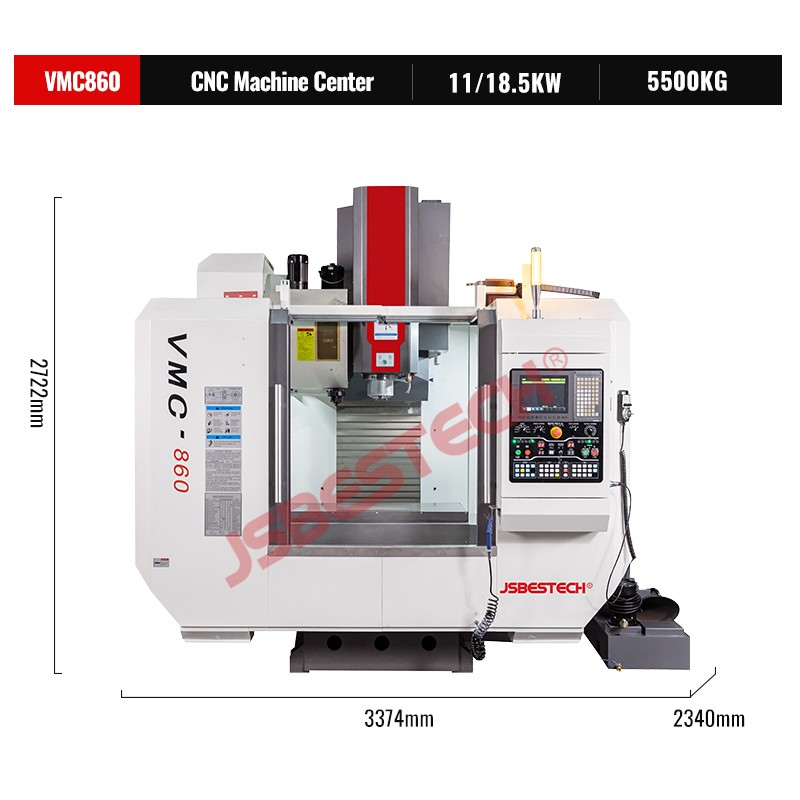

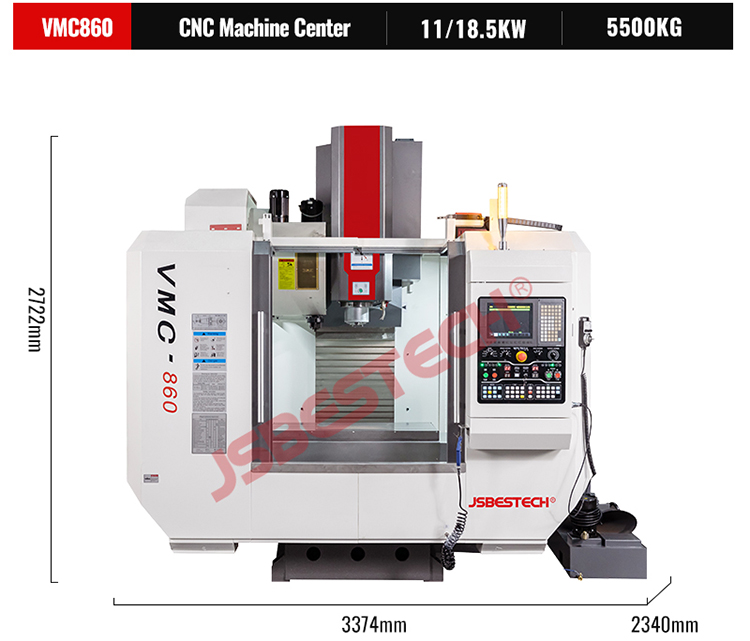

| Packing size | 3374x2340x2722mm |
| Machine weight | 5500kg |
