Description
Turning diameter (Max.) | Ø300mm |
Swing over cross slide | Ø178mm |
Distance between centers | 700mm/900mm (Optional) |
Width of bed | 182mm |
Spindle bore | Ø38mm |
Spindle taper | MT5 |
Variable speed | 80~2000rpm |
Top slide travel | 70mm |
Cross slide travel | 180mm |
Max. section of tools | 16x16mm |
Range of metric threads | 0.2~3.5mm |
Range of inch threads | 8~48T.P.l |
Tailstock quill diameter | Ø38mm |
Tailstock quill travel | 70mm |
Taper of tailstock quill | MT3 |
Motor power | 1500w |
Voltage | 110V~240V(1PH) |

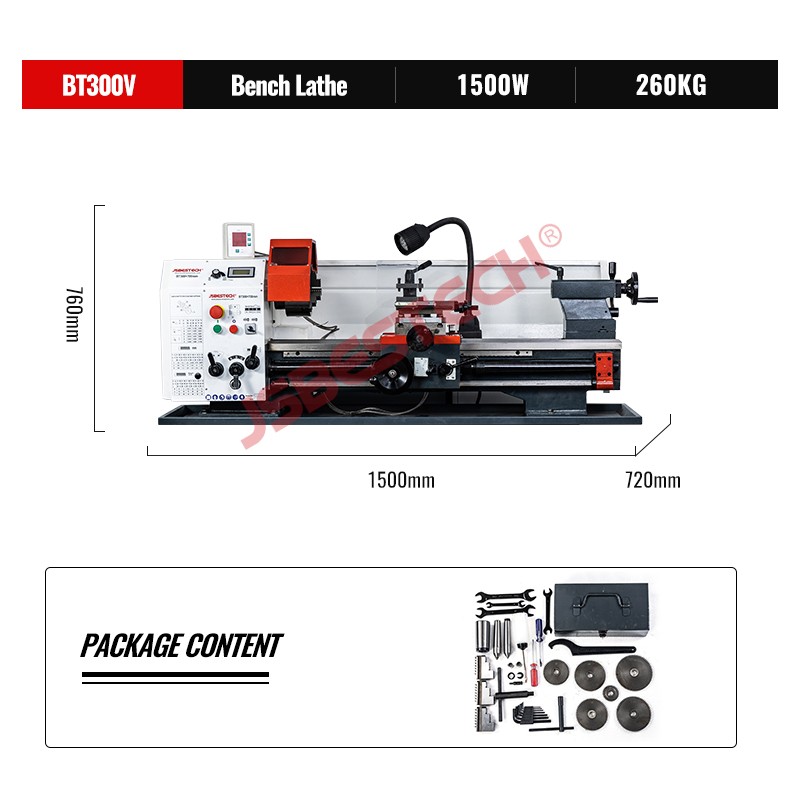

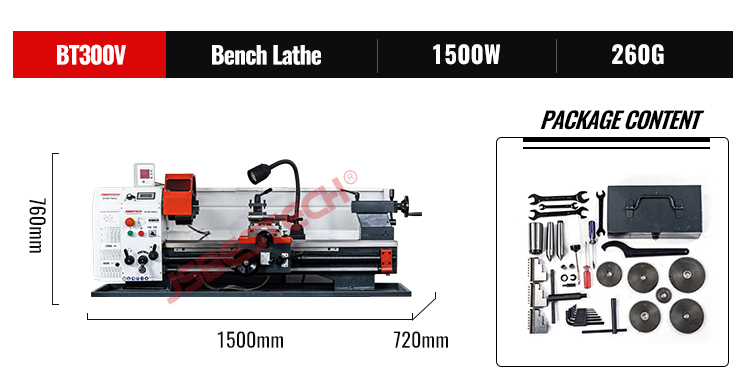

Packing size | 1500x720x760mm |
