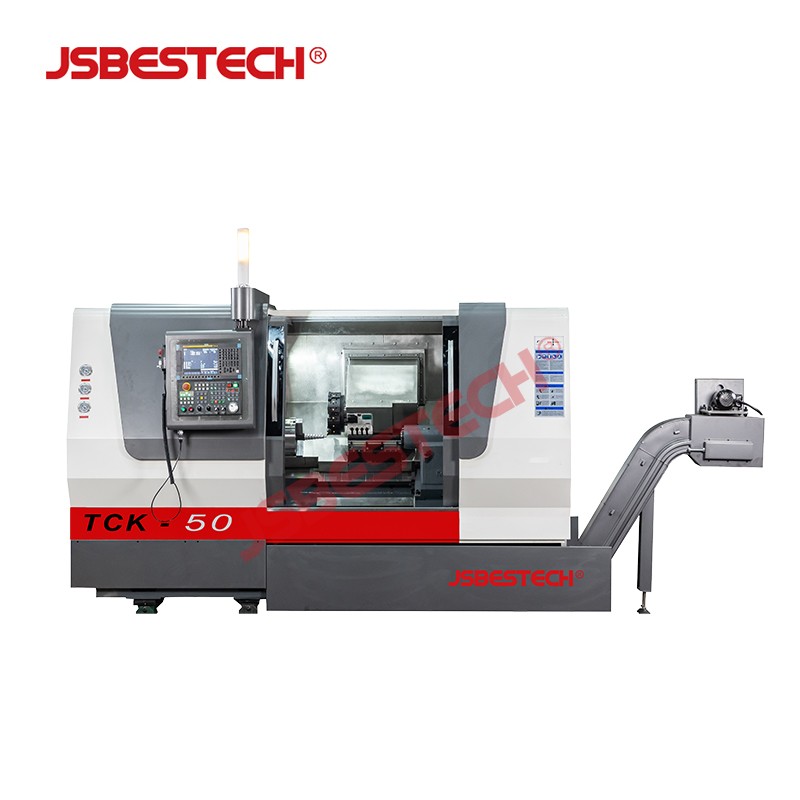

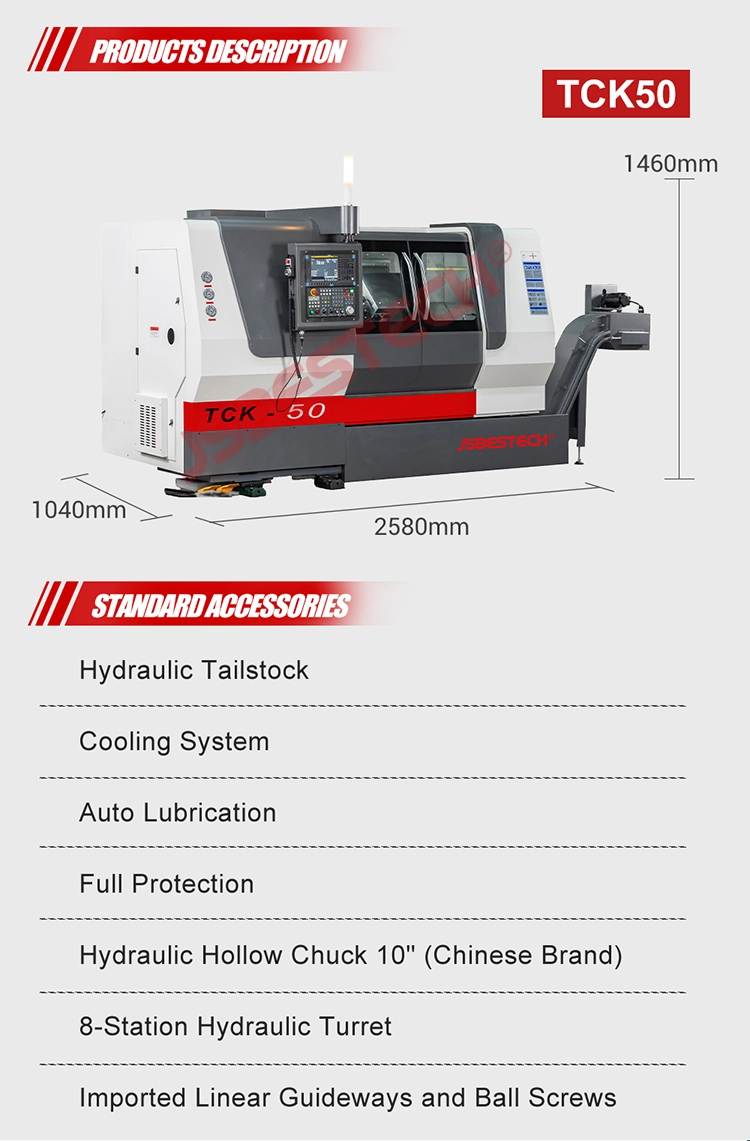

TCK50 CNC Lathe Machine
The TCK50 CNC lathe machine from Jiangsu Bestech Industrial Co., Ltd. is engineered for precision turning of medium to large workpieces. With a maximum turning diameter of Ø500mm and a swing over cross slide of Ø280mm, it delivers stable performance for a wide range of machining tasks.
Key Features

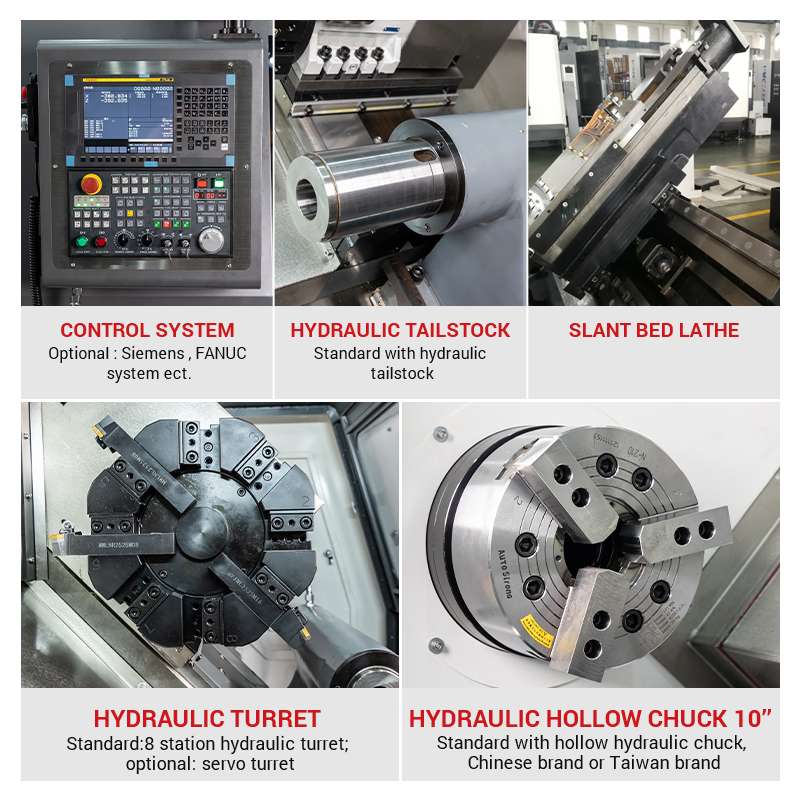

- High-rigidity structure with linear guideways on X and Z axes (45/45 ball type) for smooth motion and long service life.
- Precision ball screws (X/Z: 3206-C3/4010-C3) ensure accurate positioning and repeatability.
- Spindle nose A2-8 with a bore of Ø87mm and bar capacity of Ø72mm.
- Spindle speed up to 2600rpm, driven by an 11/15kW main motor.

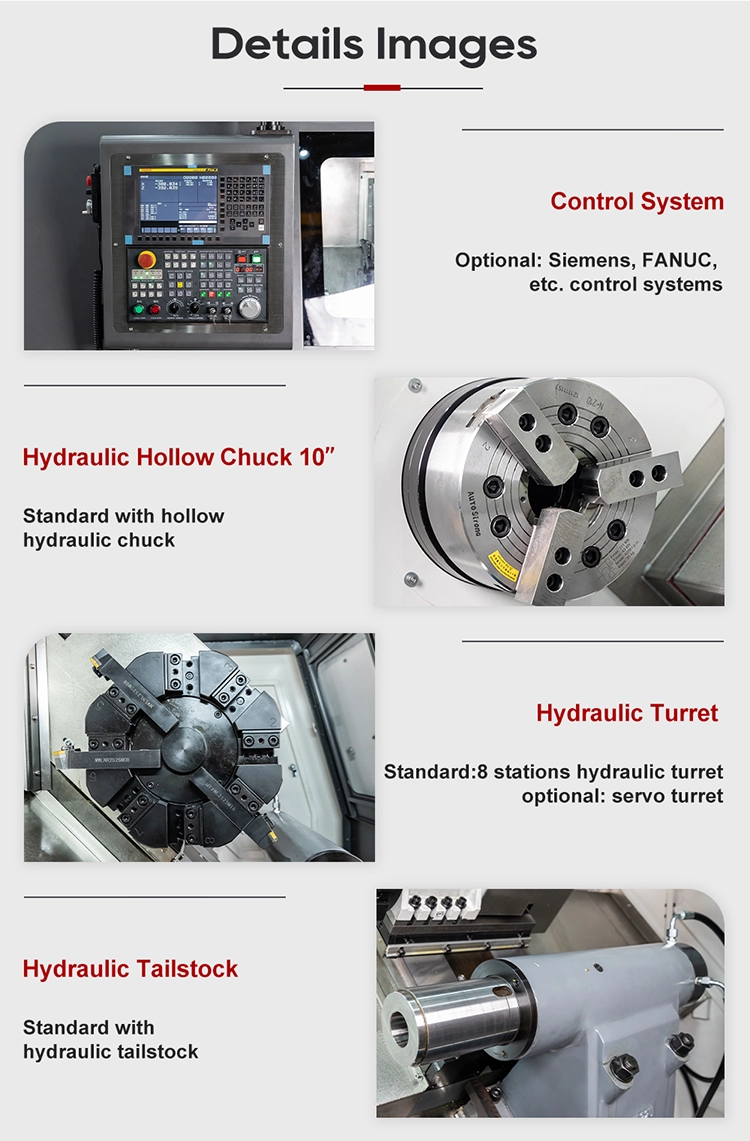

- Hydraulic 10” chuck for efficient clamping.
- X-axis travel 250mm, Z-axis travel 620mm.
- Max. tool shank 25x25mm; center height of turret 80mm.
- X/Z-axis motor torque ≥21N.m; repositioning accuracy 0.001mm.
- Tailstock quill diameter Ø100mm, travel 120mm, taper MT5.
Technical Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø500mm |
| Swing over cross slide | Ø280mm |
| Distance between centers | 580/750/1000mm |
| X/Z axis lead screw size | 3206-C3/4010-C3 |
| X/Z axis linear guideway size | 45/45 ball type |
| Spindle nose type | A2-8 |
| Spindle bore | Ø87mm |
| Bar diameter | Ø72mm |
| Spindle speed | 2600rpm |
| Spindle chuck (hydraulic) | 10” |
| X-axis travel | 250mm |
| Z-axis travel | 620mm |
| Max. tool shank | 25x25mm |
| Center height of turret | 80mm |
| X/Z-axis motor torque | ≥21N.m |
| Repositioning accuracy | 0.001mm |
| Tailstock quill diameter | Ø100mm |
| Tailstock quill travel | 120mm |
| Taper of tailstock quill | MT5 |
| Main motor | 11/15kw |

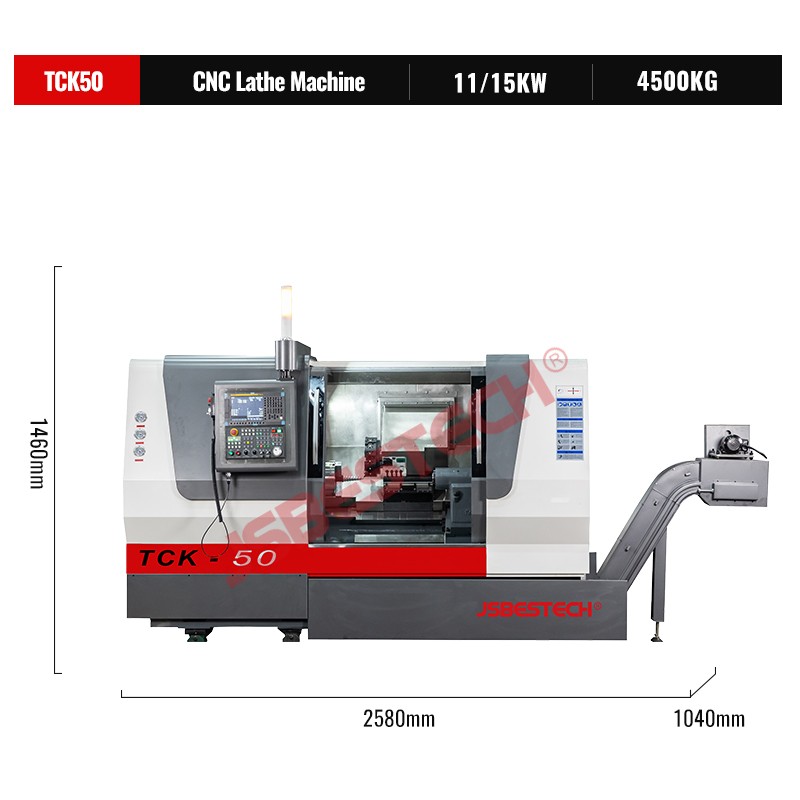

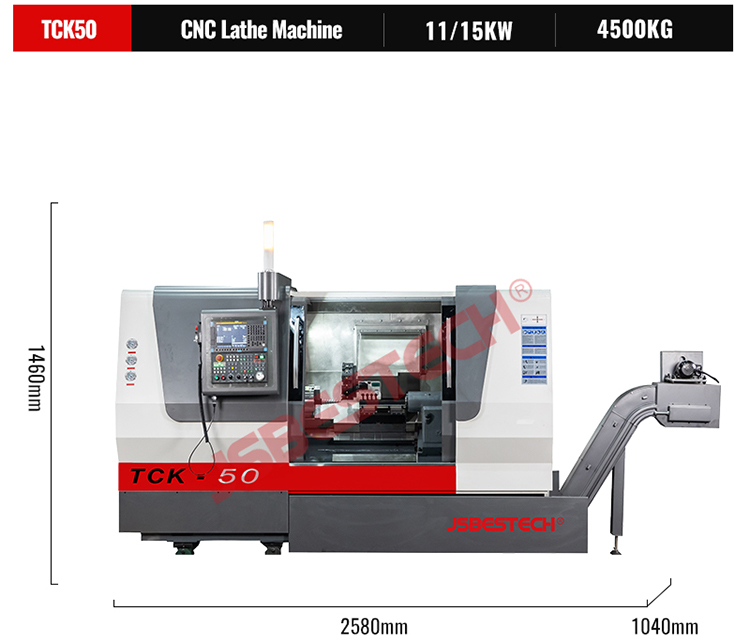

| Packing size | 2580x1040x1460mm |
| N.W/G.W | 4500kg |
For more information or to discuss your specific requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is TCK50 CNC Lathe Machine?
The TCK50 CNC Lathe Machine is a CNC turning center designed for precision machining of medium to large cylindrical parts. It offers a maximum turning diameter of Ø500mm, a swing over cross slide of Ø280mm, and a spindle bore of Ø87mm. With a spindle speed of up to 2600rpm and a main motor of 11/15kW, it delivers reliable performance for various metalworking applications. The machine is available with distance between centers of 580mm, 750mm, or 1000mm to suit different workpiece lengths.
Applications
- Turning and machining of shafts, axles, and other cylindrical components
- Production of automotive parts such as brake drums and transmission shafts
- Manufacturing of hydraulic cylinders and pistons
- Machining of general mechanical parts in job shops and repair facilities
- Processing of oil and gas industry components like drill collars and couplings
FAQ
What is the maximum turning diameter of the TCK50 CNC lathe?
The maximum turning diameter is Ø500mm.
What is the spindle bore size of this machine?
The spindle bore is Ø87mm.
What are the available distance between centers options?
The TCK50 is available with distance between centers of 580mm, 750mm, or 1000mm.
What is the spindle speed range of the TCK50?
The spindle speed is up to 2600rpm.
What is the main motor power of the TCK50?
The main motor power is 11/15kW.
