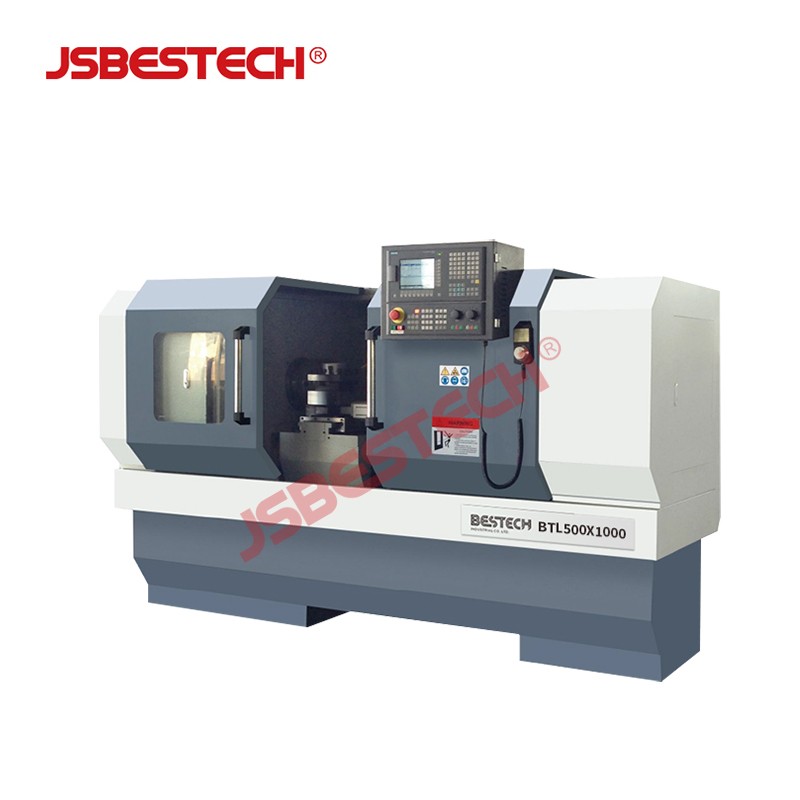

BTL500 CNC Lathe with Fanuc Control
Jiangsu Bestech Industrial Co., Ltd. presents the BTL500, a new CNC lathe designed for precision turning and available for sale in Italy. This model combines robust construction with Fanuc control technology, offering reliable performance for a wide range of machining applications.
Key Features
- Fanuc control system for precise and efficient operation
- Maximum turning diameter of Ø500mm
- Swing over cross slide of Ø280mm
- Distance between centers: 1000mm or 1500mm (optional)
- Spindle bore of Ø82mm with MT6 taper
- Spindle speed range from 150 to 2600 rpm
- Wide bed width of 400mm for stability
- External spindle taper A2-8

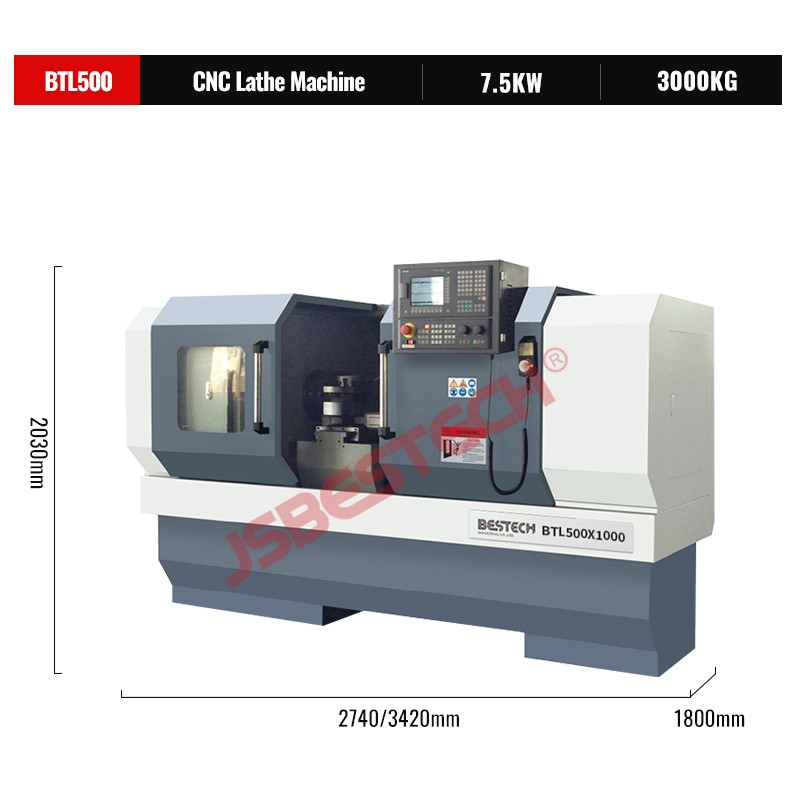

Technical Specifications
| Model | BTL500 |
|---|---|
| Turning diameter (Max.) | Ø500mm |
| Swing over cross slide | Ø280mm |
| Distance between centers | 1000/1500mm (Optional) |
| Center height | 250mm |
| Width of bed | 400mm |
| External taper of spindle | A2-8 |
| Spindle bore | Ø82mm |
| Taper of spindle bore | MT6 |
| Range of spindle speed | 150~2600rpm |
Applications
The BTL500 is suitable for machining various metal parts, including shafts, discs, and complex components. Its Fanuc control ensures high accuracy and repeatability, making it ideal for both small-batch and production runs.
Why Choose the BTL500?
This CNC lathe offers a cost-effective solution without compromising on quality. The robust bed and spindle design provide stability during heavy cutting, while the Fanuc control system is widely recognized for its reliability and ease of use. With optional center distances, you can tailor the machine to your specific needs.
For more information about the BTL500 CNC lathe, please contact Jiangsu Bestech Industrial Co., Ltd.
What is For sale in Italy BTL500 fanuc control cheap price new cnc lathe machine?
The BTL500 is a CNC lathe equipped with a FANUC control system, designed for precision turning operations. It offers a maximum turning diameter of Ø500mm and a swing over cross slide of Ø280mm. The machine is available with a distance between centers of 1000mm or 1500mm (optional) and features a spindle bore of Ø82mm. Manufactured by Jiangsu Bestech Industrial Co., Ltd., this lathe is suitable for a variety of metalworking applications.
Applications
- Turning of shafts, axles, and other cylindrical parts
- Production of automotive components and parts
- Manufacturing of hydraulic and pneumatic cylinders
- Machining of general mechanical parts in job shops
- Fabrication of rollers and bushings
FAQ
What is the maximum turning diameter of the BTL500 CNC lathe?
The maximum turning diameter is Ø500mm.
What is the spindle bore of this machine?
The spindle bore is Ø82mm.
What control system is used on the BTL500?
The BTL500 is equipped with a FANUC control system.
What is the distance between centers available for this lathe?
The distance between centers is available in 1000mm or 1500mm (optional).
Who is the manufacturer of the BTL500 CNC lathe?
The manufacturer is Jiangsu Bestech Industrial Co., Ltd.
