Description

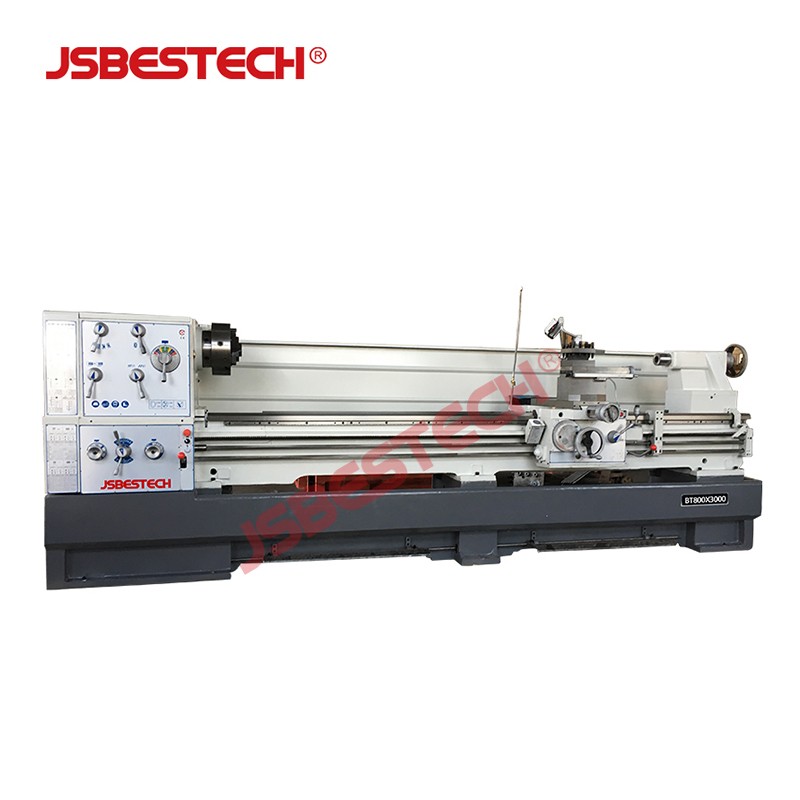

Model | BT800 |
Turning diameter (Max.) | Ø800mm |
Swing over cross slide | Ø570mm |
Swing in gap diameter | Ø1035mm |
Distance between centers | 1500/2000/3000mm |
Center heigh | 400mm |
Width of bed | 400mm |
Spindle nose | D1-8 |
Spindle bore | Ø105mm |
Taper of spindle bore | Ø113 (1:20) |

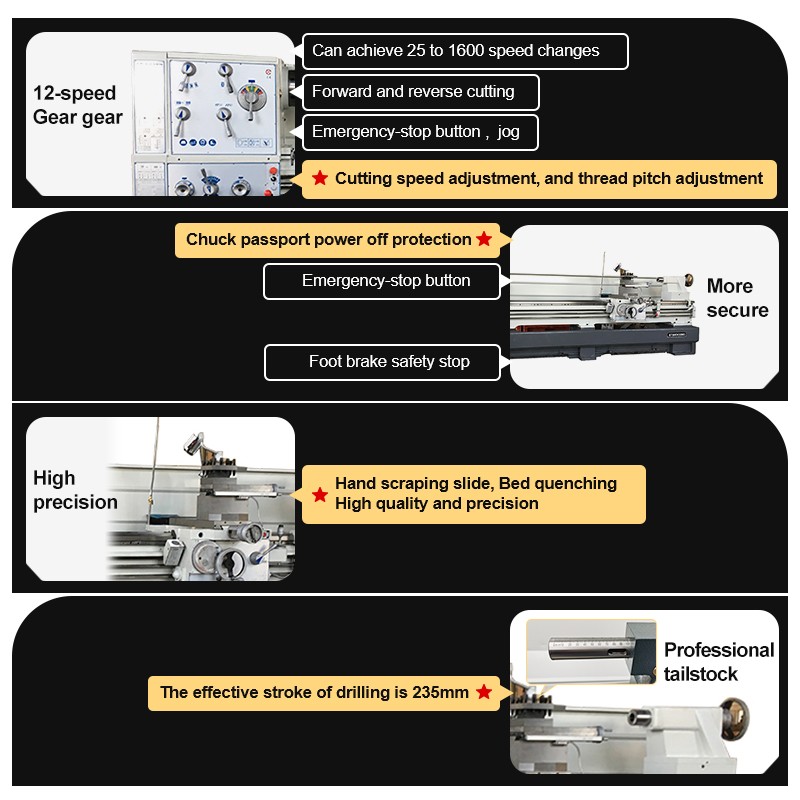

Spindle speed (12 steps) | 25~1600rpm |
Top slide travel | 230mm |
Cross slide travel | 420mm |
Max. section of tools | 25x25mm |
Range of metric threads (54 kinds) | 0.45~120mm |
Range of inch threads (54 kinds) | 7/16~80T.P.I |
Lead screw thread | 12mm or 2T.P.I |
Tailstock quill diameter | Ø90mm |
Tailstock quill travel | 235mm |
Taper of tailstock quill | MT5 |
Motor power | 7.5/11kw (Optional) |
Coolant pump motor | 100w |
Voltage | 380V~440V (3PH) |

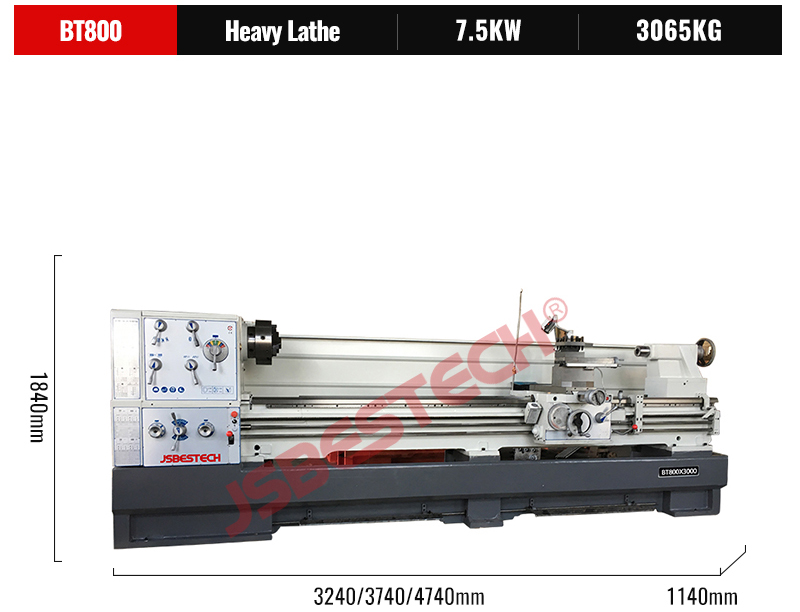

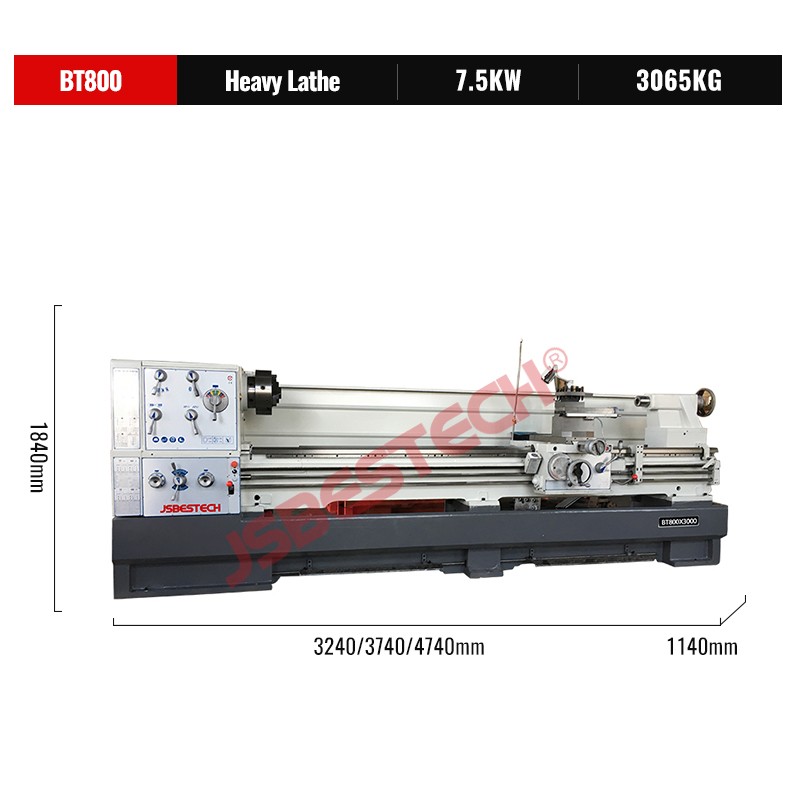

Packing size | (3240/3740/4740) x1140 x1840mm |
