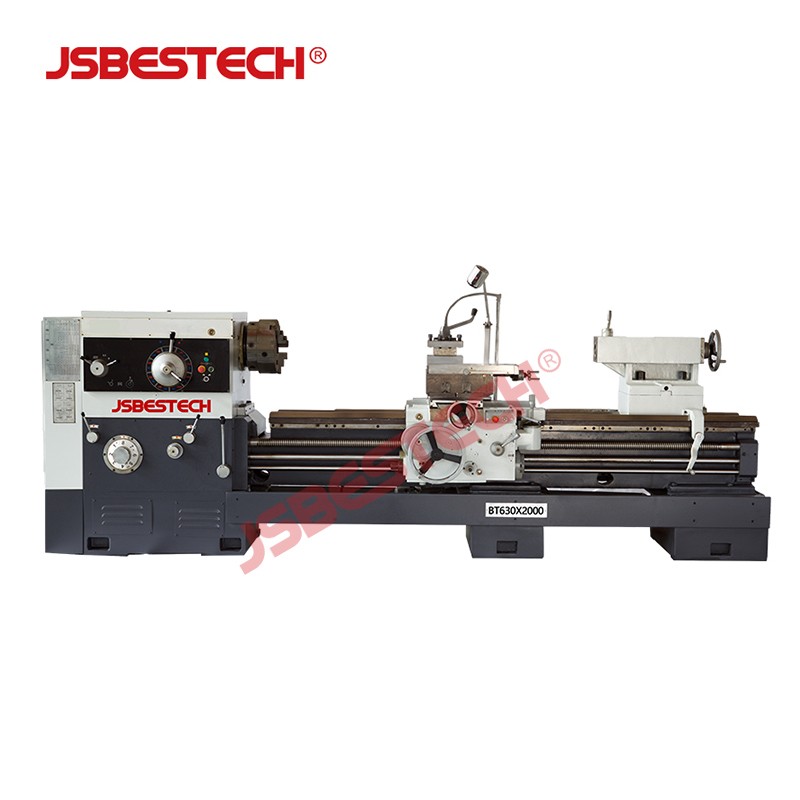

BT630 630mm 11kW Metal Lathe Machine
Jiangsu Bestech Industrial Co., Ltd. presents the BT630 metal lathe, a heavy-duty turning machine designed for precision and reliability. With a 630mm turning diameter and an 11kW motor, it handles large workpieces with ease. Ideal for workshops, manufacturing plants, and maintenance facilities in the Philippines and beyond.
Key Features
- Large 105mm spindle bore for accommodating long bars
- D11 spindle nose for secure chuck mounting
- Max. tool shank size 32x32mm for heavy cutting
- Distance between centers: 1500/2000/3000/4000mm (optional)

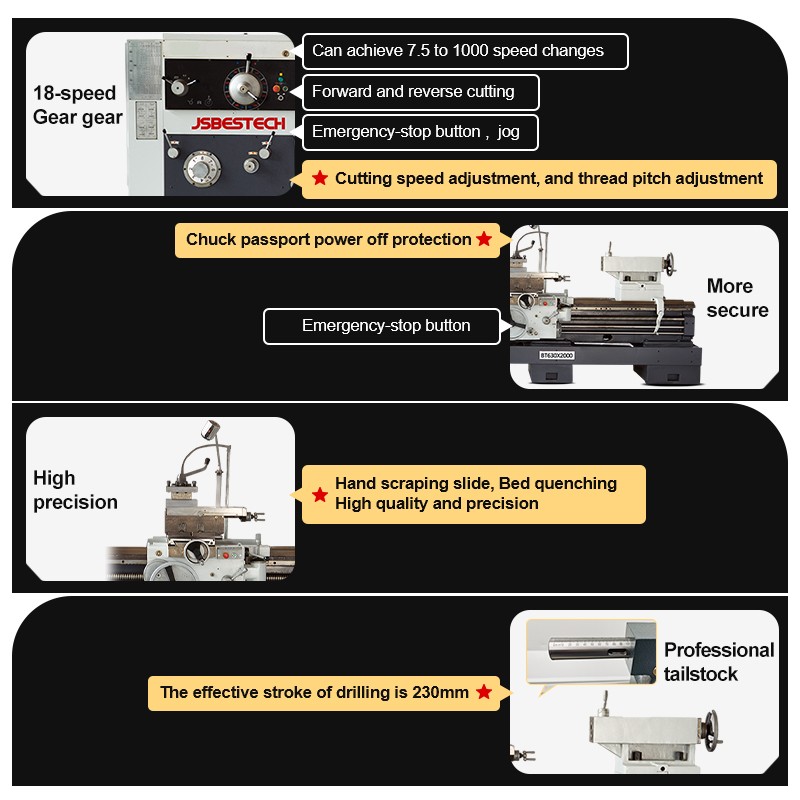

- 18 spindle speeds from 7.5 to 1000 rpm
- Comprehensive threading capabilities: metric, inch, diametral, and module pitches
- Robust bed width of 560mm for stability
- Tailstock quill with MT6 taper and 230mm travel
Technical Specifications
| Turning diameter (Max.) | Ø630mm |
|---|---|
| Swing over cross slide | Ø370mm |
| Swing in gap diameter | Ø830mm |
| Max. length of workpiece | 1000/1500/2000/3000/4000mm |
| Max. turned length | 650/1150/1650/2650/3650mm |
| Center height | 315mm |
| Width of bed | 560mm |
| Spindle nose | D11 |
| Spindle bore | Ø105mm |
| Taper of spindle bore | Ø120 (1:20) |
| Spindle speed (18 steps) | 7.5~1000rpm |
| Top slide travel | 200mm |
| Cross slide travel | 440mm |
| Max. section of tools | 25x25mm |
| Range of metric threads (50 kinds) | 1~240mm |
| Range of inch threads (26 kinds) | 14~1 T.P.I |
| Threads diametral pitches (24 kinds) | 28~1D.P |
| Threads module pitches (53 kinds) | 0.5~120M.P |
| Tailstock quill diameter | Ø100mm |
| Tailstock quill travel | 230mm |
| Taper of tailstock quill | MT6 |
| Motor power | 11kW |
| Coolant pump power | 100W |
| Voltage | 380V~440V (3PH) |

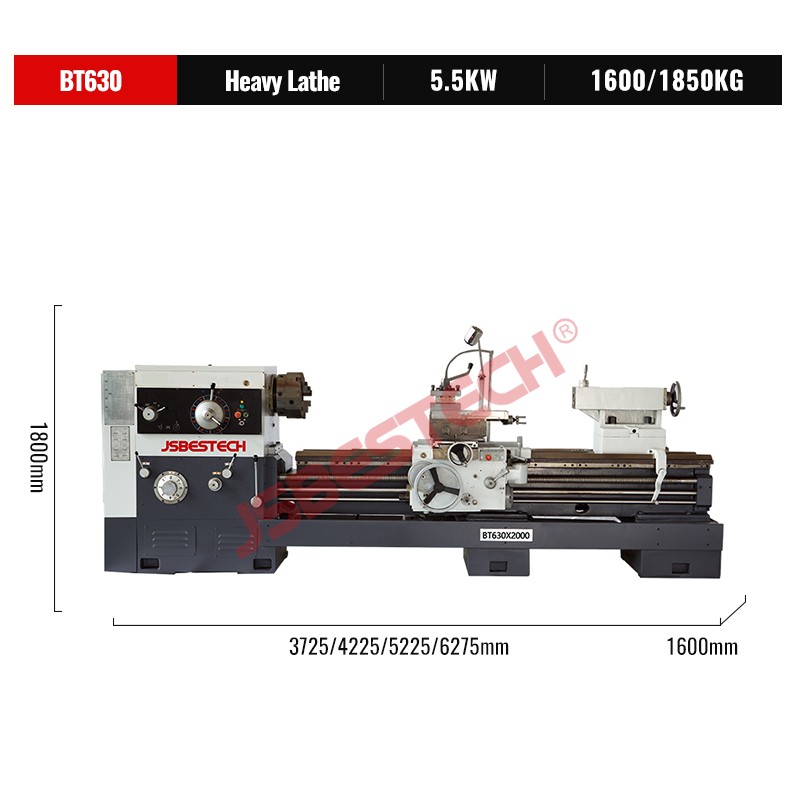

| Packing size | (3725/4225/5225/6275) x1600x1800mm |
Applications
The BT630 is suitable for a wide range of turning operations, including cylindrical turning, facing, threading, and drilling. Its robust construction and powerful motor make it ideal for heavy metalworking tasks in industries such as automotive, aerospace, and general engineering.
Why Choose the BT630?
With its large swing, wide bed, and versatile threading capabilities, the BT630 offers excellent value for money. It is built to withstand demanding environments and delivers consistent performance. Available in various sizes and colors to meet your specific requirements.
For more information or to request a quote, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BT630 630mm 11kw metal lathe machine for sale in the philippines?
The BT630 is a heavy-duty metal lathe with a 630 mm maximum turning diameter and an 11 kW motor. It features a Ø105 mm spindle bore, D11 spindle nose, and a 560 mm bed width for rigidity. The lathe is available with distance between centers of 1500 mm, 2000 mm, 3000 mm, or 4000 mm. It is designed for machining large metal workpieces and cutting various thread types.
Applications
- Turning large cylindrical metal parts up to 630 mm diameter
- Thread cutting including metric, inch, diametral, and module pitches
- Machining long shafts with distance between centers up to 4000 mm
- General metalworking in job shops and manufacturing facilities
- Facing, turning, and boring operations on large workpieces
FAQ
What is the maximum turning diameter of the BT630 lathe?
The maximum turning diameter is Ø630 mm.
What is the spindle bore of the BT630 lathe?
The spindle bore is Ø105 mm.
What is the motor power of the BT630 lathe?
The motor power is 11 kW.
What distances between centers are available for the BT630 lathe?
Available distances between centers are 1500 mm, 2000 mm, 3000 mm, and 4000 mm.
What is the spindle nose type of the BT630 lathe?
The spindle nose is D11.
