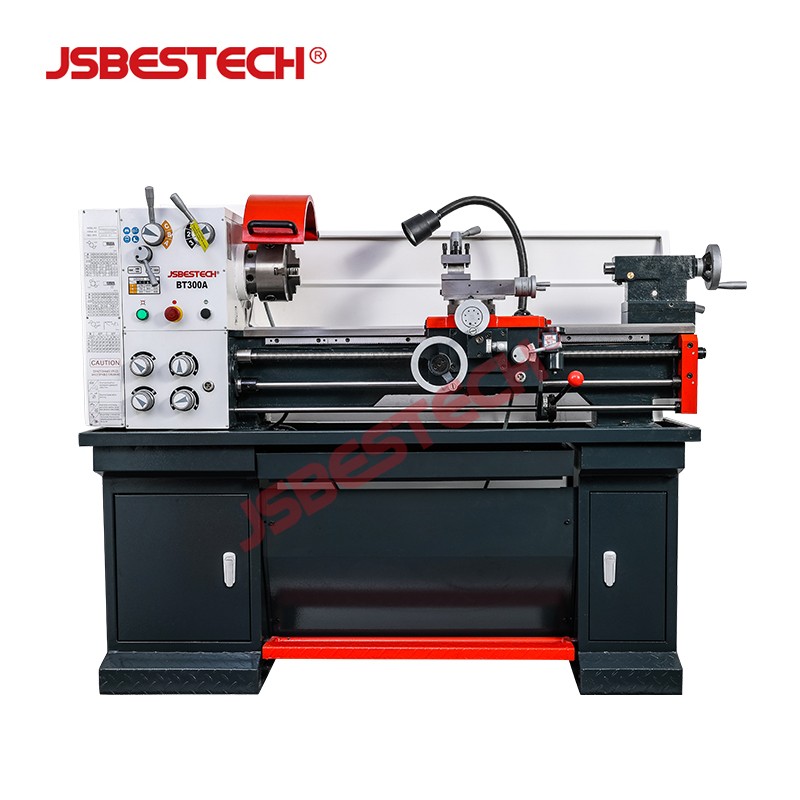

BT300A Metal Working Lathe Machine
The BT300A is a versatile metal working lathe designed for precision turning, facing, and threading operations. With a distance between centers of 914mm and a swing over bed of Ø300mm, it handles a wide range of workpieces. The machine features a 180mm wide bed for stability and a spindle bore of Ø38mm with MT5 taper.
Key Features
- Distance between centers: 914mm
- Swing over cross slide: Ø178mm
- Center height: 150mm
- Spindle speed: 60~1500rpm (9 steps)
- Top slide travel: 85mm
- Cross slide travel: 160mm
- Tailstock quill: Ø38mm diameter, 95mm travel, MT3 taper
- Threading: metric (0.4~7mm, 29 kinds) and inch (4~56 T.P.I, 40 kinds)
- Motor power: 1.1kW (double motor)
- Voltage: 380V~440V (3PH)
Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø300mm |
| Swing over cross slide | Ø178mm |
| Distance between centers | 914mm |
| Center height | 150mm |
| Width of bed | 180mm |
| Spindle bore | Ø38mm |
| Taper of spindle bore | MT5 |
| Spindle speed (9 steps) | 60~1500rpm |
| Top slide travel | 85mm |
| Cross slide travel | 160mm |
| Max. section of tools | 16x16mm |
| Range of metric threads (29 kinds) | 0.4~7mm |
| Range of inch threads (40 kinds) | 4~56 T.P.I |
| Pitches of feed lead screws | 3mm or 8 T.P.I |
| Tailstock quill diameter | Ø38mm |
| Tailstock quill travel | 95mm |
| Taper of tailstock quill | MT3 |
| Motor power (double motor) | 1.1kW |
| Voltage | 380V~440V (3PH) |

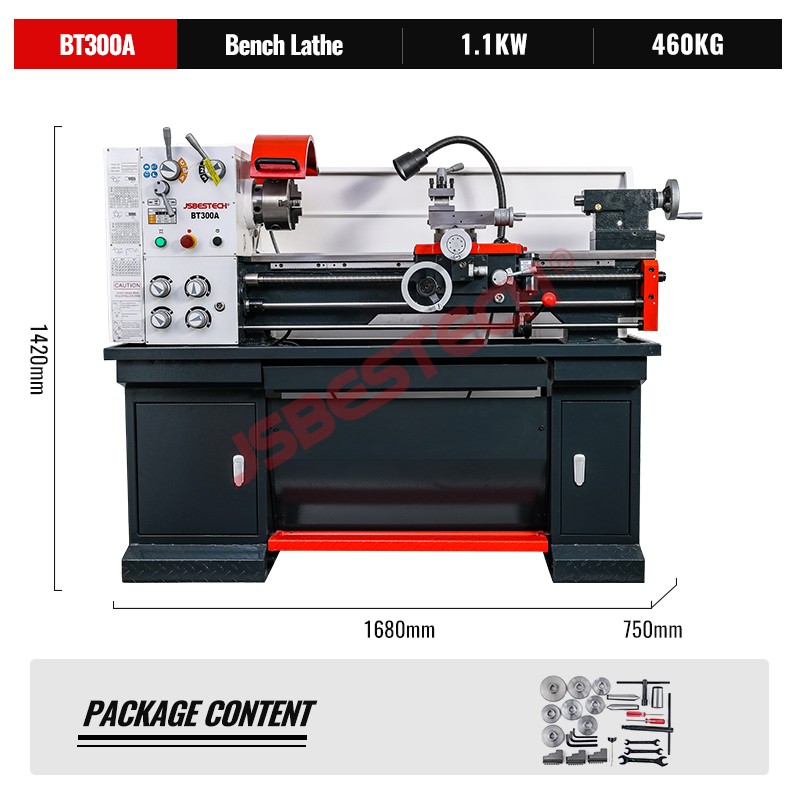

| Packing size | 1680x750x1420mm |
Manufactured by Jiangsu Bestech Industrial Co., Ltd., the BT300A combines robust construction with precise control for workshop and industrial applications.
What is BT300A metal working lathe machine and milling lathe machinery?
The BT300A is a metal working lathe machine designed for turning operations, with a maximum turning diameter of 300mm and a distance between centers of 914mm. It features a spindle bore of 38mm with MT5 taper, 9 spindle speed steps from 60 to 1500rpm, and a 1.1kW double motor. The machine supports both metric and inch thread cutting, with 29 metric thread kinds and 40 inch thread kinds. It is suitable for workshop and light industrial use.
Applications
- Turning cylindrical metal parts
- Thread cutting (metric and inch)
- Facing and chamfering operations
- Drilling and boring with tailstock
- General metalworking and repair tasks
FAQ
What is the maximum turning diameter of the BT300A lathe?
The maximum turning diameter is 300mm.
What is the distance between centers?
The distance between centers is 914mm.
What spindle speeds are available?
The spindle speed range is 60 to 1500rpm with 9 steps.
What is the motor power?
The machine uses a 1.1kW double motor.
What thread cutting capabilities does it have?
It can cut 29 kinds of metric threads (0.4~7mm) and 40 kinds of inch threads (4~56 T.P.I).
