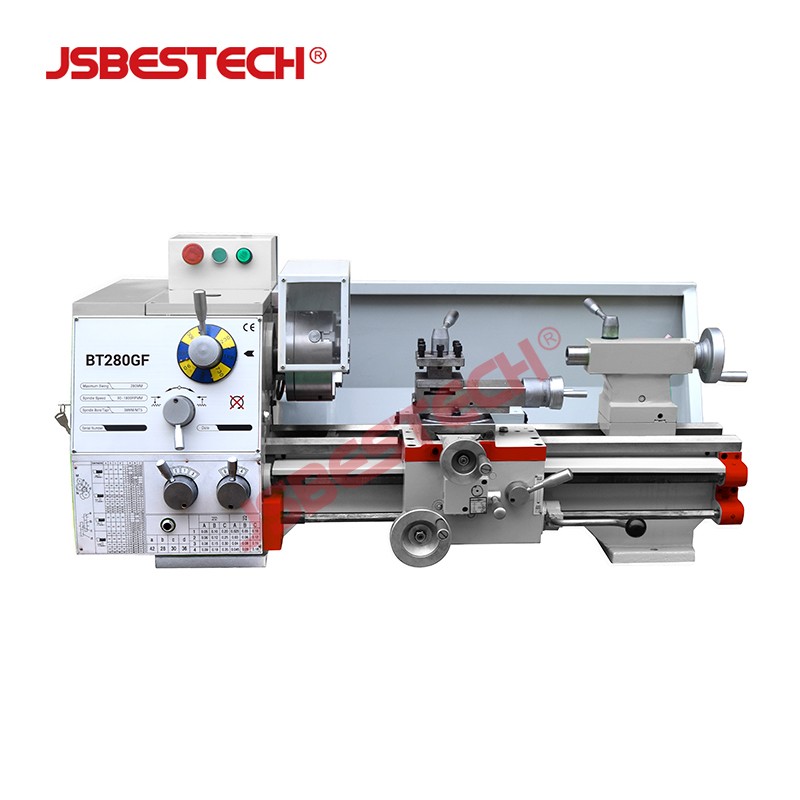

BT280GF Bench 8 Step Belt Speed Lathe Machine
Jiangsu Bestech Industrial Co., Ltd. presents the BT280GF, a compact bench lathe designed for precision turning in workshops, garages, and small-scale production. With an 8-step belt speed system and a robust build, it delivers reliable performance for a variety of metalworking tasks.

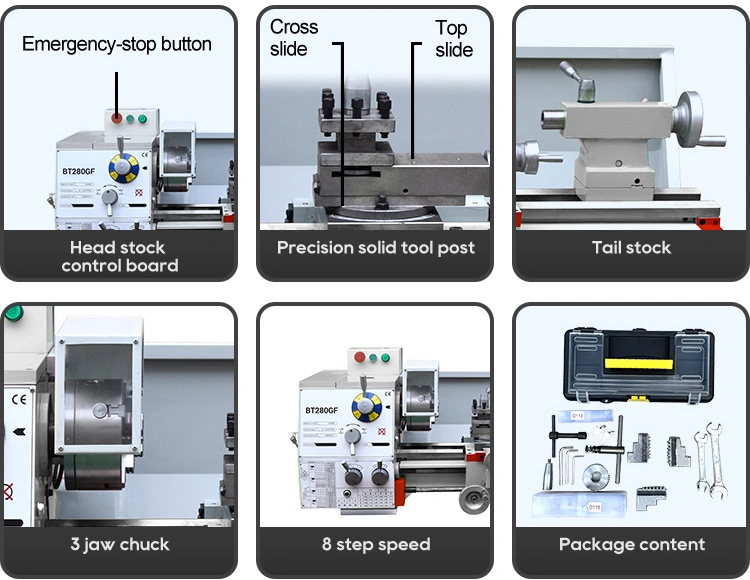

Key Features
- 8-Step Belt Speed: Spindle speeds from 90 to 1800 rpm, allowing optimal settings for different materials and operations.
- Generous Capacity: Max. turning diameter of Ø280mm and swing over cross slide of Ø165mm.
- Sturdy Bed: 180mm width provides stability and minimizes vibration during cutting.
- Threading Versatility: Cuts metric threads from 0.2 to 3.5mm and inch threads from 8 to 48 T.P.I.
- Flexible Distance Between Centers: Available in 550mm or 750mm (optional) to suit your workspace.
- Powerful Motor: 1.1kW motor operates on 110V~240V single-phase power.
Technical Specifications
| Specification | Value |
|---|---|
| Turning diameter (Max.) | Ø280mm |
| Swing over cross slide | Ø165mm |
| Distance between centers | 550/750mm (optional) |
| Width of bed | 180mm |
| Spindle bore | Ø38mm |
| Spindle taper | MT5 |
| Spindle speed (8 steps) | 90~1800rpm |
| Top slide travel | 75mm |
| Cross slide travel | 185mm |
| Max. section of tools | 12x12mm |
| Range of metric threads | 0.2~3.5mm |
| Range of inch threads | 8~48T.P.I |
| Tailstock quill diameter | Ø35mm |
| Tailstock quill travel | 75mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1.1kw |
| Voltage | 110V~240V (1PH) |

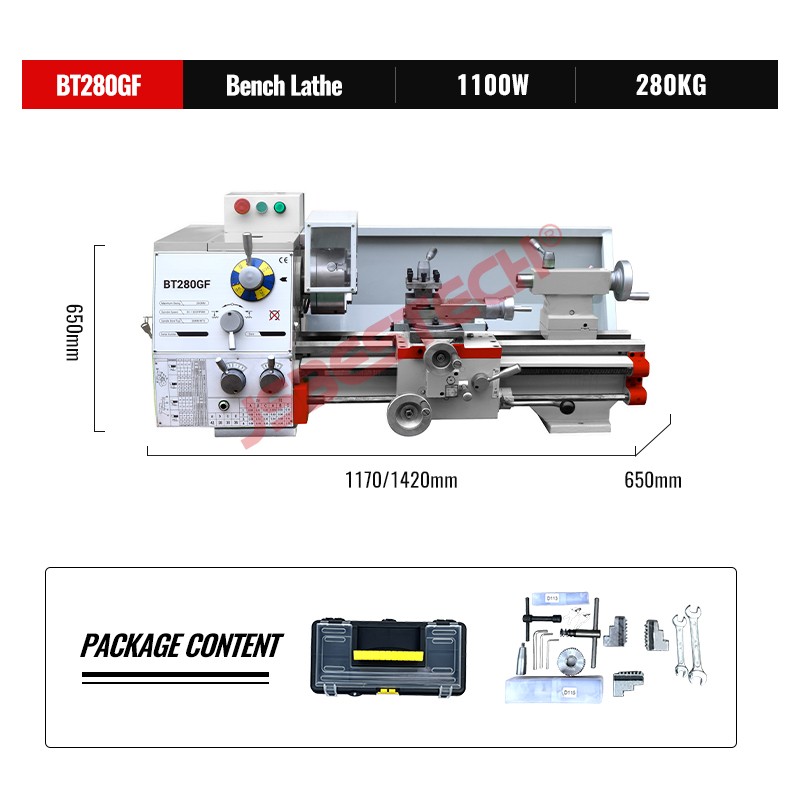

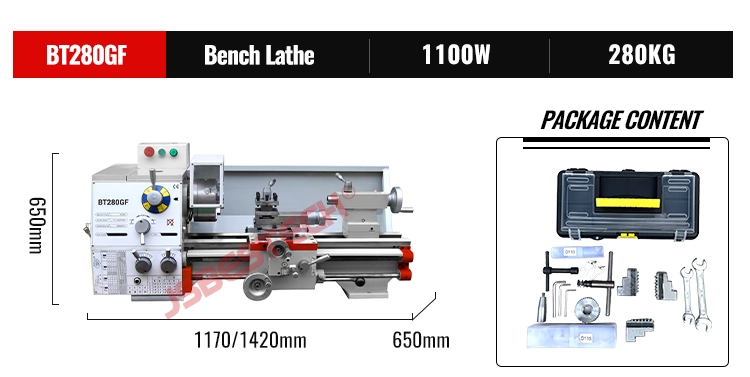

| Packing size | 1170/1420x650x650mm |
Applications
The BT280GF is ideal for turning, facing, threading, and drilling operations on metals and other machinable materials. Its bench-top design saves space while offering the capabilities of a larger lathe.
Why Choose the BT280GF?
Jiangsu Bestech Industrial Co., Ltd. combines quality manufacturing with practical design. The BT280GF offers a balance of power, precision, and affordability, making it a valuable addition to any workshop.
Note: Specifications are subject to change without notice. Please contact us for detailed information and customization options.
What is BT280GF Bench 8 Step Belt Speed Lathe Machine?
The BT280GF Bench 8 Step Belt Speed Lathe Machine is a compact metalworking lathe designed for bench-top use. It features a maximum turning diameter of Ø280mm and a swing over cross slide of Ø165mm. The spindle offers 8 belt-driven speed steps from 90 to 1800 rpm, powered by a 1.1 kW motor. With a 180mm bed width and Ø38mm spindle bore, it is suitable for a range of turning, facing, and threading operations.
Applications
- Turning and facing small to medium metal workpieces
- Thread cutting with metric (0.2–3.5mm) and inch (8–48 T.P.I) threads
- Drilling and reaming using the tailstock
- Suitable for workshop, maintenance, and educational settings
FAQ
What is the maximum turning diameter of the BT280GF lathe?
The maximum turning diameter is Ø280mm.
What is the spindle speed range of this lathe?
The spindle speed range is 90 to 1800 rpm, with 8 belt-driven steps.
What is the motor power of the BT280GF?
The motor power is 1.1 kW.
What is the spindle bore size?
The spindle bore is Ø38mm.
What is the distance between centers?
The distance between centers is 550mm or 750mm (optional).
