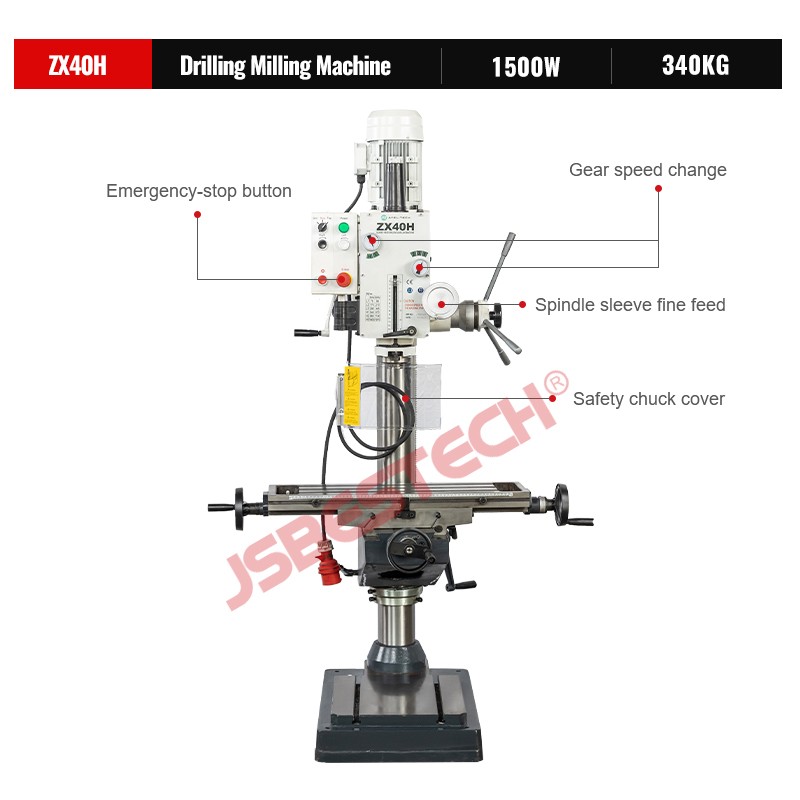

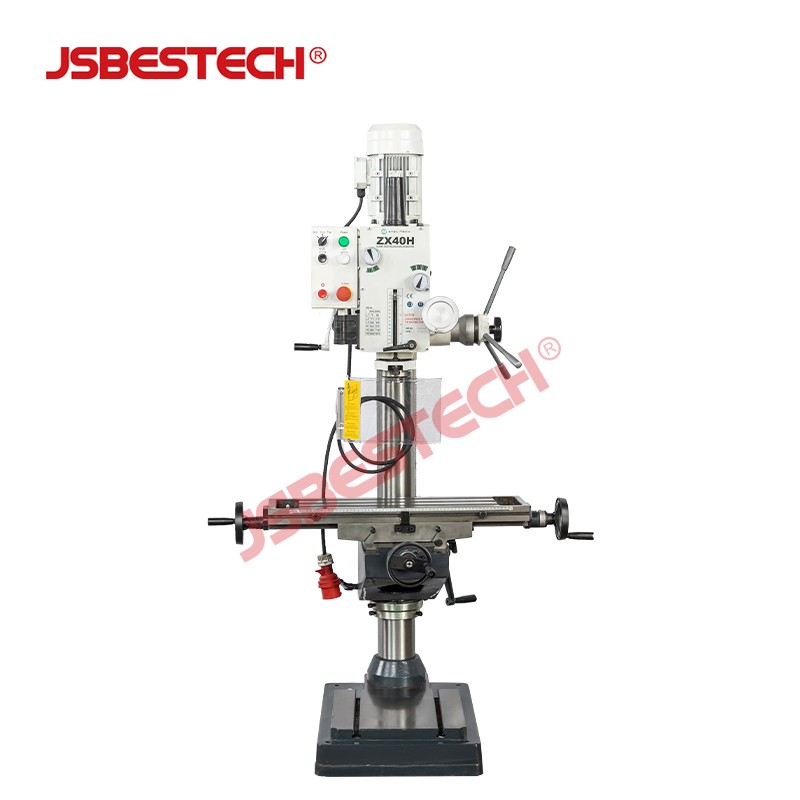

ZX40H Drilling Milling Machine
The ZX40H is a versatile drilling and milling machine designed for metalworking workshops, maintenance facilities, and small-batch production. It combines drilling, end milling, and face milling operations in a single compact unit, offering flexibility for a wide range of machining tasks.
Key Features
- Max. drilling capacity: Iron Ø40mm / Steel Ø32mm
- End milling capacity: Ø32mm
- Face milling capacity: Ø80mm
- Spindle taper: MT4/R8

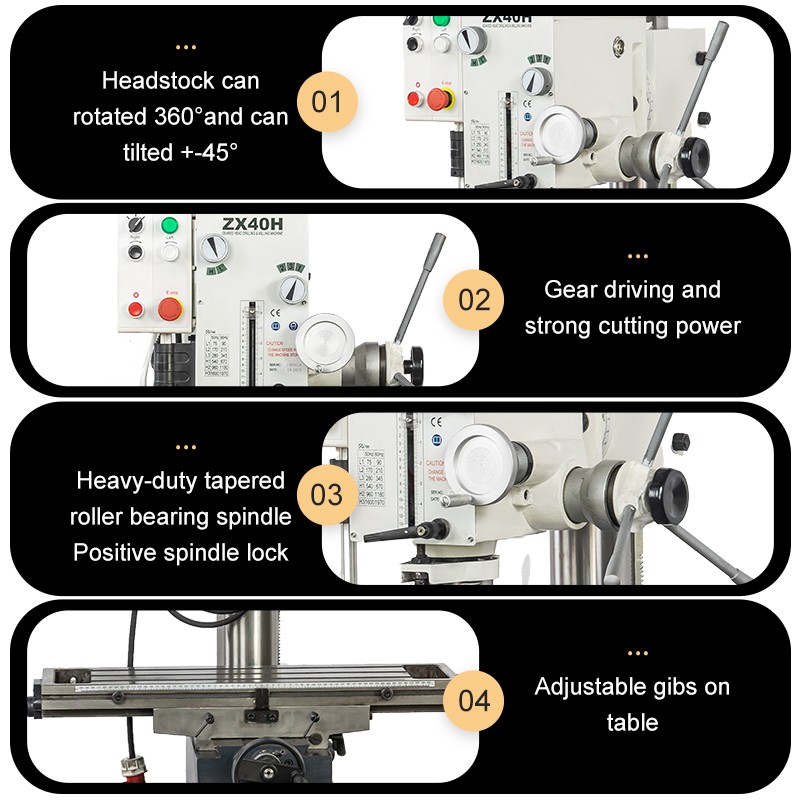

- Head tilt left and right: ±90°
- Variable spindle speed range: 75–1600 rpm (standard) or 75–3200 rpm (optional)
- Automatic spindle feeds (optional): 0.1 / 0.18 / 0.26 mm/r
- Robust worktable: 730 × 210 mm
- Motor power: 1500 W
Technical Specifications
| Parameter | Value |
|---|---|
| Max. drilling capacity | Iron Ø40mm / Steel Ø32mm |
| End milling capacity | Ø32mm |
| Face milling capacity | Ø80mm |
| Spindle taper | MT4/R8 |
| Spindle travel | 120mm |
| Range of spindle speed | 75–1600 rpm / 75–3200 rpm (Optional) |
| Head tilt left and right | ±90° |
| Step of spindle speeds | 6 / 12 (Optional) |
| Automatic spindle feeds | 0.1 / 0.18 / 0.26 mm/r (Optional) |
| Working table size | 730 × 210 mm |
| Dimension base | 650 × 450 mm |
| Worktable X/Y-axis travel | 500 × 190 mm |
| T-slot | 12mm |
| Distance between spindle and column | 260mm |
| Max. distance spindle to table | 610mm |
| Motor power | 1500 W |
| Cooling motor | 40 W (Optional) |
Applications
The ZX40H is suitable for drilling, milling, boring, and tapping operations on iron, steel, and other machinable materials. Its geared head and optional automatic feeds make it a practical choice for job shops, tool rooms, and educational settings.
Why Choose the ZX40H?
With a powerful 1500 W motor, a wide speed range, and a tilting head, this machine delivers reliable performance for diverse machining needs. The optional automatic spindle feeds and higher speed range allow you to tailor the machine to your specific production requirements.
For more information or to discuss your requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is ZX40H Drilling Milling Machine?
The ZX40H Drilling Milling Machine is a versatile machine tool designed for drilling and milling operations. It offers a maximum drilling capacity of Ø40mm in iron and Ø32mm in steel, end milling capacity of Ø32mm, and face milling capacity of Ø80mm. The machine features a spindle taper of MT4/R8, a spindle travel of 120mm, and a range of spindle speeds from 75 to 1600 rpm (optional 75 to 3200 rpm). It is suitable for use in various metalworking applications.
Applications
- Drilling holes in iron and steel workpieces
- End milling operations on metal parts
- Face milling for surface preparation
- General machining in maintenance workshops
- Small-scale production and prototyping
FAQ
What is the maximum drilling capacity of the ZX40H?
The maximum drilling capacity is Ø40mm in iron and Ø32mm in steel.
What is the spindle speed range of this machine?
The standard spindle speed range is 75 to 1600 rpm, with an optional range of 75 to 3200 rpm.
What is the working table size?
The working table size is 730×210mm.
Does the machine have automatic spindle feeds?
Yes, it offers automatic spindle feeds of 0.1/0.18/0.26mm/r as an option.
