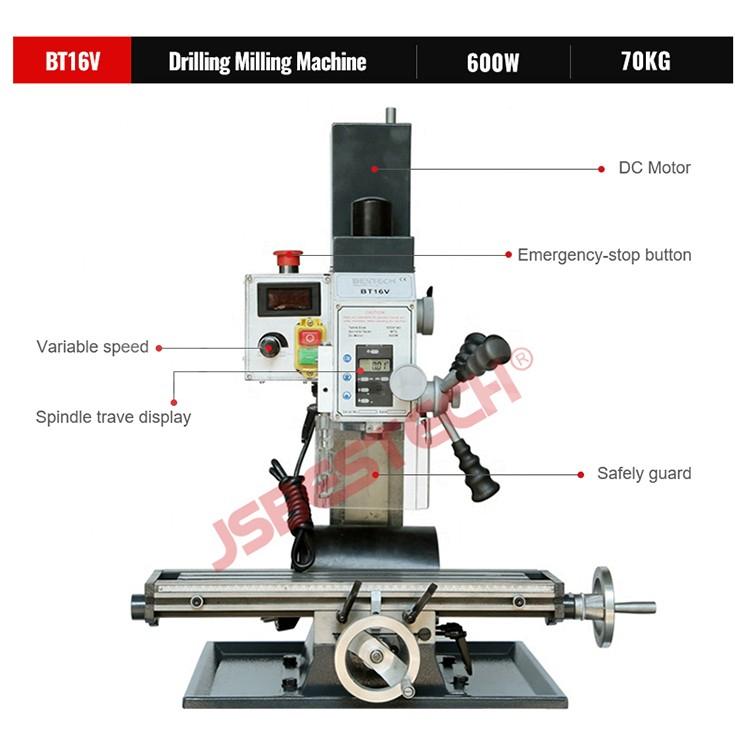

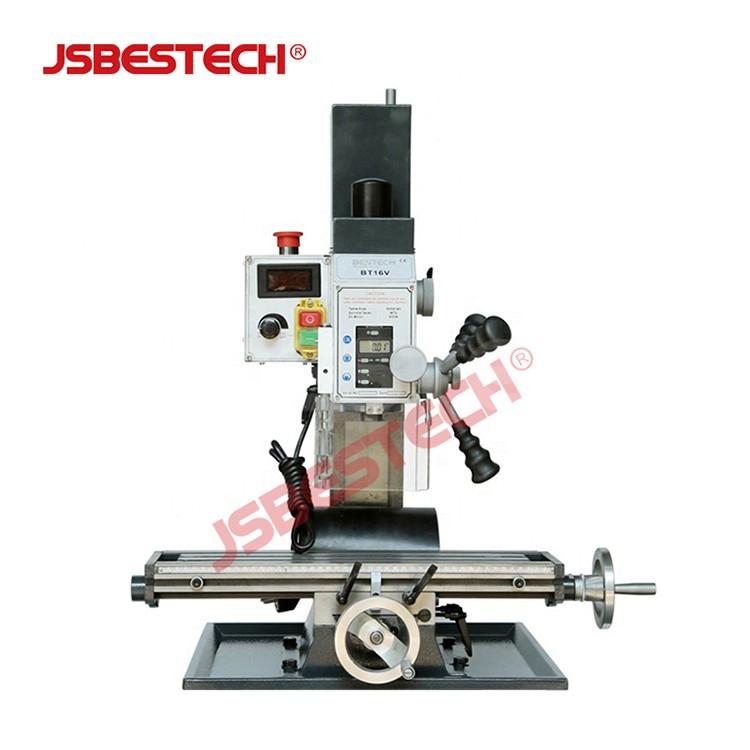

BT16V Drilling Milling Machine
The BT16V is a compact drilling and milling machine designed for workshops, maintenance departments, and light production. It combines drilling, end milling, and face milling in one unit, with a tilting head for angled work.
Key Features
- Max. drilling capacity: Ø16 mm
- End milling capacity: Ø16 mm
- Face milling capacity: Ø50 mm
- Spindle taper: MT2
- Spindle travel: 50 mm
- Variable spindle speed: 50–2250 rpm

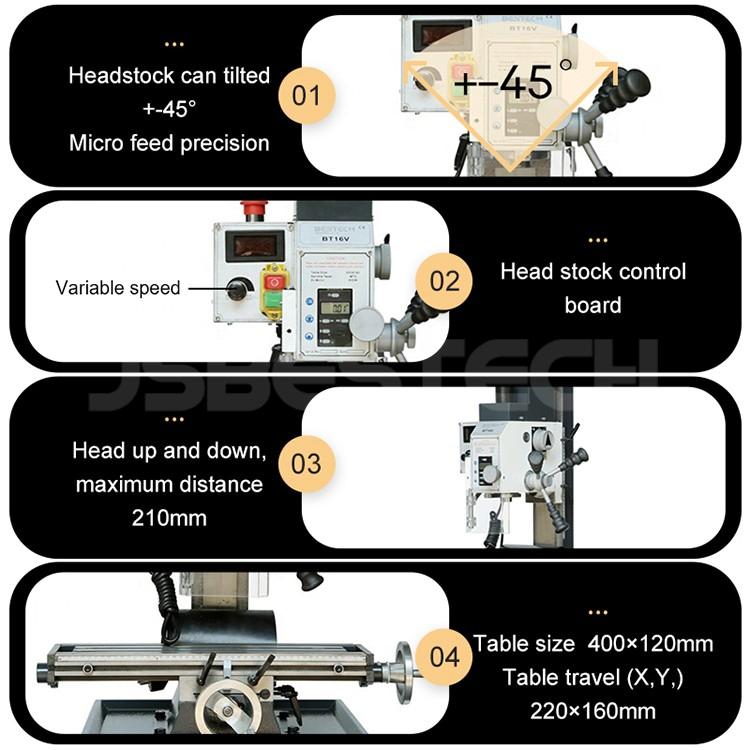

- Head tilts ±45° left and right
- Worktable: 400 × 120 mm (500 × 145 mm optional)
- Motor power: 600 W
Applications
This machine is suitable for drilling, end milling, and face milling of small to medium parts. The tilting head allows angled drilling and milling operations. Typical users include machine shops, tool rooms, and maintenance facilities.
Specifications
| Parameter | Value |
|---|---|
| Max. drilling capacity | Ø16 mm |
| End milling capacity | Ø16 mm |
| Face milling capacity | Ø50 mm |
| Taper of spindle bore | MT2 |
| Spindle travel | 50 mm |
| Spindle speed | 50–2250 rpm |
| Head tilt left and right | ±45° |
| Working table size | 400 × 120 mm / 500 × 145 mm (Optional) |
| X-axis travel | 220 / 300 mm (Optional) |
| Y-axis travel | 160 mm |
| Z-axis travel | 210 mm |
| T slot | 3 × 10 mm |
| Distance between spindle and column | 160 mm |
| Motor power | 600 W |
| Packing size | 500 × 450 × 760 mm |
| N.W / G.W | 70 / 90 kg |
Options
Optional worktable size (500 × 145 mm) and X-axis travel (300 mm) are available. Please confirm your requirements when ordering.
About Jiangsu Bestech Industrial Co., Ltd.
Jiangsu Bestech Industrial Co., Ltd. supplies industrial machinery for export. The BT16V is part of our range of drilling and milling machines. For further information, please contact us.
What is BT16V Drilling Milling Machine?
The BT16V is a compact drilling and milling machine from Jiangsu Bestech Industrial Co., Ltd. It combines drilling, end milling, and face milling in one unit, with a head that tilts ±45° for angled work. Key capacities include Ø16 mm max drilling, Ø16 mm end milling, and Ø50 mm face milling. It is designed for workshops, maintenance departments, and light production.
Applications
- Drilling small to medium parts in machine shops and tool rooms
- End milling slots, edges, and profiles on metal workpieces
- Face milling flat surfaces up to Ø50 mm
- Angled drilling and milling operations using the ±45° tilting head
- Maintenance and repair tasks in industrial facilities
FAQ
What is the maximum drilling capacity of the BT16V?
The BT16V has a maximum drilling capacity of Ø16 mm.
What is the spindle speed range of the BT16V?
The spindle speed is variable from 50 to 2250 rpm.
Can the BT16V head tilt for angled operations?
Yes, the head tilts ±45° left and right for angled drilling and milling.
What is the working table size of the BT16V?
The standard working table size is 400 × 120 mm, with an optional 500 × 145 mm table.
What is the motor power of the BT16V?
The BT16V is equipped with a 600 W motor.
