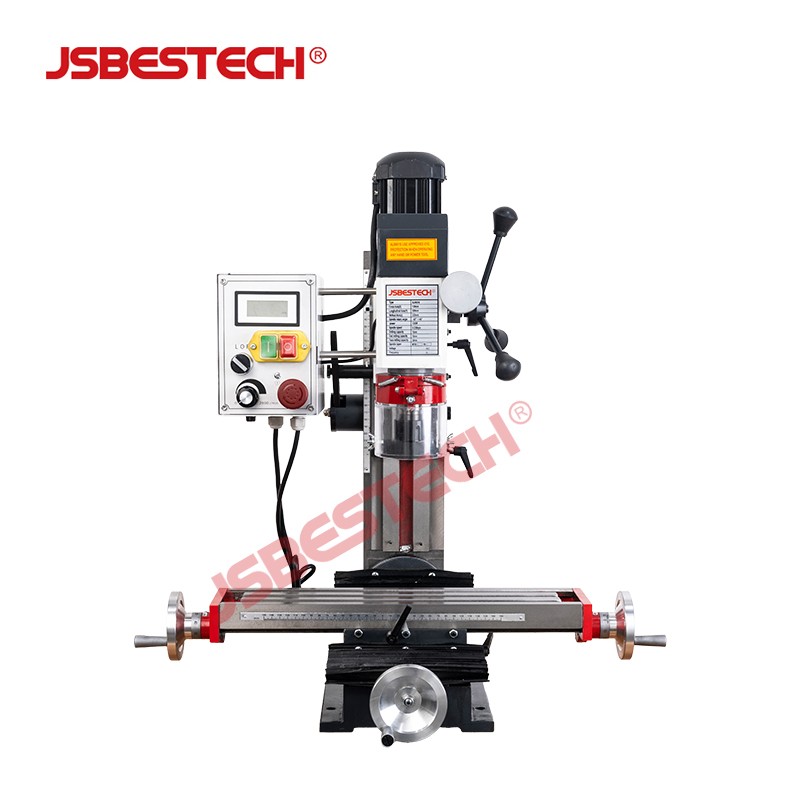

BT16 550W Mini Portable Vertical Milling and Drilling Machine
Jiangsu Bestech Industrial Co., Ltd. presents the BT16, a compact and versatile vertical milling and drilling machine designed for precision work in small workshops, maintenance shops, and hobbyist settings. With a 550W motor, it delivers reliable performance for a range of drilling and milling tasks.
Key Specifications
| Parameter | Value |
|---|---|
| Model | BT16 |
| Max. drilling capacity | Ø16mm |
| End milling capacity | Ø13mm |
| Face milling capacity | Ø30mm |
| Taper of spindle bore | MT3 |
| Spindle travel | 50mm |
| Spindle speed | 50~2250rpm |

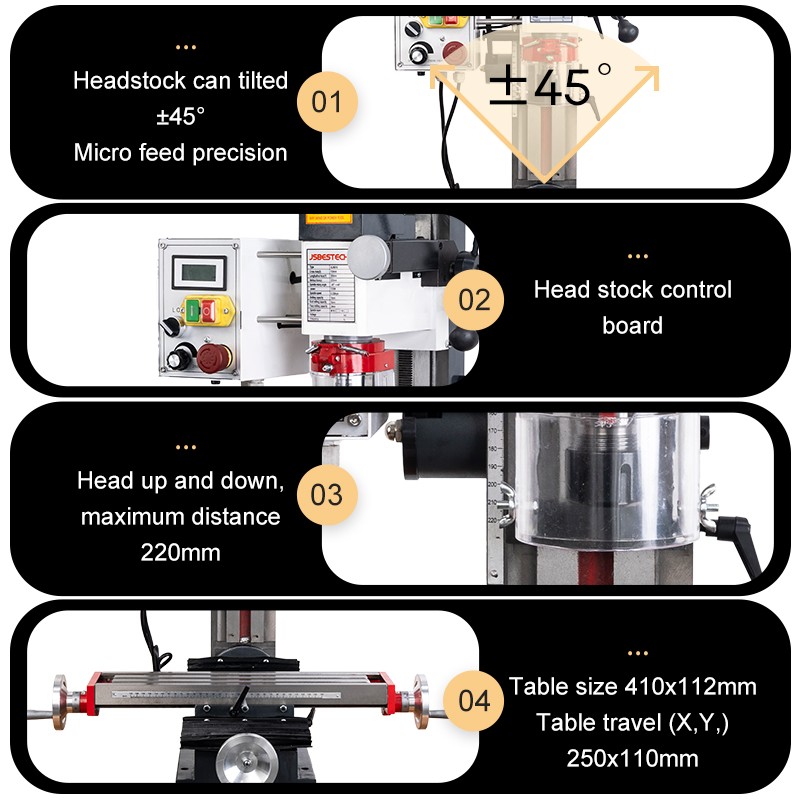

| Head tilt left and right | ±45° |
| Working table size | 410x112mm / 460x112mm (Optional) |
| X-axis travel | 300mm |
| Y-axis travel | 130mm |
| Z-axis travel | 180mm |
| Motor power | 550W |
| Overall size | 760x580x850mm |
| Weight | 85kg |
Features
- Compact and portable design for easy placement in limited spaces.
- Variable spindle speed from 50 to 2250 rpm for different materials and operations.
- Head tilts ±45° left and right for angled drilling and milling.
- MT3 spindle taper for compatibility with standard tooling.
- Optional larger worktable (460x112mm) for increased flexibility.
- Sturdy construction with 550W motor for reliable performance.
Applications
Ideal for light metalworking, model making, repair shops, and educational purposes. The BT16 handles drilling, end milling, and face milling with ease.
About Jiangsu Bestech Industrial Co., Ltd.
We are a manufacturer specializing in industrial machinery. The BT16 is part of our line of reliable and affordable machine tools. For more information, please contact us.
What is BT16 550w mini portable vertical milling and drilling machine?
The BT16 is a compact, portable vertical milling and drilling machine powered by a 550W motor. It offers a maximum drilling capacity of Ø16mm, end milling capacity of Ø13mm, and face milling capacity of Ø30mm, with a spindle travel of 50mm. Designed for precision work in small workshops, maintenance shops, and hobbyist settings, it combines drilling and milling functions in one unit. Its vertical configuration and portable design make it suitable for space-constrained environments.
Applications
- Precision drilling and milling in small workshops
- Maintenance and repair tasks in maintenance shops
- Hobbyist and DIY metalworking projects
- Light manufacturing and prototyping
- Angled drilling and milling with head tilt ±45°
FAQ
What is the maximum drilling capacity of the BT16?
The BT16 has a maximum drilling capacity of Ø16mm.
What is the motor power of the BT16?
The BT16 is equipped with a 550W motor.
What is the spindle travel of the BT16?
The spindle travel is 50mm.
Can the BT16 be used for face milling?
Yes, the BT16 has a face milling capacity of Ø30mm.
What is the weight of the BT16?
The BT16 weighs 85kg.
