Description
| Turning diameter (Max.) | Ø280mm |
| Swing over cross slide | Ø160mm |
| Distance between centers | 610/815mm (Optional) |
| Width of bed | 150mm |
| Spindle bore | Ø26mm |
| Spindle taper | MT4 |
| Spindle speed (12 steps) | 45~2000pm |
| Top slide travel | 80mm |
| Cross slide travel | 135mm |
| Max. section of tools | 12x12mm |
| Range of metric threads | 0.25~5mm |
| Range of inch threads | 6~96T.P.l |
| Tailstock quill diameter | Ø30mm |
| Tailstock quill travel | 95mm |
| Taper of tailstock quill | MT2 |
| Motor power | 750w |
| Voltage | 110V~240V(1PH) |

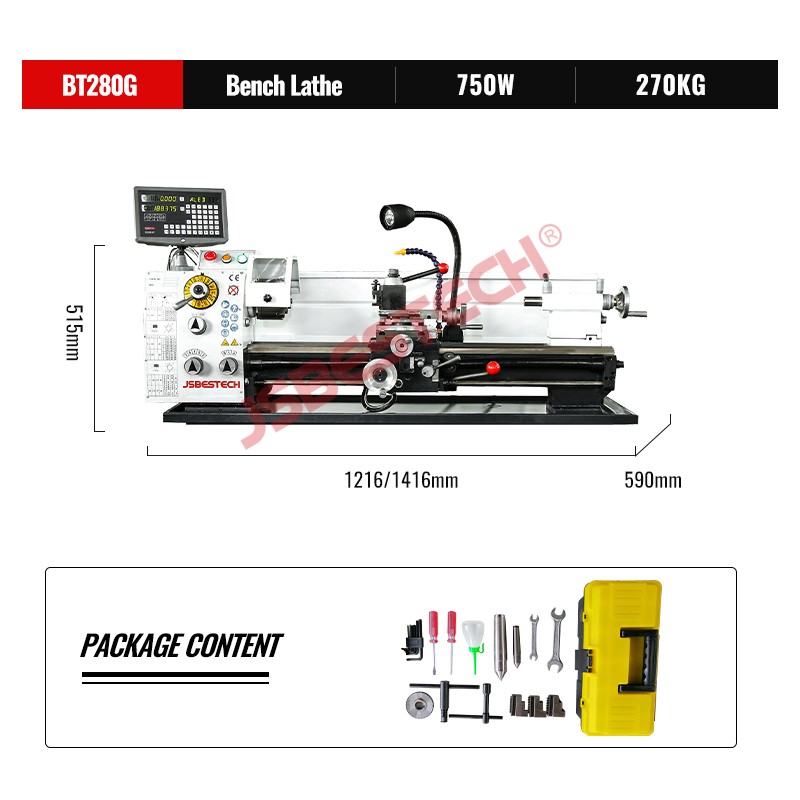

| Packing size | (1216/1416)x590x515mm |
