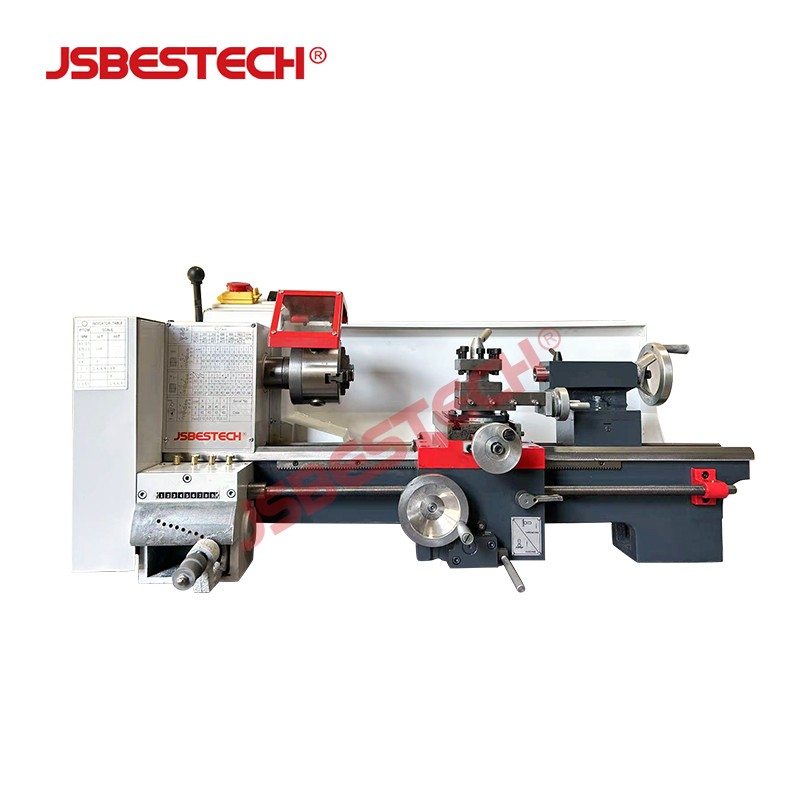

BT230G Bench 9 Step Belt Speed Lathe Machine
The BT230G is a compact bench lathe designed for workshops, maintenance shops, and light production. It combines a 9-step belt speed drive with a rigid bed and a 750W motor, making it suitable for turning, facing, threading, and drilling operations on small to medium workpieces.
Key Features
- Max. turning diameter Ø230mm and swing over cross slide Ø135mm
- Distance between centers 550mm or 750mm (optional)
- 9-step belt speed range from 0 to 1800rpm
- Spindle bore Ø21mm with MT3 spindle taper
- Metric thread range 0.5–3mm and inch thread range 8–56 T.P.I
- 750W motor, 110V–240V single phase

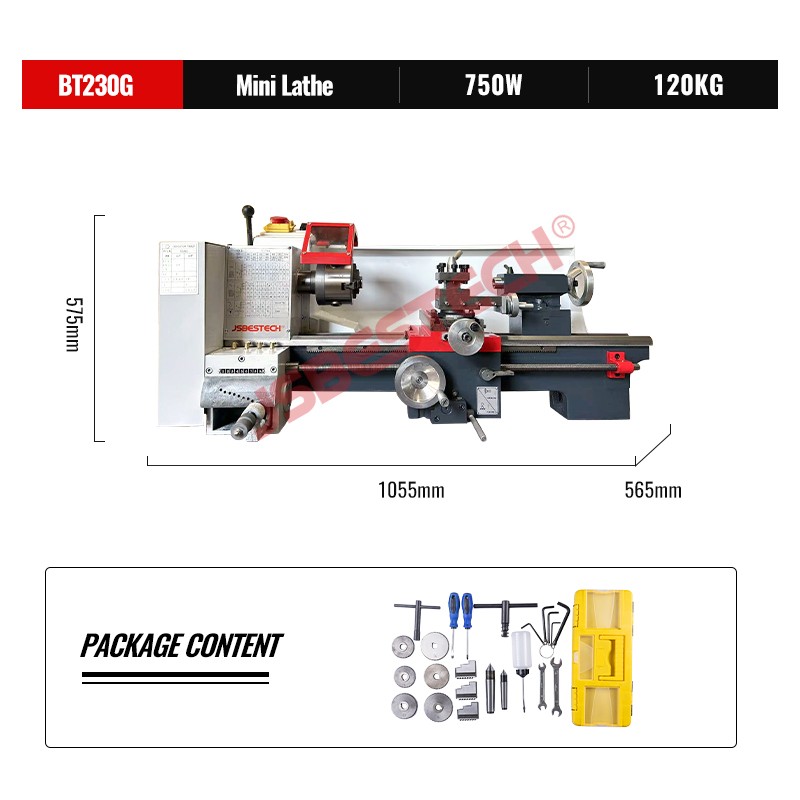

- Compact packing size 1055 x 565 x 575mm
Technical Specifications
| Turning diameter (Max.) | Ø230mm |
|---|---|
| Swing over cross slide | Ø135mm |
| Distance between centers | 550/750mm (optional) |
| Width of bed | 115mm |
| Spindle bore | Ø21mm |
| Spindle taper | MT3 |
| Spindle speed (9 steps) | 0~1800rpm |
| Top slide travel | 48mm |
| Cross slide travel | 125mm |
| Max. section of tools | 12x12mm |
| Range of metric threads | 0.5~3mm |
| Range of inch threads | 8~56 T.P.I |
| Tailstock quill diameter | Ø26mm |
| Tailstock quill travel | 40mm |
| Taper of tailstock quill | MT2 |
| Motor power | 750W |
| Voltage | 110V~240V (1PH) |
| Packing size | 1055x565x575mm |
Applications
The BT230G is suitable for turning small shafts, bushings, and fittings, as well as cutting metric and inch threads. Its bench-top design allows installation on a workbench, making it a practical choice for repair shops, educational workshops, and hobbyist use.
Why Choose the BT230G

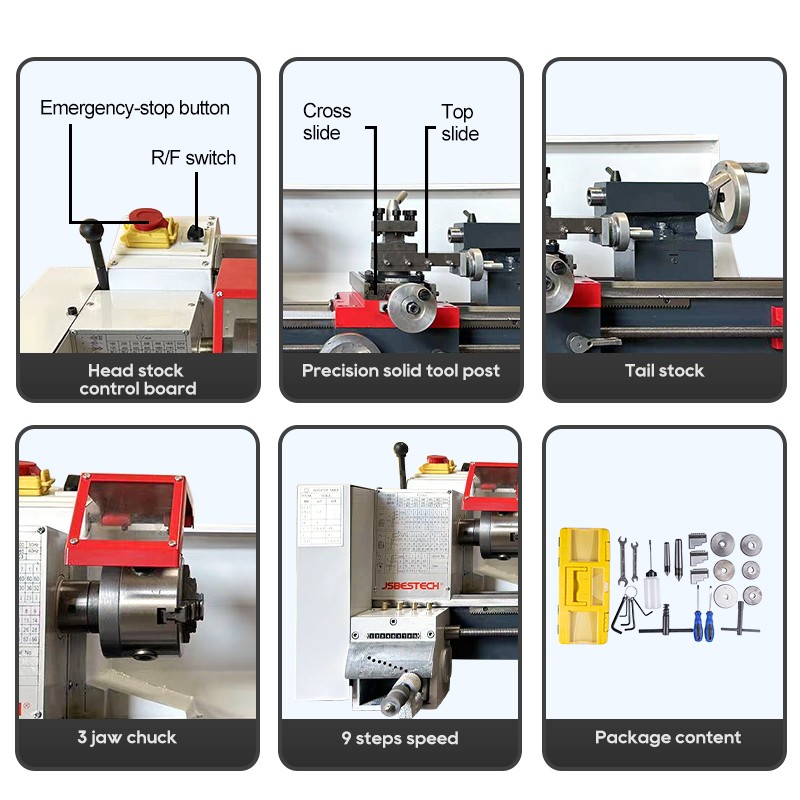

With a 9-step belt speed system, the operator can select the appropriate speed for different materials and operations. The cast iron bed and precision-ground slides provide stability during cutting. The lathe accepts 12x12mm tools and includes a tailstock with MT2 taper for drilling and reaming.
For more information about the BT230G or to discuss your requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BT230G Bench 9 Step Belt Speed Lathe Machine?
The BT230G is a bench lathe with a 9-step belt-driven spindle speed range of 0–1800 rpm. It offers a maximum turning diameter of Ø230 mm, swing over cross slide of Ø135 mm, and distance between centers of 550 mm or 750 mm (optional). The machine features a Ø21 mm spindle bore, MT3 spindle taper, and a 750 W motor, suitable for light to medium machining tasks.
Applications
- Turning small metal parts in workshops
- Thread cutting with metric (0.5–3 mm) and inch (8–56 T.P.I) threads
- Facing and turning operations on cylindrical workpieces
- Drilling and reaming using the tailstock
- Suitable for maintenance and repair tasks
FAQ
What is the maximum turning diameter of the BT230G?
The maximum turning diameter is Ø230 mm.
What is the spindle speed range of this lathe?
The spindle speed range is 0–1800 rpm with 9 steps.
What is the distance between centers available?
The distance between centers is 550 mm or 750 mm (optional).
What is the motor power of the BT230G?
The motor power is 750 W.
What is the spindle bore size?
The spindle bore is Ø21 mm.
