Description

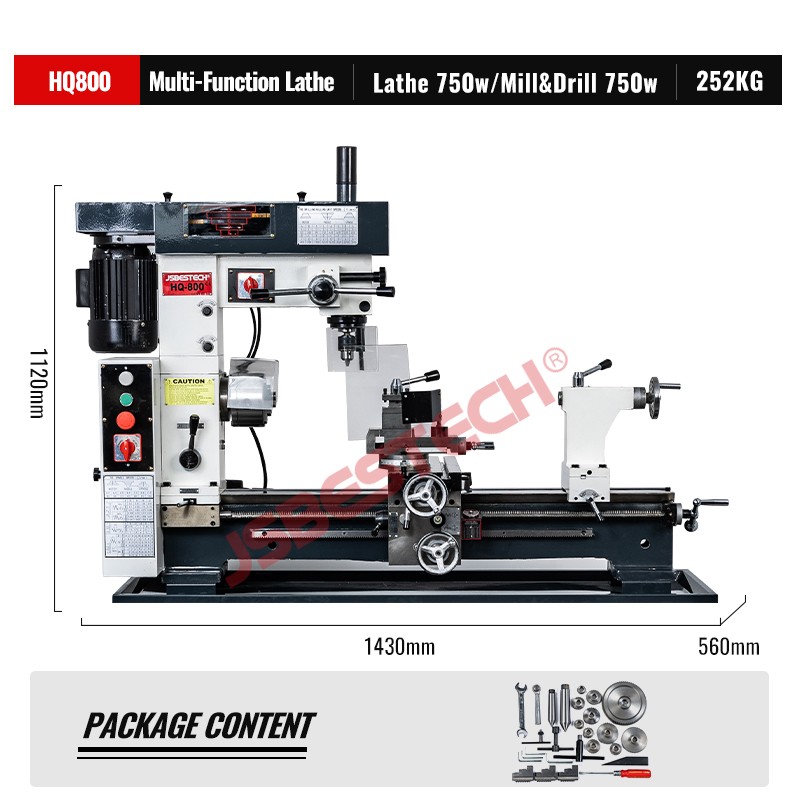

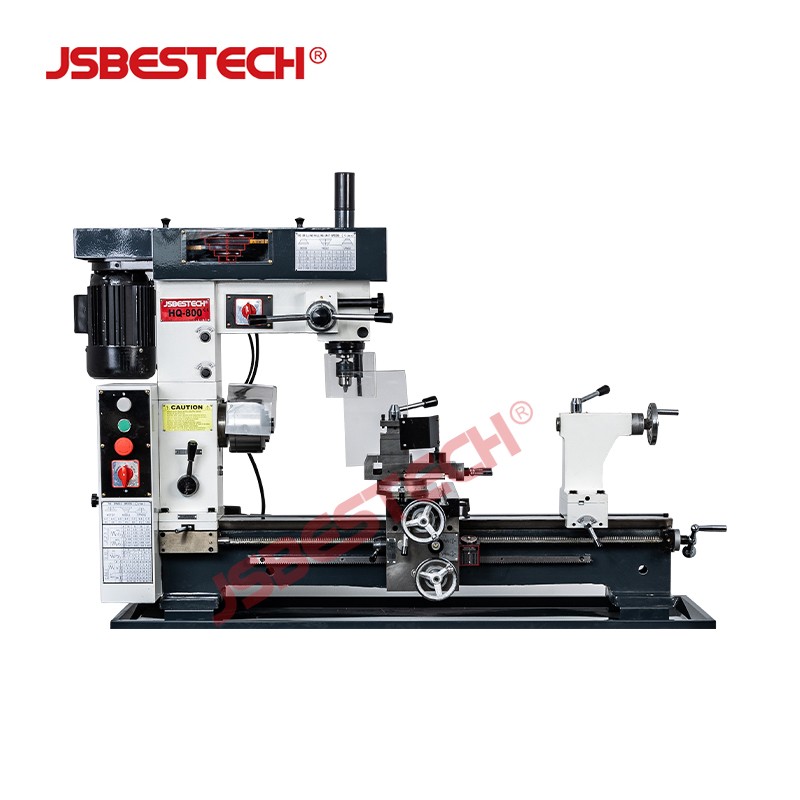

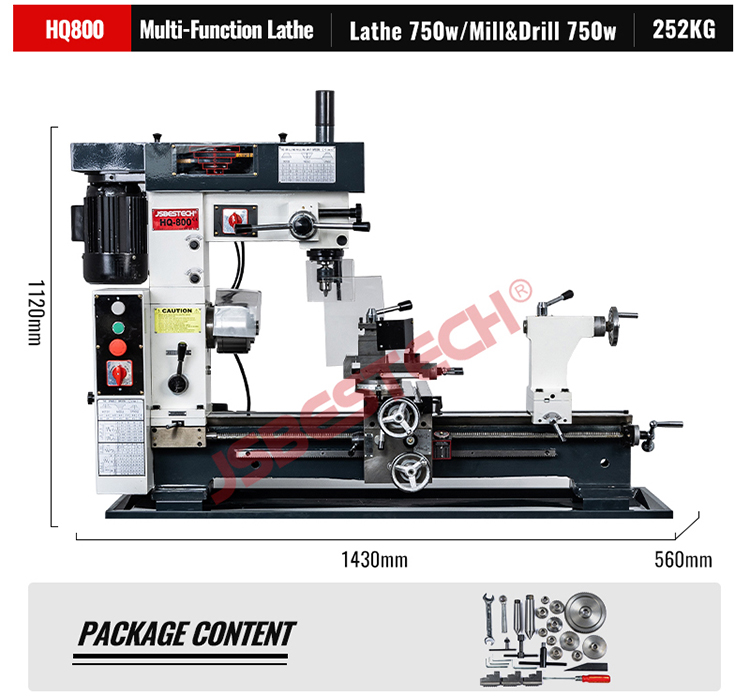

| Lathe | |
| Turning diameter (Max.) | Ø420mm |
| Distance between centers | 800mm |
| Width of bed | 138mm |
| Spindle bore | Ø28mm |
| Taper of spindle bore | MT4 |
| Spindle speed (7 steps) | 160~1360rpm |
| Travel cross slide | 195mm |
| Range of metric threads | 0.2~6mm |
| Range of inch threads | 4~120T.P.l |
| Tailstock quill diameter | 32mm |
| Tailstock quill travel | 70mm |
| Taper of tailstock quill | MT3 |
| Motor power | 750w |
| Mill & Drill | |
| Taper of spindle bore | MT3 |
| Spindle travel | 110mm |
| Max. drilling capacity | Ø22mm |
| Face milling capacity | Ø80mm |
| Spindle speed (16 steps) | 120~3000rpm |
| Swivel degree of headstock | 360° |
| Worktable size(LxW) | 475x160mm |
| Motor power | 750w |
| Packing size | 1430x560x1120mm |
