Description
| Turning diameter (Max.) | Ø280mm |
| Swing over cross slide | Ø165mm |
| Distance between centers | 550/750mm(optional) |
| Width of bed | 180mm |
| Spindle bore | Ø38mm |
| Spindle taper | MT5 |
| Spindle speed (8 steps) | 90~1800rpm |
| Top slide travel | 75mm |
| Cross slide travel | 185mm |
| Max. section of tools | 12x12mm |
| Range of metric threads | 0.2~3.5mm |
| Range of inch threads | 8~48T.P.I |
| Tailstock quill diameter | Ø35mm |
| Tailstock quill travel | 75mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1.1kw |
| Voltage | 110V~240V(1PH) |

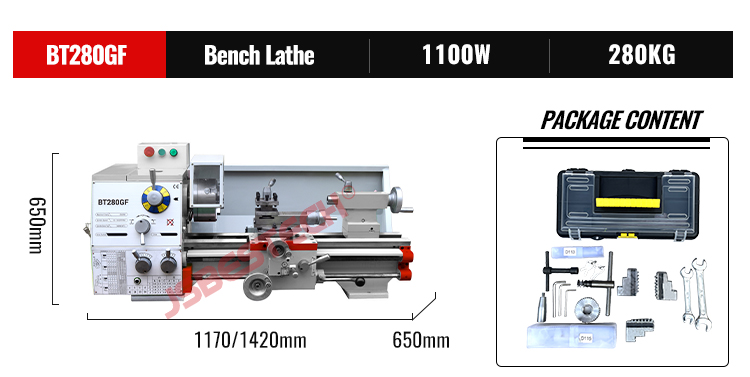

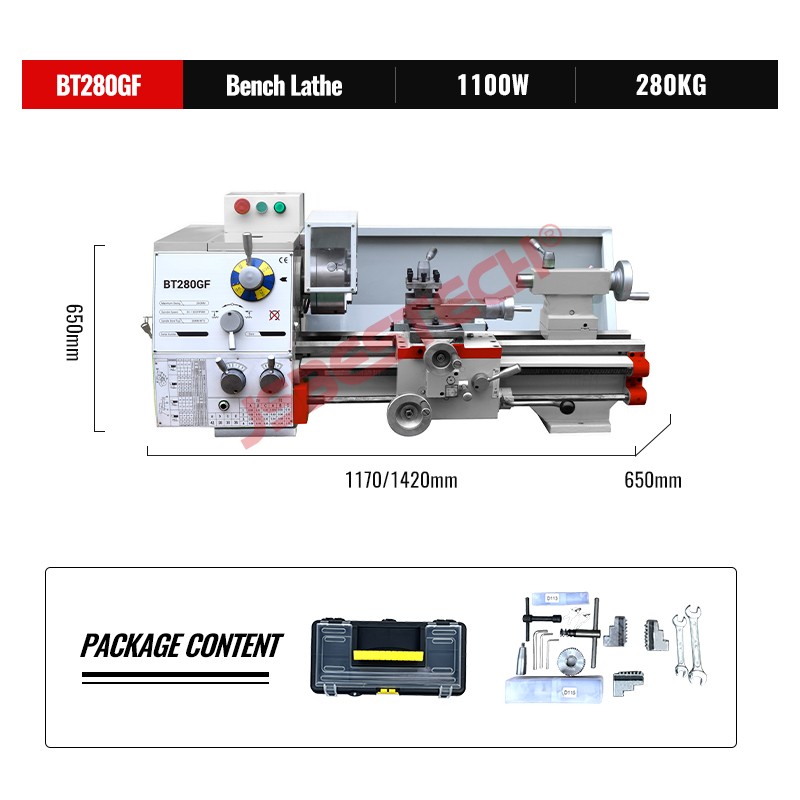

| Packing size | 1170/1420x650x650mm |
