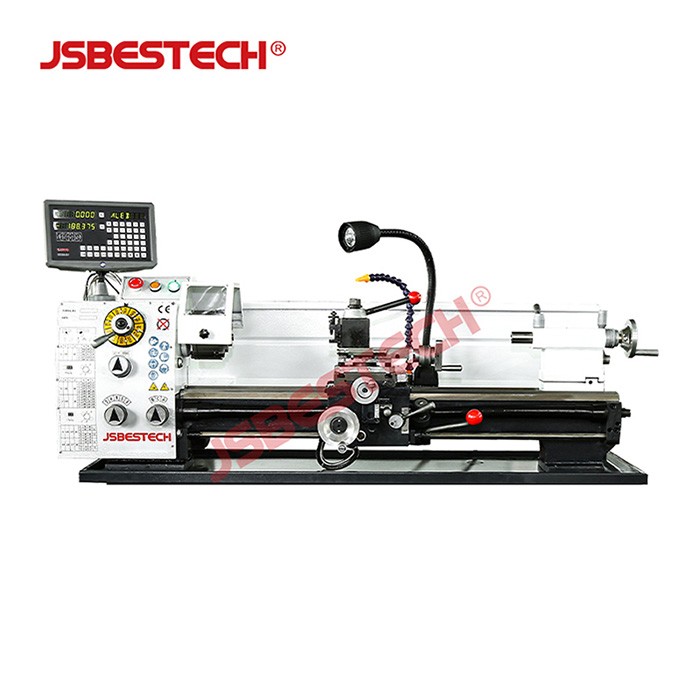

BT280G Lathe Metal Cutting Machine
The BT280G is a compact metalworking lathe designed for precision turning, threading, and drilling operations. Built by Jiangsu Bestech Industrial Co., Ltd., this digital control torno lathe combines a rigid bed with a variable 12-step spindle speed range, making it suitable for small workshops, maintenance shops, and light production environments.
With a maximum turning diameter of Ø280mm and a distance between centers of 610mm or 815mm (optional), the BT280G offers flexibility for a variety of workpiece sizes. The 150mm wide bed provides stability during cutting, while the MT4 spindle taper and Ø26mm spindle bore accommodate standard tooling.

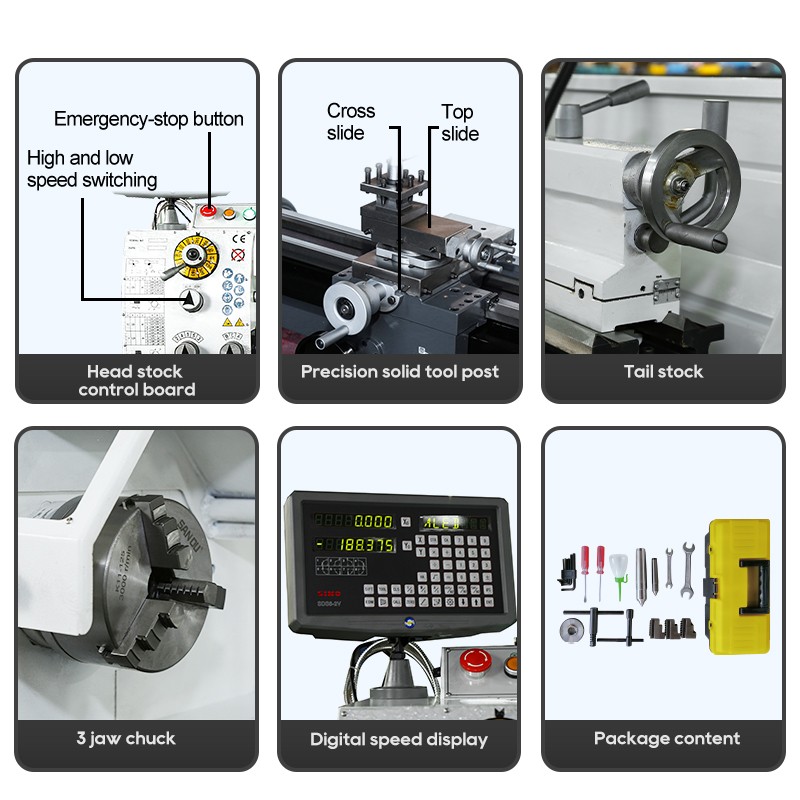

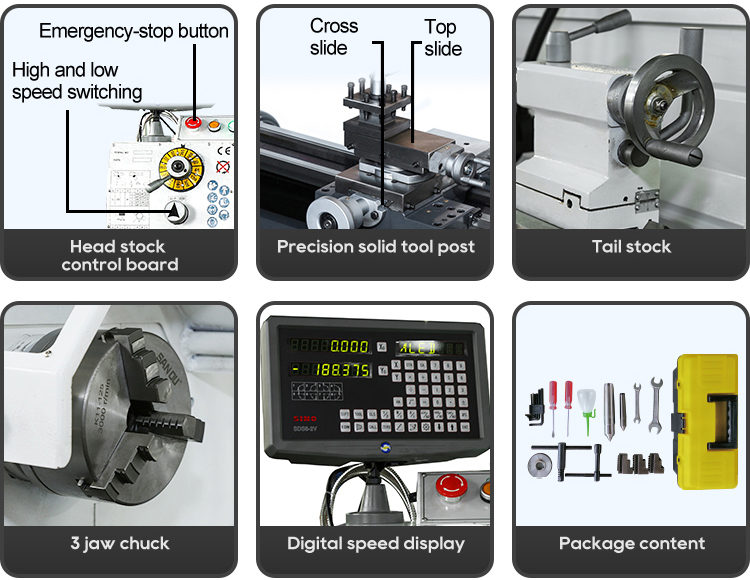

Key Features
- 12-step spindle speed range from 45 to 2000 rpm for diverse materials
- Metric thread range 0.25–5mm and inch thread range 6–96 T.P.I.
- Top slide travel 80mm and cross slide travel 135mm for precise positioning
- Tailstock quill diameter Ø30mm with 95mm travel and MT2 taper
- 750W motor, available in 110V–240V single-phase

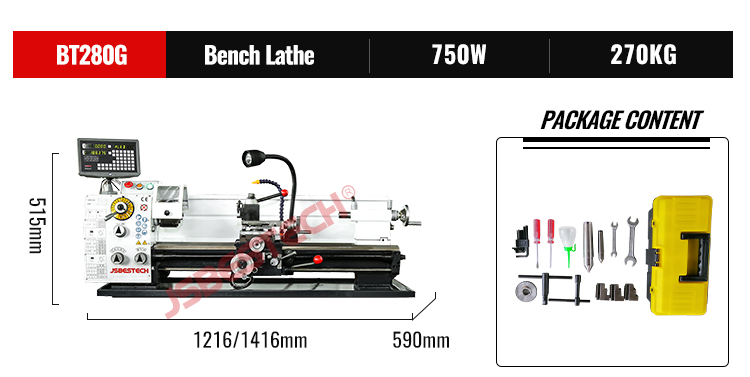

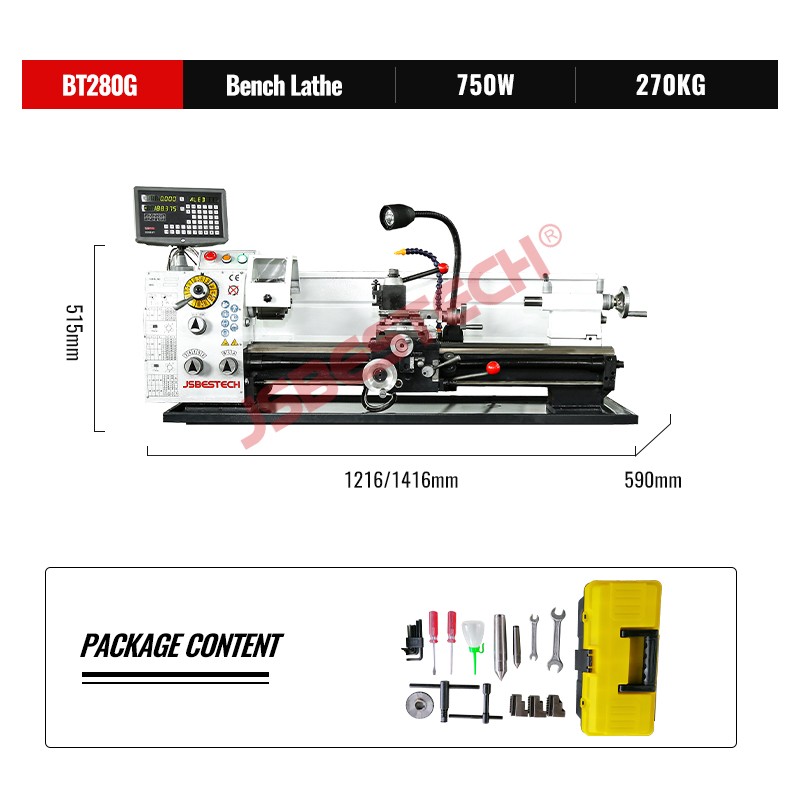

- Compact packing size: (1216/1416) x 590 x 515mm
Specifications
| Turning diameter (Max.) | Ø280mm |
| Swing over cross slide | Ø160mm |
| Distance between centers | 610/815mm (Optional) |
| Width of bed | 150mm |
| Spindle bore | Ø26mm |
| Spindle taper | MT4 |
| Spindle speed (12 steps) | 45~2000rpm |
| Top slide travel | 80mm |
| Cross slide travel | 135mm |
| Max. section of tools | 12x12mm |
| Range of metric threads | 0.25~5mm |
| Range of inch threads | 6~96T.P.I |
| Tailstock quill diameter | Ø30mm |
| Tailstock quill travel | 95mm |
| Taper of tailstock quill | MT2 |
| Motor power | 750W |
| Voltage | 110V~240V (1PH) |
| Packing size | (1216/1416) x 590 x 515mm |
Note: Specifications are subject to change without notice. Please contact us for current availability and customization options.
What is BT280G lathe metal cutting machine metalworking digital control torno lathe machine mini torno small?
The BT280G is a metal cutting lathe designed for metalworking, featuring a maximum turning diameter of 280mm and a distance between centers of 610mm or 815mm (optional). It offers 12 spindle speed steps from 45 to 2000 rpm and a 750W motor, suitable for both metric and inch threading. This lathe is a compact, digital control (torno) machine ideal for small to medium-sized turning operations.
Applications
- Turning and facing of metal workpieces up to 280mm diameter
- Thread cutting with metric (0.25–5mm) and inch (6–96 T.P.I) pitches
- Drilling and boring using the tailstock with MT2 taper
- Suitable for small workshops, maintenance shops, and prototyping
- Ideal for machining parts from steel, aluminum, and other metals
FAQ
What is the maximum turning diameter of the BT280G lathe?
The maximum turning diameter is Ø280mm.
What is the spindle speed range of this lathe?
The spindle speed range is 45 to 2000 rpm, with 12 steps.
What is the motor power of the BT280G?
The motor power is 750W.
What threading capabilities does the BT280G offer?
It can cut metric threads from 0.25 to 5mm and inch threads from 6 to 96 T.P.I.
What is the voltage requirement for this lathe?
The lathe operates on 110V to 240V single-phase power.
