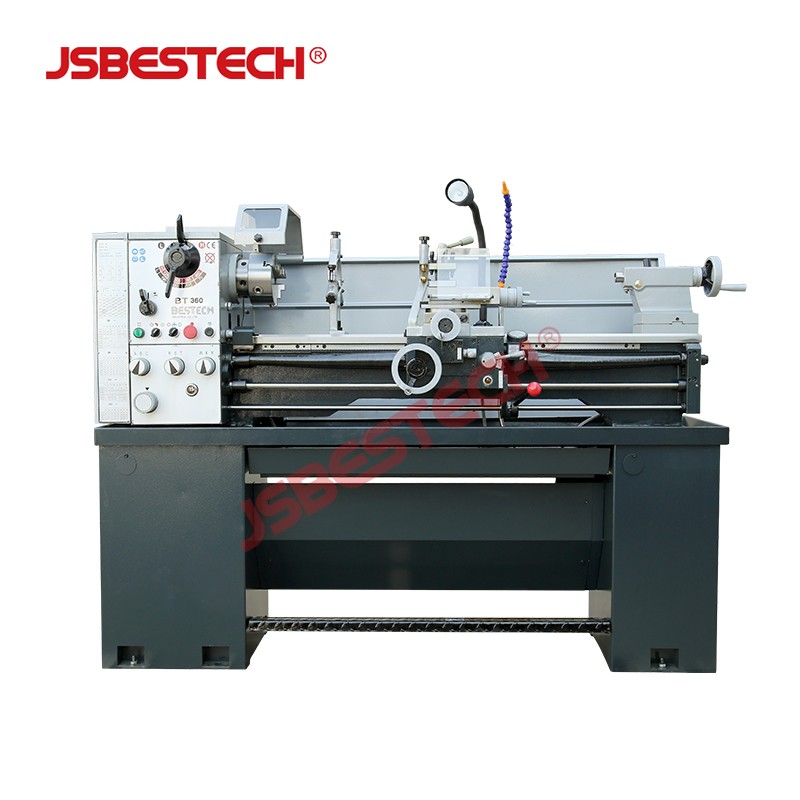

BT360 High Precision Automatic Bench Lathe
Jiangsu Bestech Industrial Co., Ltd. presents the BT360 High Precision Automatic Bench Lathe, a robust and versatile machine designed for precision turning operations. With a maximum turning diameter of Ø360mm and a swing over cross slide of Ø224mm, this lathe offers ample capacity for a wide range of workpieces. Its 187mm bed width ensures stability and accuracy during demanding tasks.
Key Features
- Maximum turning diameter: Ø360mm
- Swing over cross slide: Ø224mm
- Distance between centers: 1000mm
- Center height: 179mm
- Width of bed: 187mm
- Spindle nose: D1-5
- Spindle bore: Ø40mm (Optional)
- Taper of spindle bore: MT5
- Spindle speed (8 steps): 70~2000rpm
- Top slide travel: 95mm
- Cross slide travel: 170mm
- Max. section of tools: 16x16mm
- Range of metric threads (44 kinds): 0.1~7mm
- Range of inch threads (42 kinds): 4~112 T.P.I
- Lead screw diameter: Ø22mm
- Lead screw thread: 3mm or 8T.P.I
- Tailstock quill diameter: Ø32mm
- Tailstock quill travel: 100mm
- Taper of tailstock quill: MT3
- Motor power: 1.5kw
- Voltage: 380V~440V (3PH)

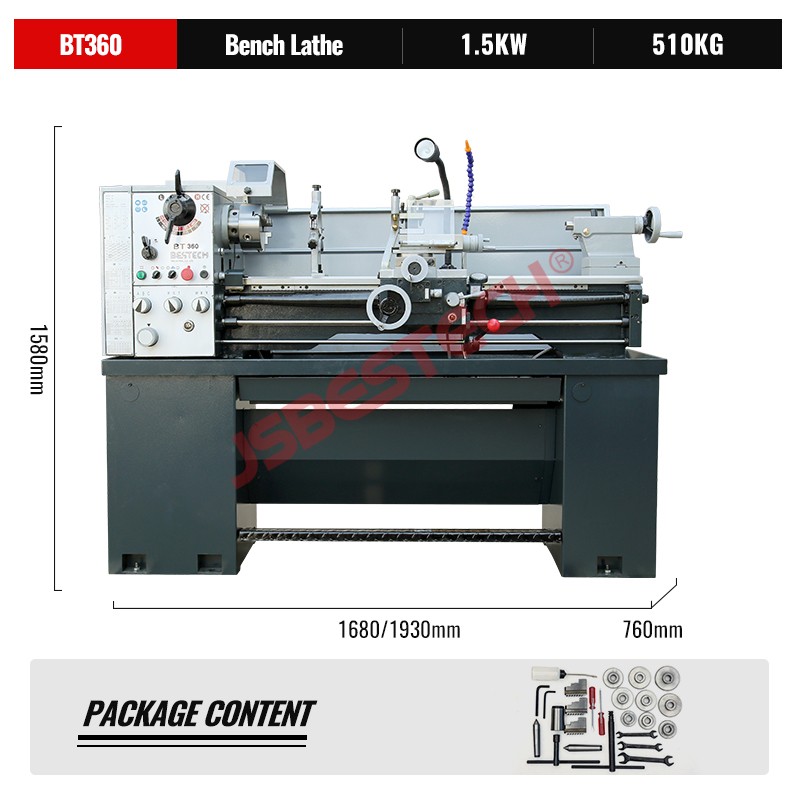

- Packing size: (1680/1930)x760x1580mm
Specifications
| Parameter | Value |
|---|---|
| Turning diameter (Max.) | Ø360mm |
| Swing over cross slide | Ø224mm |
| Distance between centers | 1000mm |
| Center height | 179mm |
| Width of bed | 187mm |
| Spindle nose | D1-5 |
| Spindle bore | Ø40mm (Optional) |
| Taper of spindle bore | MT5 |
| Spindle speed (8 steps) | 70~2000rpm |
| Top slide travel | 95mm |
| Cross slide travel | 170mm |
| Max. section of tools | 16x16mm |
| Range of metric threads (44 kinds) | 0.1~7mm |
| Range of inch threads (42 kinds) | 4~112 T.P.I |
| Lead screw diameter | Ø22mm |
| Lead screw thread | 3mm or 8T.P.I |
| Tailstock quill diameter | Ø32mm |
| Tailstock quill travel | 100mm |
| Taper of tailstock quill | MT3 |
| Motor power | 1.5kw |
| Voltage | 380V~440V (3PH) |
| Packing size | (1680/1930)x760x1580mm |
For more information or to discuss your specific requirements, please contact Jiangsu Bestech Industrial Co., Ltd.
What is BT360 High Precision Automatic Bench Lathe?
The BT360 High Precision Automatic Bench Lathe is a bench-mounted metalworking lathe designed for turning, facing, and thread cutting. It offers a maximum turning diameter of Ø360 mm and a distance between centers of 1000 mm, with a spindle speed range of 70–2000 rpm across 8 steps. The machine features a Ø40 mm spindle bore (optional), MT5 spindle taper, and a 1.5 kW motor operating on 380–440 V three-phase power. It is suitable for workshop and light industrial applications requiring precise machining of small to medium-sized parts.
Applications
- Turning and facing of cylindrical metal workpieces up to Ø360 mm
- Thread cutting with metric (0.1–7 mm) and inch (4–112 T.P.I) threads
- Drilling and boring using the tailstock with MT3 quill
- Machining of small to medium-sized parts in maintenance and repair shops
- Production of custom components in educational and vocational training settings
FAQ
What is the maximum turning diameter of the BT360 lathe?
The maximum turning diameter is Ø360 mm.
What is the spindle speed range of this lathe?
The spindle speed range is 70 to 2000 rpm, with 8 steps.
What is the distance between centers?
The distance between centers is 1000 mm.
What motor power does the BT360 require?
The lathe is equipped with a 1.5 kW motor and operates on 380–440 V three-phase power.
What threading capabilities does the BT360 offer?
It can cut 44 kinds of metric threads (0.1–7 mm) and 42 kinds of inch threads (4–112 T.P.I).
