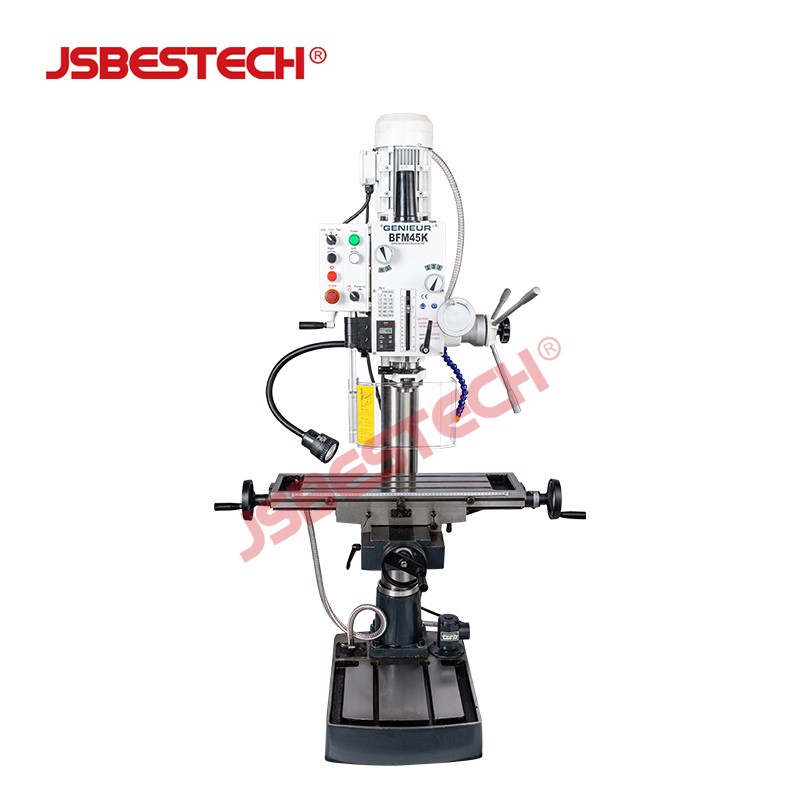

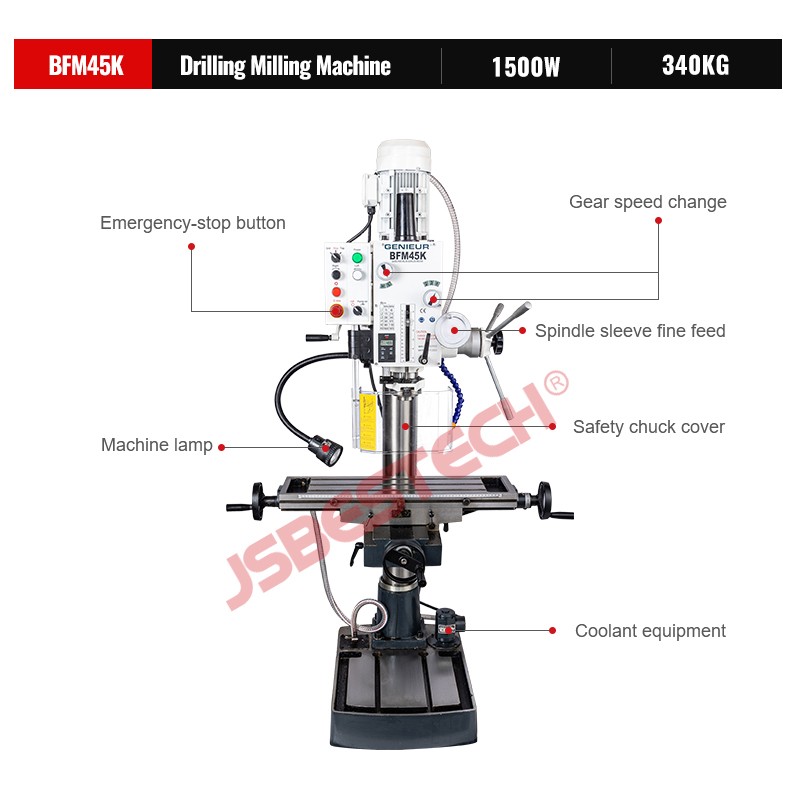

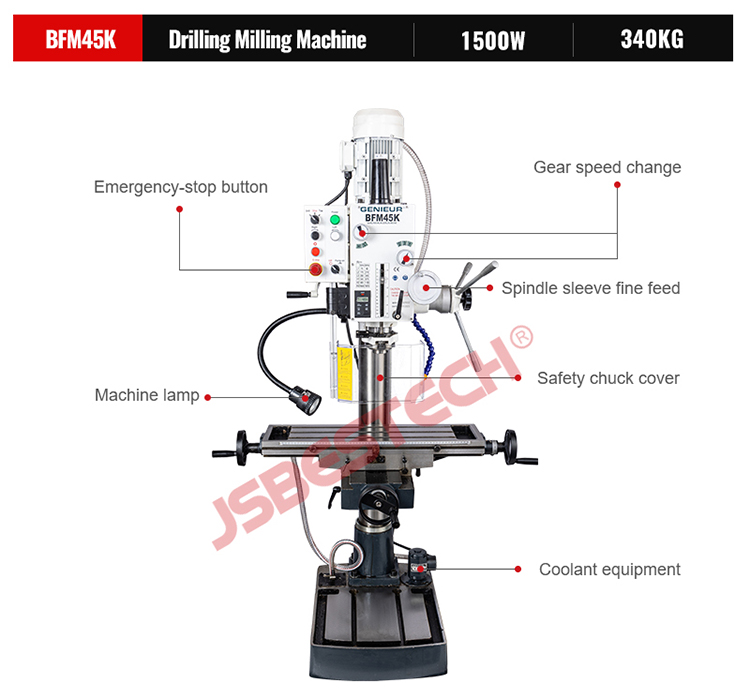

BFM45K Drilling Milling Machine
Jiangsu Bestech Industrial Co., Ltd. presents the BFM45K Drilling Milling Machine, a versatile and robust solution for precision drilling and milling operations. Designed for efficiency and accuracy, this machine is ideal for workshops, maintenance facilities, and small-scale production environments.
Key Features
- Powerful Performance: Equipped with a 1500W motor, the BFM45K delivers reliable power for demanding tasks.
- Versatile Spindle: Offers a spindle taper of MT4/R8 and a speed range of 75~1600rpm (optional 75~3200rpm) with 6 or 12 speed steps.
- Flexible Head: The head tilts ±90° left and right, allowing for angled drilling and milling operations.
- Generous Capacities: Handles max drilling capacity of Ø40mm in iron and Ø32mm in steel, end milling up to Ø32mm, and face milling up to Ø80mm.
- Sturdy Worktable: The 730×210mm worktable provides ample space, with X/Y-axis travel of 500×190mm and a 12mm T-slot for secure workpiece clamping.
- Optional Enhancements: Automatic spindle feeds (0.1/0.18/0.26mm/r) and a 40W cooling motor are available as options.
Technical Specifications
| Model | BFM45K |
|---|---|
| Max. drilling capacity | Iron Ø40mm / Steel Ø32mm |
| End milling capacity | Ø32mm |
| Face milling capacity | Ø80mm |
| Spindle taper | MT4/R8 |
| Spindle travel | 120mm |
| Range of spindle speed | 75~1600rpm / 75~3200rpm (Optional) |
| Head tilt left and right | ±90° |
| Step of spindle speeds | 6 / 12 (Optional) |
| Automatic spindle feeds | 0.1/0.18/0.26mm/r (Optional) |
| Working table size | 730×210mm |
| Dimension base | 650×450mm |
| Worktable X/Y-Axis travel | 500×190mm |
| T-slot | 12mm |
| Distance between spindle and column | 260mm |
| Max distance spindle to table | 610mm |
| Motor power | 1500W |
| Cooling motor | 40W (Optional) |
Applications
The BFM45K is suitable for a wide range of drilling and milling tasks in metalworking, including component manufacturing, repair, and prototyping. Its robust construction and flexible features make it a valuable addition to any machine shop.
Why Choose Jiangsu Bestech Industrial Co., Ltd.?
With a commitment to quality and customer satisfaction, Jiangsu Bestech Industrial Co., Ltd. provides reliable machinery solutions. The BFM45K is manufactured to meet high standards, ensuring durability and consistent performance.
For more information or to discuss your specific requirements, please contact us.
What is BFM45K Drilling Milling Machine?
The BFM45K Drilling Milling Machine is a versatile machine tool designed for both drilling and milling operations. It features a 730mm x 210mm worktable with 500mm x 190mm X/Y-axis travel, allowing for precise positioning of workpieces. The machine offers a maximum drilling capacity of Ø40mm in iron and Ø32mm in steel, an end milling capacity of Ø32mm, and a face milling capacity of Ø80mm. With a spindle speed range of 75~1600rpm (optional 75~3200rpm) and a head that tilts ±90°, it is suitable for a variety of machining tasks.
Applications
- Drilling and milling operations in metalworking
- Face milling and end milling of iron and steel workpieces
- Machining of medium-sized components in maintenance shops
- Production of parts requiring angled drilling or milling due to tilting head
- General-purpose machining in tool rooms and fabrication shops
FAQ
What is the maximum drilling capacity of the BFM45K?
The BFM45K has a maximum drilling capacity of Ø40mm in iron and Ø32mm in steel.
What is the spindle speed range of this machine?
The standard spindle speed range is 75~1600rpm, with an optional range of 75~3200rpm.
Can the head be tilted for angled operations?
Yes, the head can tilt left and right up to ±90 degrees.
What are the dimensions of the worktable?
The worktable size is 730mm x 210mm, with X/Y-axis travel of 500mm x 190mm.
What is the spindle taper of the BFM45K?
The spindle taper is MT4/R8.
